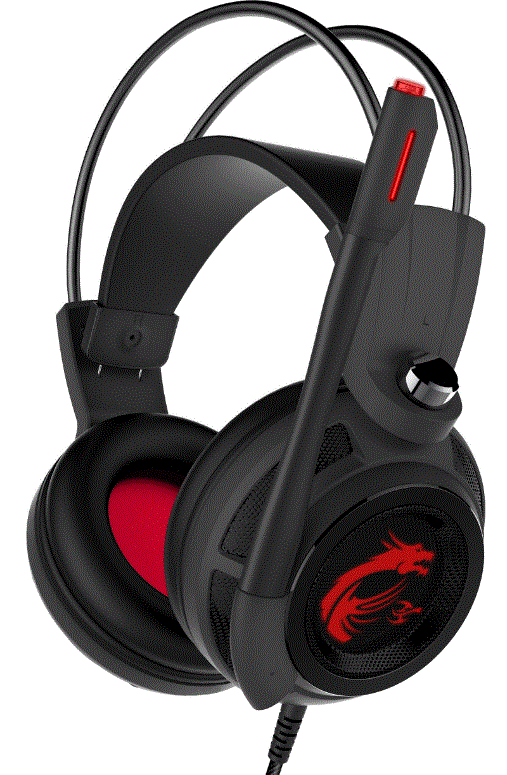

msi DS502 USB Gaming Headset

msi-DS502-USB-Gaming-Headset-Product

Introduction

Thank you for choosing the MSI GAMING product and welcome to enjoy an astonishing audio and gaming experience with DS502 GAMING Headset. The solid over-designed DS502 gives not only MSI’s exclusive ergonomic design but also the powerful 40mm dynamic drivers. Find out what you can get from DS502 now!

Unpacking

  • MSI DS502 GAMING
  • Headset User Guide
  • CD

System Requirements

PC, laptop, or mobile device with a standard USB port available

Specifications

  • Speaker
    • Drivers: 040mm
    • Frequency Response: 20Hz-20KHz
    • Sensitivity (S.P.L): 105 t 3dB @ 1KHz
    • Impedance: 32 ohm
    • Connector: USB
    • Cable Length: 2m
    • Approximate Weight: 4059
  • Microphone
    • Mic Dimension: Ø6.0 x 3.O mm
    • Directivity: Omnidirectional
    • Sensitivity: -36 + 3dB @ at 1KHz
    • Impedance: S 2.2k 2

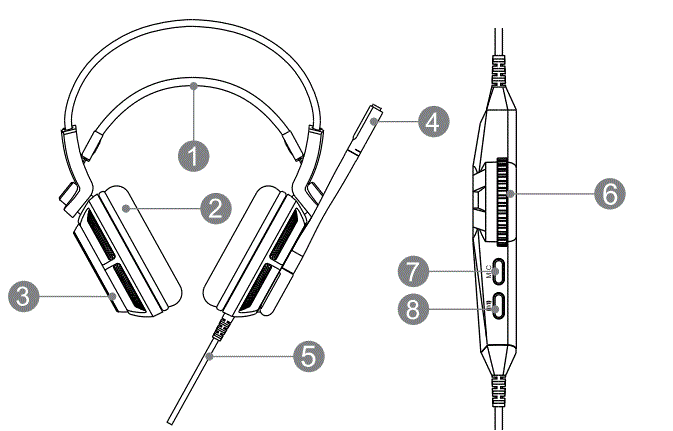

Overview

msi-DS502-USB-Gaming-Headset-fig-1

  1. Self-Adjusting Headband
  2. Circumaural, Leatherette Ear Cushions
  3. MSI Dragon Logo Lighting
  4. Adjustable High-Quality Microphone
  5. Braided Cable
  6. Volume Control
  7. Microphone ON/OFF
  8. Advanced BASS (Vibration) ON/OFF
    • For more information, please visit MSI’s official website.

Support

No.69, Lide st., Zhonghe Dist., New Taipei City 235, Taiwan(R.O.C.)
tel:+886-2-3234-5599
fax: +886-2-3234-5488 www.msi.com
