HSDBU24 Inteliplinth Heater Specification Sheet
Technical Details
| Controls | Digitally controlled, accurate electronic thermostat. Timer modes: 7 Day Programmable User Timer Continuous heat modes: Manual, Runback, Off |
| Controller Functions | Adaptive Start Advance time period Adjustable SP range (7- 32°C)Bluetooth for control |
| Controller UI | Button to initiate pairing with remote controls via Bluetooth remote |
| Controller UI | Durable epoxy-polyester powder-coated grille with galvanized steel body |
| Element | Modulating heat output via 3 stages stitched element with integral thermal cut-out |
| Installation | Screwed location to the plinth. Adjustable foot support at the rear |
| Safety | Electrical reset, self-hold cut-out |
| IP Rating | IP20 |
| Battery Back-Up | None. In the event of power loss, re-pairing the Bluetooth remote to the appliance will automatically reset the time and date. |
| Supply | 1.3 meters fitted, 3 core for fused spur installation,1/N/PE ~230- 240 V, 50 Hz Class I, with earth wire |

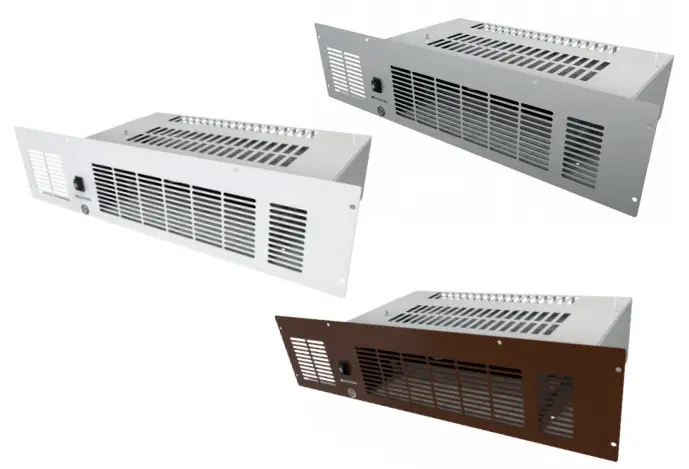

| Colour / Finish | Air Outlet Grille options: • Traffic White (RAL 9016) • Brown • Brushed Stainless Steel |
Product Description
The HSDBU24 Inteliplinth features a seven-day timer with an electronic thermostat making it a perfect extension to Heat store panels and storage heaters.
This heater fits into the plinth space under cabinets in rooms with wall space restrictions
Key Features
- User-programmable room temperatures with a seven-day timer
- Accurate electronic thermostat
- Features energy-saving Adaptive Start technology
- Same size and fixings as an older Heat store
Plinth heaters - Forward-facing grille with fan-assisted output for optimum heat circulation
- Choice of the different colored grille to blend in with kick space
- Remote control via Bluetooth remote
- Complies with Lot 20 of ERP Directive

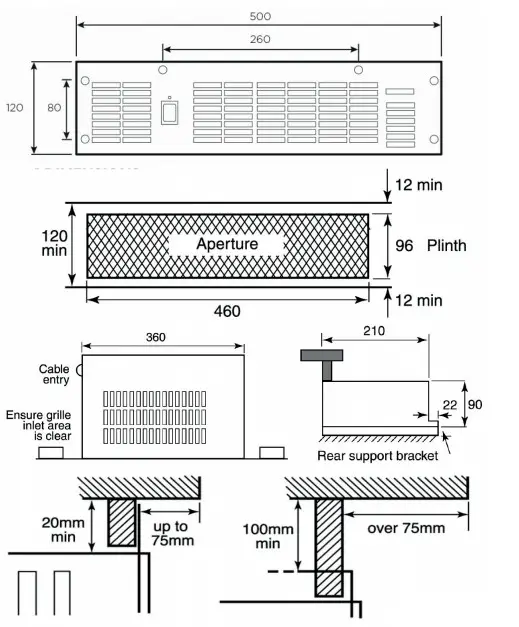

Dimensions
Model HSDBU24 | ||
| Output (kW) | 2.4kW | |
| Front Cover | Chassis | |
| Height (mm) | 120 | 90 |
| Width (mm) | 500 | 360 |
| Depth (mm) | 226 | 210 |
| Weight (kg) | 3.5 | |
Packaging Details | |
| Barcode | 5020669519434 |
| Height (mm) | 250 |
| Width (mm) | 510 |
| Depth (mm) | 150 |
| Packed Weight (kg) | 4.5 |
| Ti | 13 |
| Hi | 7 |
| Pallet Quantity (2.4m high) | 91 |
Warranty & Approvals | |
| Approvals | CE, BAB |
| Warranty | 2 years of on-site service |
| Country of Origin Manufacturer | Ireland |
| Approvals | Heat store |
Tel: +44 (0)117 923 5375
Email: [email protected]
VERSION 3 06/21
