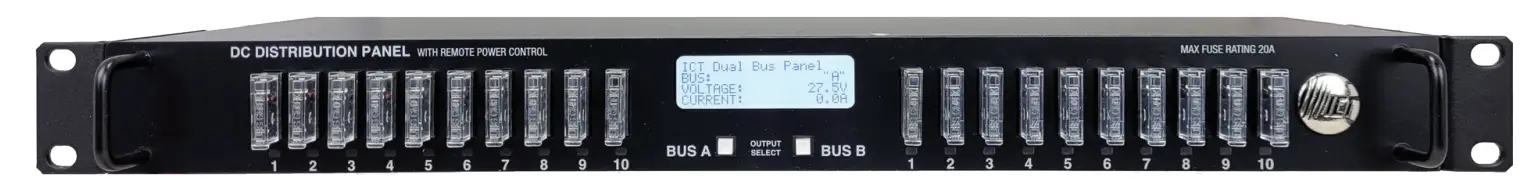

HELIOS ICT200DF-20BRC Smart GMT DC Load Distribution Panel
Introduction
The ICT200DF-20BRC is an intelligent, dual bus, DC load distribution GMT fuse panel with remote monitoring and power control over Ethernet. Each bus is rated at 100A continuous and provides 10 GMT fuse positions, each rated at 20 Amps maximum. The ICT200DF-20BRC is designed for sites requiring I.P.-based remote monitoring and power control of up to 20 connected loads.
Overview
The ICT200DF-20BRC DC Distribution Panel provides a dual bus, common ground 1RU solution for applications requiring remote monitoring and power control of up to 20 individual loads. The on-board TCP/IP and web server provide an easy to use, graphical user interface for remote management and power control of system and individual outputs. Each bus supports up to ten 20A GMT fuses for 48 or 24 volt DC applications.
Dual voltages and polarities can be supported on a single panel, useful for sites requiring -48 and +48 or -48 and +24 volts DC to be distributed simultaneously.
Alarms can be sent to multiple email accounts, and each output has definable load-shed settings. The network watchdog feature will ping up to 12 pre-determined I.P. addresses, such as a router, and power-cycle the device if not answered.
There are five digital inputs for connecting site monitoring sensors such as door, fire, and water alarms. These alarms can be given individual names and be sent as email alarm notifications.
The on-board web server means there is no software to maintain, and SNMPv3 is also supported. Firmware can be updated remotely over Ethernet.
The ICT200DF-20BRC allows each connected load to be monitored, power cycled, or taken off-line. This functionality can be used to conserve power, troubleshoot devices, and reboot connected loads remotely, possibly preventing or delaying the need for a costly site visit
Features
- 200A continuous system rating / 100A per bus
- +/-24 or +/-48 VDC
- 20A GMT fuses per output (16A continuous)
- TCP/IP remote management and power control of individual outputs
- Ten fully managed outputs per bus
- Independent Form C alarm contacts for each bus
- Remote firmware update capability
- HTTPS, SMTP, SNMPv3 protocols supported
- Monitoring and alarm reporting of each output for pinpointing of issues with connected loads
- Each output has adjustable load-shed settings
- Adjustable power-on sequencing
- Site monitoring sensor inputs with alarm reporting
- Data logging
- 2-year warranty
Applications
- Fixed Wireless Broadband
- Radio Access Networks
- DAS
- Remote Sites
- Secondary Distribution
Power Specifications
| Operating Voltage Range (POS | or | NEG) | 20-60VDC |
| System Current Rating | 200A cont | ||
| A/B Bus Current Rating | 100A cont | ||
| Number of Outputs per Bus | 10 | ||
| Max. GMT Fuse Size | 20A (1) | ||
| Continuous Load Rating | 16A per output | ||
Environment
| Operating Temperature Range | -20 ℃ to +60 ℃ |
| Cooling | Convection |
Mechanical
| Form Factor | 1RU – 19 Inch rack mount |
| Dimensions L x W x H | 9.4 x 19.0 x 1.7 in 236 x 483 x 45 mm |
| Weight (lbs/kg) | 9.5 lbs / 4.3 kg |
| Input Connectors | Dual 1/4” – 20 studs with 0.625” spacing |
| Output Connectors | Cage clamp 10-22AWG |
Design Standards
FCC, CE, ROHS
Warranty
Two years
Communications and Control
| Ethernet | TCP/IP built-in web server and graphical user interface, 10/100BASE-T, IEEE 802.3 compatible |
| Supported Protocols | IPv4, HTTP, HTTPS, SMTP, DNS, TCP, UDP, ICMP, DHCP, ARP, SNMPv1/v2c/v3 |
| SNMP Ports | UDP Port 161, SNMP Traps: UDP Port 162 |
| Firmware Upgrades | Upgradeable over Ethernet |
| Security | Password protection, HTTPS encryption, TLS 1.2 |
| 20 Channel Output Monitoring | Current draw measured and reported for each output, user definable under and over current alarms |
| Email and SMS Alerts | Multiple email or text accounts, adjustable intervals |
| Data Logging | Up to 30 days at 1 minute sampling rate, csv file download, major event logging |
| Network Watchdog | Autonomously ping up to 12 I.P. addresses and power-cycle output if no response, definable settings |
| Power Cycling and Rebooting | Remote on/off control of every output individually |
| Auto Restore Mode | Return to previous output settings after a power loss |
| Power-up Delay Sequencing | User selectable 0 to 60 second delay between outputs |
| Auto Load Shedding | Each output user definable, manual or auto restart |
Configurable Alarms
- Channel over current threshold
- Channel over/under current
- Bus over current
- Automatic load shedding
- Bus over/under voltage threshold
- Site monitoring input contact status
Site Monitoring Inputs
| Max. GMT Fuse Size | 5 | ||
| Connector type | Removable cage clamp 16-28AWG | ||
Ordering Information
| Model Number | Description |
| ICT200DF 20BRC | Dual bus common ground 10-10 GMT fuse DC distribution panel (fuses not included) |
| ICT-RA2319 (2) | ICT 23 to 19 inch, 1RU rack mount reducer kit |
(1) GMT fuses not supplied by ICT
(2) Option, orderable separately
