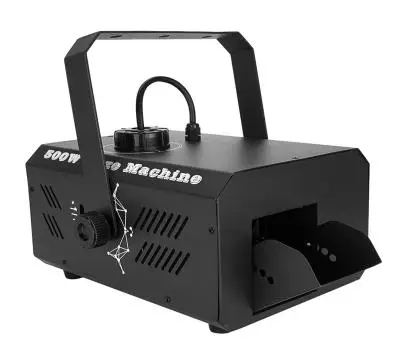

Batmink EFF720H 500W Snow and Smoke Machine
PRECAUTIONS
The 500W Haze Machine is designed and constructed so that it can be used in a safe manner. Specifically, this refers to the usage, situations, and prescriptions for the device as described in this documentation .must be installed by a qualified professional. All maintenance must be carried out by a qualified electrician. It is the responsibility of all electrician to use the 500W Haze Machine to read and follow the instructions in this manual.
GENERAL SAFETY RULES
- Keep this device dry.
- Always connect to a grounded circuit to avoid risk of electrocution.
- Before connecting machine to power, always check voltage indicate on machine match to your local AC voltage. Do not use the machine if AC power voltage does not match.
- Disconnect the machine from AC power before servicing and when not in use. This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled, disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts, immediately unplug the machine.
- No user serviceable and modifiable parts inside. Never try to repair this product, an unauthorized technician may cause damage or malfunction to the machine. For adult use only. Never leave the machine running unattended.
- Installed the machine in a well-ventilated area. Provide at least 50 cm space around the machine.
- Never add flammable liquid of any kind to the machine.
- Make sure there are no flammable materials close to the machine while operating.
- Only use MOKA SFX fluid. Other fluid may lead to heater clog and malfunction.
- If the machine fails to work, unplug the machine and stop operation immediately. Before transporting the machine, make sure the fluid tank is completely drained. Fog fluid may present health risks if swallowed. Do not drink fog fluid. Store it securely. In case of eye contact or if fluid is swallowed, immediately look for medical advice.
TECHNICAL DATA
| Product Name | 500W Haze Machine |
| Heat-up Time | 80S |
| Control Method | Manual,DMX512 and Remote |
| DMX Connectors | 3-pin XLR |
| Oil Tank Capacity | 1 Liters |
| Voltage Input (Vac) | 100-120V or 200- 240 Vac |
| Voltage Frequency | 50 or 60 Hz |
| Fuse | 10A |
| DMX Channel | 2 |
| Power Consumption (Vac) | 500W |
| Consumable (s) | Haze Fluid |
| Fluid Consumption (L/H) | 6 Hours /L |
| Coverage | 70sqm/ 3Min |
| Product Size | 33x27x28cm |
| Packing Size | 41x30x24.5cm |
| N.W | 4.1 kg |
| G.W | 5.1 kg |
| Haze volume | Adjustable |
| Haze speed | Adjustable |

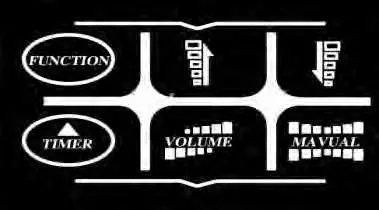

OPERATION OF DISPLAY
| Function | Main Menu Function Selection |
| UP | Modify Parameter Value |
| DOWN | Modify Parameter Value |
| Timer | Timing Start/Stop |
| Volume | Output Start/Stop |
| Manual | Wind Speed Setting |
LCD FUNCTION TABLE
| LCD Display | Instruction |
| Ready Haze | Preheating is complete, the machine is ready, you can spray smoke |
| Warning xxS | In the heating, countdown XX seconds |
| Interval Set xx | Interval setting |
| Duration Set xx | Spray time setting |
| DMX512 Set xxx | DMX address code set ing |
| Volume Set xxx | Spray output size setting |
| Fan Speed Set xxx | Fan Speed Setting |
DMX512 CHANNEL TABLE
2 CHANNEL
| Channel 1 | Fan On/Off and Haze Speed from Slow to Fast |
| Channel 2 | Haze Volume from Small to Large |
FEATURES
The Angle Of The Baffle Can Be Manually Adjusted To Control The Smoke Output Angle.
Support Lcd Control, Dmx512 Control, Remote Control.
Fluid Level Indicator, Easily To See The Volume Of Liquid Inside the Tank Unique Heat Dissipation Structure On Both Side , Quick Dissipation, Cool The Product Temperature Down When The Hazer Power Is Running Smoke Volume And Speed Adjustable.
TROUBLESHOOTING
Always contact our company if any malfunctions or errors occur that cannot be solved with the instructions as described in this manual.
