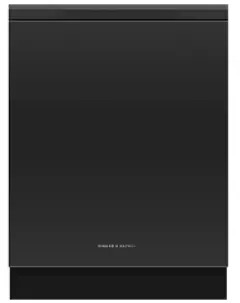

FISHER PAYKEL DW60UZ6B FP AA Built-under Dishwasher
INTRODUCTION
INTRODUCTION

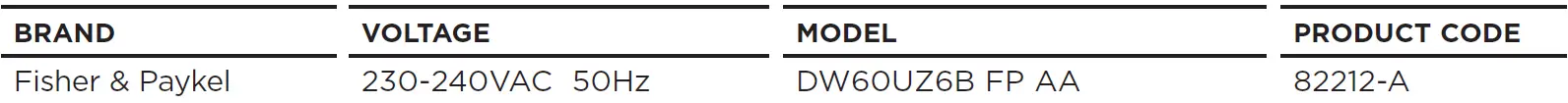

MODELS
- The models covered by this manual are listed on the front cover.
- The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.
KIT PARTS
Where a part number is shown against the descriptions for these kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.

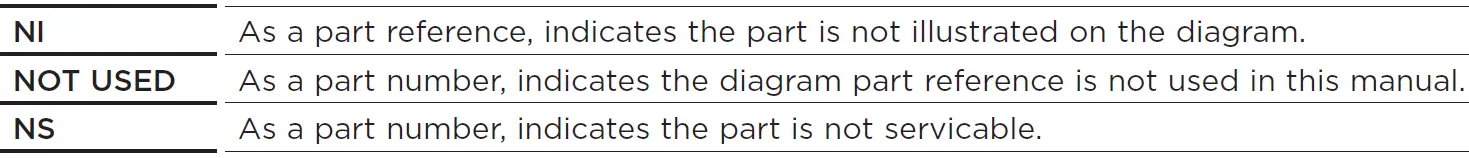

PARTS LIST KEY

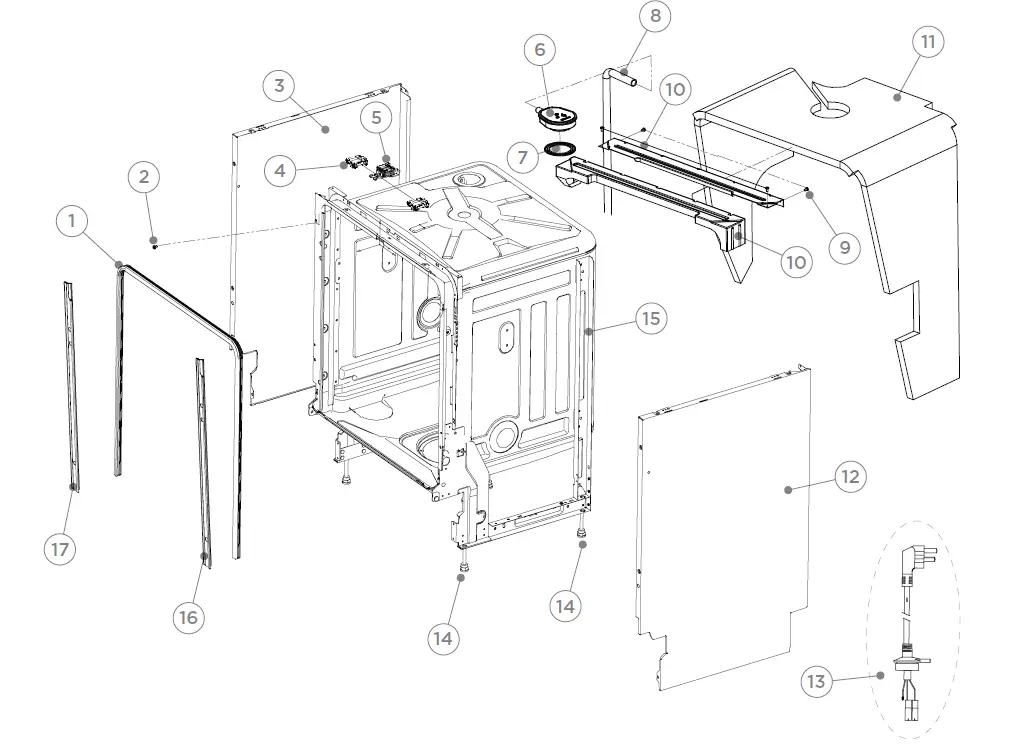

CHASSIS & TUB COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | H0120300248E | GASKET TUB | ||
| 2 | H0120600754 | SCREW ST3.5 17 | ||
| 3 | H0120100421A | PANEL SIDE LEFT WHITE | ||
| 4 | H0120400216 | LIGHTS INTERIOR | ||
| 5 | H0120801601 | DOOR LOCK/HOOK ASSEMBLY | ||
| 6 | H0120802341 | HOUSING THERMO DRY | ||
| 7 | H0120200605 | GASKET SEALING | ||
| 8 | H0120200604 | HOSE THERMO DRY | ||
| 9 | H012G8010123 | BOLT | ||
| 10 | H0120201556 | SUPPORT CROSSPIECE UPPER REAR | ||
| 11 | H0120300074 | FELT SOUND DEADENING SIDE/TOP | ||
| 12 | H0120100422A | PANEL SIDE RIGHT WHITE | ||
| 13 | H0120400238 | POWER SUPPLY CABLE | ||
| 14 | H012G1451092A | REAR FOOT ADJUSTABLE BUILT IN | ||
| 15 | NS | TUB ASSEMBLY | ||
| 16 | H0120300100A | GASKET TUB DOOR GASKET RIGHT | ||
| 17 | H0120300100 | GASKET TUB DOOR GASKET LEFT |

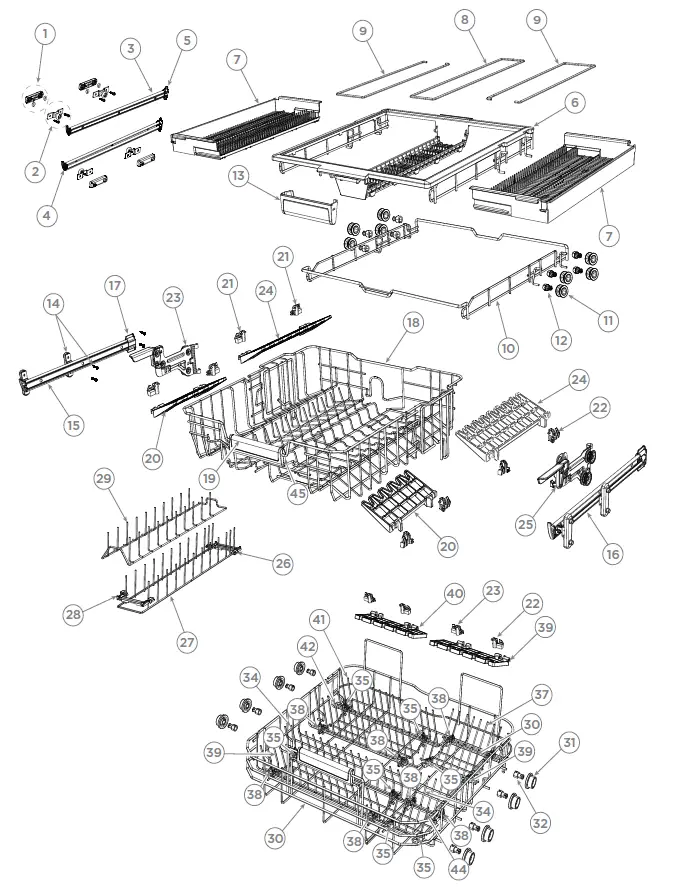

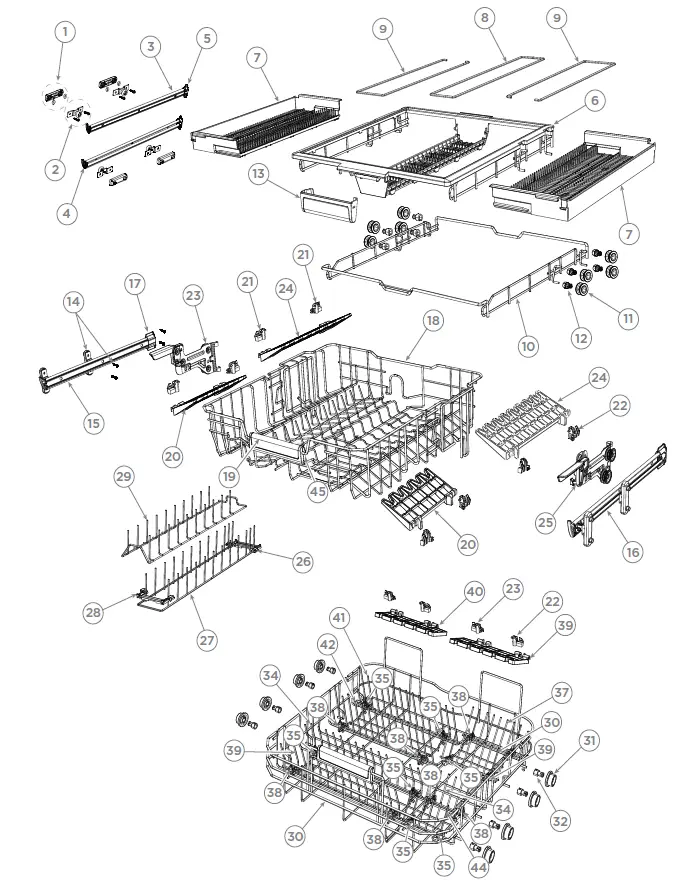

BASKET COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | |
| 1 | H0120200872 | RAIL SUPPORT-PLASTIC | |
| 2 | H0120802832 | RAIL SUPPORT-SS | |
| 3 | H0120802833 | 3RD RAIL RH | |
| 4 | H0120802833A | 3RD RAIL LH | |
| 5 | H0120200895A | 3RD RAIL STOP BACK | |
| 6 | H0120201178B | KNIFE RACK | |
| 7 | H0120201178C | KNIFE RACK MOVEABLE | |
| 8 | H0120101078A | 3RD RACK SUPPORT-1 | |
| 9 | H0120101078B | 3RD RACK SUPPORT-2 | |
| 10 | H0120101078 | 3RD RACK SUPPORT | |
| 11 | H0120201141 | WHEEL | |
| 12 | H0120200871A | WHEEL SUPPORT | |
| 13 | H0120803302A | HANDLE ASSY 3RD RACK | |
| 14 | H0120802832A | MID RAIL SUPPORT | |
| 15 | H0120802954 | MID RAIL-LEFT | |
| 16 | H0120802949 | MID RAIL-RIGHT | |
| 17 | H0120200895A | ENDCAP RAIL | |
| 18 | H0120803059 | UPPER BASKET | |
| 19 | H0120803302 | HANDLE FRONT ASSY | |
| 20 | H0120201180 | CUP RACK | |
| 21 | H0120201180B | CUP RACK SUPPORT-LEFT | |
| 22 | H0120201180C | CUP RACK SUPPORT-RIGHT | |
| 23 | H0120802976 | LIFTING MECHANIC-LEFT | |
| 24 | H0120201180A | CUP RACK-BIG | |
| 25 | H0120802975 | LIFTING MECHANIC HANDLE-RIGHT | |
| 26 | H0120201181 | BASKET SUPPORT | |
| 27 | H0120101075 | ADJUSTABLE WIRE-1 | |
| 28 | H0120201181A | BASKET SUPPORT-1 | |
| 29 | H0120101075A | ADJUSTABLE WIRE-2 | |
| 30 | H0120803065 | LOWER BASKET | |
| 31 | H0120200377 | WHEEL LOWER BASKET | |
| 32 | H0120200324 | AXEL STUB LOWER BASKET | |
| 33 | H0120101082F | FOLD DOWN WIRE-4-LEFT | |
| 34 | H0120101082G | FOLD DOWN WIRE-4-RIGHT | |
| 35 | H0120202827B | CLIP FOLD DOWN |
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 36 | H0120101082B | FOLD DOWN WIRE-2-LEFT | ||
| 37 | H0120101082C | FOLD DOWN WIRE-2-RIGHT | ||
| 38 | H0120202828B | CLIP FOLD DOWN | ||
| 39 | H0120201180E | WINE GLASS SUPPORT-RIGHT | ||
| 40 | H0120201180F | WINE GLASS SUPPORT-LEFT | ||
| 41 | H0120101082 | FOLD DOWN WIRE-1-RIGHT | ||
| 42 | H0120101082A | FOLD DOWN WIRE-1-LEFT | ||
| 43 | H0120101082D | FOLD DOWN WIRE-3-RIGHT | ||
| 44 | H0120101082E | FOLD DOWN WIRE-3-LEFT | ||
| 45 | H0120802868C | CONTAINER CHOPSTICKS | ||
| 46 | H0120201179B | HANDLE BACK |

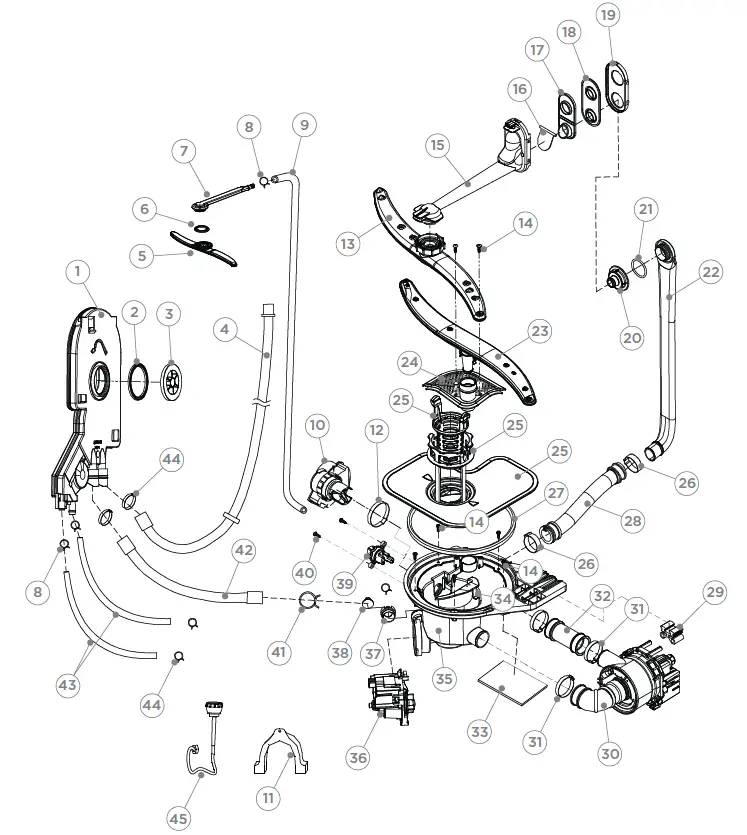

SPRAY ARM COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | |
| 1 | H0120801702A | WEIR INCL FLOW METER | |
| 2 | H0120200382 | O-RING GASKET WEIR | |
| 3 | H0120200401 | NUT BREATHER RING WEIR | |
| 4 | H0120200643 | HOSE DRAIN (LONG) | |
| H0120802419 | HOSE DRAIN | ||
| 5 | H0120802830 | UPPER SPRAYER ASSY | |
| 6 | H0120301022 | O RING GASKET | |
| 7 | H0120200906 | UPPER SPRAY BASE | |
| 8 | H012G1040020 | CLAMP HOSE | |
| 9 | H0120301040A | HOSE TOP SPRAYER | |
| 10 | H0120400063 | DIVERTER ASSEMBLY | |
| 11 | 420667P | U-SUPPORT FOR DRAIN HOSE | |
| 12 | H0120600020 | CLAMP HOSE | |
| 13 | H0120202776 | SECOND SPRAYER ASSEMBLY | |
| 14 | H0120600160 | SCREW NST4.2 X 13 | |
| 15 | H0120202778B | TRANSITION TOP GREY | |
| 16 | H0120300328 | VALVE FLAP UPPER SPRAYARM | |
| 17 | H0120202255 | HOUSING FLAP VALVE | |
| 18 | H0120300329 | SEALING GASKET | |
| 19 | H0120202257 | COVER TOP TRANSITION | |
| 20 | H0120201630 | BASE SECOND SPRAYER | |
| 21 | H0120300212 | O-RING GASKET | |
| 22 | H0120201603A | OUTER DUCT CONNECTION | |
| 23 | H0120200366 | LOWER SPRAYER | |
| 24 | H0120200367 | COVER LOWER SPRAYER | |
| 25 | H0120801704 | FILTER ASSEMBLY DW60 | |
| Includes | FILTER COARSE | ||
| Includes | FILTER MICRO STAINLESS | ||
| Includes | FILTER FLAT EXTRACTABLE SS | ||
| 26 | 791097 | CLAMP HOSE 20-32MM | |
| 27 | H0120300251 | GASKET | |
| 28 | H0120200376 | HOSE DIVERTER OUTER DUCT | |
| 29 | H0120200359 | MOUNT RUBBER WASH PUMP | |
| 30 | H0120400061F | PUMP WASH (BLAC) INCL HEATER | |
| 31 | H0120105775 | CLAMP HOSE 32-50MM | |
| 32 | H0120200358 | PIPE DIVERTER MOTOR PUMP |
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 33 | H0030508588J | FIRE BLANKET | ||
| 34 | H0120200378 | SCREEN SUMP OUTLET | ||
| 35 | H0120802652C | SUMP ASSY | ||
| 36 | H0120400050B | DRAIN PUMPA | ||
| 37 | H0120200374 | FRAME NON RETURN VALVE | ||
| 38 | H0120200373 | FLAP NON RETURN VALVE | ||
| 39 | H0120400076 | SENSOR TEMP/TURBIDITY (EMZ) | ||
| 40 | H012G801050 | SCREW ST3.9 13 | ||
| 41 | H0120600024 | CLAMP DRAIN HOSE | ||
| 42 | H0120200672 | HOSE DRAIN SHORT | ||
| 43 | H0120200543B | HOSE | ||
| 44 | H0120600027 | HOSE CLAMP | ||
| 45 | 529855 | HOSE INLET ASSY AA TW KR | ||
| 422680P | HOSE INLET LONG (2M) PKD |

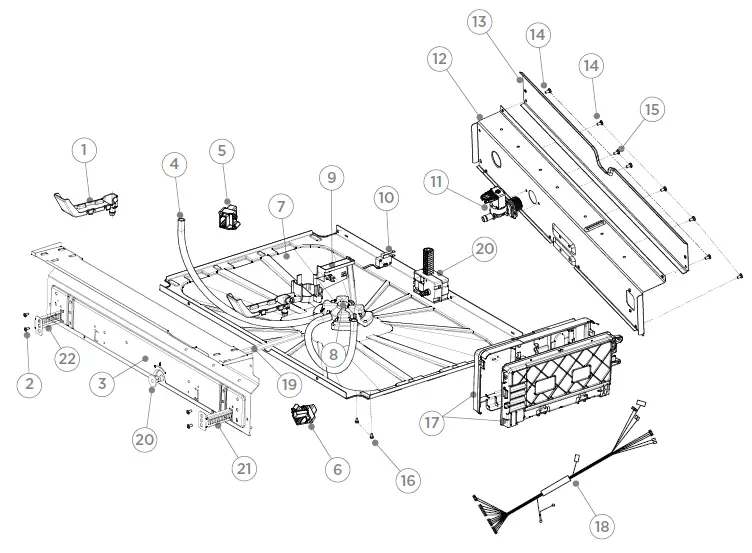

BASE & FLOOD COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | |
| 1 | H0120200365 | PLATE PLASTIC OVERFLOW | |
| 2 | H012G8010102 | SCREW ST3.5 13 | |
| 3 | H0120100829B | PANEL LOWER FRONT | |
| 4 | H0120200635 | HOSE OVERFLOW PLATE | |
| 5 | H0120201475 | BLOCK ADJUSTABLE LEFT | |
| 6 | H0120201477 | BLOCK ADJUSTABLE RIGHT | |
| 7 | H0120100239D | TRAY BOTTOM BASE | |
| 8 | H0120505219A | FLOAT | |
| 9 | H0120202056C | FLOAT SUPPORT | |
| 10 | H012G6050040A | MICRO SWITCH FLOAT SWITCH | |
| 11 | H0120400055G | VALVE INLET SPADE TERMINAL | |
| 12 | H0120100828B | BRACKET LOWER REAR | |
| 13 | H0120100827 | BRACKET MIDDLE REAR | |
| 14 | H012G8010123 | BOLT | |
| 15 | H0010600360 | SCREW M4 8 | |
| 16 | H0020600179 | BOLT | |
| 17 | H0120804002 | PCB MAINBOARD WITH BOX & COVER | |
| Includes | PCB MAINBOARD X 1 | ||
| Includes | FREQUENCY CONVERSION BOARD X 1 | ||
| 18 | H0120400215 | HARNESS CONTROL CABLE BOTTOM | |
| 19 | H0120201844 | LEVER ADJUSTING | |
| 20 | H0120803289 | KIT BACK FOOT | |
| Includes | BACK FOOT ASSY X 1 | ||
| Includes | ADJUSTER HEAD X 1 | ||
| 21 | H0120101276 | BRACKET KICKSTRIP RIGHT | |
| 22 | H0120101275 | BRACKET KICKSTRIP LEFT |

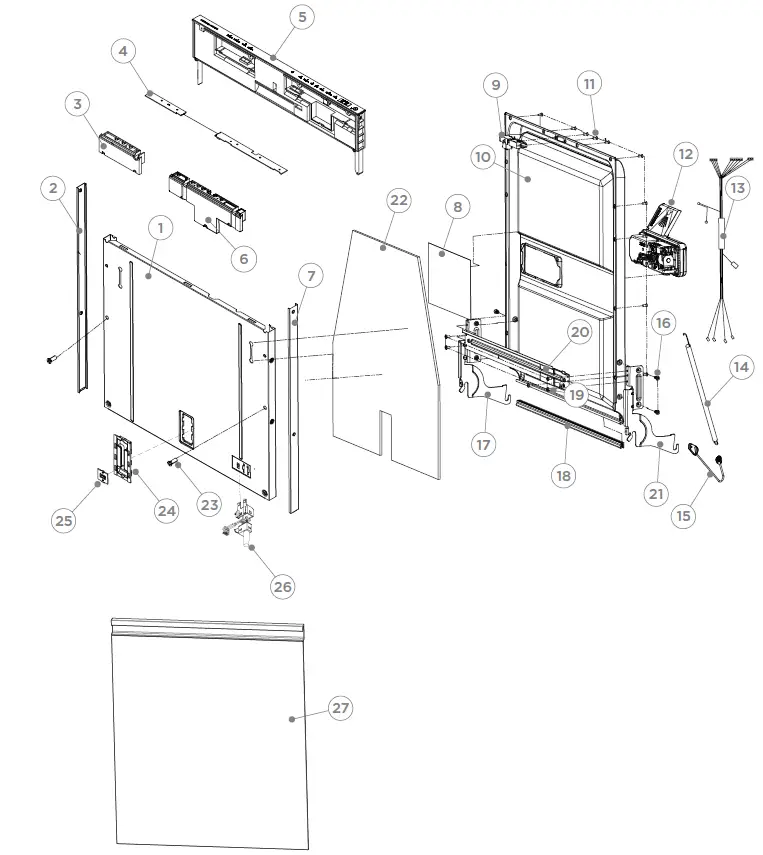

DOOR COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | H0120100425A | PANEL DOOR INTEGRATED GALV | ||
| 2 | H0120803973 | KIT SS SIDE STRIP LEFT | ||
| Includes | SS SIDE STRIP LEFT X 1 | |||
| Includes H0077050051 | SCREW X 2 | |||
| 3 | H0120201468 | BOX DISPLAY BOARD LEFT | ||
| 4 | H0121800104 | UI DISPLAY PCB KIT | ||
| 5 | H0120805366 | CONTROL PANEL ASSY | ||
| 6 | H0120201469 | BOX DISPLAY BOARD RIGHT | ||
| 7 | H0120803974 | KIT SS SIDE STRIP SS | ||
| Includes | SS SIDE STRIP X 1 | |||
| Includes H0077050051 | SCREW X 2 | |||
| 8 | H0120202582 | DISPENSER COVER | ||
| 9 | H0120801599 | DOOR SWITCH UNIT | ||
| 10 | H0120805709 | INNER DOOR | ||
| 11 | H0120600352 | FIXING SCREW | ||
| 12 | H0120400354 | DISPENSER DETERGENT | ||
| 13 | H0120400214 | HARNESS CNTRL CABLE CNTRL PNL | ||
| 14 | H0120101283 | SPRING FOR FS | ||
| 15 | H0120804662B | ROPE CONNECTING SPRING | ||
| 16 | H0120600023 | SCREW M5 10 SS | ||
| 17 | H0120802301 | HINGE ASSEMBLY LEFT | ||
| 18 | H0120300368 | GASKET INNER DOOR | ||
| 19 | H0020600179 | SCREW (M4×10) | ||
| 20 | H0120100369A | PANEL HINGE LOWER DOOR | ||
| 21 | H0120802306 | HINGE ASSEMBLY RIGHT | ||
| 22 | H0120301006 | DOOR INSULATION | ||
| 23 | H0120200437 | SLEEVE DOOR FIXING | ||
| 24 | H0120200435 | SLIDER ADJUSTER DOOR | ||
| 25 | H0120200434 | BASE DOOR ADJUSTMENT | ||
| 26 | H0120803975 | KIT FLOOR LIGHT | ||
| Includes | FLOOR LIGHT X 1 | |||
| Includes | CABLE TIE X 1 | |||
| 27 | H0120808038 | DOOR GLASS ASSY REC DW60UZ6B | ||
| NI | 591899 | QUICKSTART DW60U6I1 FP AA | ||
| NI | 591483 | BK INSTALL DW60U FP AA | ||
| NI | 591900 | BOOK UG DW60U FP AA |
