Fisher And Paykel Dw60uz6b Built Under Dishwasher User Guide (+ PDF)

DW60UZ6B Built Under Dishwasher
User Guide
Series 7 | Contemporary
Black Glass

Contents hide

1 DW60UZ6B Built Under Dishwasher

2 DIMENSIONS

3 FEATURES & BENEFITS

4 SPECIFICATIONS

5 Documents / Resources

5.1 References

6 Related Posts

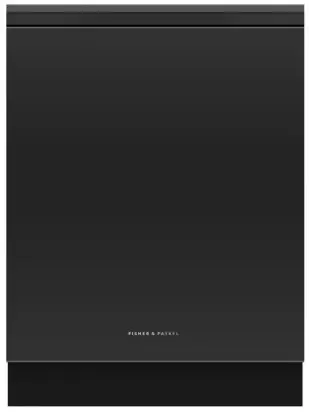

DW60UZ6B Built Under Dishwasher

Offering a superior wash performance, this Dishwasher is designed to fit flush under your benchtop for a seamless look.

Designed to be built under your benchtop, fitting flush with cabinetry for a seamless look
Seven wash programs to suit any load, from Delicate to Heavy
Quick, Sanitise and Extra Dry modifiers provide extra wash options
Auto option senses the optimum wash cycle for your dishes

DIMENSIONS

Height	820 – 880mm
Width	598mm
Depth	574mm

FEATURES & BENEFITS

CONSIDERED DESIGN
Designed to match our Contemporary style black glass family of products, this built-under dishwasher has a tactile black glass finish that pairs perfectly with a recessed handle.
SEAMLESS INTEGRATION
Our built-under dishwashers are installed flush under your benchtop with the option of a custom kickstrip, ensuring minimal gaps.
A RELIABLE WASH
This dishwasher offers seven wash programs including Auto, which automatically senses the optimal wash cycle for your dishes. The three stage filtration system delivers a superior clean, while the rinse aid indicator reminds you to top up for squeaky clean dishes.
QUICK, SANITISE AND EXTRA DRY OPTIONS
The Quick wash modifier maintains Performance while giving you clean dishes faster. Sanitise provides extra protection, killing 99.9% of bacteria in the final rinse, while the Extra Dry setting is perfect for plastic dishes.
DRIER DISHES
Thermoduric technology removes moisture from the final hygienic hot rinse, leaving your dishes with an ultra dry finish.
EASY TO LOAD
Designed to fit 15 place settings, the flexible racking system features a third rack for cutlery and utensils. The middle basket, cup racks and wine glass holders are easily adjusted to accommodate different sized dishes.
QUIET PERFORMER
Running at a very low decibel rating, this dishwasher does its job without making a fuss. The combination of clever technology and simple mechanics means greater reliability and superior wash performance.
EFFICIENT PERFORMANCE
With a 2021 Energy Star Most Efficient rating, this DishDrawer™ Dishwasher is recognized amongst the most energy efficient models on the market.

SPECIFICATIONS

Accessories
Kickstrip	included
Capacity and loading
Accommodates round plates	300mm
Adjustable height, foldable	•
Easy lift adjustable upper	•
Fold down tines	•
Full width cutlery/utensil tray	•
Height adjustable rear wine	•
Pitch adjustable tines	•
Place settings	15
Wine glass supports	•
Consumption
Energy rating	4 star
Energy usage	245kWh/year
Water rating	5.5 star (WELS)
Water usage (per wash cycle)	10.8L
Controls
Child lock	•
End of cycle beeps	•
Energy saving delay start	•
Floor light cycle feedback	•
Rinse aid indicator light	•
Time remaining LED display	•
Features
Quiet operation	•
Thermoduric system	•
Three-stage filtration system	•
Variable wash pressure	•
Performance
Noise emissions	44dBA
Power requirements
Amperage	10A
Product dimensions
Depth	574mm
Height	820 – 880mm
Width	598mm
Warranty
Parts and labour	2 years
Wash Program Modifiers
Extra Dry	•
Half-load	•
Quick	•
Sanitise	•
Wash modifiers	4
Wash Programs
Auto	•
Delicate	•
Eco	•
Fast	•

Heavy	•
Medium	•
Rinse	•
Wash programs	7
Water connection
Water pressure	0.1 Mpa – 1 Mpa
SKU	82212

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020

Other product downloads available at fisherpaykel.com

Quick Start Guide
User Guide
Service & Warranty
Installation Guide
