TRANSGO 4L60E Separator Plate Instruction Manual

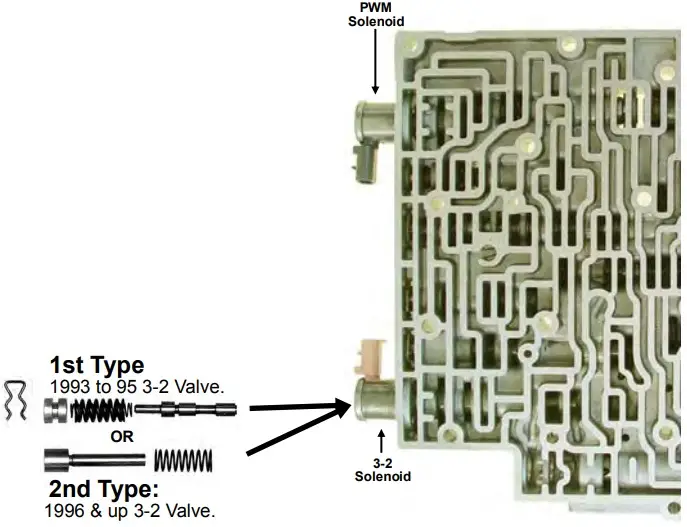

IDENTIFICATION
Valve Body HAS the 1st type 3-2 valve and HAS a PWM Solenoid.
Valve body and Plate Identification for replacement TransGo® Plates
| Years | VB and/or Plate Has | Does NOT Have | Use Plate |
| 1993/1994 | 1st type 3-2 valve | PWM Solenoid | 46-PLT-94 |
| 1995 | PWM Solenoid with 1st type 3-2 valve | 46-PLT-95 | |
| 1996/2006 Except 05 Vette | PWM Solenoid with 2nd type 3-2 valve | Hole EP in plate | 46-PLT-96 |
| 2005 Corvette Only | PWM Solenoid with 2nd type 3-2 valve. | Hole V | 46-PLT-05V |
| 2007/2008 Except Hybrid | PWM Solenoid with 2nd type 3-2 valve and holes EP, V and 32 in plate. | 46-PLT-07 | |
| 2009 | PWM Solenoid with holes EP and V in plate. | 3-2 Solenoid or hole 32 | 46-PLT-09 |
We have no Hybrid Vehicle Plates at this time.
Parts Person: Six Transgo plates replaces over 50 OE part numbers. If your customer does not know the exact year trans he has FAX him a copy of these instructions.

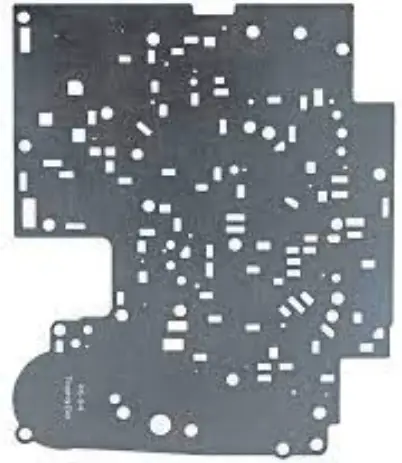

Separator Plate
Hello Mechanic
You may find one or more of the shift feed holes are smaller than original plate, especially on 93-95 models.
cyl & 3.1 V6, use .055-063
V6 & V8, use .065-.070
All the rest of the holes are just fine as they are. Try it we think you’ll like it. If you prefer you can match the sizes in the original separator plate.
If using an SK® or Reprogramming Kit® along with this plate follow kit instructions for hole sizes instead.
ALWAYS check the holes circled to make sure they are in the plate. If they are not in the plate center punch and drill them .038 to .042 using gasket as a guide.
Install “Z” bolts first
1995: Must have 1st type 3-2 valve and PWM solenoid.
