SK®TFOD Diesel
Increases Torque Capacity Lockup & Shift Firmness
Reduces Drainback Perfect for Diesel Trucks
Fits all Big case 46 & 47 RE’s & RH’s to 2007 Does NOT fit 48RE’s see right for ID.
Sk Tfod Diesel Dodge Ram Truck Shift Kit
Installing converter with multiple clutches or working on non lockup transmission SKIP step one.

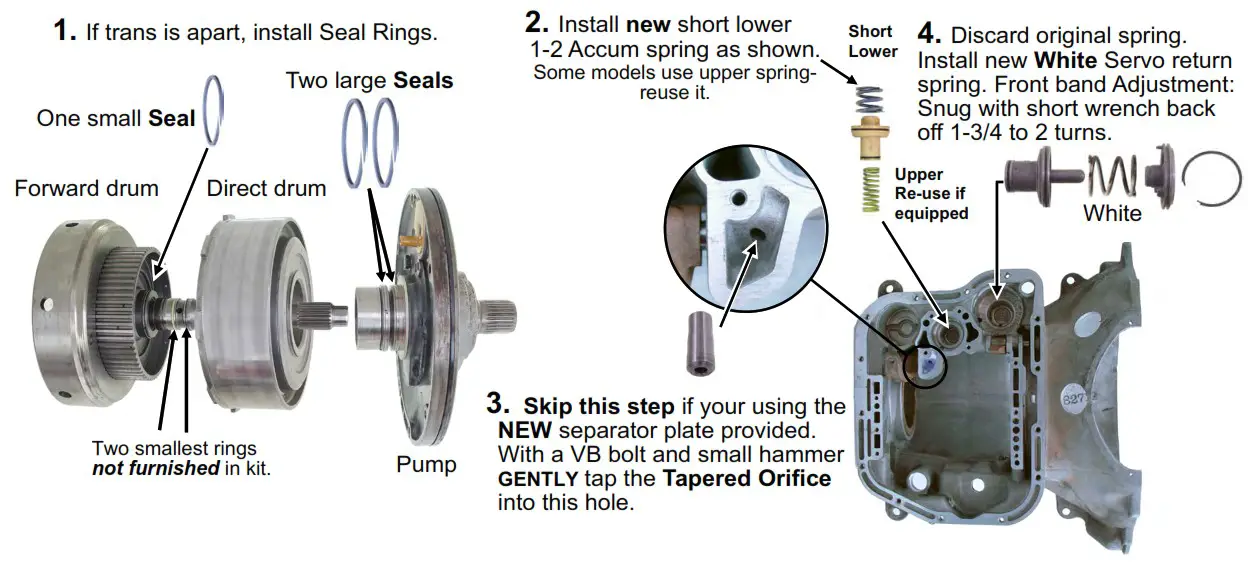

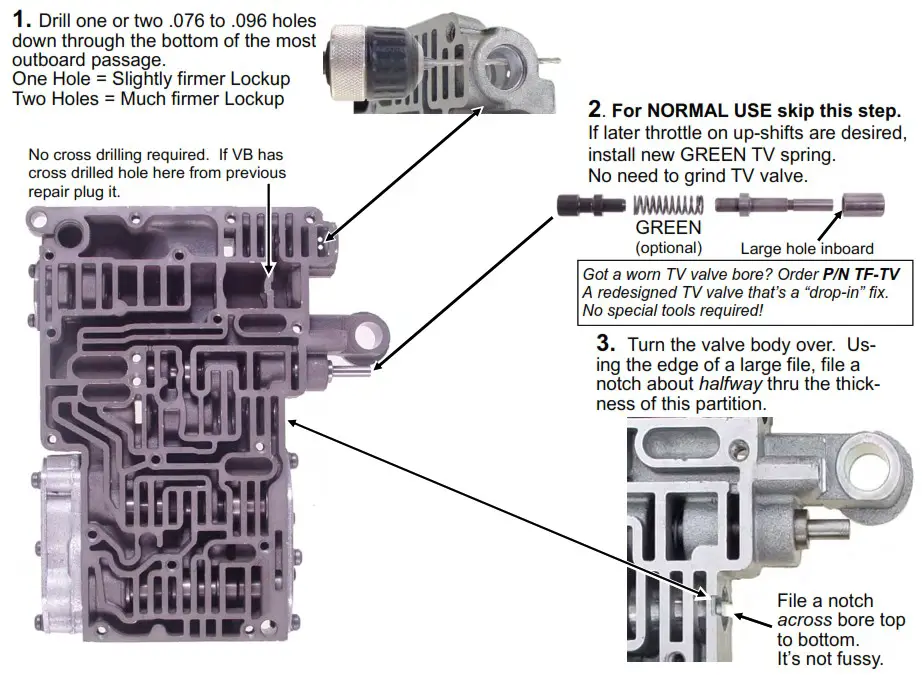

3. Using a pick and small hammer, taper top of this hole to help start the pin.

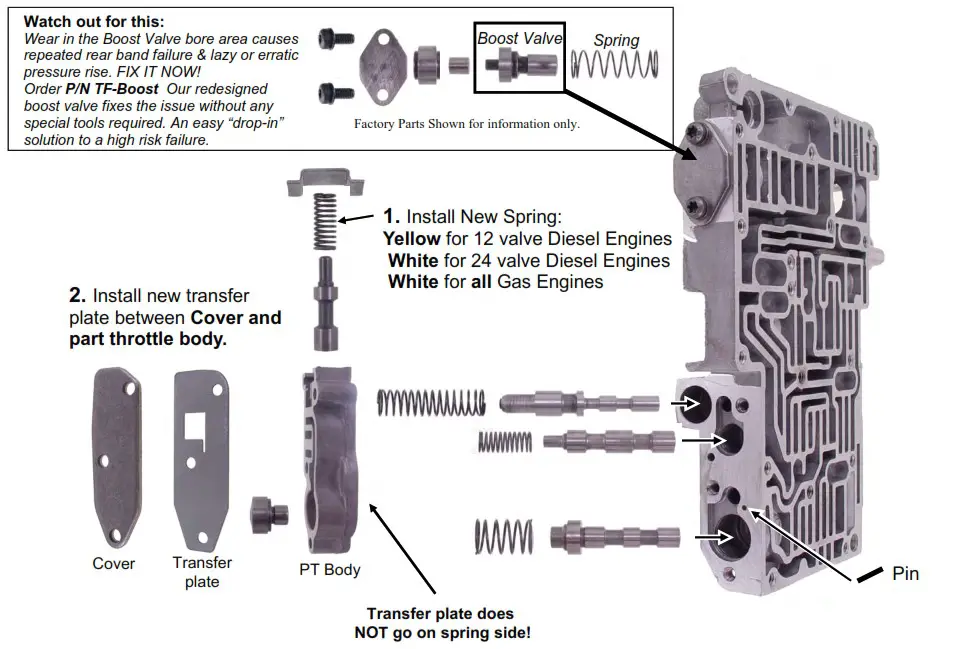

Install pin furnished into this hole, using needle nose pliers and small hammer. File flush if needed. PT body must sit flush against VB.

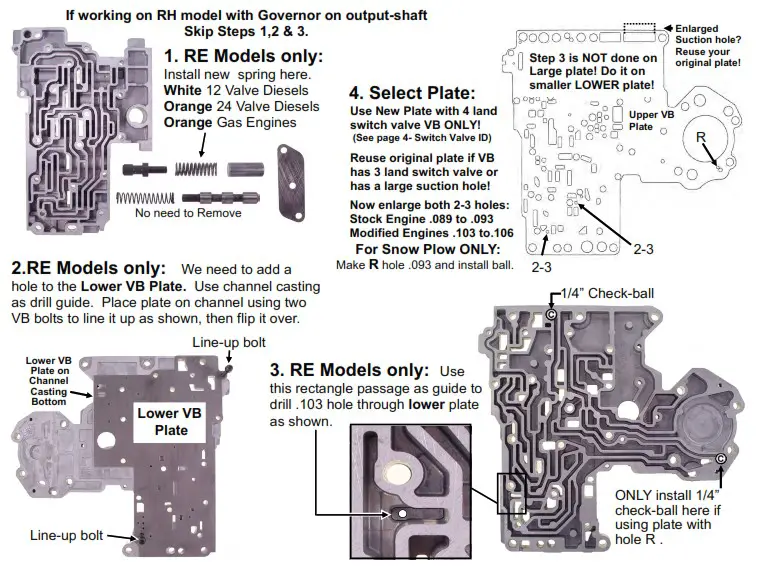

If working on RH model with Governor on output-shaft Skip Step 3

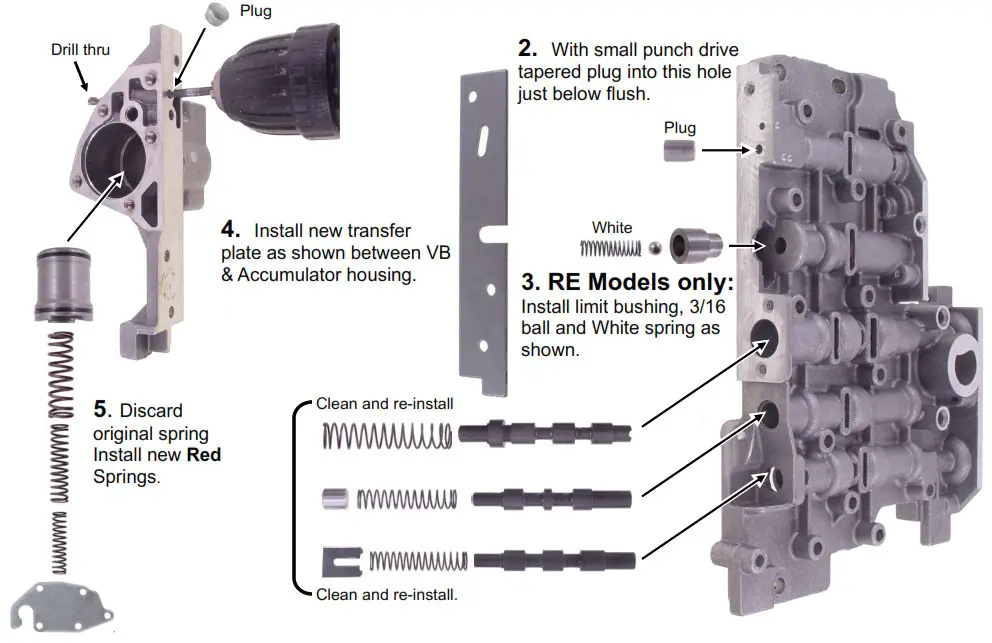

1. Place .156 drill into hole shown and drill all the way through the accumulator housing and out the other side. With small punch drive plug into hole just below flush.

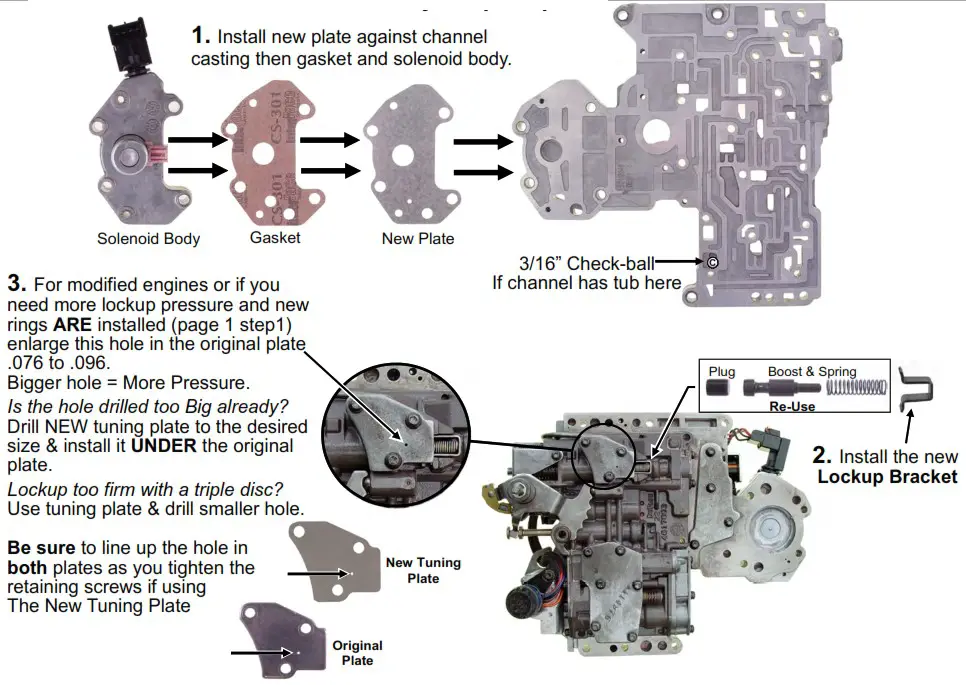

RH Models without Solenoid Body, Skip Step 1.

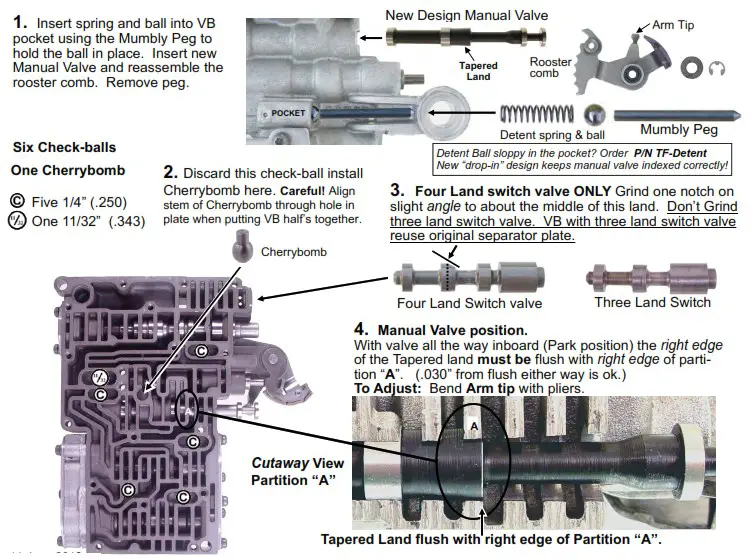

Fluid level checking: While the new manual valve provides oil to the converter in park, DO check fluid level in Neutral for accuracy as the converter is charged MORE in neutral.
11 June 2018
© TransGo 2018
