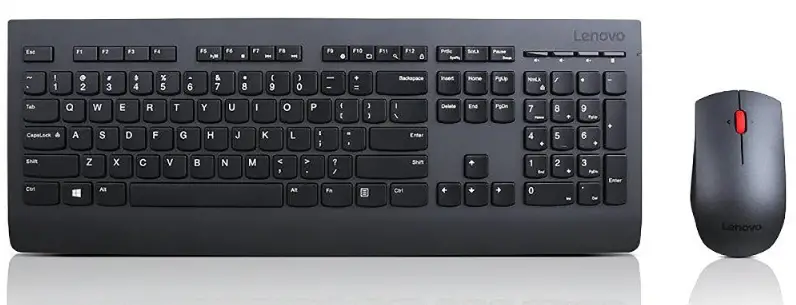

Lenovo 4X30H56796 Wireless Keyboard and Mouse

Overview

Overview for Lenovo Professional Wireless Keyboard and Mouse (4X30H56796)
This sleek and stylish full-size keyboard and mouse combo offers exceptional quality in a modern wireless solution. The slim 3-zone keyboard with number pad has responsive quiet keys and a premium typing experience. One-touch dedicated media keys put the controls you use most at your fingertips. The ergonomic full-size mouse provides comfort and support for all-day use. Complete tasks with ease using the precise 1600dpi laser sensor and 4-way scroll wheel. Connect compatible Lenovo devices with just 1 nano receiver.

Highlights:
Lose the Wires: reliable 2.4ghz wireless connection with multiple pairing protocol 2 in 1 Convenience: plug and play micro wireless receiver easily connects both keyboard and mouse
No Guessing: 2-year commercial battery life with LED indicators (may vary based on user habits.)

Keyboard Features:

• Full-size 3-zone layout
• Low profile, island-style keys
• One-touch dedicated media controls
• Adjustable tilt legs
• Spill-resistant design
• 128bit AES encryption protection

Mouse Features:

• Efficient laser sensor for precision tracking
• Ambidextrous five-button design for both left and right-hand comfort
• 4-way scrolling through spreadsheets and documents
• 1600dpi

Pairing the Lenovo USB Receiver with a mouse or a keyboard
By default, the Lenovo Professional Wireless Keyboard and Mouse Combo is paired with the Lenovo USB Receiver that shipped with the product. The Lenovo Professional Wireless Keyboard and Mouse Combo is ready for use after you connect it to your computer. In addition to the Lenovo Professional Wireless Keyboard and Mouse Combo, you also can pair the Lenovo USB Receiver with any Lenovo wireless mouse or keyboard printed with the icon .

To pair the Lenovo USB Receiver with a new Lenovo wireless mouse or keyboard, do the following:

1. Connect the Lenovo USB Receiver to an available USB connector on your computer.
2. Place the mouse or keyboard within 10 cm (3.94 inches) of the Lenovo USB Receiver.
3. Move the power switch on the mouse or keyboard to the on position.
4. Press and release the pairing button on the mouse or keyboard. After the status indicator on the mouse or keyboard blinks for five times and then turns off, the Lenovo USB Receiver has been successfully paired with the mouse or keyboard.

ELECTRICAL SPECIFICATIONS

• 5V, 100mA (maximum value) for the receiver
• On/off power switch on mouse and keyboard
• AA x* 2 battery for keyboard
• AA *1 or AA*2 battery for mouse, user can use one or two batteries with a comfortable weight.

PHYSICAL SPECIFICATIONS

Lenovo Professional Wireless Laser Mouse

• Approximate Length: 113 mm (4.45 in)
• Approximate width: 64 mm (2.52 in)
• Approximate height: 34 mm (1.33 in)
• Approximate weight: 80 g (0.18 lb)
  Lenovo Professional Wireless Keyboard
• Approximate Length: 450 mm (17.71 in)
• Approximate width: 164 mm (6.46 in)
• Approximate height: 20 mm (0.79 in)
• Approximate weight: 700 g (1.54 lb)
  Lenovo Professional Wireless Keyboard and Mouse Combo with Package
• Approximate Length: 541 mm (21.30 in)
• Approximate width: 177 mm (6.97 in)
• Approximate height: 43 mm (1.69 in)
• Approximate weight: 1150 g (2.54 lb)

OPERATING ENVIRONMENT

• Temperature: 0 deg to 40 deg (C) (32 deg to 104 deg F)
• Relative humidity: 20% to 95%

AGENCY APPROVALS
Any agency approvals and certifications

Example:

• CB
• USA: FCC, cTUVus,
• Canada: IC, cTUVus
• European Union: CE, TUV mark
• Australia / New Zealand: RCM
• Japan: VCCI, MIC
• Taiwan: BSMI, NCC
• Russia: EAC
• India: ETA (WPC)，BIS
• Thailand: NTC
• Singapore: IDA
• Brazil: ANATEL
• Turkey: CE
• China: SRRC
• Argentina: CNC
• Chile: SUBTEL
• Egypt: NTRA
• Mexico: IFETEL
• Saudi Arabia: CITC
• South Africa: ICASA
• South Korea: KCC
• United Arab Emirates: TRA
• Paraguay: CONATEL
• Indonesia: SDPPI
• Malaysia: SIRIM

PACKAGING:
One brown box (plain brown box — not packaged for the consumer)

SHIPMENT GROUP

• Lenovo Professional Wireless Laser Mouse
• Lenovo Professional Wireless Keyboard
• USB Receiver
• Batteries
• Setup Warranty Poster

WARRANTY TERMS

Warranty Period: 2 year

CHARGES – FRU PARTS

Field Replaceable Units (FRU)
