Domus Line X-driver Special Smart 110-240vac Power Supply Instruction Manual

X-DRIVER
DOMUS LINE Srl
Via Maestri del Lavoro, 1
33080 PORCIA _ PN _ Italy

X-DRIVER Special Smart 110-240Vac Power Supply

	Device in insulation class II. Connection to the earthing circuit is not necessary.
	Lamp power supply unit thermally protected at 110°C
	Independent transformer specially designed to be installed ”visible” (it can be used without the supplementary protective case and without being integrated into lights).

This symbol indicates that the transformer complies with the European EN 61347-1 standard. The SELV symbol (Safety Extra Low Voltage) identifies a transformer in which touching the secondary circuit outputs, even if no lamps are connected, does not constitute a hazard.

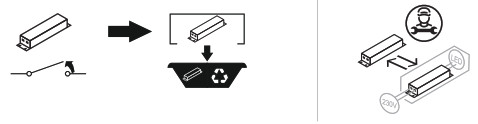

The product must be disposed of separately from urban waste, delivering it to the collection centres established by the prevailing standard. Adequate sorted waste collection contributes to preventing negative effects on the environment and health and favours reuse and/or recycling materials. Incorrect disposal of the product implies the application of the administrative sanctions envisaged by the prevailing regulation.

Specifications

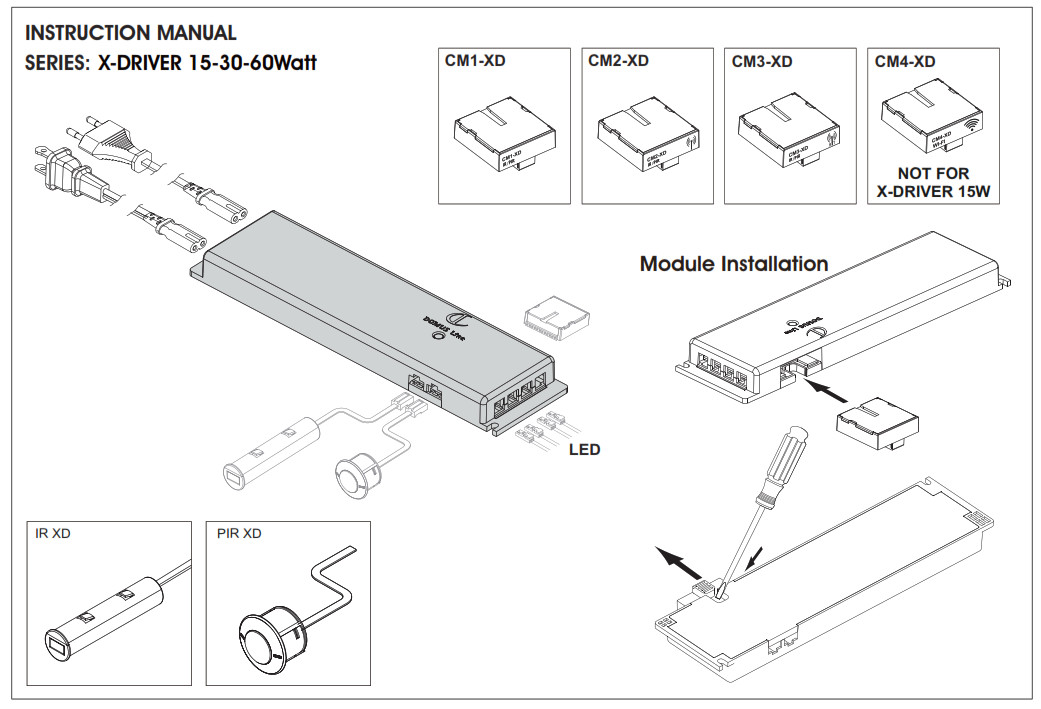

Optional Accessories Table
Type	MODULE CM1-XD	MODULE CM2-XD	MODULE CM3-XD	MODULE CM4-XD	Input Cable
RADIO RECEIVER FOR LIGHTING CONTROL	_ _	Radio receiver for ighting contrd : CM2-XD RECEIVER CONTROLLER C: 26990-CM2 FCC ID: 2AX76-CM2	Radio receiver for kghting control Model : CM3-XD RECOVER CONTROLLER IC: 26990-CM3 FCC ID: 2AX76-CM3	Radio receiver for ighthg control Model : CM4-XD RECOVER CONTROLLER C: 26990-CM4 FCC ID: 2AX76-CM4	_
Function Characteristics	IR/IFR	IR/IFR/2.4G	IR/IFR/BT	ONLY APP	_
Functional Fittings					–

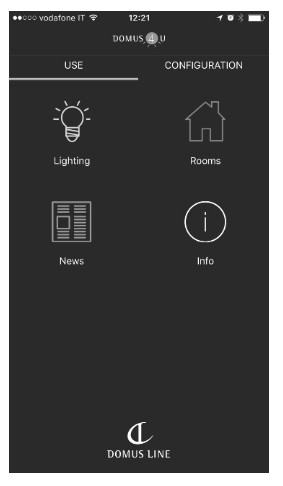

App. DOMUS 4U

http://www.domus4u.tech/apps/

Enter to the APP, press Info and read the instructions.
DOMUS 4U can control max. 5 X-DRIVER

SEARCH FOR DEVICES
“heric. youca> switch on, switch off or adjust the brightness or light colour of tro devices conmected
GUARDA IL VIDEO TUTORIAL PER UNA INSTALLAZIONE SEMPLICE E VELOCE WATCH THE VIDEO TUTORIAL FOR QUICK AND EASY INSTALLATION VIDEO ANSEHEN PRIVATISSIMUM SCHNELLE UND EINFACHE INSTALLATION REGARDEZ LE TUTORIEL VIDÉO POUR
QUICK ET INSTALLATION FACILE VER EL VIDEO TUTORIAL PARA INSTALACIÓN RÁPIDA Y FÁCIL

https://www.youtube.com/playlist?list=PLI_4cmGK4dRX_Y0JnduqRFdq6S8fQpoma

DOMUS 4U WI-FI
APP COMPATIBLE WITH X-DRIVER AND CM4-XD TI MANAGE LIGHTS FROM SMARTPHONES
DOWNLOAD THE APP:

http://bit.ly/domus4uwifihttp://bit.ly/domus4uwifigoogleplay

WARNING: Safety is guaranteed is these instructions are followed and therefore they must be kept. Installation may require the involvement of qualified personnel. Before proceeding with installation of the device ensure that the environmental conditions are in compliance with and suitable for the product characteristics. Before any operation on the device disconnect mains power.

INTRODUCTION:

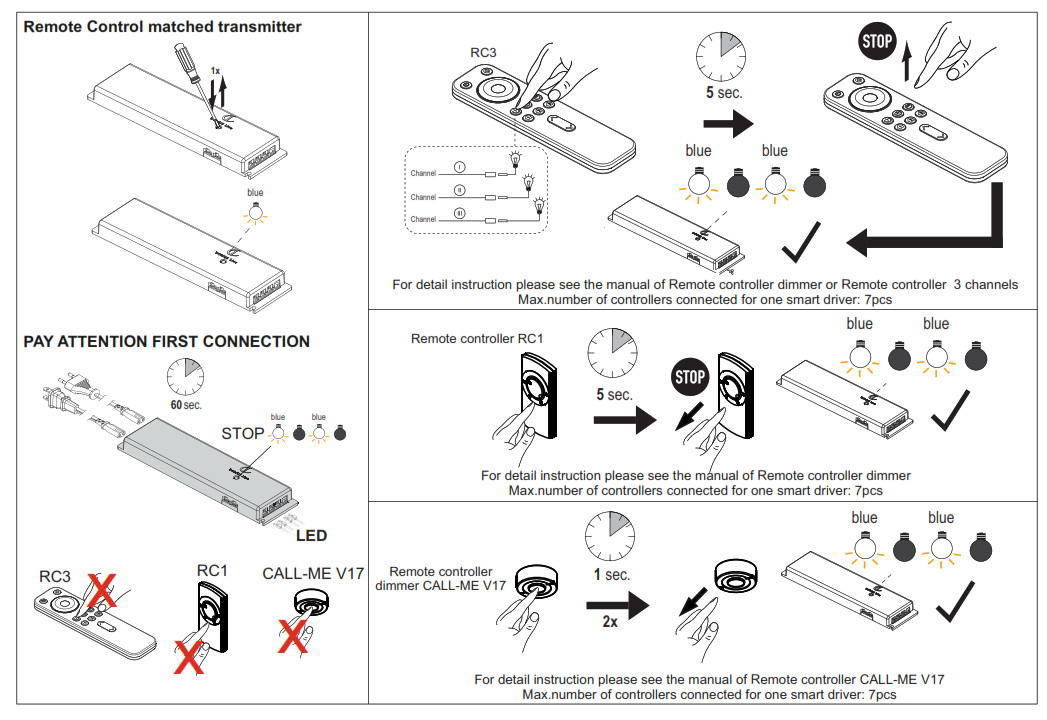

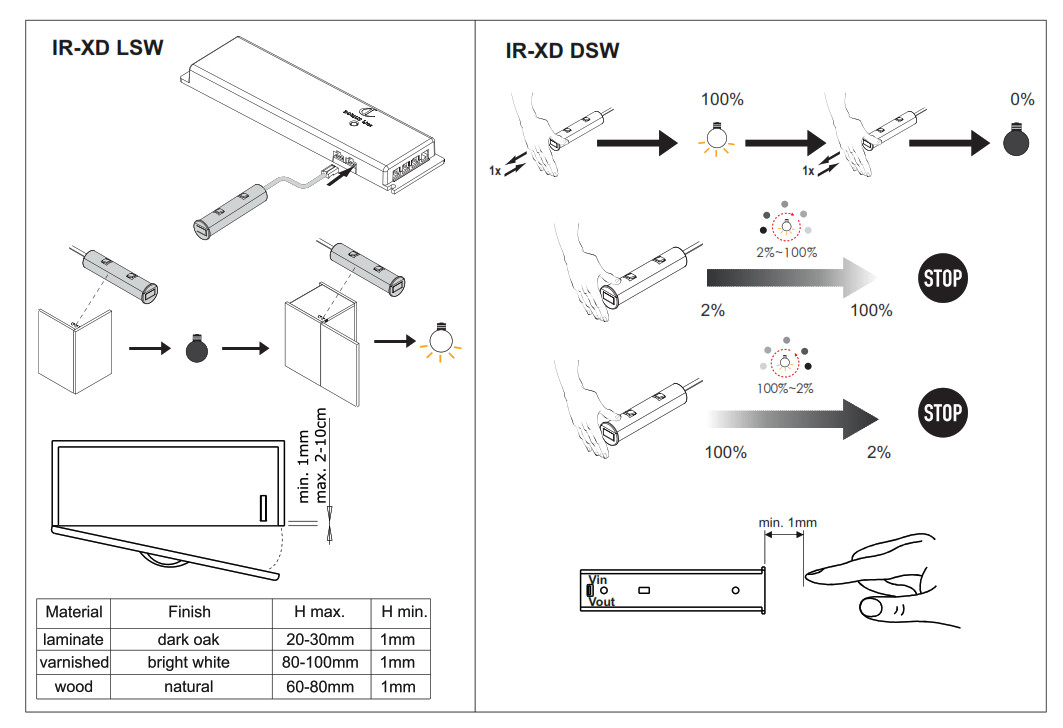

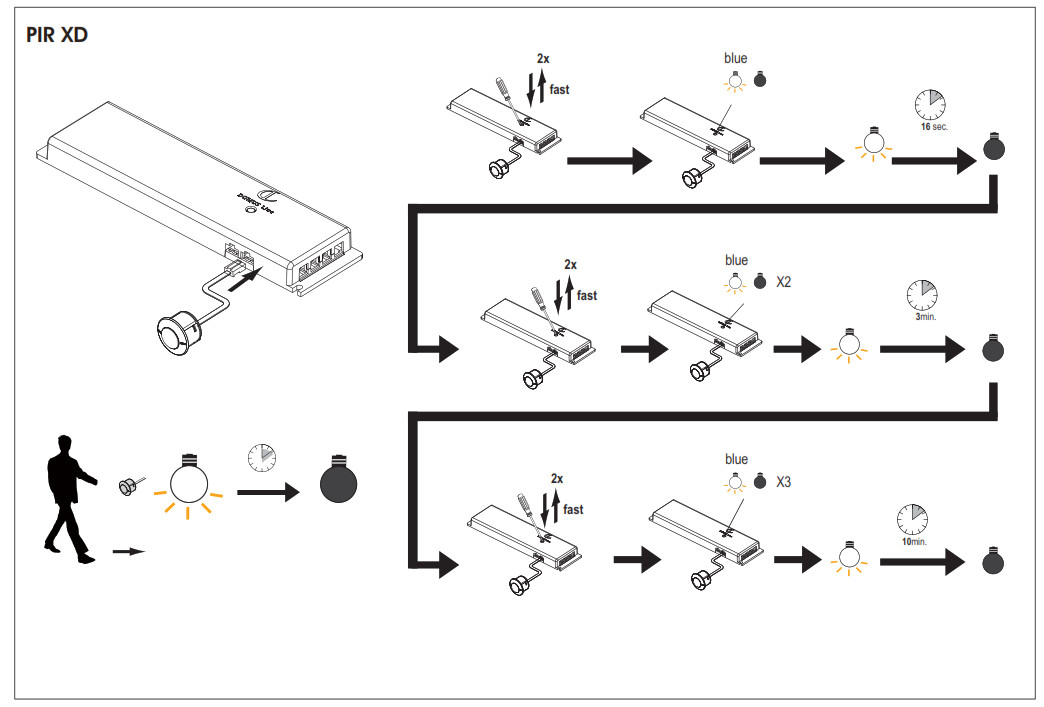

Power supply is designed exclusively for LED lamps. It can be used together with control modules, IR / PIR sensors, remote control remote controls and APP (see optional table accessories). The built-in protection circuit turns off the power supply when there is a short circuit, overload or overheating.
X-DRIVER restarts automatically after the problem has been resolved.

WARRANTY:

The warranty on the device is valid only if powered by a power supply provided by DOMUS Line. The warranty’s general terms and conditions
for this device are available at www.domusline.com This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
