78374 Camping Gas Stove Coal Burner
User Manual
IMPORTANT!
- Please read the instructions on the box carefully before operating and using the cartridge.
- Remove all the nearby flames before installing the cartridge.
- This device may only be used with a 190g butane-propane mixed disposable cartridge.
- Do not remove or open the lower part before the cartridge is completely empty.
- When replacing the cartridge, make sure that all sources of heat or ignition (fire, cigarettes, electrical appliances, stove, etc.) are off.
- Store the device in a cool, dry and well-ventilated place.
- Never expose the device to temperatures above 50°C (120°F).
- Protect the device from direct sunlight.
- Do not shake the device.
- Always use the device in a well-ventilated place. Preferably outdoors.
- If you want to use the device with maximum capacity and power, use only original cartridges and spare parts.

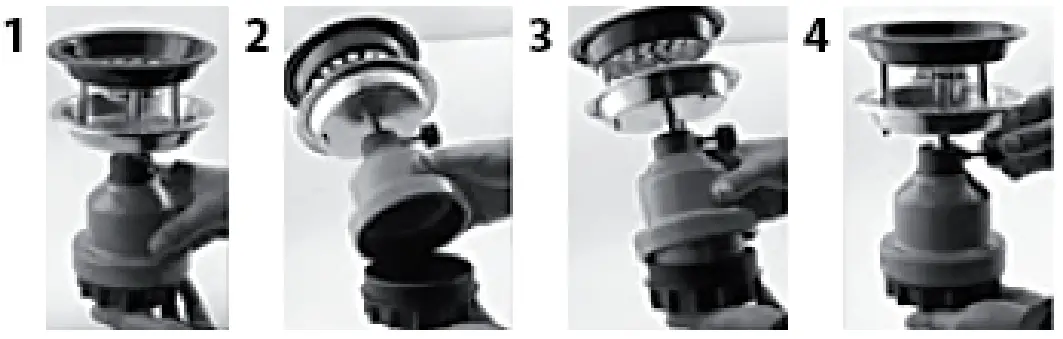

Inserting the gas cartridges
- Always install the cartridge outdoors and away from other people, sources of heat, fire or an electrical source of ignition + Cheek if the device is switched off before you insert the cartridge
- Remove the safety lock from the chassis by pushing up and turning to the left (Picture 2).
- Check if the gasket on the lower side is tight and not damaged or burnt.
- Mount the cartridge in the cover and place the metal body on top (Picture 3).
- Screw the plastic cover with the cartridge to the metal body by turning to the right. Make sure the valve is closed during this process (Picture 4).
- The cartridge is properly mounted when you hear a CLICK sound at the security lock.
- Check for gas leak by hearing or smelling the cover.
Operating the device
- To switch on the device, slowly turn the valve on and wait 3 to 4 seconds.
- Then hold a flame (match, lighter, etc.) in front of the burner.
- Regulate the flame with the valve.
Never test the device for leaks with a flame!
In the event of leakage:
- Turn off the valve.
- Check the valve if it is tight or not.
- Do not use any electrical switch.
- Extinguish all flames and ignition sources in the vicinity.
- If you are inside, ventilate the room very well.
- Let the gas out through the bottom.
Cleaning, maintenance and storage
- Clean the device with a damp, soapy cloth. Do not immerse the device in water or pour water on it. Never use chemicals or flammable materials for cleaning.
- Never clean the nozzle with a metal object, it could be damaged. If dirty, clean it with a soft brush.
- After use, store the device in a dry, clean and well-ventilated environment.
- The device must be sent directly to the manufacturer for repair. For more information, contact your dealer.
- For further information, please contact your dealer.
https://technic24-b2b.eu
ADA Import & Grobvertriebs GmbH
Abt. Technic24-b2b
Bergiusstr. 53-59
12057 Berlin, Germany
www.technic24-b2b.eu
Made in Turkey
Batch 20228C009
