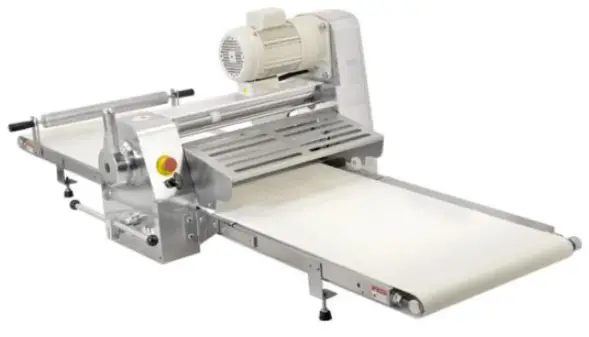

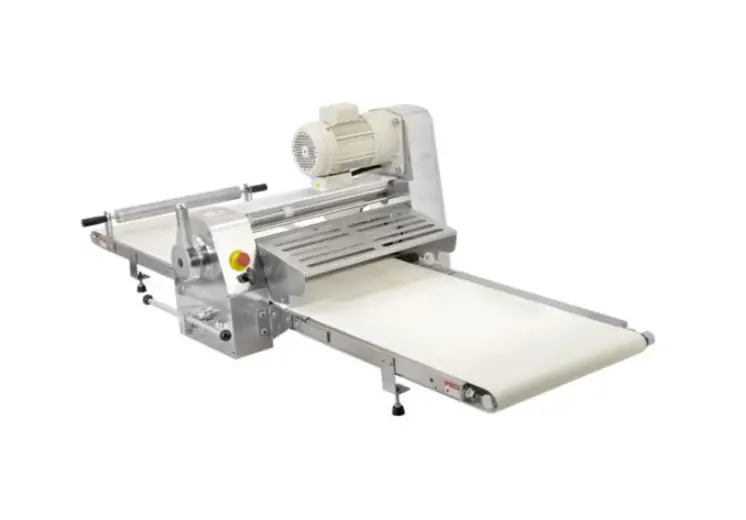

Omcan Be-cn-2083-css 20 Inch Table Top Reversible Dough Sheeter Instruction Manual

OMCAN BE-CN-2083-CSS 20 Inch Table Top Reversible Dough Sheeter Instruction Manua

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment.
The product shall only be operated by someone over the age of 18, of sound mind, and not under the influence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing.
Any modification to the machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.

CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage.
If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine.
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier.
A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.
Omcan has no recourse for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety instructions.

Omcan would like to thank you for purchasing this machine.
It’s of the utmost importance to save these instructions for future reference.
Also save the original box and packaging for shipping the equipment if servicing or returning of the machine is required.

Safety and Warranty

Thanks for using this high performance, reversible dough sheeter.
The unit will be an excellent assistant for making Danish bread, cheese cake and many other products.
Before using this machine, please carefully read this manual  and follow the procedures to operate the machine.
All the safety devices must be checked before operation.
Turn the machine off immediately when defects or malfunctions are found.
Contact Omcan Customer Service immediately at: 1-800-465-0234.

• Check all warning signs on the machine.
• Clean up the water, oil and resin on the machine and its foundation. If any liquids are found, immediately clean it to avoid injury.
• Keep your body away from any moving parts of the machine.
• Do not let foreign objects fall into the machine while operating.
• Do not climb onto the machine while it is running.
• If any problems occur in the process of operation, press the Emergency Stop Button immediately.

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications.
The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.

1 YEAR PARTS AND LABOR WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
Please see: https://omcan.com/disclaimer for complete info

WARNING:
The packaging components are classified as normal solid urban waste and can therefore be disposed of without difficulty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Technical Specifications

Installation

1. Installation must be performed on a flat, dry surface with a stable temperature environment.
   Press down pedals of active wheels to lock the machine.
2. Follow the instructions on the plaque of electrical cabinet to connect power supply.
   The breaker for power supply should be installed on the wall with 1.7 m height from the floor.
3. Pull conveyor straight, put down the table and then put down both safety guards.
4. Then check the movement of the conveyors. Press the left-hand side pedal and the conveyors move left.
   Press the right-hand side pedal and the conveyors move right.
   If the movement is in the wrong direction, change the two wires of the power supply and re-test the machine.
5. The power cord must be grounded.

Operation

1. When using machine, set the thickness handle to the most left position.
2. NOTE: Do not put hands into safety guard.
3. Switch the power off and disconnect from the socket when cleaning.
4. Lift up safety guards after operation and then turn off power switch.

Maintenance

ALL MAINTENANCE TO BE PERFORMED BY QUALIFIED TECHNICIANS.
CHANGING GEARS (FOR QUALIFIED TECHNICIANS ONLY)
Switch the power off then use a screw driver to dismantle the side plate of lower machine body.
Disconnect the 3 electrical wires on the connecting box.
Lift up the safety guards then set the thickness handle to scale “O”.
Use the alan-key M5 to open the cover and take out the gear housing, then replace the gears.
After replacement, reverse the procedures and set the thickness handle to scale “0“ to reassemble.

REPLACING THE DRIVING ROLLER AND BEARING
Switch the power off and lift up the safety guards. Use the alan-key to open the cover.
Next, loosen the nuts of bearing, use a cross type screw driver to move bearing through the joint or roller and bearing.
Replace the roller and assemble by reversing the procedures.

CHANGE CONVEYORS

• Remove the roller by following the procedures mentioned above.
• Apply spanner M 12 to take the belts on roller and remove product tray.
• Apply spanner M 23 to loose the nuts of roller.
• Use spanner M 19 to loosen the belts of the support separate the table.
• Use spanner M 14 to take away the belts of the table holder and separate them.
• Dismantle the table and belts for replacement.
• Assembly by reversing the procedure.
• The tightness of belts should be correct.
  When the machine is running, press the belts slightly and check if there is a slip between the belts and roller.

CLEANING:
After work is finished every day, please turn the power switch off, then perform the cleaning process as stated below:

1. Fold the conveyor belt plate, then clean the residual dough and sundries that remain on the conveyor belt roller.
2. Clean the residual dough that is left on the upper and lower roller and scraper.
   Ensure that there is nothing left on the roller and scraper.
   Note: Do not use pressurized water jets to clean the unit.
   Do not use a knife or hard object to scrape the rollers, use a damp cloth instead.
   Do not use stainless steel or other metal blades to scrape the conveyor belt surface, use the plastic scraper to clean the conveyor belt surface.

Troubleshooting

NOTE: FOR ELECTRICAL AND MECHANICAL REPAIRS, PLEASE CONTACT OMCAN AT 1-800-465-0234.

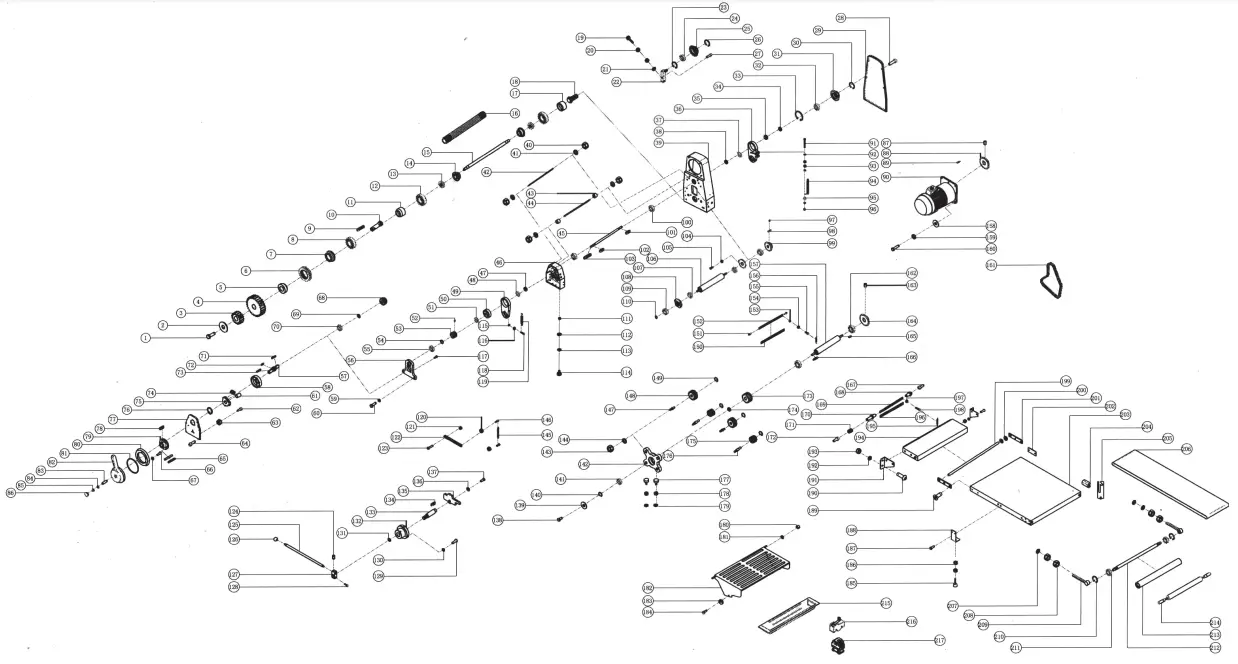

Parts Breakdown

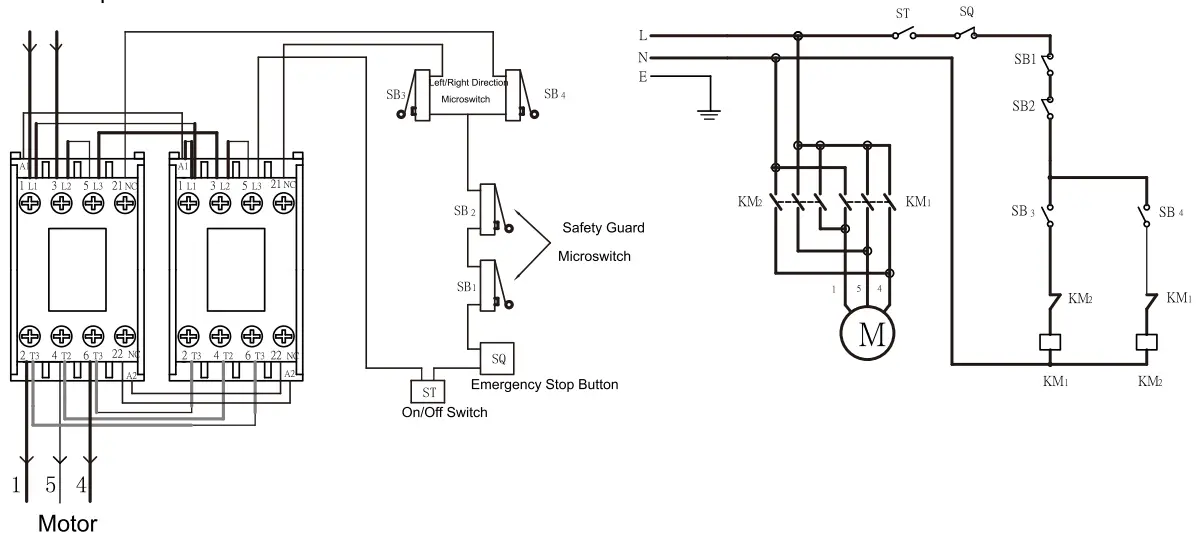

Electrical Schematics

Power Input

Warranty Registration

Thank you for purchasing an Omcan product.
To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below.
You can also register online by visiting:
https://omcan.com/warranty-registration/

For mailing in Canada
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5

For mailing in the US
OMCAN
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
Niagara Falls, New York
USA, 14305
Or Email To: [email protected]
