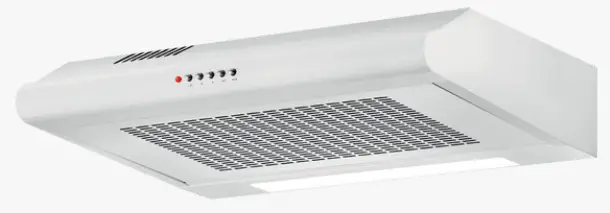

HF60LW4 60cm Fixed Wall Rangehood
User Guide
White
HF60LW4 60cm Fixed Wall Rangehood
Simple and responsive extraction is always important in the kitchen. These rangehoods capture and remove cooking odours, vapour and steam.
DIMENSIONS
| Height | 120 mm |
| Width | 598 mm |
| Depth | 450 mm |
SPECIFICATIONS
| Accessories | |
| Eave ducting kit | PD-RHK125E |
| Light bulb | 792507 |
| Recirculation carbon filter | 792506 |
| Roof ducting kit | PD-RHK125T |
| Side wall ducting kit | PD-RHK125W |
| Fan ratings | |
| Maximum motor performance | 350m³/hr |
| Maximum pressured air movement | 185m³/hr |
| Maximum sound rating | 58dBA |
| Installation and cleaning | |
| Air outlet size | 120mm |
| Dishwasher safe filters | 1 |
| Ducted | Top extraction |
| Recirculation | Optional – front extraction |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 1 |
| Power requirements | |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240VV |
| Product dimensions | |
| Depth | 450 mm |
| Height | 120 mm |
| Width | 598 mm |
| Product information | |
| Control type | Push button |
| Ventilation features | |
| Light type | Incandescent 1 x 40W |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 500710 |
