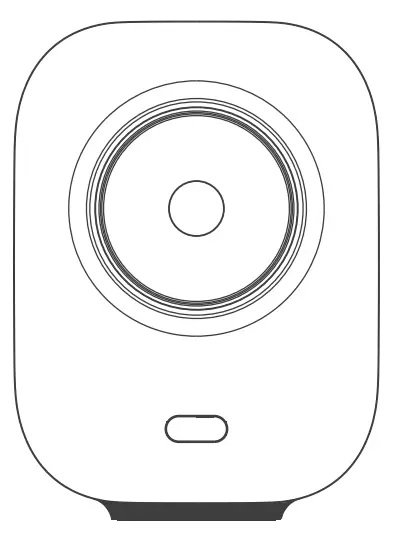

NINGBO VM33 Wireless Streaming Camera
BOX CONTENT
- VM33

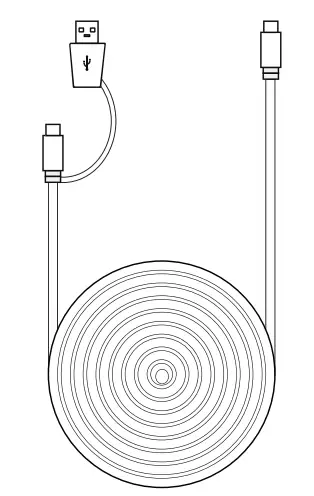

- USB Cable

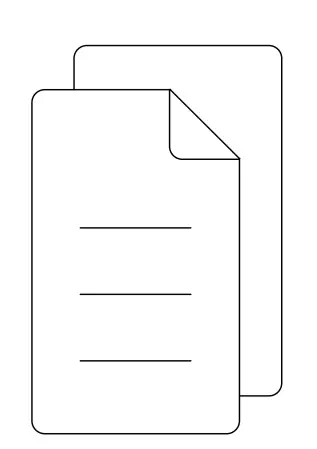

- User Manual
PRODUCT OVERVIEW
 Product Specification | |
| Bluetooth WIFI | Bluetooth 5.2 802.11ac 433Mbps |
| Frequency Range Focusing Mode | 2.402~2.480GHz, 5.15~5.7GHz x10 Optical Zoom + x2 Digital Zoom |
| Aperture Focal Length | Wide F1.85 Tele F2.63 Wide 4.34mm Tele 35.17mm |
| Max Resolution Video Output Format | 2560*1440P@30fps, 1920*1080P@60fps H.264、MJPEG、YUY2（USB)；H.264、H.265(network) |
| Microphone Sensitivity Microphone Specification | -38dBV/Pa @94dB SPL, 1kHz 8-Microphone Array |
| USB Power Input | USB-C USB2.0 5V |
| Battery Specification Charging Time | 3.7V  6400mAh 4h |
| Working Time Dimension | 8h 136x72x98mm |
| Net Weight | 660g |
| LED Indicator | |
| Power On/Off | The Power Indicator Lights Go On/Out In Turn |
| Firmware updating，Network Switching | Flashing White |
| AP Mode, Not Streaming Mode | Flashing Blue |
| AP Mode, Streaming Mode | Solid Blue |
| Device to be connected to APP | Flashing Green |
| Device connected to APP | Solid Green |
| Living/Recording | Solid Red |
| Battery Fully Charged | Solid All The Power Indicator Lights |
| Battery Low | Flashing The Single Power Indicator Light |
| Battery Charging | Flashing All The Power Indicator Lights |
Warnings:
Please read the following safety instructions before using the product.
- Use the provided cable to charge the device.
- Please store the product in a cool and dry place, kept away from high-temperature, high-humidity, strong magnetic and strong electric fields.
- Do not touch the lens surface with your hands. Do not use corrosive liquids to wipe the product or clean the lens surface.
- Properly dispose of packaging materials, equipment, battery, and other electronic components to avoid damage to the environment.
- Do not disassemble the product for maintenance or replacement of accessories without authorization. For the repair service, please consult the official sales support.
- Please purchase the attachments/accessories specified by the manufacturer.
- Do not use the product while walking, driving or riding to avoid traffic accidents.
- The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range. ( for 5G product only)
Regulatory Compliance
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- this device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
