Winsen MW-ORP101 ORP Water Quality Sensor User Manual

Statement

This manual copyright belongs to Zhengzhou Winsen Electronics Technology Co., LTD. Without the written permission, any part of this manual shall not be copied, translated, stored in database or retrieval system, also can’t spread through electronic, copying, record ways.
Thanks for purchasing our product. In order to let customers use it better and reduce the faults caused by misuse, please read the manual carefully and operate it correctly in accordance with the instructions. If users disobey the terms or remove, disassemble, change the components inside of the sensor, we shall not be responsible for the loss.
The specific such as color, appearance, sizes &etc, please in kind prevail.
We are devoting ourselves to products development and technical innovation, so we reserve the right to improve the products without notice. Please confirm it is the valid version before using this manual. At the same time, users’ comments on optimized using way are welcome.
Please keep the manual properly, in order to get help if you have questions during the usage in the future.

Zhengzhou Winsen Electronics Technology CO., LTD

Profile

MW-ORP101 sensor is a primary battery type ORP water quality detection sensor. Using the relationship between the ORP value of the test solution and the measured potential difference, the ORP value of the solution to be tested is determined by the potential difference measured by the working battery composed of the electrode and the counter electrode in the solution to be measured through the sensor.

Sensor characteristics

High precision, fast response, good stability, small size, low power consumption, easy to carry.

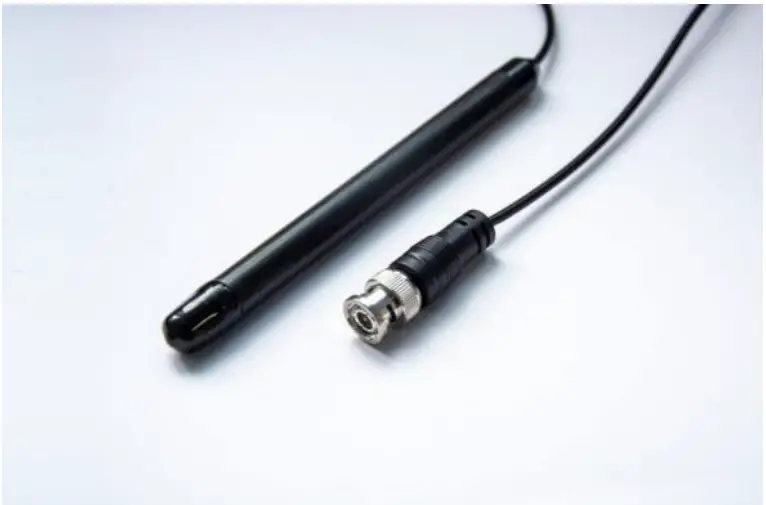

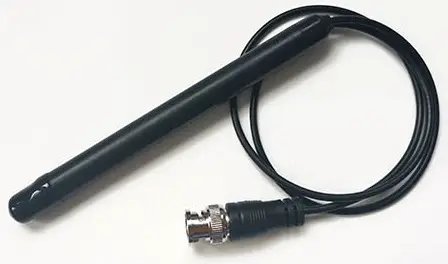

Fig1. Sensor image

Main application

It is widely used for ORP value detection in laboratory research, water supply, waste water treatment, aquaculture, farmland irrigation and other fields

Technical indicators

Stable 1

Sensor characterization

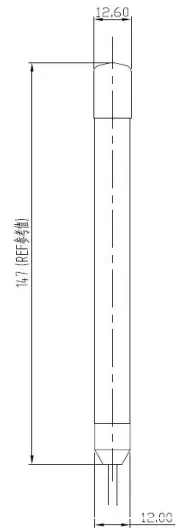

Fig2. Sensor Structure

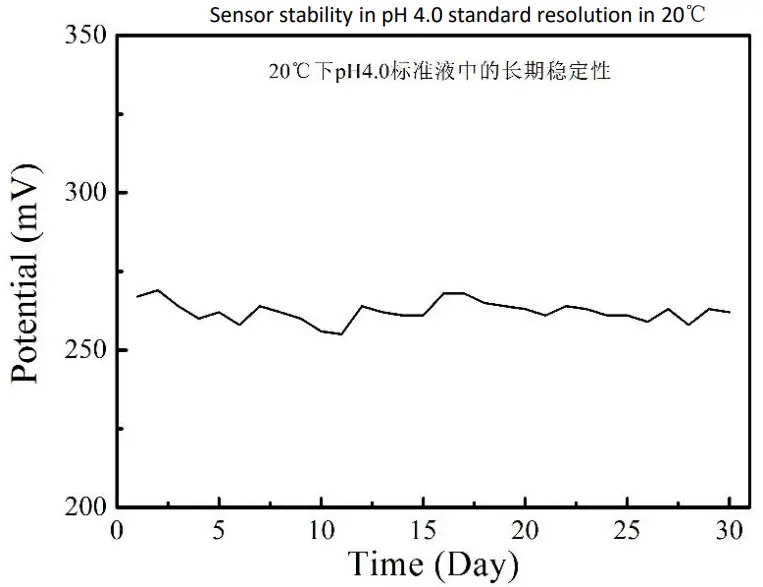

Fig.4. Sensor stability curve

Instructions

1. Remove electrode protective cover from sensor port and soak it in 3M KCL resolution for 8 hours.
2. After soaking, rinse the sensor electrode end with a small amount of pure water or de-ionized water.
3. Connect the sensor port to the ORP test instrument and place it in the solution to be tested for testing after being stabilized for 3 minutes.
4. After the test is completed, rinse the sensor electrode end with a small amount of pure water or deionized water.
5. Dry the cleaned sensor, put a protective cover on the electrode end, and store it at room temperature.

Line connection

Stable 2

Precautions

1. The protective cover must be removed before using the sensor
2. If there is white crystal on the sensor electrode end, rinse it with de- ionized water.
3. When the sensor is initial use or used again after a long term storage, the electrode port should be immersed in 3M KCL resolution for 2 hours for activation.
4. If there are contaminants on the sensor electrode end, it can be treated with corresponding reagents, see Table 3 for details.


   Pollutants	Detergent
   Metal oxide	Less than 1M dilute hydrochloric acid
   Organic oils	Weakly Alkaline Detergent
   Resin polymer substance	Alcohol (Analytical pure)
   Pigment substances	Hydrogen Peroxide(3%)

Support

Zhengzhou Winsen Electronics Technology Co., Ltd
Add.: NO.299 Jin Suo Road, National Hi-TechZone, Zhengzhou, 450001 China
Tel.: 86-371-67169097
Fax: +86- 371-60932988
E-mail: [email protected]
Website: www.winsen-sensor.com
