Bose 717534-0030 SoundSport In-Ear Headphones
Important Safety Information
WARNINGS
- DON’T use the headphones at a high volume for any extended period.
- To avoid hearing damage, use your headphones at a comfortable, moderate volume level.
- Turn the volume down on your device before placing the headphones in your ears, then turn the volume up gradually until you reach a comfortable listening level.
- DO use caution and follow applicable laws regarding mobile phone and headphone use if using the headphones for phone calls while driving. Some jurisdictions impose specific limitations, such as single earpiece configuration, on the use of such products while driving. DON’T use the headphones for any other purpose while driving.
- DO focus on your safety and that of others if you use the headphones while engaging in any activity requiring your attention, e.g., while riding a bicycle or walking in or near traffic, a construction site or railroad, etc. Remove the headphones or adjust your volume to ensure you can hear surrounding sounds, including alarms and warning signals.
- DON’T use mobile phone adapters to connect headphones to airplane seat jacks, as this could result in personal injury such as burns or property damage due to overheating.
- DO remove headphones and disconnect immediately if you experience a warming sensation or loss of audio.
- DON’T submerge or expose for extended period to water, or wear while participating in water sports, i.e. swimming, waterskiing, surfing, etc.
- DON’T place naked flame sources, such as lighted candles, on or near the product.
WARNING:
Contains small parts which may be a choking hazard. Not suitable for children under age 3.
WARNING:
This product contains magnetic material. Contact your physician if you have questions on whether this might affect the operation of your implantable medical device.
This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.
This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at www.Bose.com/compliance
| Names and Contents of Toxic or Hazardous Substances or Elements | ||||||
| Toxic or Hazardous Substances and Elements | ||||||
|
Part Name |
Lead (Pb) |
Mercury (Hg) |
Cadmium (Cd) | Hexavalent (CR(VI)) | Polybrominated Biphenyl (PBB) | Polybrominated diphenylether (PBDE) |
| PCBs | X | 0 | 0 | 0 | 0 | 0 |
| Metal parts | X | 0 | 0 | 0 | 0 | 0 |
| Plastic parts | 0 | 0 | 0 | 0 | 0 | 0 |
| Speakers | X | 0 | 0 | 0 | 0 | 0 |
| Cables | X | 0 | 0 | 0 | 0 | 0 |
| O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this
part is below the limit requirement in SJ/T 11363-2006. | ||||||
| X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials
used for this part is above the limit requirement in SJ/T 11363-2006. | ||||||
Using the headphones
The Bose® SoundSport™ in-ear headphones offer full, balanced sound that conventional sports earbuds can’t match.
Features
- Exclusive TriPort® technology delivers natural-sounding lows, even at higher volumes.
- Sweat and weather-resistant.
- Proprietary StayHear® tips conform to your ears’ shape, so they stay comfortably in place even during long, vigorous exercise.
- Lightweight, durable carrying case stores and protects headphones.
- Inline microphone and remote provide control for select iPod and iPhone models.
- Engineered and tested for lasting quality and durability.
- Available in different colors to fit your style.

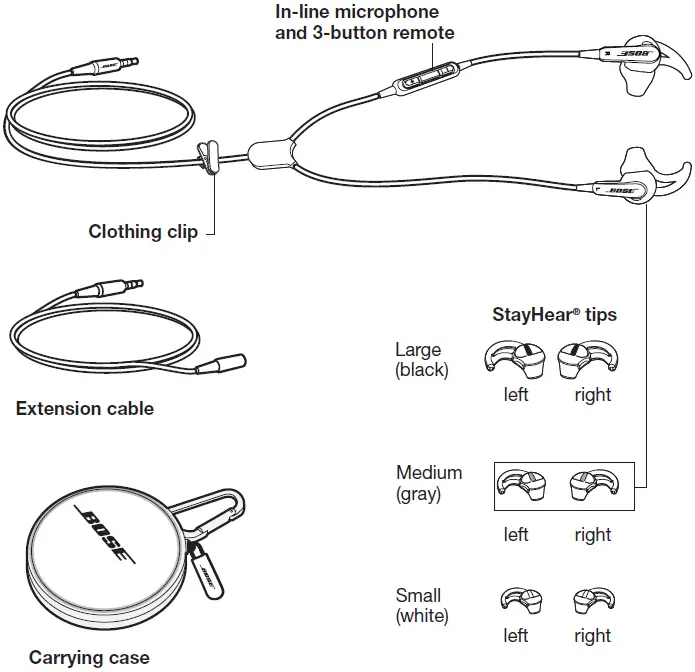

Carton contents
Carefully unpack the carton and confirm that the following parts are included:
Note: The headphones come with medium (gray) StayHear® tips attached.

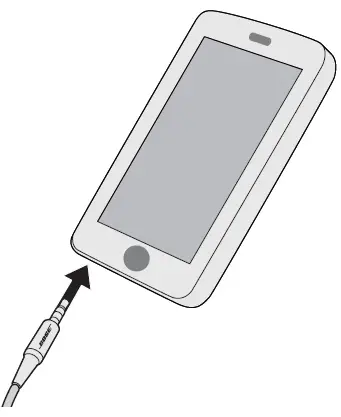

Connecting to your iPod, iPhone, or iPad
Connect the headphones to the standard 3.5 mm headphone input on your device.
The Bose® SoundSport™ in-ear headphones come with an inline microphone and 3-button remote.
Made for:
iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s, iPhone 4, iPhone 3GS, iPad Air,
iPad mini with Retina display, iPad (3rd and 4th generation), iPad mini, iPad 2, iPad, iPod touch (2nd through 5th generation), iPod classic, iPod nano (4th through 7th generation), and iPod shuffle (3rd and 4th generation).

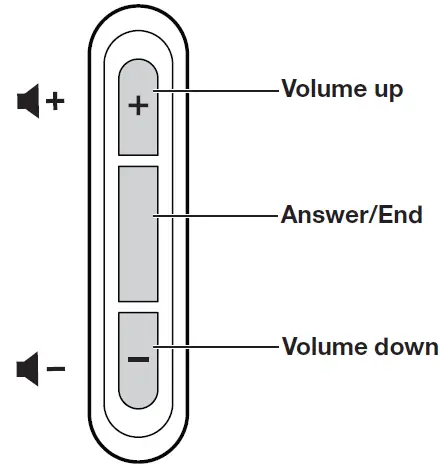

Headphone controls
Basic functions
| Increase volume | Press and release the + button. |
| Decrease volume | Press and release the – button. |
| Answer a call | When you receive an incoming call, press and release the Answer/End button to answer. |
| End a call | Press and release the Answer/End button. |
| Decline an incoming call | Press and hold the Answer/End button for about two seconds, then release. |
| Switch to an incoming or on-hold call and put the current call on-hold | While on a call, press and release the Answer/End button once. Press and release again to switch back to the first call. |
| Switch to an incoming or on-hold call and end the current call | While on a call, press and hold the Answer/End button for about two seconds, then release. |
| Use Voice Control | Press and hold the Answer/End button.
For more information on Voice Control, refer to your iPhone User’s Guide. |
Media playback functions
| Play or pause a song or video | Press and release the Answer/End button. |
| Skip to the next song or chapter | Press and release the Answer/End button twice quickly. |
| Fast forward | Press and release the Answer/End button twice quickly and hold the second press. |
| Go to the previous song or chapter | Press and release the Answer/End button three times quickly. |
| Rewind | Press and release the Answer/End button three times quickly and hold the third press. |
Importance of proper fit
When you wear the headphones properly, they provide the comfort and clarity you expect from Bose®.

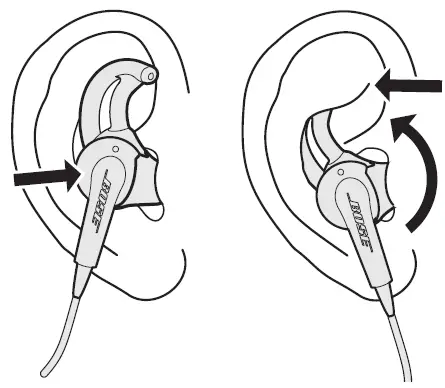

Fitting the headphones to your ear
The headphone earpiece has a soft Stay Hear® tip attached, allowing it to rest com-fortably in the bowl of your ear. The wing part of the tip fits just under your ear ridge.
Note: Each StayHear® tip is marked with an L (left) or an R (right) to indicate which earpiece it is designed to fit. Be sure to attach the Left tip to the Left ear-piece and the Right tip to the Right earpiece.
To determine if the tip is the right size:
- Insert the earpiece into the canal just enough for the headphone to rest lightly against your ear.
- Tilt the headphone back and press the tip wing under the ear ridge until it is secure. The tips should fit comfortably yet securely in the bowl of the ear.

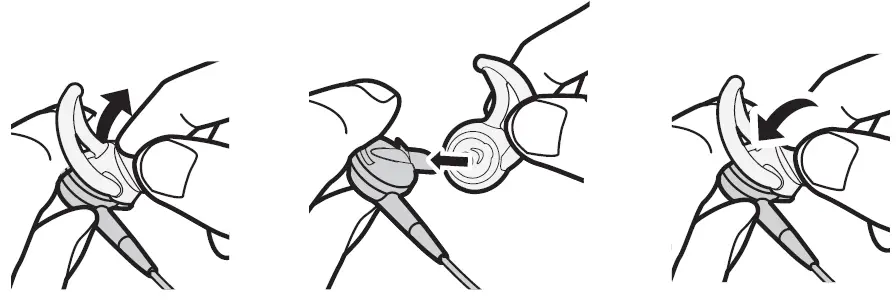

Changing the eartips
Select the type and size of eartip that provides you with the best comfort and fit.
- Gently peel the edges of the attached tip away from the earpiece, using care not to tear the tip.
Caution: To prevent damage, do not pull on the StayHear® tip wing. - Position the opening of the new tip over the nozzle and the small slot over the nozzle hook.
Note: Each tip is marked with a either an L or an R to indicate which earpiece it is for. Be sure to attach the left StayHear® tip to the left earpiece and the right StayHear® tip to the right earpiece.
Ease the base of the tip down around the base of the earpiece until the tip feels secured.
Attaching the extension cable
Attach the extension cable to create extra cable length between the headphones and your mobile device.
- Connect the female end of the extension cable to the headphone cable.
- Connect the other end of the extension cable to the standard 3.5 mm headphone input on your device.
Adjusting for comfort and stability
There are several ways you can adjust your headphones to provide additional comfort and stability. You can customize how you wear your headphones using the adjustment slider and clothing clip.

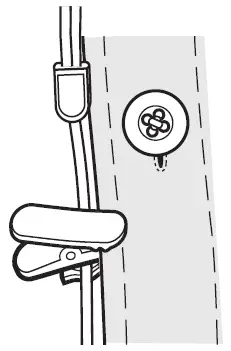

Using the clothing clip
Use the clothing clip to fasten the cable to your clothing, for convenience, stability, and to help manage the cable. This can be helpful during high-movement activities or when using the headphones in a single earpiece configuration.
Using a single earpiece
The Bose® SoundSport™ in-ear headphones can be used with only the right (R) earpiece in your ear. This allows you to take calls and still hear surrounding sounds.
Troubleshooting
If you experience any trouble using your headphones, try the following troubleshooting instructions.
| Problem | What to do |
| No audio/intermittent audio | • Securely connect the headphones plug to the headphone input.
• Try another audio device. |
| Excessive bass | • Turn off any audio enhancement features on the audio source. |
| Microphone is not picking up sound | • Make sure you are using a compatible device. See “Made for” on page 6.
• Securely connect the headphones plug to the headphone input. • Make sure the microphone opening on the back of the Answer/End button is not blocked. • Try another phone call. • Try another compatible device. |
| Device is not responding to remote (button) presses | • Securely connect the headphones plug to the headphone input.
• For multi-press functions: Vary speed of presses. |
| Device is not responding to remote | • Full controls may not be available for some Apple products. |
| Eartips falling off | • Securely attach the eartips to the earpiece and nozzle hook. |
| Lost eartip | • Contact Bose® for replacement tips. |
| Sound is muffled from earpiece | • Clear any debris or wax build-up from the eartips and headphones nozzles.
• Unplug the headphones from the audio source, then plug back in making sure they are securely connected. • Try another audio device. |
Cleaning
Your headphones may require periodic cleaning:
Eartips: Remove the eartips from the headphones. Wash them with a mild detergent and water. Make sure you thoroughly rinse and dry them before putting them back on the headphones.
Headphone nozzles: Clean only with a dry, soft cotton swab or equivalent. Never insert any cleaning tool into the nozzle.
Limited warranty
The Bose® SoundSport™ in-ear headphones are covered by a limited warranty. Details of the limited warranty are provided on the product registration card that is included in the carton. Please refer to the card for instructions on how to register. Failure to register will not affect your limited warranty rights.
The warranty information provided with this product does not apply in Australia and New Zealand. See our website at www.bose.com.au/warranty or www.bose.co.nz/warranty for details of the Australia and New Zealand warranty.
