XPC
SH570R8 Series
SH570R8 Series Shuttle XPC cube Mini-Barebone
Shuttle®
XPC
©2022 by Shuttle
Inc.
Shuttle®
(FCC) (Part 15)
1. Shuttle Shuttle Inc.
2. Intel Pentium Intel Corporation
PS/2 IBM Corporation
AWARD Award Software Inc.
Microsoft Windows Microsoft Corporation 76 30
：02-87926168
Shuttle XPC
- Intel ® LGA1200 CPU
- Intel ® X e
(Barebone user configure)
- 4 288 Pin Long-DIMM DDR4 3200/2666 MHz
- SATA 6.0Gbs 2.5
- Realtek ALC897 – HD 5.1
- Intel i210*1 / Intel i219*1 Dual Lan
– 10Mb/s, 100Mb/s, 1Gb/s
– 4 x USB 3.2 Gen1
– 2 x
– 4 x USB 3.2 Gen2
– 4 x USB 2.0
– 1 x HDMI 2.0b
– 2 x DisplayPort 1.4
– 2 x RJ45
– 3 x
| Intel | i7-11700K | 3.6GHz (1200 pin) | 1 |
| Shuttle | SW580/SH570 | — | 1 |
| crucial | CT8G4DFS8266.M8FH | 8GB | 4 |
| FSP | FSP500-50FDB | 500W | 1 |
| HITACHI | HDS721050CLA662 | 500G | 1 |
– 332 x 216 x 198 mm
– 500W
AC100V-240V，60Hz-50Hz，8A-4A)
 |  |

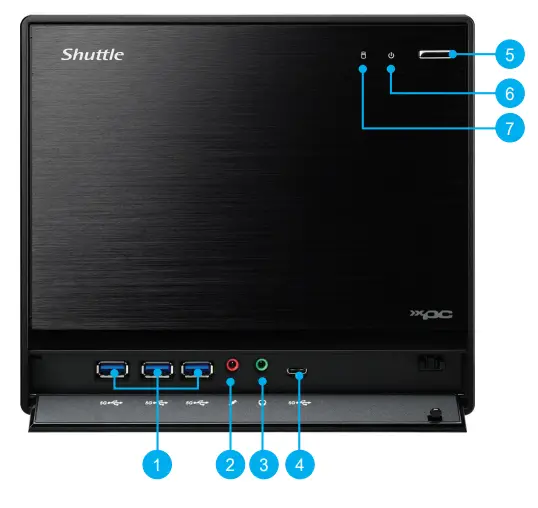

| 1. USB 3.2 Gen1 Type-A 2. 3. 4. USB 3.2 Gen1 Type-C 5. 6. 7. 8. 9. 10. LAN 11. DisplayPort | 12. COMS & +5V 13. HDMI 2.0 14. USB 2.0 15. USB 3.2 Gen2 Type-A 16. 17. 18. 19. PCIe x16 20. PCIe x4 21. |
| ：SH570R8 series Equipment name：Shuttle XPC Type designation (Type)：SH570R8 series | ||||||
|
Ｕnit | Restricted substances and its chemical symbols | |||||
| Lead (Pb) | Mercury (Hg) | Cadmium (Cd) | Hexavalent chromium (Cr+6) | Polybrominate d biphenyls (PBB) | Polybrominated diphenyl ethers (PBDE) | |
| ○ | ○ | ○ | ○ | ○ | ○ | |
| 一 | ○ | ○ | ○ | ○ | ○ | |
| ○ | ○ | ○ | ○ | ○ | ○ | |
| 一 | ○ | ○ | ○ | ○ | ○ | |
| Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition. Note 2：“○”indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 3：The “−” indicates that the restricted substance corresponds to the exemption. | ||||||
