LiFud GIF040YFIIxxxxH EU-Standard Flicker Free Built In Track Light Leddriver
Product Information
| Product Name | LF-GIF040YFIIxxxxH EU-Standard Flicker-free Built-in Track Light LED Driver |
|---|---|
| Description | LF-GIF040YFIIxxxxH is a 38-42W isolated constant current flicker-free LED driver. It is suitable for split-type LED track light (any integrated track light or down light is forbidden) and its ambient temperature shall NOT exceed 55. Its input voltage ranges from 220 to 240Vac; output voltage range from 30 to 40Vdc and output current ranges from 950 to 1050mA. It has 2 optional versions: full external casing version & bare board + fixed bottom casing version. |
Product Usage Instructions
- Ensure the ambient temperature does not exceed 55 degrees Celsius.
- Confirm that the input voltage of the LED driver is within the range of 220-240Vac.
- Connect the LED driver to a split-type LED track light. Integrated track lights or down lights are not compatible.
- Make sure to select the appropriate output voltage and current based on your specific requirements. The output voltage should be set within the range of 30-40Vdc, and the output current should be set within the range of 950-1050mA.
- Choose the desired version of the LED driver – full external casing or bare board + fixed bottom casing.
Product Description

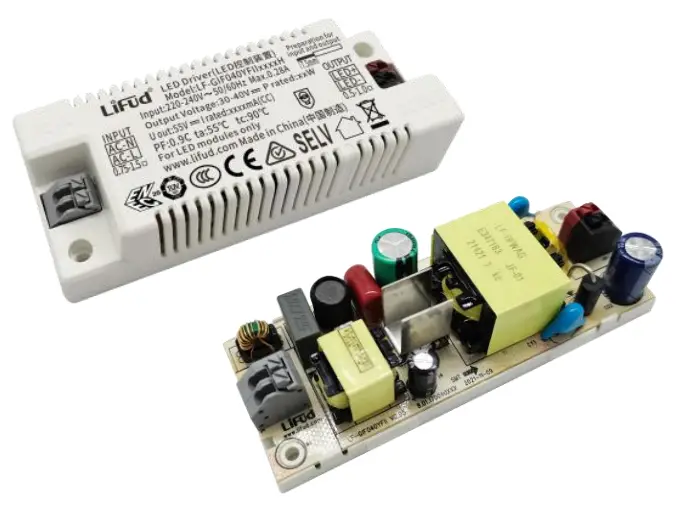

LF-GIF040YFIIxxxxH is a 38-42W isolated constant current flicker-free LED driver. It is suitable for split-type LED track light (any integrated track light or down light is forbidden) and its ambient temperature shall NOT exceed 55℃. Its input voltage ranges from 220 to 240Vac; output voltage range from 30 to 40Vdc and output current ranges from 950 to 1050mA. It has 2 optional versions: full external casing version & bare board + fixed bottom casing version.
Features
- Suitable for Class II light fixtures
- Ta: 55℃
- Modulation depth <0.5%
- High efficiency; low THD
- 5-year warranty (please refer to the warranty condition)
Applications
- Indoor office lighting
- Decorative lighting
- Commercial lighting
- Residential lighting

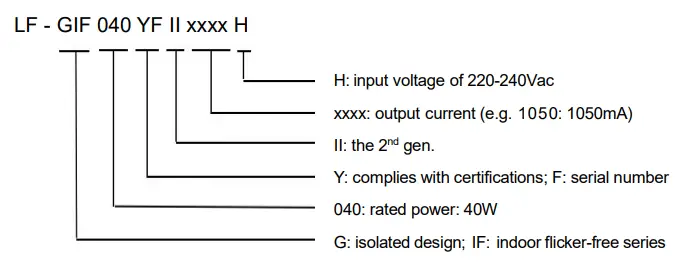

Product Naming

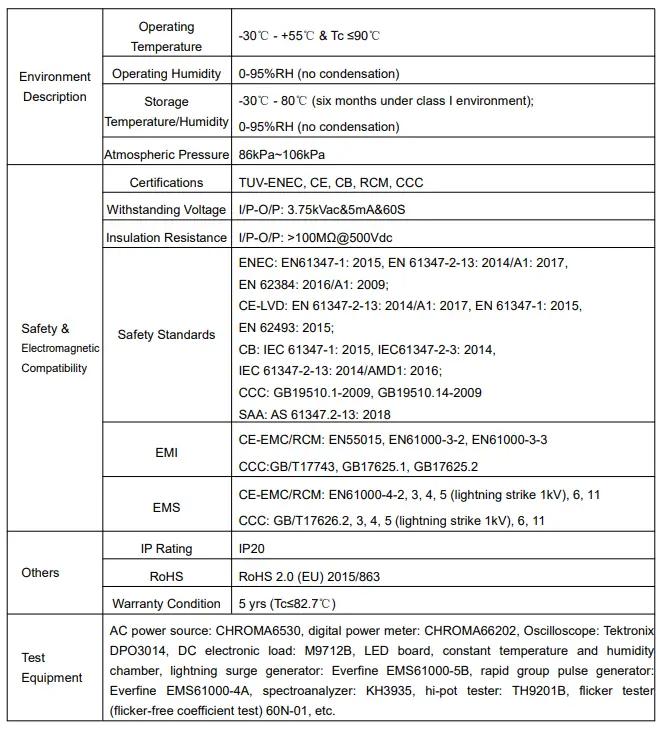

Electrical Characteristics
Characteristic Curves

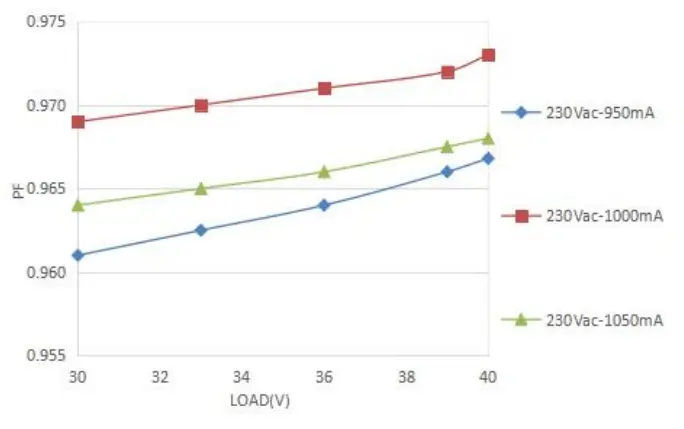

- PF Curve

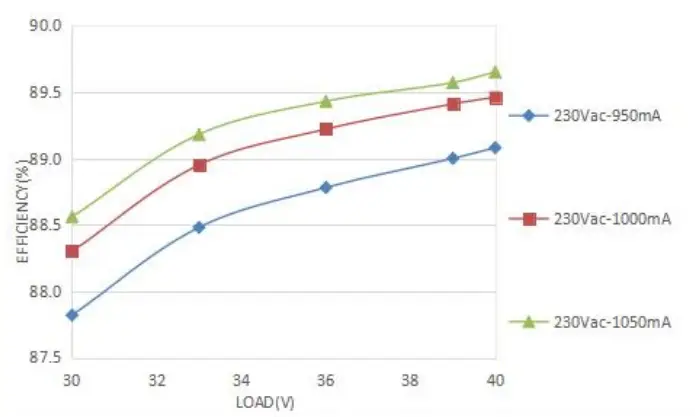

- Efficiency Curve
- Lifetime Curve
Definitions of Terminals
INPUT
| AC-N(gray terminal) | Input terminal of AC neutral wire |
| AC-L(gray terminal) | Input terminal of AC live wire |
OUTPUT
| LED+(red terminal) | Positive electrode output of the driver |
| LED-(black terminal) | Negative electrode output of the driver |
Labels

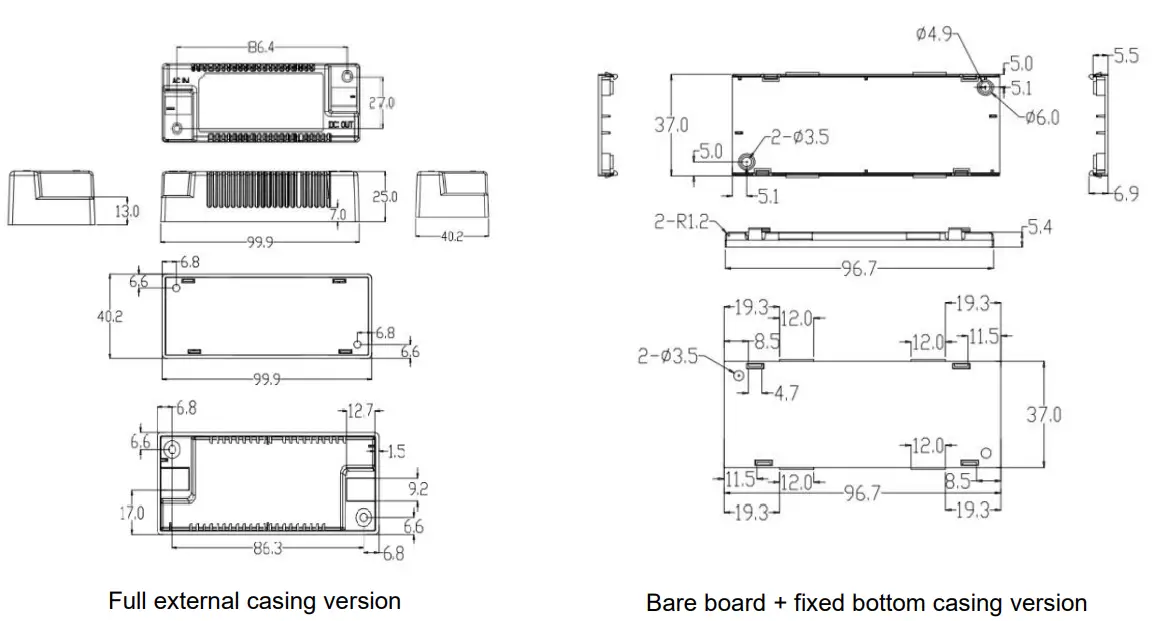

Structure & Dimensions (unit: mm)
Packaging Specifications
Full external casing version
| Model | LF-GIF040YFIIxxxxH |
| Packaging Dimensions | 385*285*210 mm (L*W*H) |
| Quantities | 14 pcs/layer; 7 layers/ctn; 98 pcs/ctn |
| Weights | 0.086 kg±5%/pc; 9.4 kg±5%/ctn |
Bare board + fixed bottom casing version
| Model | LF-GIF040YFIIxxxxH |
| Packaging Dimensions | 385*285*210 mm (L*W*H) |
| Quantities | 15 pcs/layer; 6 layers/ctn; 90 pcs/ctn |
| Weights | 0.0725 kg±5%/pc; 7.5 kg±5%/ctn |
Transportation & Storage
Transportation
- Suitable transportation means: vehicles, boats and aircraft.
- During transportation, there should be awnings for rain protection and sun protection. Civilized loading and unloading are required. There should be no severe vibration or impact.
Storage
Storage in accordance with the provisions of Class I environment. For products which have been stored for more than six months, they mustn’t be used until they pass the re-inspection.
Attention
- Please use this product according to its specifications otherwise there may be malfunction.
- Use light fixtures that have not been certified or are not compatible with the LED drivers may cause fire or other hazards.
- Man-made damage, any use beyond the specification and non-original-factory modification are not covered by warranty.
Remark: The final interpretation right of the contents of this data sheet belongs to Lifud Technology Co., Ltd.
CONTACT
- Service Hotline: +86 755 8373 9299
- www.lifud.com
Lifud Technology Co., Ltd.
