LEDISONS Flicker Free Led paneel 60×60 UGR

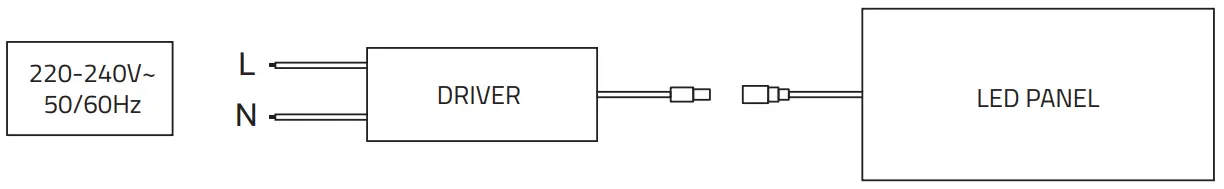

ELECTRICAL CONNECTION DIAGRAM
First, connect the panel to the driver, then connect the driver to the mains.
(Otherwise, the driver will enter short circuit protection and the panel will not light up).
INSTALLATION
A. Installation in a suspended ceiling
Remove the ceiling gypsum board.

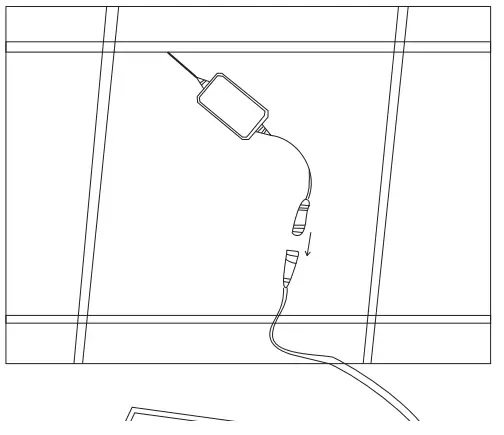

Connect the power cord.

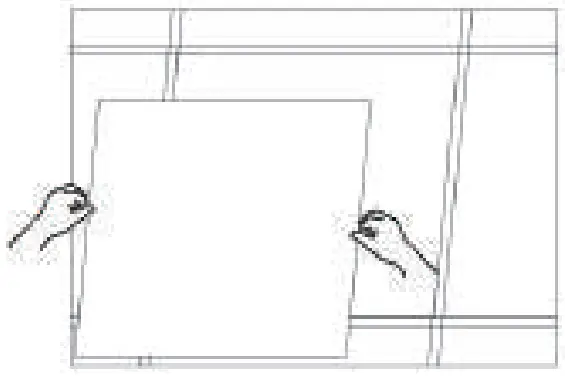

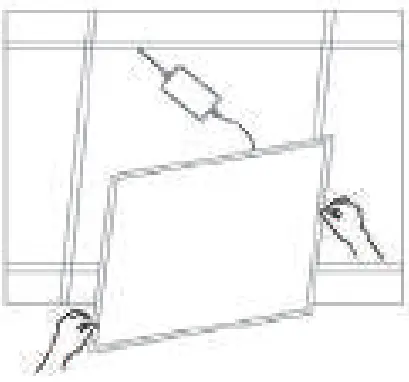

Put through the panel light along ceiling’s diagonal.
Fix the panel light to suitable place and power on.
B. Spring fastener installation

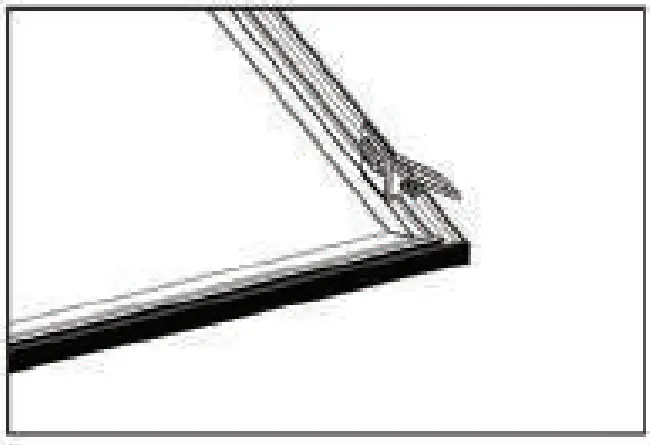

Fix the four spring fasteners with the screws to the panel light.

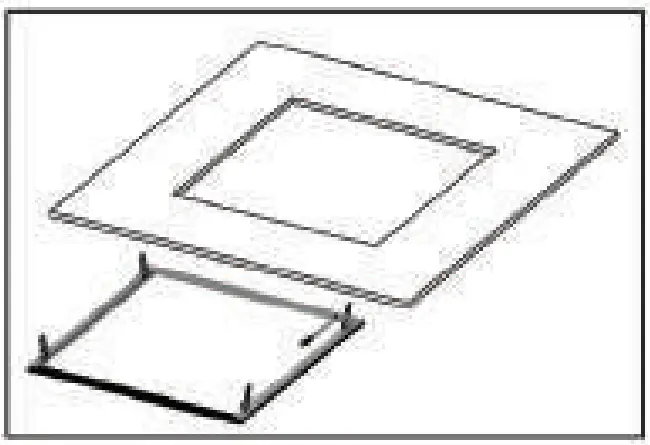

Pull the spring fasteners into the vertical position, in order to snap the panel into the cut hole.

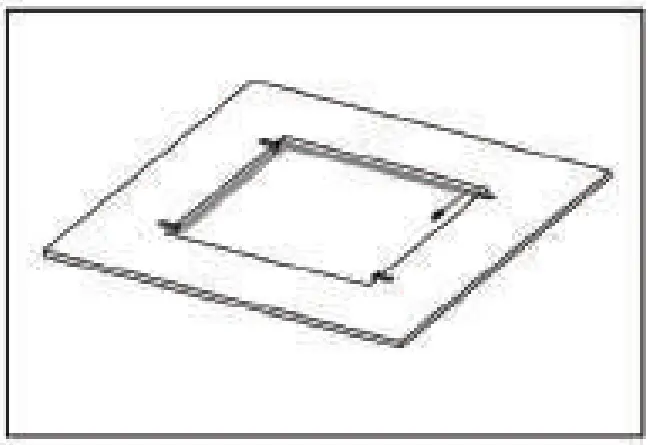

Pull the spring fasteners into their horizontal position in order to secure the panel.

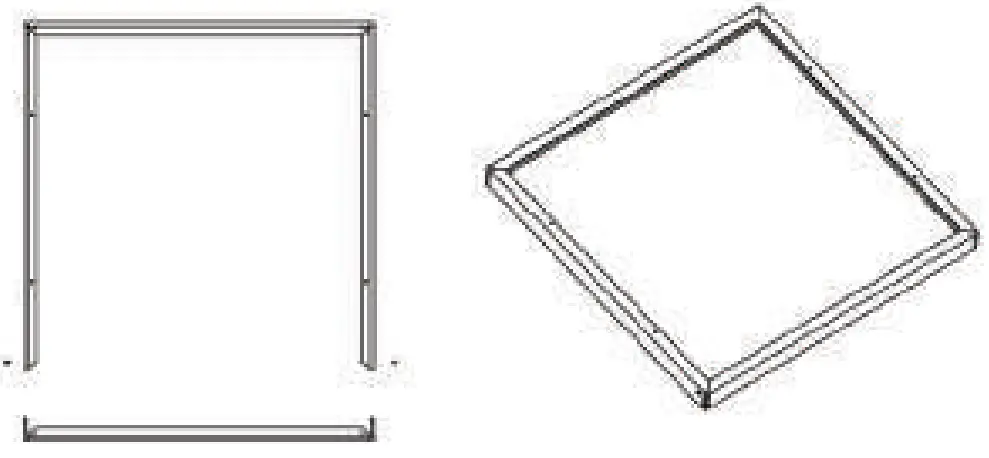

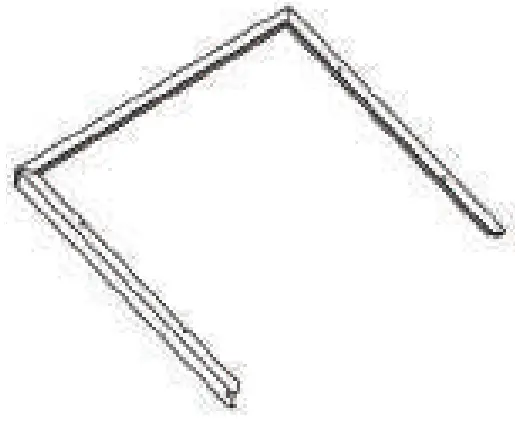

Connect three frames by using the plastic corners and screw fix this onto the roof by using the screws.

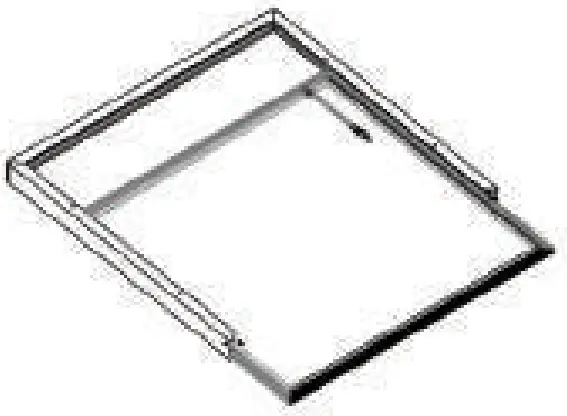

Slide the panel into the frame until it completely is in its place. Connect the panel to mains.
Screw the last frame side onto the frame to secure the panel to complete the installation.

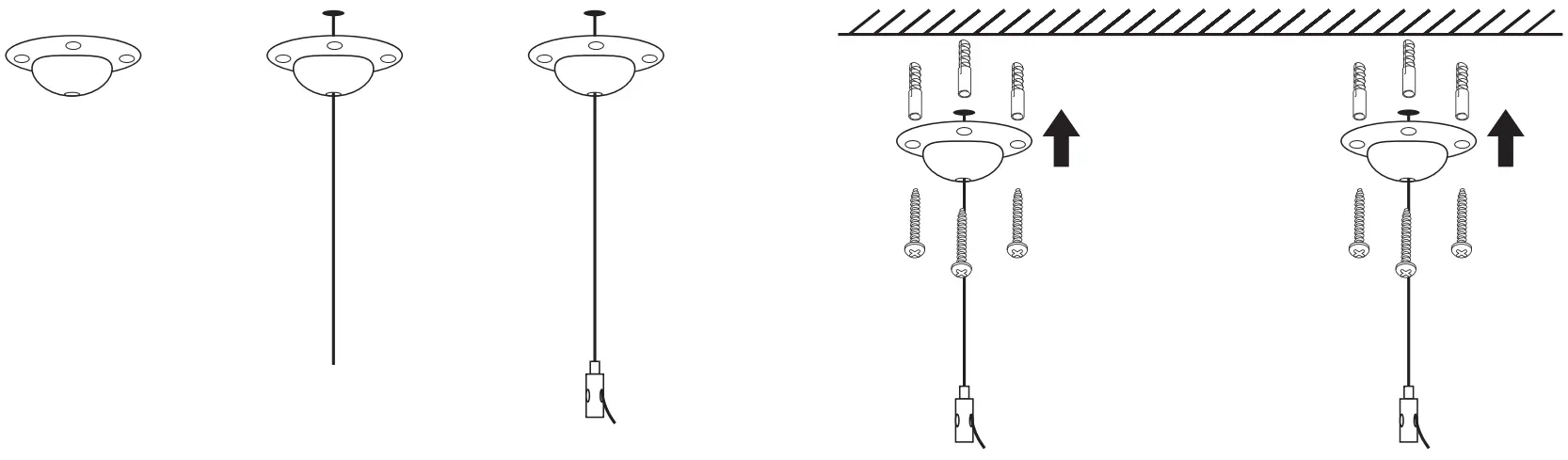

D. Hanging installation
LIGHT-DIMMER: 0-10V DRIVER
