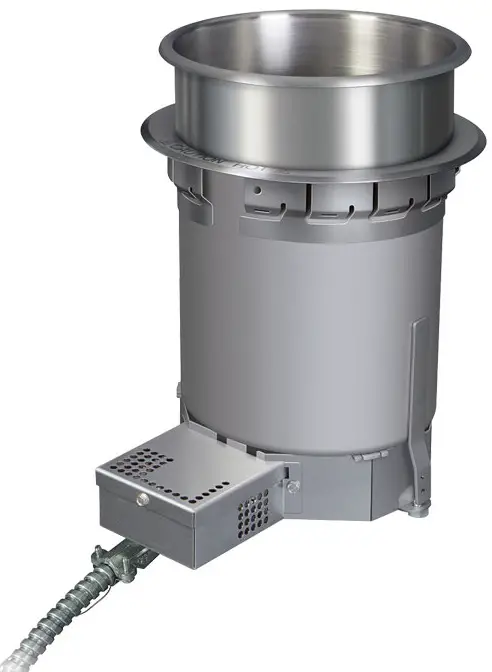

Hatco HWBRT-4QT Drop-In Round Heated Wells UR and C-UR Components Instructions

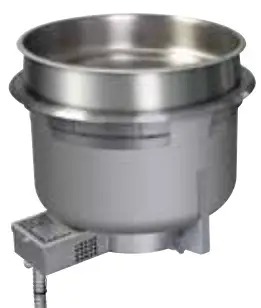

Drop-In Round Heated Wells – UR and C-UR Components
Ideal for the fabricator who wants to design a specific steam table layout. Easy to install, and easy to service, the Round Heated Wells come with control, size, drain and wattage choices.
NOTE: Fabricators will need to obtain UL approvals.
- 4-, 7- and 11-Quart Round Heated Wells
- Standard or High Watt (4-Quart Standard Watt only)
- With or without drain
- Thermostatic or infinite controls available
- Without conduit and control box enclosure
HWBRT-11QT: with accessory food pan, not included
HWBRT-7QT: with accessory food pan, not included
HWBRT-4QT: with accessory food pan, not included
DROP-IN ROUND UR AND C-UR WELLS – UNINSULATED
Model° | Description | Dimensions Dia. x H | Watts 120V 208V 240V | Ship Weight |
| 4 Quart — Standard Watt | ||||
| HWBRT-4QT | Top Mount | 81/4″ x 101/8″ | 500 536 600 | 9 lbs. |
| HWBRT-4QTD | Top Mount w/Drain | 81/4″ x 101/8″ | 500 536 600 | 9 lbs. |
| HWBRN-4QT | Top Mount | 81/4″ x 101/8″ | 500 536 600 | 6 lbs. |
| HWBRN-4QTD | Top Mount w/Drain | 81/4″ x 101/2″ | 500 536 600 | 9 lbs. |
| 7 Quart — Standard Watt | ||||
| HWBRT-7QT | Top Mount | 105/16″ X 9″ | 500 536 600 | 11 lbs. |
| HWBRT-7QTD | Top Mount w/Drain | 105A6,” x 9″ | 500 536 600 | 11 lbs. |
| HWBRN-7QT | Top Mount | 105/16″ X 9″ | 500 536 600 | 7 lbs. |
| HWBRN-7QTD | Top Mount w/Drain | 105/6″ x 9″ | 500 536 600 | 10 lbs. |
| 7 Quart — High Watt | ||||
| HWBHRT-7QT | Top Mount | 105/16″ x 9″ | 800 715 800 | 7 lbs. |
| HWBHRT-7QTD | Top Mount w/Drain | 105A6,” x 9″ | 800 715 800 | 9 lbs. |
| HWBHRN-7QT | Top Mount | 105/16″ x 9″ | 800 715 800 | 7 lbs. |
| HWBHRN-7QTD | Top Mount w/Drain | 105A6,” x 9″ | 800 715 800 | 13 lbs. |
| 11 Quart — Standard Watt | ||||
| HWBRT-11 QT | Top Mount | 12 VIC x 9″ | 500 536 600 | 10 lbs. |
| HWBRT-11 QTD | Top Mount w/Drain | 12 V16″ x 9″ | 500 536 600 | 11 lbs. |
| HWBRN-11QT | Top Mount | 12 VIC x 9″ | 500 536 600 | 10 lbs. |
| HWBRN-11 QTD | Top Mount w/Drain | 12 ‘AC x 9″ | 500 536 600 | 13 lbs. |
| 11 Quart — High Watt | ||||
| HWBHRT-11QT | Top Mount | 12 5/16″ x 9″ | 800 715 800 | 15 lbs. |
| HWBHRT-11 QTD | Top Mount w/Drain | 12 VIC x 9″ | 800 715 800 | 11 lbs. |
| HWBHRN-11QT | Top Mount | 12 ‘AC x 9″ | 800 715 800 | 8 lbs. |
| HWBHRN-11 QTD | Top Mount w/Drain | 12 VIC x 9″ | 800 715 800 | 11 lbs. |

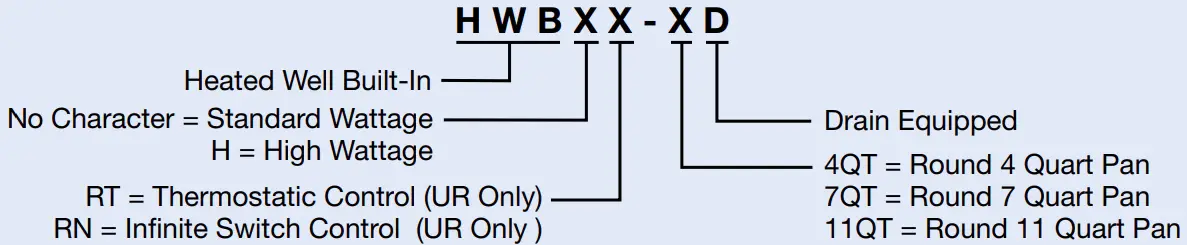

- “RT” added to model name indicates unit with thermostat control, lit rocker switch and 36″ capillary. “RN” added to model name indicates unit with infinite switch control, pilot light and 36″ leads.
All Drop-In Round UR & C-UR Heated Well Models Feature
- Voltage: Single phase only.
- Models Shipped with: EZ locking hardware for installation.
OPTIONS
(available at time of purchase only) – UR and C-UR COMPONENTS ONLY
- HWB-LEAD-UR: High Temp Power Supply Lead Wire for “RN” Components (Lead Wire only – Conduit not included)
HWB-TSTAT-UR: Thermostat with 6′ Capillary for “RT” Components (Thermostat only – Conduit not included)
Control Options
The UR and C-UR Models can have the following control choices:
- Thermostatic controls, which feature an On/Off switch with light
- Infinite controls – available with indicator light
Thermostatic Control
Infinite Control
CONTROL CUTOUT DIMENSIONS
Control | Width | Height |
Thermostatic | 21 ⁄8″ | 33⁄8″ |
| Infinite | 21⁄8″ | 33⁄8″ |
ONE YEAR ON-SITE PARTS AND LABOR WARRANTY PLUS ONE ADDITIONAL YEAR PARTS-ONLY WARRANTY ON THE METAL SHEATHED HEATING ELEMENTS.
