Instruction Manual
Outdoor Wall Sconce

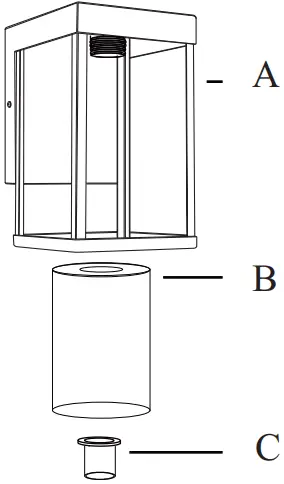

PACKAGE CONTENTS
| PART | DESCRIPTION | QUANTITY |
| A | Fixture | 2 |
| B | Shade | 2 |
| C | Socket ring (preassembled to Fixture (A)) | 2 |
HARDWARE CONTENTS(shown actual size)
AA
Short monting screw x 4
BB
Wire nut x 6
CC
Long monting screw x 4
DD
Crossbar (Not actual size) x 2
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
- TURN OFF ELECTRICITY at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching off circuit breaker).
- MINIMUM 90°C SUPPLY CONDUCTORS.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Times: 25 minnutes
Tools Required for Assembly (not included): Flathead screwdriver , Phillips screwdriver, Pliers, Electrical tape, Wire cutters, Safety glasses.
Helpful Tools (not included): Wire strippers, Step ladder.
ASSEMBLY INSTRUCTIONS
1. Attach the crossbar (DD) to the outlet box (not included) with the long mounting screws (CC).
Hardware Used
CC Long mounting screw
x 2
DD Crossbar x 1
2. Strip 3/4 in. of insulation from wire ends. Twist stripped ends together with pliers (not included), black to black (power) and white to white (neutral). Attach copper wire to ground wire. Helpful hint:
If necessary, attach copper ground wire to grounded outlet box.
3. Attach wire nuts (BB).Tape wire nuts (BB) and wires together.
Hardware Used
BB Wire nut
x 3
4. Place fixeture (A) onto the crossbar (DD). Secure with short mounting screws (AA).
Hardware Used
AA Short mounting screw
x 2
DD Crossbar x 1
5. Remove socket ring (C). Install shade (B) over socket of fixture (A), then secure with socket ring (C).
6. Install light bulb (not included). Use one standard-base bulb or one standard-base CFL bulb.
