Symbol PARTS LIST

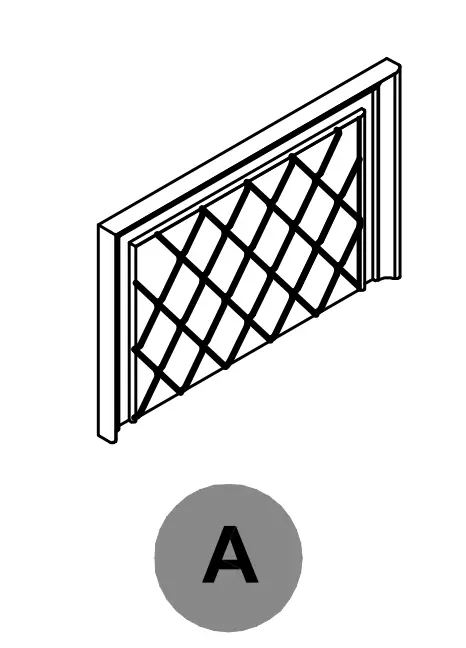

  • A xl Headboard panel

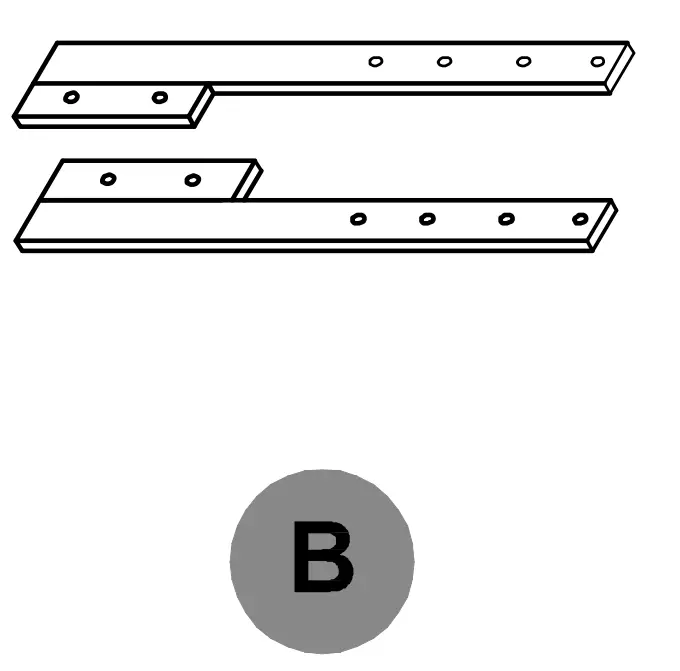

  • B x2 Headboard Legs (Left & Right)

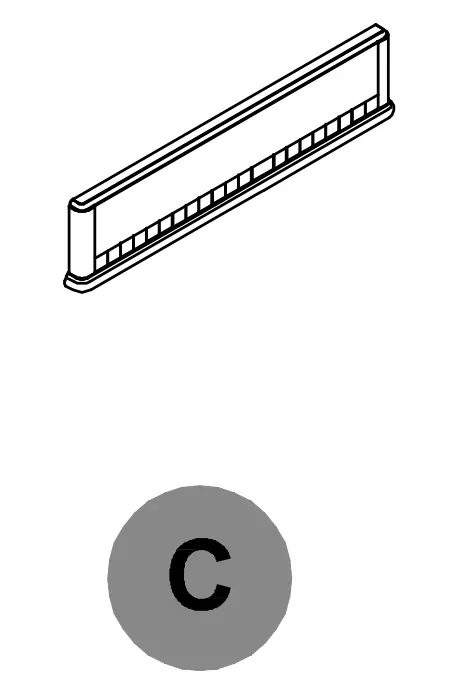

  • C xl Footboard Panel

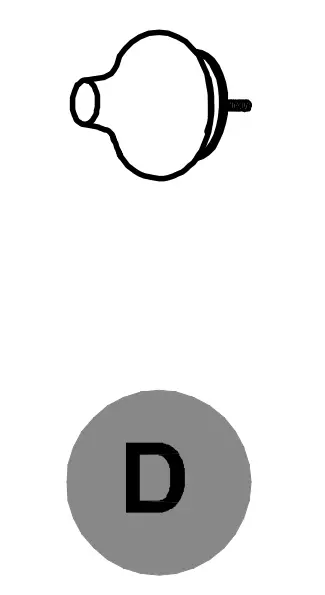

  • D x2 Bun Foot

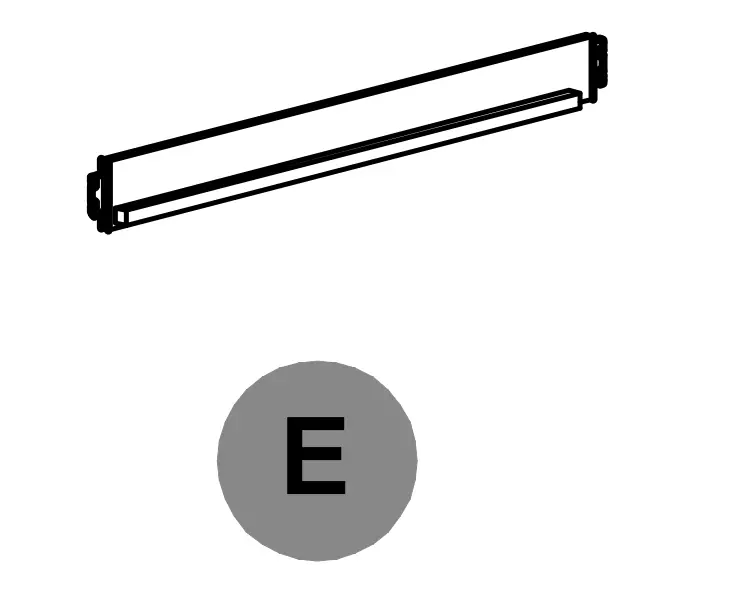

  • E x2 Side Rail

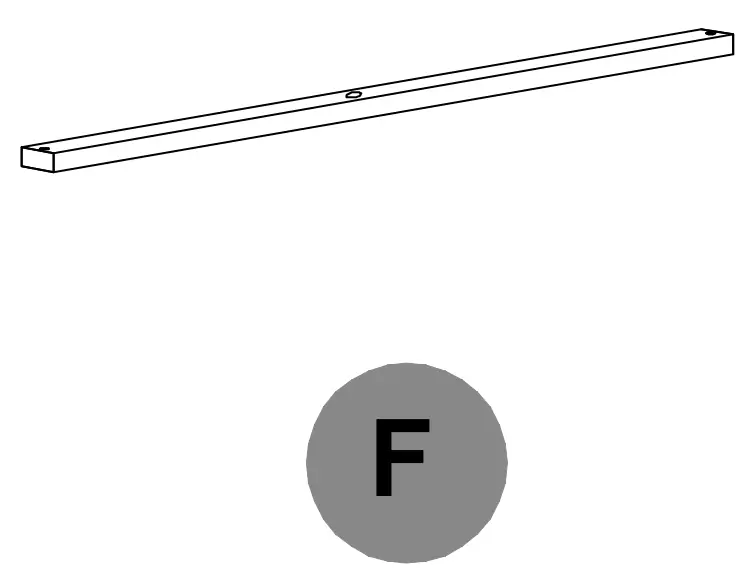

  • F x4 Slats

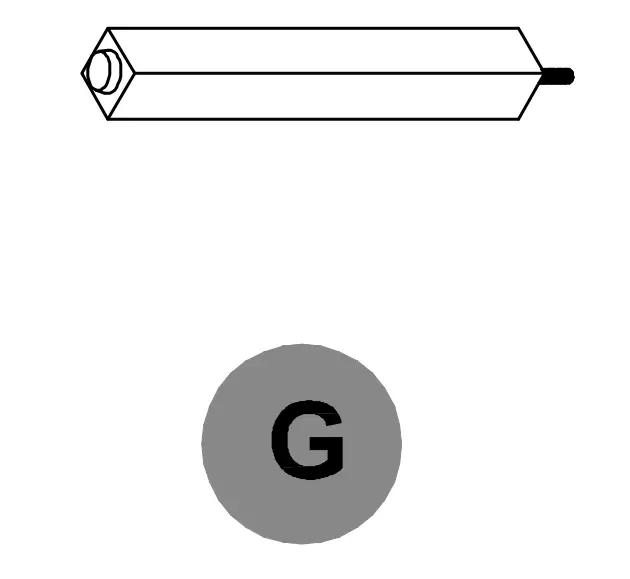

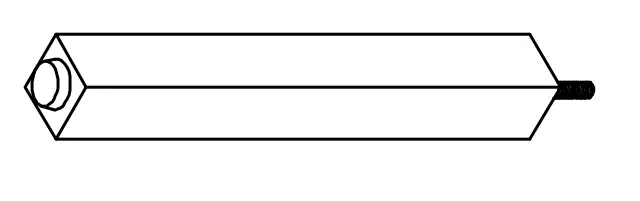

  • G x8 Long Center legs

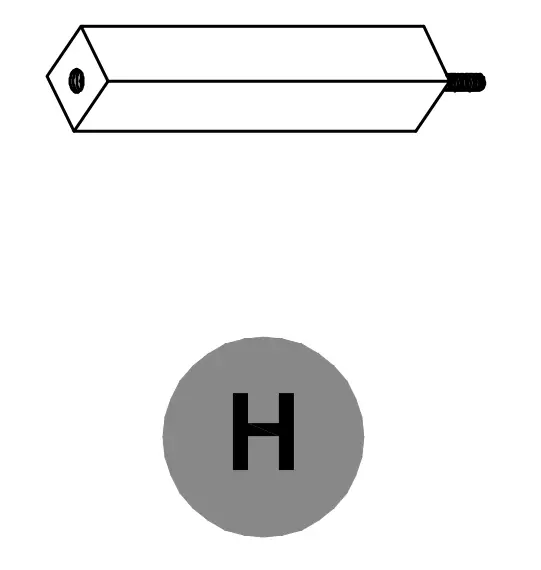

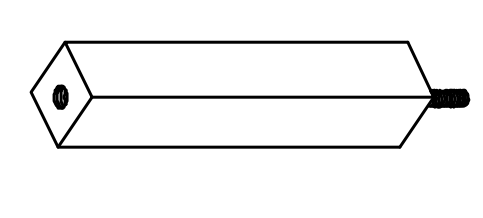

  • H x8 Short Center legs

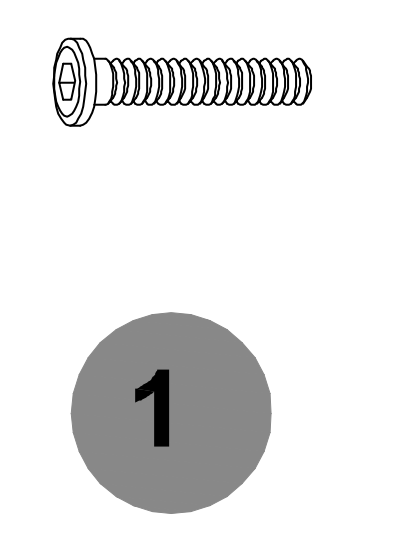

  1. x8 Allen bolt 05/16″x45mm

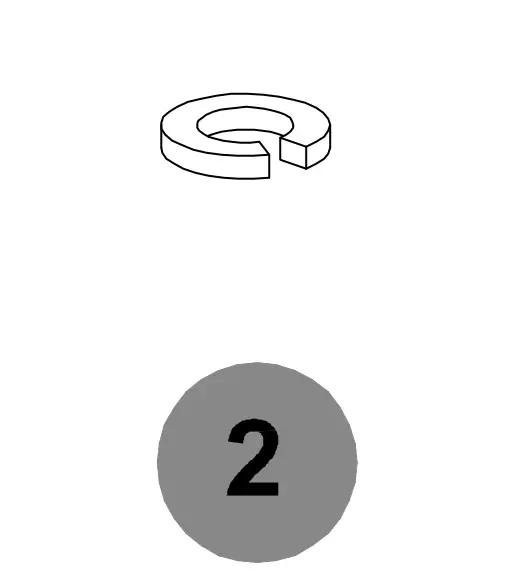

  2. x8 Lock washer 05/16″

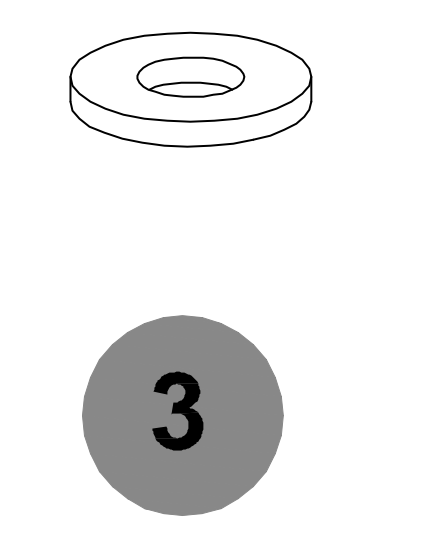

  3. x8 Flat Washer 05/16″x19xl.5mm

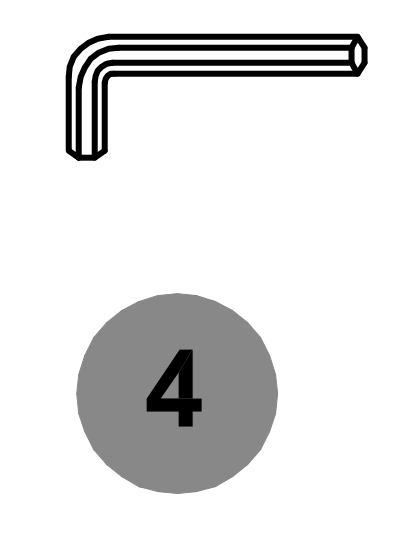

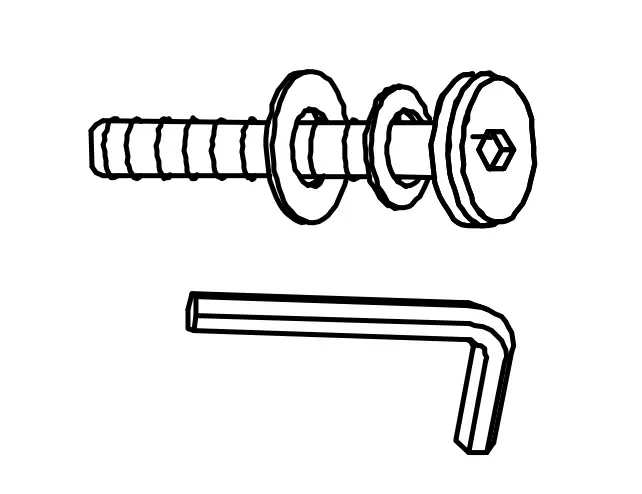

  4. xl Allen Key 4mm

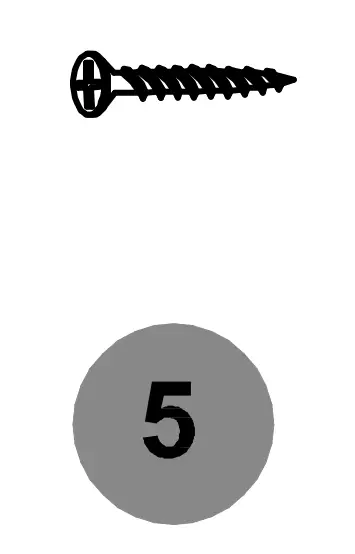

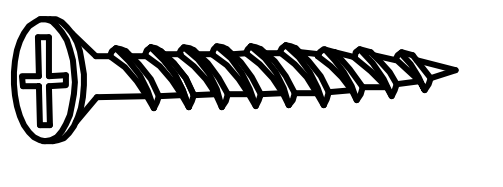

  5. x8 Wood Screw #8x35mm

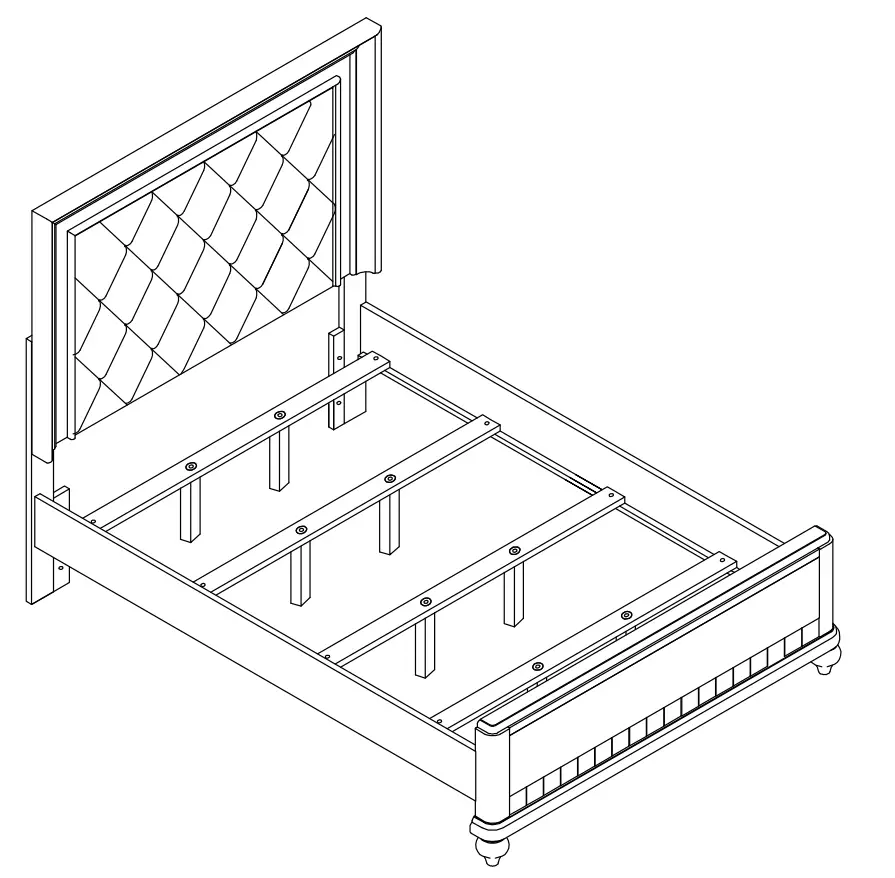

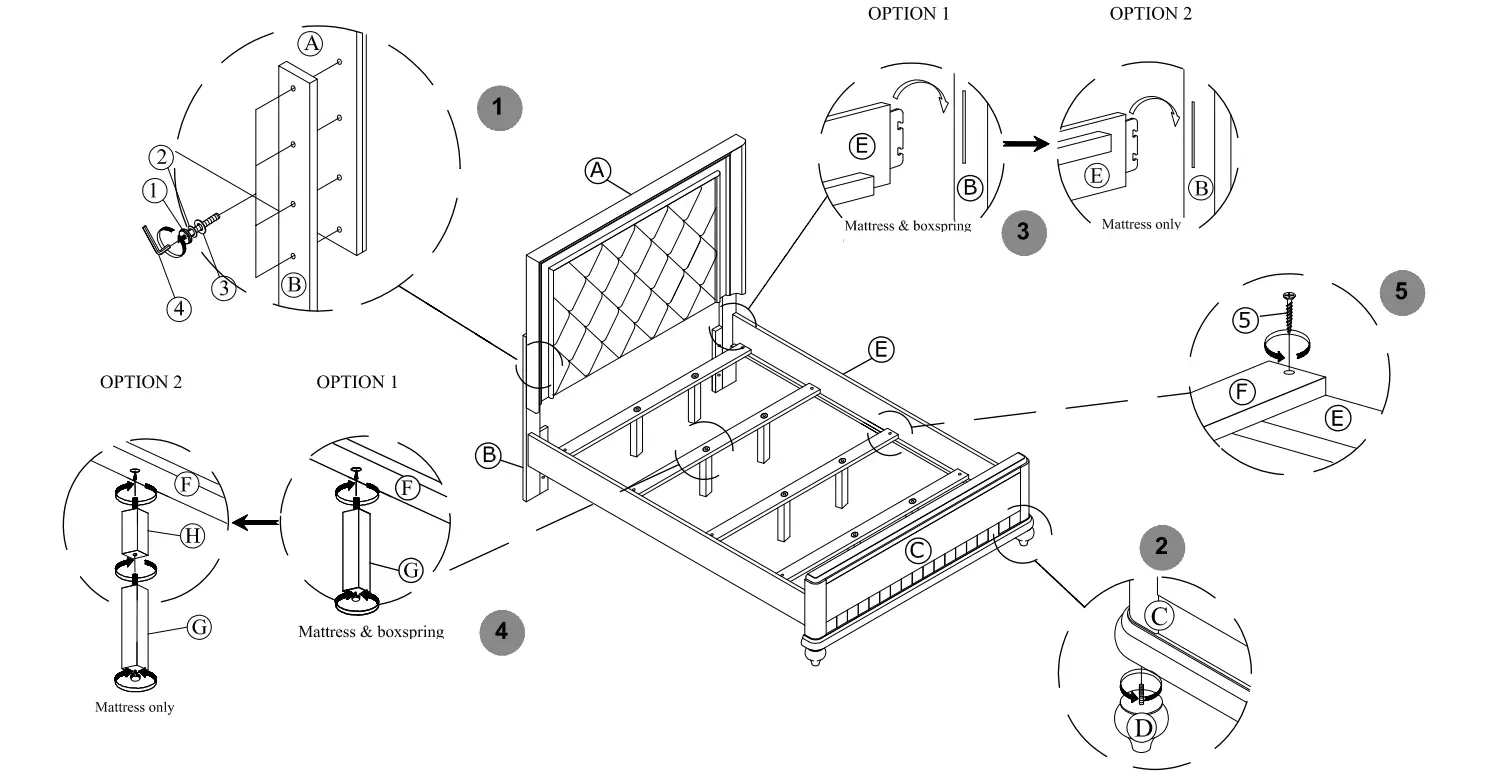

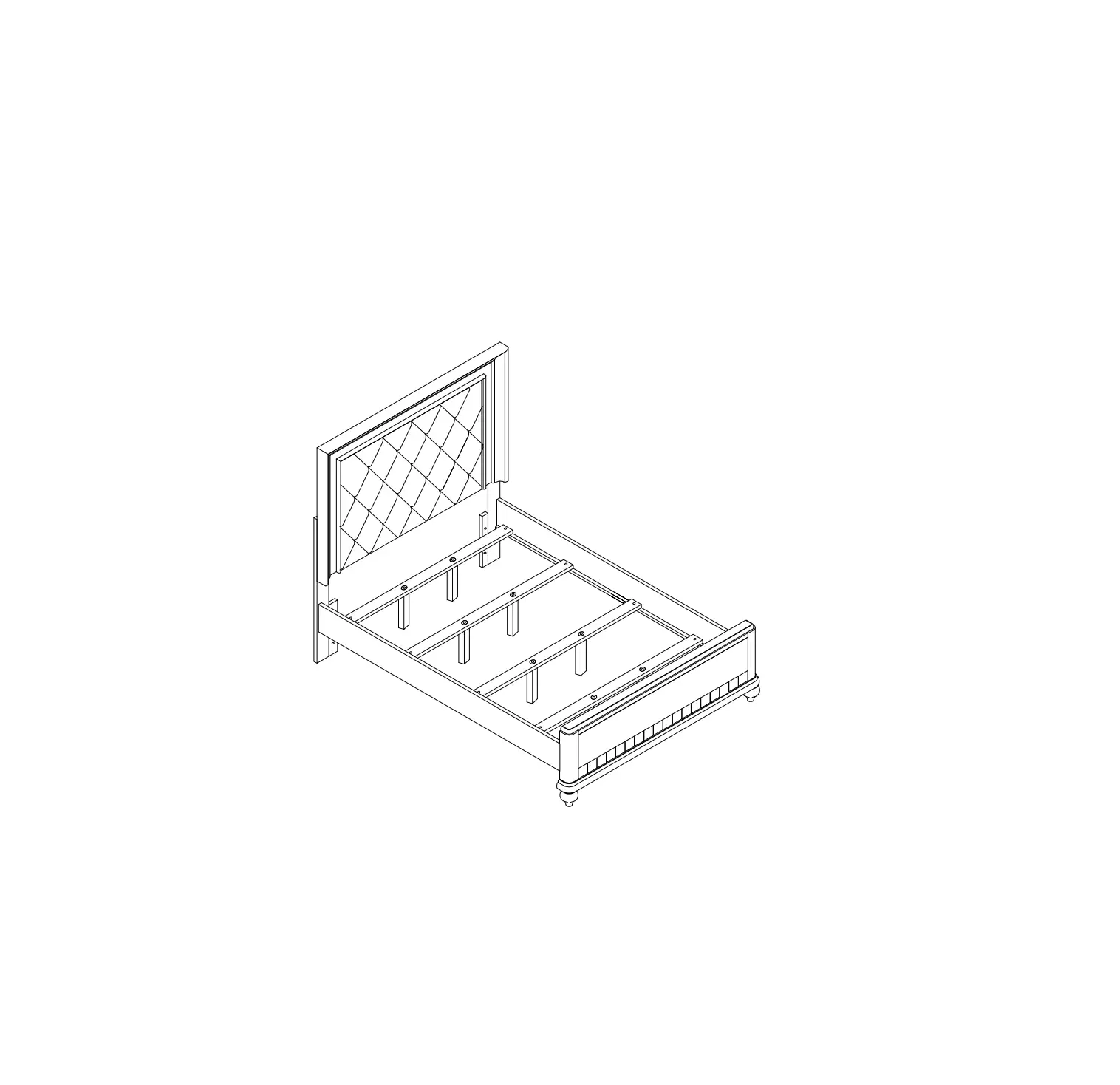

Symbol ASSEMBLY INSTRUCTIONS

Assembly Instructions

Symbol REPLACEABLE PART

Replaceable Part

  • x2 R8808-255-LEGL/R-Headboard Legs (Left & Right)
  • x4 R8808-277-SLAT- Slats
  • x2 R8808-257-FOOT- Bun Foot
  • x8 R8808-257-SLEG 1- Long Center leg
  • x8 R8808-257-SLEG 2- Short Center leg
  • x8 R8808-257-SCREW-Wood Screw #8x35mm
  • xl SET R8808-255-BUT- Common Buttons
  • xl RSS0S-255-257-HWKIT-Hardware kit list

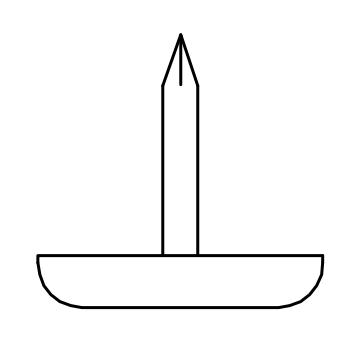

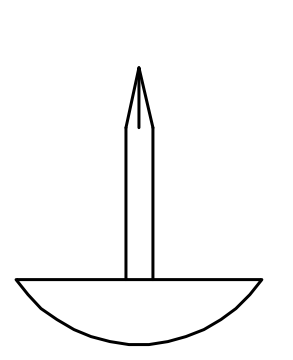

  • x4 RC-WH-NAIL-White Plastic Nail

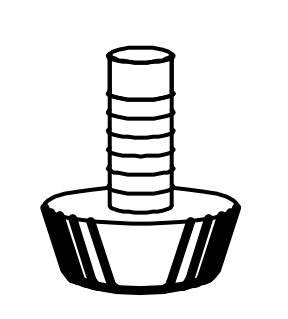

  • x8 RC-FG-WHITE- White Leveler

Made in Viet Nam
ITEM NO./ ARTICLE NO./ ARTICULO NO : 8808-275-277-400
