ASSEMBLY INSTRUCTIONS
ITEM NO: C8446A-FY0PUXLGX/C8446A-F24/ C8446A-YXN/ C8446A-TY0PUXLGX/ C8446A-T24
FULL UPHOLSTERY HEADBOARD/ FULL FOOTBOARD W/ 4 SLATS, 8 SUPPORTS TWIN / FULL SIDE RAIL SET (2)
TWIN UPHOLSTERY HEADBOARD/ TWIN FOOTBOARD WI 4 SLATS, 8 SUPPORTS
Caution: Please read instructions thoroughly before unpacking assembly parts.Sharp, exposed staple tips can cause injury, therefore, for your protection, please remove any exposed staple used in packing.
- We recommend that you should assemble this product with the assistance of another person; this will make assembly easier, and will help to eliminate damage to the product or injury to persons during assembly.
- Be sure to check all packing materials carefully for small parts that may have come loose inside the carton during shipment.
- Please do not over-tighten screws or bolts until the assembly is complete.
- Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your newly purchased product correctly and efficiently.
| PART LISTS | |||
| NO. | Description | Sketch | Q’ty |
| A | HEADBOARD | ![]() | I PC |
| B | HEADBOARD LEG (L-R) | 2 PCS | |
| C | CROSS BAR | ![]() | 1 PC |
| D | CRYSTAL & TURNING | ![]() | 4 PCS |
| E | FOOTBOARD | ![]() | 1 PC |
| F | I F G | ![]() | 2 PCS |
| G | SIDERAILS | ![]() | 2 PCS |
| H | SLATS | ![]() | 4 PCS |
| I | SUPPORT LEGS | 8 PCS | |

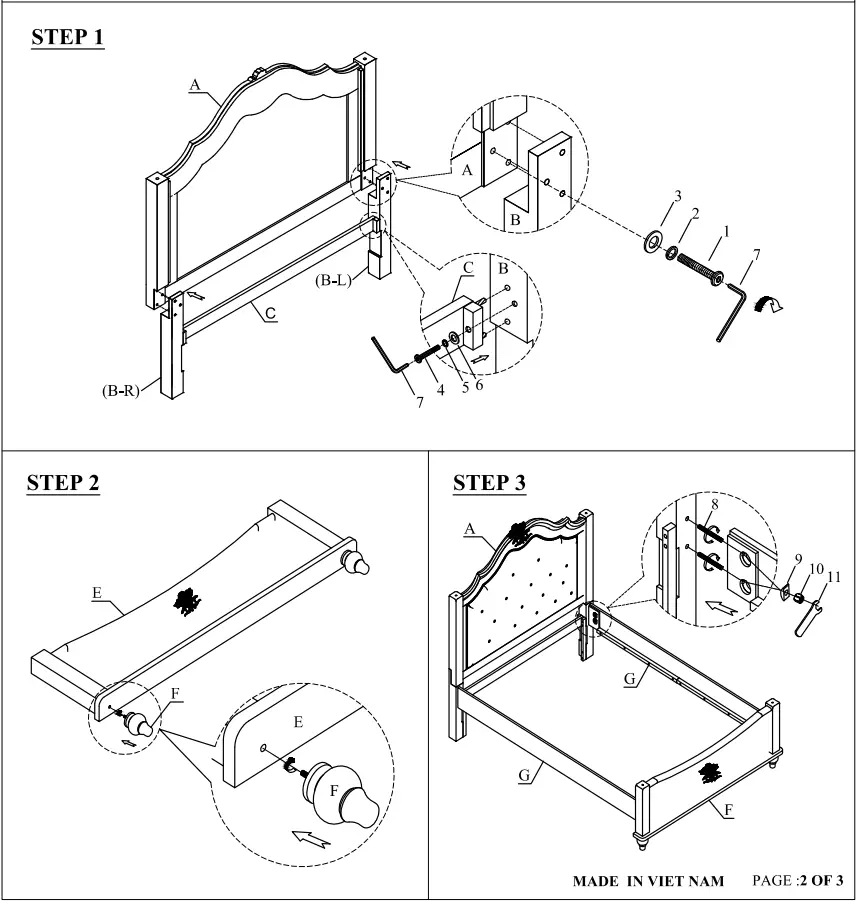

STEP 1
| I I A RDWARE LISTS | ||||
| N O. | Description | Sketch | Size | Q’ty |
| 1 | BOLT | ![]() | 5/16″x5Omm | 6 PCS |
| 2 | SPRING WASHER | ![]() | 5/16*12*2mm | 6 PCS |
| 3 | FLAT WASHER | ![]() | 5/16*19*2mm | 6 PCS |
| 4 | BOLT | ![]() | 1/4″x38mm | 2 PCS |
| 5 | SPRING WASHER | ![]() | 1/4*10*2mm | 2 PCS |
| 6 | FLAT WASHER | ![]() | 5/16*19*2mm | 2 PCS |
| 7 | ALLEN KEY | ![]() | M4*58mm | 1 PC |
| BOLT | 05/16″*100mm | 8 PCS | ||
| 9 | U WASHER | ![]() | 26x12x8mm | 8 PCS |
| 10 | NUT | ![]() | 05/16″x6mm | 8 PCS |
| 11 | WRENCH | ![]() | 90*25*2mm | 1 PC |
ABOVE HARDWARE ARE PACKED IN HEADBOARD FOR ASSEMBLY
| 12 | SCREW | ![]() | M4x 25mm | 16PCS |
ABOVE HARDWARE ARE PACKED IN FOOTBOARD FOR ASSEMBLY
