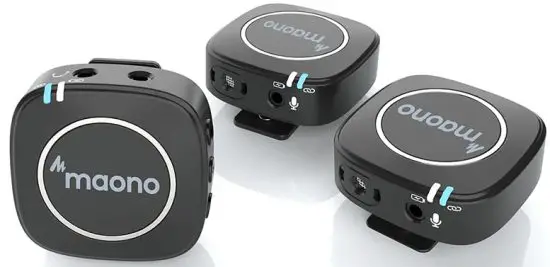

maono WM820-A2 Dual Wireless Microphone System User Guide
Key operation and LED lighting instructions
Buttons (Transmitter TX1 & TX2)
Power Button
-Press and hold the power button for 2 seconds to turn on/off the unit
Mute Button
– Single-click the mute button to mute and unmute. The LED light will turn red when muted
Pair Button
– Press and hold the pair button to pair the transmitter to the receiver.

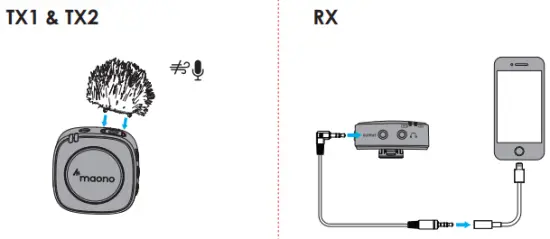

Connector (Transmitter TX1 & TX2)
USB-C Charging Port- 5V, 1A Max 3.5mm Microphone Input – When plugging in an external microphone, the transmitter will automatically switch to the external mic input
LED Indicator (Transmitter TX1 & TX2)
Connection indicator
:
Solid – connected ; Flash – disconnected ; Rapid Flash -connecting Turn on the power on the transmitter and the LED will flash. Then turn on the power button on RX receiver, and WM820 will automatically pair the transmitter to the receiver and the LED will remain solid.
Battery LED Indicator
:
No lights = internal battery is above 20%
Red LED flash = internal battery is below 20%
Solid Red LED = charging. Once fully charged, the red light will turn off
Buttons (Receiver RX)
Power Button – Press and hold the power button for 2 seconds to turn on/off the RX (receiver)
Volume+ Rocker
– Short press to increase the output volume
Volume – Rocker
– Short press to lower the output volume

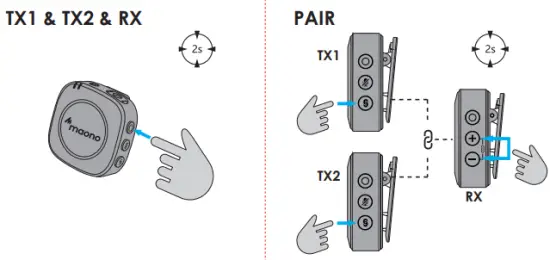

Pair Button – Press and hold both the volume+and- button for at least 2 seconds until the LED light on the receiver start to flash

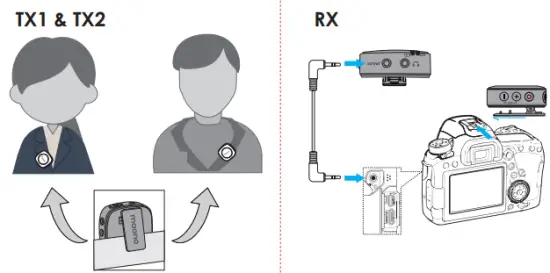

Connector (Receiver RX)
USB-C Charging Port – 5V, 1A Max
OUTPUT – 3.5mm TRS connector
Headphone connector – Plug the transmitter into the headphone jack for monitoring
LED Indicator (Receiver RX)
Connection indicator :
Solid – connected ; Flash – disconnected ; Rapid Flash – connecting;
Turn on the power on the receiver and the LED will flash. Then turn on the power button on RX receiver, and WM820 will automatically pair the transmitter to the receiver and the LED will remain solid.
Battery LED Indicator :
No LED = battery level is above 20%
Red LED flash = battery level is below 20%
Solid Red LED = charging. Once fully charged,
the red light will turn off
Technical Specification
| Transmission Type | 2.4GHz Wireless 2.4G |
| Polar Pattern (Built-in Mic) | Omnidirectional |
| Built-in Mic frequency response | 80Hz -16kHz |
| External Mic frequency response | 50Hz -18kHz |
| Maximum Output Level | +2.2dBu |
| Maximum SPL | 100dB SPL (1kHz @ 1m) |
| THD+N | 0.4% |
| S/N Raito | 82dB |
| Power | Built-in Li-po battery 350mA/3.7V |
| Charge port | USB-C, DC 5V, Max. |
| Battery Life | Up to 6 hours 6 |
| Audio Input | 3.5mm TRS lavalier microphone input (Transmitter)
|
| Audio Output | 3.5mm TRS (Receiver) 3.5mm TRS |
