Feit Electric Cm7.5 Rechargeable Led Ceiling Light With Remote Control 35 Watt Hours Installation Guide

Model: CM7.5/840/35/BAT

IMPORTANT SAFETY INSTRUCTIONS AND INSTALLATION GUIDE
Rechargeable LED Ceiling Light with Remote Control
35 Watt Hours

READ BEFORE INSTALLATION
SAVE THESE INSTRUCTIONS
Questions, problems, missing parts? Before returning to the store, call Feit Electric Customer Service
8 a.m. – 5 p.m., PST, Monday – Friday
1-866-326-BULB (2852)
FEIT.COM

We appreciate the trust and confidence you have placed in Feit Electric through the purchase of this Rechargeable Ceiling Light. We strive to continually create quality products
designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Feit Electric.

Important Safety Information

Read and understand all Safety and Operating instructions in this manual before using this product. Follow all safeguards stated in this manual, in addition to normal safety precautions in working with electrical devices.

•  Do not place near any heat source.
• To reduce the risk of electrical shock, do not put in water or other liquid. Do not place or store product where it can fall or be pulled into a tub or sink.
• Do not crush or incinerate.
• Do not insert foreign objects into this product.
• To reduce the risk of fire, keep away from combustible materials while in operation.
• To reduce the risk of injury, close supervision is necessary when this product is used near children.
•  Do not attempt to repair, disassemble or modify under any circumstances.
•  Check for damage prior to each use of the product.
• LEDs are not replaceable.

This product uses permanent tape that may cause damage to the mounting surface. Feit Electric is not responsible for any damage to the mounting surface.

WARNING: RISK OF SHOCK. House electric current can cause painful shock or serious injury unless handled properly.
 WARNING: Changes or modifications to this unit not ill expressly approved by the party responsible for compliance en. could void the user’s authority to operate the equipment.

SAVE THESE INSTRUCTIONS

FCC STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note:  This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV  technician for help. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
Supplier’s Declaration of Conformity:
47 CFR § 2.1077 Compliance Information
Responsible Party:
Feit Electric Company
4901 Gregg Road,
Pico Rivera, CA 90660, USA
562-463-2852
Unique Identifier:
CM7.5/840/35/BAT

Limited Warranty

This product is warranted to be free from defects in workmanship and materials for up to 1 year from the date of purchase. If the product fails within the warranty period, replacement or refund is your sole remedy. Except to the extent prohibited by applicable law, any implied warranties are limited in duration to the duration of this warranty.  Liability for incidental or consequential damages is hereby expressly excluded. Some states and provinces do not allow the exclusion of incidental or consequen­ tial damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.

Pre-Assembly

SPECIFICATIONS

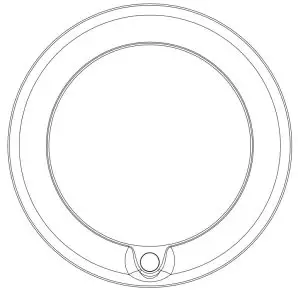

PRODUCT

The performance specifications (lumens, watts, life, and CCT) should only be considered an approximation of expected performances.

 NOTE: The light will turn red L when charging and turns green when fully charged

PARTS INCLUDED

NOTE: Hardware not shown to actual size.

LED Ceiling Light Installation with Screw

1 Positioning the LED Ceiling Light
Find the desired place for the LED Ceiling Light and clean the area. Remove any dirt, dust, or other residue.

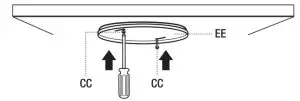

2 Installing the Metal Mounting Plate
Position the Mounting Plate (EE) and screw in the Mounting Screws (CC).

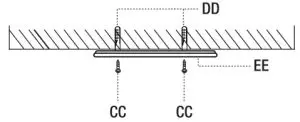

For concrete surfaces and drywall, it is required to use included screw anchors (DD).

3 Installing the LED Ceiling lighting up the LED Ceiling Light (AA) to the Mounting Plate (EE). Raise the LED Ceiling Light (AA) to the Mounting Plate (EE) until the magnet attaches to the Mounting Plate  (EE). Adjust the LED Ceiling Light (AA) until it sits properly in the Mounting Plate (EE).

LED Ceiling Light Installation with double-Sided Adhesive

1 Positioning the LED Ceiling Light

Find the desired place for the Ceiling Light and clean the area. Remove any dirt, dust, or other residue.

NOTE: Double-sided adhesive works best D when used on a non textured flat surface

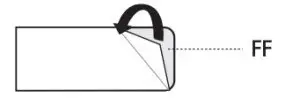

2 Attaching the Double Sided Adhesive

Peel off the protective film from one side of the Double-Sided Adhesive(FF)

Attach the Double-Sided Adhesive (FF) to the Mounting Plate (CC).

3 Installing the Metal Mounting Plate

Peel off the other side of the adhesive (FF).

Position the Mounting Plate (EE) to the desired area. Press the Mounting Plate (EE) onto the surface and hold for 30 seconds to assure the Mounting Plate (EE) is held securely.

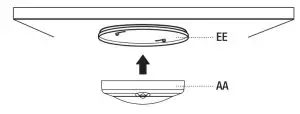

4 Installing the LED Ceiling Light

Line up the LED Ceiling Light (AA) to the Mounting Plate (EE). Raise the LED Ceiling Light (AA) to the Mounting Plate (EE) until the magnet attaches to the Mounting Plate  (EE). Adjust the LED Ceiling Light (AA) until it sits properly in the Mounting Plate (EE).

Operating Instructions

1 Selecting a Function
ON– Light will stay on until discharged or turned OFF using the remote.
OFF – Light will stay off. The light cannot be operated using the remote control on this setting.

NOTE: Light fixture needs to be in the ‘ON’  position for remote to function

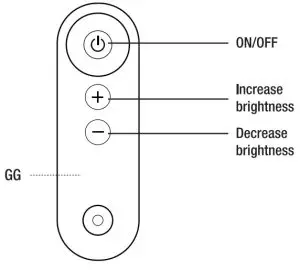

Remote Control Functions

NOTE: Includes 1 CR2025 Lithium Cell.
This product contains a button battery. If swallowed, it could cause severe injury or death in just 2 hours. Seek medical attention immediately.

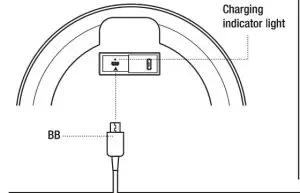

2 Charging the LED Ceiling Light

Connect the included micro USB to the charging port to recharge the built-in battery. The Charging indicator light will turn red when charging and turn green when fully charged.

WWW.FEIT.COM
Please contact 1-866-326-BULB (2852) for further assistance.
