High Chrome Faucet
Assembly-use- Maintenance Manual

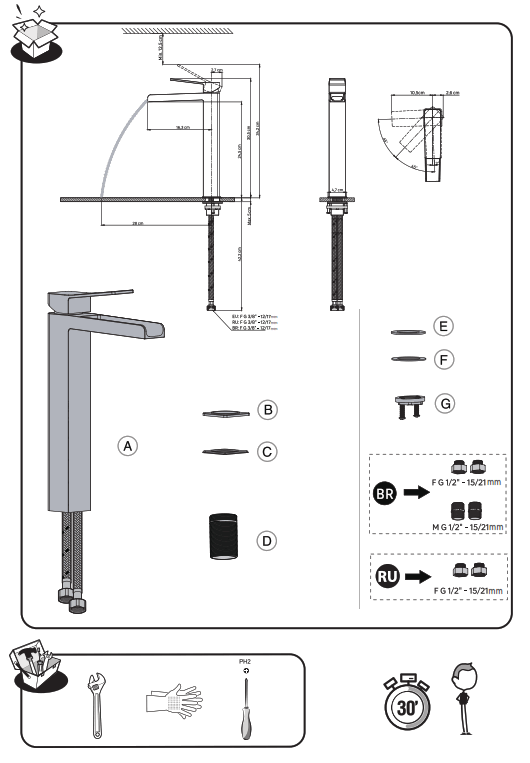

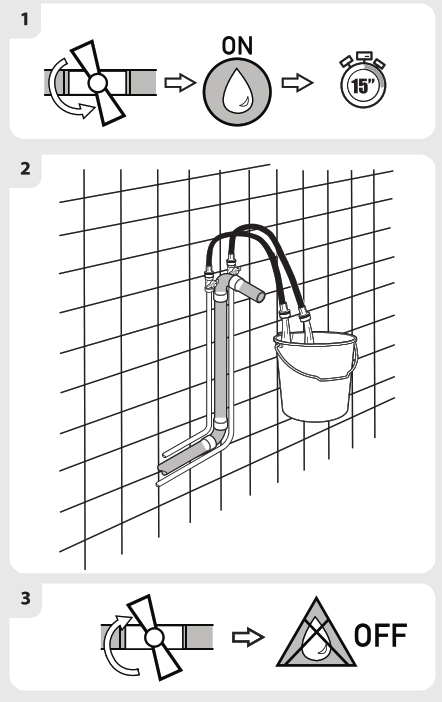

Preparation
Preparation

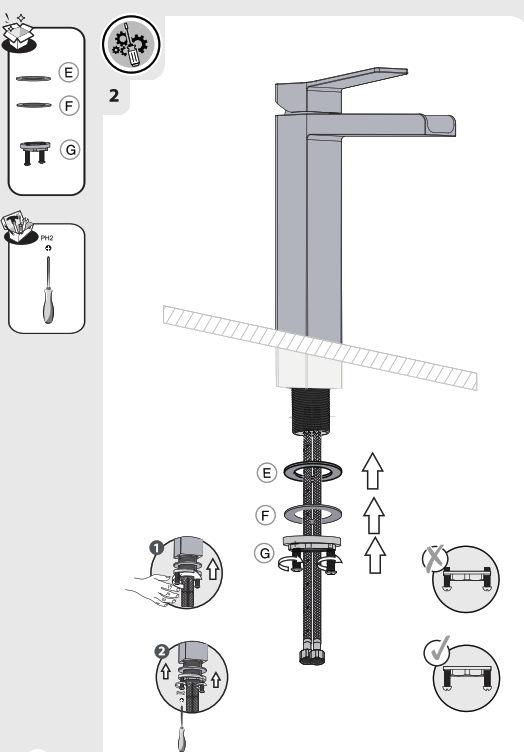

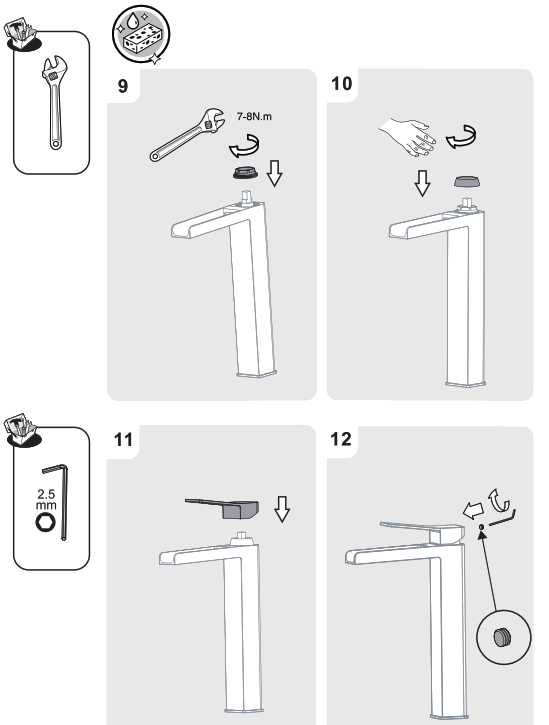

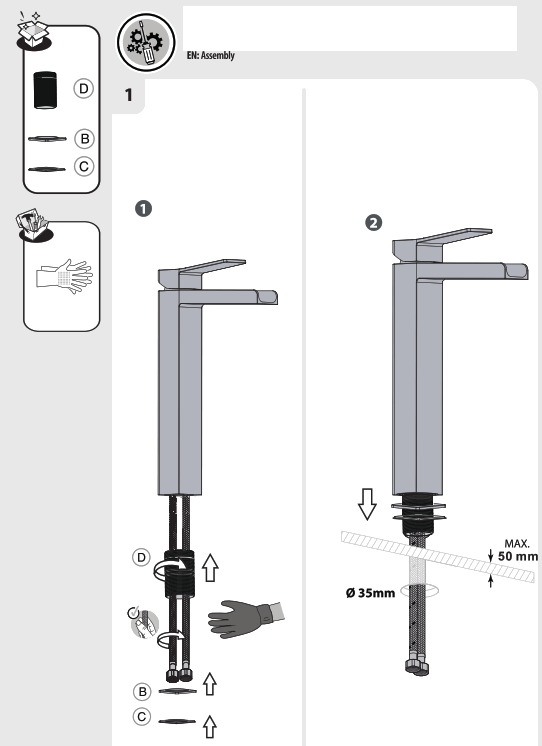

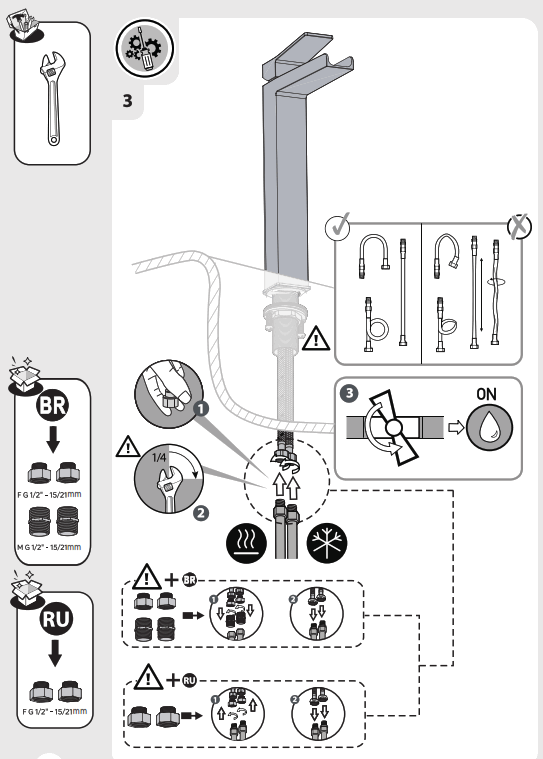

Assembly
Assembly

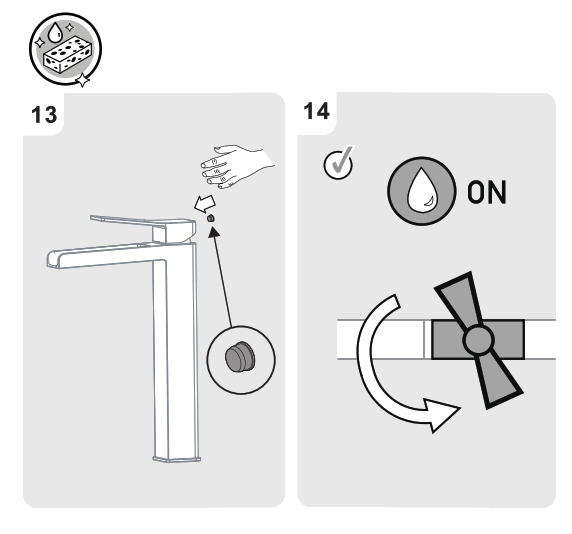

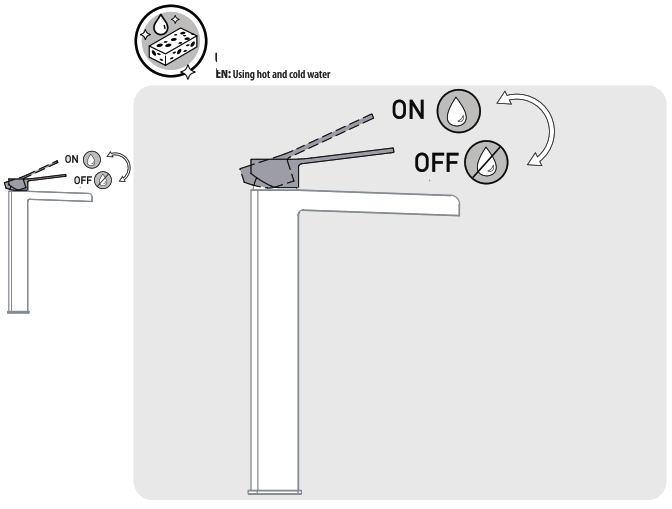

Using hot and cold water
Using hot and cold water

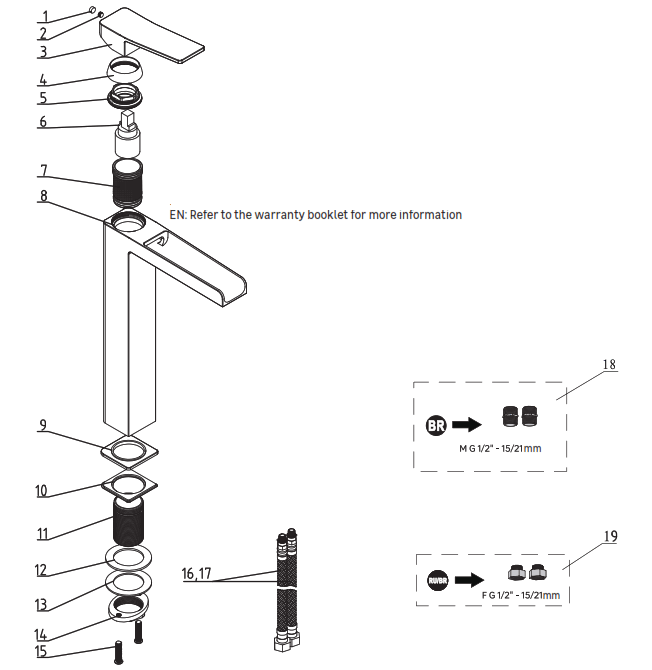

| No. | Description | Code No. | QTY | Remark | Years warranty* |
| 1 | Screw Cover | MD7901-9 | 1 | Colour body (2years) | 10 |
| 2 | Screw | BT-82 | 1 | 10 | |
| 3 | Handle | MD8001-2 | 1 | Colour body (2years) | 10 |
| 4 | Cover | MD6001-4 | 1 | Colour body (2years) | 10 |

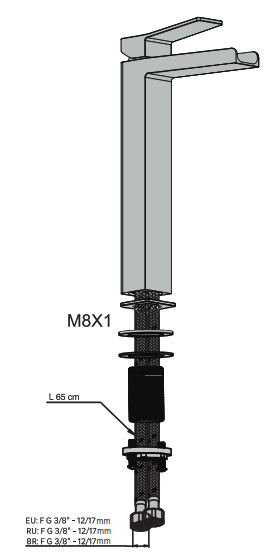

| 5 | Compressing Nut | MD7001-3 | 1 | 10 | |
| 6 | Cartridge | TDS08SN25S0002 | 1 | ||
| 7 | Cartridge Seat | MD7001-7 | 1 | 10 | |
| 8 | Body | MD8001H-1 | 1 | Colour body (2years) | 10 |
| 9 | Bottom Ring | MD8001-3 | 1 | Colour body (2years) | 10 |
| 10 | Washer | MD8001-5 | 1 | 10 | |
| 11 | Screw Fitting | MD7001H-2 | 1 | 10 | |
| 12 | Washer | 1QT48 332 | 1 | 10 | |
| 13 | Washer | MD4001H-7 | 1 | 10 | |
| 14 | Fitting Nut | MD4001H-5 | 1 | 10 | |
| 15 | Screw | MD4001H-6 | 2 | 10 | |
| 16 | Flexible Hose-hot water-FG 3/8″-12/17mm | 544114 | 1 | 10 | |
| 17 | Flexible Hose-cold water-FG 3/8″-12/17mm | 544115 | 1 | 10 | |
| 18 | Adapter | MD4001A-14 | 2 | 10 | |
| 19 | Adapter | MD4001HA-10 | 2 |

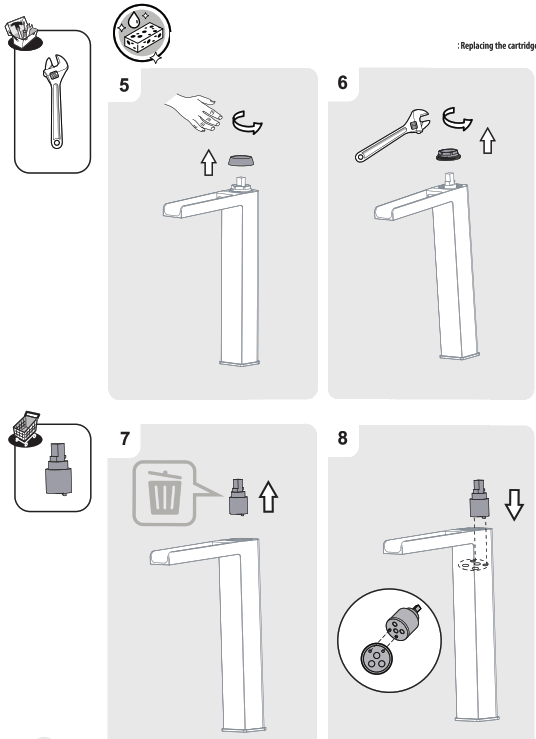

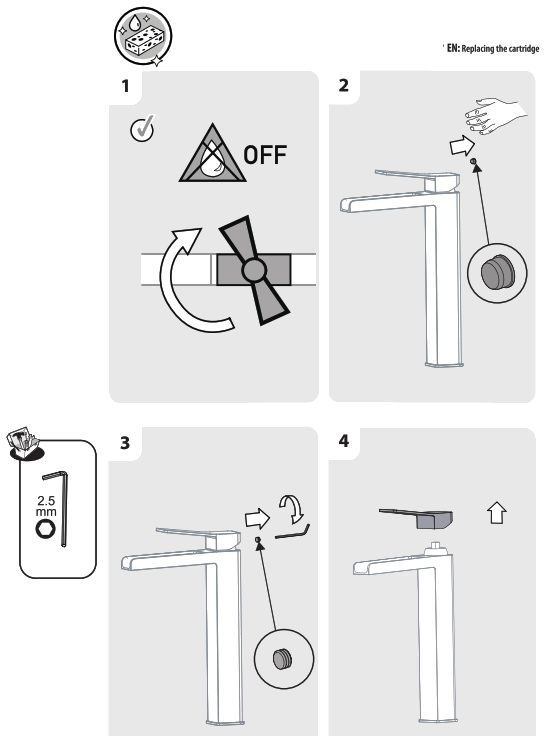

Replacing the cartridge
Replacing the hoses
For an adequate water consumption, this tap is fitted with an eco system for water savings.
Declaration of sanitary conformity
Made in Chaina
Garantie 10ans
