Blankom Igs-900 Linear Iptv Hospitality System User Manual

IGS-900 Linear IPTV Hospitality System
User Manual

IGS-900 Linear IPTV Hospitality System

Did you ever thought about a simple to install and nearly Plug & Play setup of a simple Linear IPTV System to a reasonable price?
Upgradeable to grow with your demands…
Here we go: The purpose of this plug&play bundle is to receive a customised SAT transponder -> IPTV channel list from the operator (e.g. hotel, hospital,…) matching 1,2 or 4 SAT reception positions (depending on the satellites in range of the location) for the provision of international TV channels. BLANKOM / IRENIS or regional partners prepare this setup in advance – if possible for the reception of the preferred SAT positions. Both the SAT streamer and the STB channels are tuned to each other and pre-stored. If changes are to be made after installation, a change of the channel list via upload to each box is a simple undertaking.

Satellite-System:

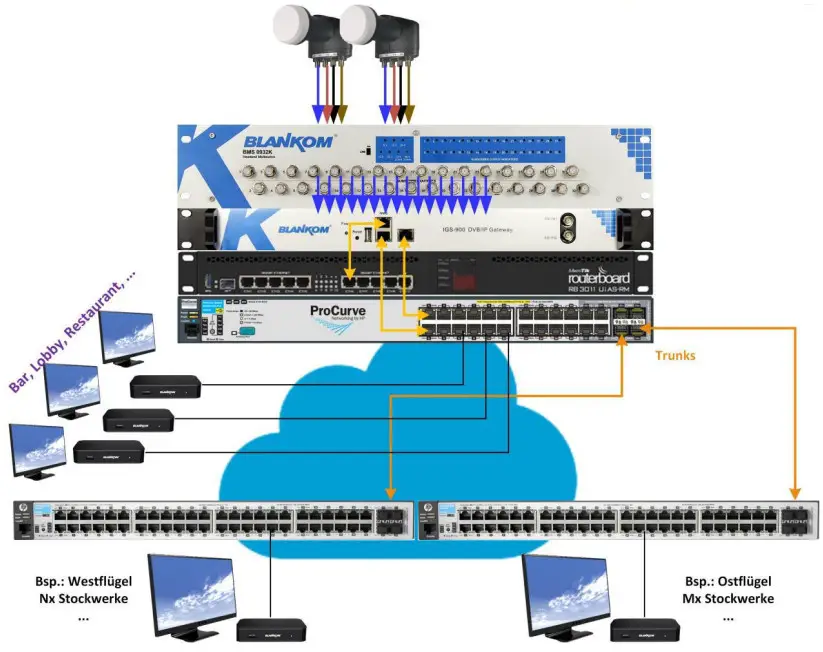

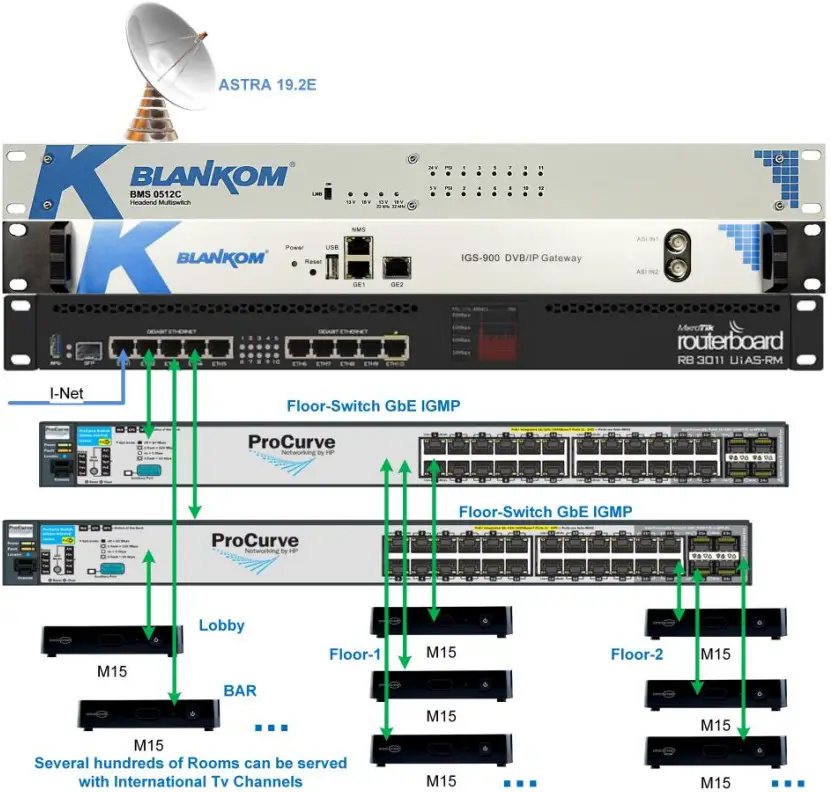

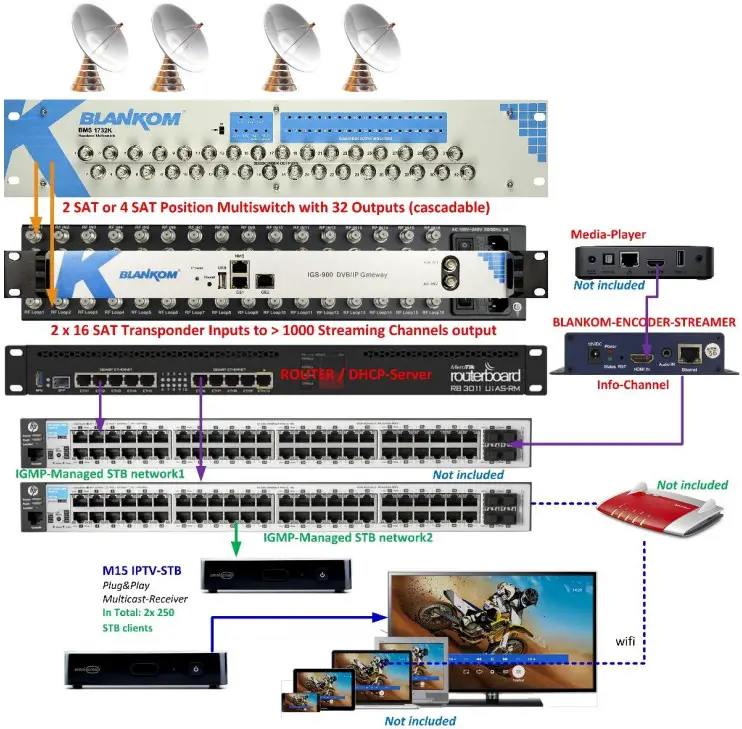

Cost effective Linear IPTV Example with 16 SAT-transponder, up to 512 IPTV channels A budgetary overview for a basic system with 100 rooms with 2 options:

Eina Kostenubersicht mit 100 M115 HD STB / Rooms / Zimmer:
Basic1 System with/mit IGS-900 und 1x BMS-0512C 19Zoll Multiswitch or/oder
Basic2 System with/mit IGS-924 + BMS-0932C 19’’ Multiswitch:

Total:
Bundle1
IGS-900/BMS-0512C = 2845,00 € or/oder
Bundle2
IGS-924/BMS-0932K = 3.380,00 € Net (Netto)
+ 100x IPTV STB M15 3990,-€ = 6.835,00€ oder/or 7.370,00 € + Network Equipment* + SAT Schüsseln/Dishes*

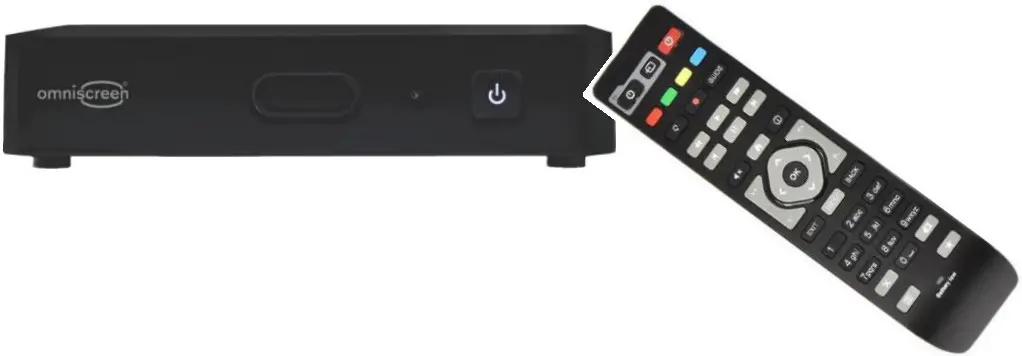

The network-Equipment can be planned and ordered by the local installation company and depends on the locations:The Remote Control can also handle most TV-Sets: Only 1 is necessary in each rooms.
This STB has been specially modified to operate as a Digital Signage STB.
It is pre- plug&play configured to work with a DHCP Ethernet connection and gets its IP address from this DHCP Server (or a Router) from your internal Network.
So please connect an Ethernet (100Mb/s) before plugging in the power.
It will always start with the first Channel which can be configured by FTP-file exchange to this device. The IP-Address must be known for this purpose and the easiest way is to check your Router for the DHCP-assigned IP address of it.

• Usually not delivered by BLANKOM / IRENIS GmbH but from your Service supplier/installation company
• Market prices may vary and are taken from end customer Online-Shopping portals…
• w/o cabling from SAT dishes (not included – so consider 2 80cm – 1.2m dishes and Quattro LNBs with masts and cables…)
• w/o Network cabling and wall outlets & w/o TV Sets
• optional an Encoder – Streamer for an Info-Channel (not necessary if using IGS-924)

Noch Fragen / Questions?
Please contact us:
[email protected]
www.blankom.de
