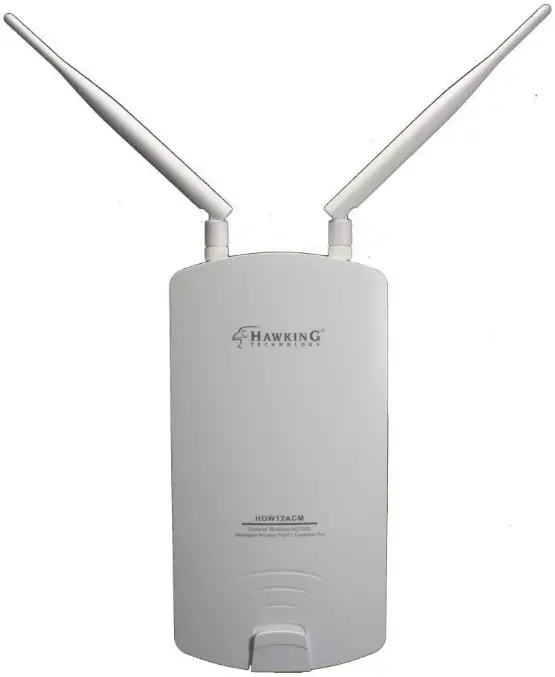

Hawking Technology HOW12ACM Outdoor Wireless AC1300 Access Point
Introduction
(HOW12ACM) is the model number for the Hawking Technology Outdoor Wireless AC1300 Access Point, Bridge, Repeater, and Extender Pro.
Enhance the Wireless AC Performance of Your Outdoor Space While Maintaining Premium Connectivity
The HOW12ACM is an extremely dependable industrial Outdoor Wireless AC access point that was made specifically to extend wireless network coverage in conditions that are outside. The HOW12ACM Outdoor Wireless AC Access Point offers simultaneous operation in both the 2.4GHz and 5GHz ranges, providing users with the most amount of flexibility possible. This wireless access point is able to establish connections with any and all PCs and other wirelessly-enabled network devices (such as tablets, smartphones, ultrabooks, smart TVs, and so on). Additionally, the wireless connectivity provided by IEEE 802.11ac can achieve transmission speeds of up to 1300Mbps.
Through the use of the HOW12ACM, users may give their PCs and networked devices access to WiFi in the great outdoors throughout their whole networking environment. The HOW12ACM comes with a variety of mounting options, including wall and pole mounting, which makes the setup process simple. In addition to that, the HOW12ACM comes equipped with a pair of gigabit LAN connections. The first port is for Power Over Ethernet (PoE), while the second is a Passthrough port that can power another Power over Ethernet networking device.
Wireless Gigabit AC
The standard for wireless AC specifies that in order to achieve superfast AC rates, a corresponding loss in the wireless range must be accepted as a trade-off. This device was built by Hawking Technology to deliver the same super speeds that are typical of Wireless AC. In addition, it provides concurrent 2.4GHz support via access points to compensate for the decrease in range that results from using Wireless AC.
Power over Ethernet (PoE) Compatibility
The HOW12ACM has two LAN ports that are capable of gigabit speeds. The first port is for Power Over Ethernet (PoE), while the second is a Passthrough port that can power another Power over Ethernet networking device. The fact that the HOW12ACM is Power over Ethernet (PoE) capable gives you the freedom to install it wherever you choose, regardless of its proximity to an AC outlet. It is compatible with the PoE protocol 802.3at.
What’s in the box
- One Outdoor Wireless AC1300 Access Point
- 2x Outdoor Antennas
- One Wall/Pole Mount Kit
- One CD (Contains Product Information)
- One Quick Installation Guide; One RJ45 Ethernet cord (setup only); PoE Injector sold separately and required
Specifications
- Brand: Hawking Technology
- Series: Wireless AC1300
- Item model number: HOW12ACM
- Item Weight: 1.41 pounds
- Product Dimensions: 9.5 x 4.8 x 1.6 inches
- Wireless Standard: 802.11a/b/g/n/ac
- Frequency: 2.4GHz and 5GHz AC
- Speed: 1300Mbps
- Antenna Gain: 2x 4dBi Removable Omni-Directional Antennas
- Coverage Distance (*Distance dependent on operating and hardware environment): 1000ft Radius *
- Wired Ports: 2x 10/100/1000Mbps PoE
- Modes: Access Point, Bridge, WDS, Universal Repeater
Features
- High-Speed AC1300 Wi-Fi: The HOW12ACM offers AC1300 wireless speeds, providing fast and reliable connectivity for outdoor networks.
- Dual-Band Support: The access point supports both 2.4 GHz and 5 GHz bands, allowing for increased data capacity and reduced interference.
- Weatherproof Design: With an IP67-rated weatherproof housing, the HOW12ACM can withstand harsh outdoor conditions, ensuring long-term reliability.
- MIMO Technology: Multiple-Input Multiple-Output technology improves data transfer efficiency and enhances the overall network performance.
- Beamforming Technology: Beamforming focuses Wi-Fi signals toward connected devices, extending coverage and improving signal strength.
- Flexible Power Options: The access point can be powered via Power over Ethernet (PoE) or DC power, offering flexible installation choices.
- WPA3 Security: The HOW12ACM supports the latest WPA3 wireless security standard, ensuring robust protection against unauthorized access.
- Easy Installation and Management: The access point comes with a user-friendly web-based interface for easy setup and configuration.
- Versatile Mounting Options: The HOW12ACM includes mounting brackets for pole, wall, or ceiling installation, allowing for versatile deployment.
- Point-to-Point and Point-to-Multipoint Bridge Mode: The access point can be configured in bridge mode, making it suitable for extending network range over long distances or connecting multiple locations.
User Manual
FAQ’s
Can the HOW12ACM access point be used for outdoor Wi-Fi coverage in extreme weather conditions?
Yes, the HOW12ACM is designed with an IP67-rated weatherproof housing, making it suitable for outdoor deployment in various weather conditions.
What is the range of the HOW12ACM access point?
The range of the access point can vary based on environmental factors, but it can cover a substantial outdoor area with its high-gain antennas and powerful signals.
Can the HOW12ACM be used as a wireless repeater to extend an existing Wi-Fi network?
Yes, the access point can be configured as a wireless repeater to extend the range of an existing Wi-Fi network.
Does the HOW12ACM support the latest Wi-Fi 6 (802.11ax) standard?
No, the HOW12ACM supports the previous-generation Wi-Fi 5 (802.11ac) standard, offering up to AC1300 speeds.
How do I perform a firmware update on the HOW12ACM access point?
You can update the access point's firmware by logging into the web-based interface, navigating to the firmware section, and following the provided instructions.
Can I manage multiple HOW12ACM access points from a central location?
Yes, the access points can be managed centrally through a network management system or software that supports Hawking Technology devices.
Does the HOW12ACM support VLAN (Virtual LAN) configuration for network segmentation?
Yes, the access point supports VLAN configuration, allowing you to create separate virtual LANs for enhanced network security and management.
Can the HOW12ACM be powered using a standard power outlet?
The access point can be powered using Power over Ethernet (PoE) or through a DC power source. It does not have a standard power adapter for direct connection to a power outlet.
Is the HOW12ACM compatible with third-party wireless access points or routers?
Yes, the access point follows standard Wi-Fi protocols and should be compatible with most wireless routers and access points that support similar Wi-Fi standards.
Can I use the HOW12ACM for long-range point-to-point connections?
Yes, the HOW12ACM can be configured in point-to-point bridge mode, making it suitable for long-range wireless connections between two locations.
