User Manual
BOU020
BOUCLIER D’EXTENSION POUR RASPBERRY PICO DFR0848

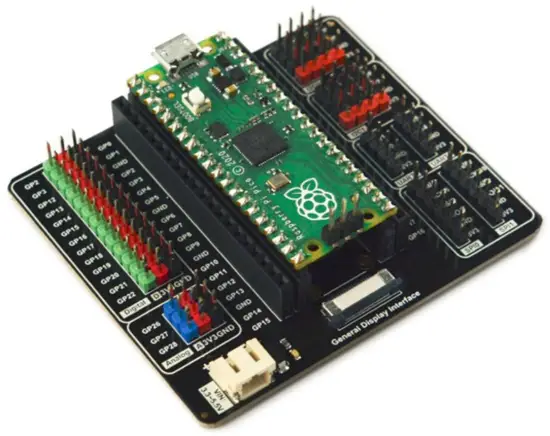

Introduction
This Gravity Expansion Board, specifically designed for Raspberry Pi Pico, is compatible with a variety of Gravity sensors and modules. With all pins led out, you can directly use it without soldering. Additionally, the board offers various communication ports including, 2 x I2C, 2 x UART, 2 x SPI, 3 x analog IOs, and 13 x digital IOs as well as a 3.3~5.5V power connector and GDI port, which provides you with an easier way to prototype.
Features
- No need to weld, plug and play.
- Support all kinds of Gravity sensors and modules
- Comes with a 3.3~5.5 V PH2.0 power interface, applicable to mobile projects
- Onboard GDI port, compatible with DFRobot-GDI series display
Specification
- All pins brought out onto female pin headers
- Digital IO x 16: GP2, GP3, GP12-22
- Analog IO x 3: GP26-GP28
- UART x 2
- I2C x 2
- SPI x 2
- PH2.0 Power Connector: 3.3 V-5.5 V
- Display Screen Interface: GDI

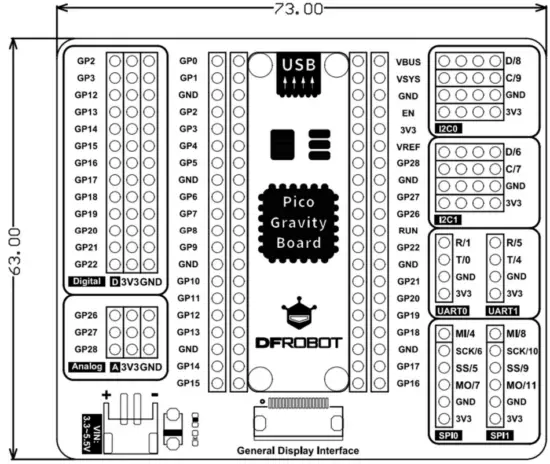

- Dimension: 29.00 mm×58.00 mm/1.14×2.28 inch
Official Tutorials
- Get Started with MicroPython on Raspberry Pi Pico
- Download books related to Raspberry Pi
- Raspberry Pi Pico Schematics
- Pico Pinout
- Pico Getting Started Manual
- Pico C SDK Manual
- Pico Python SDK Manual
- Pico Data Manual
- RP2040 Data Manual
- RP2040 Hardware Design Reference Manual
Function Description

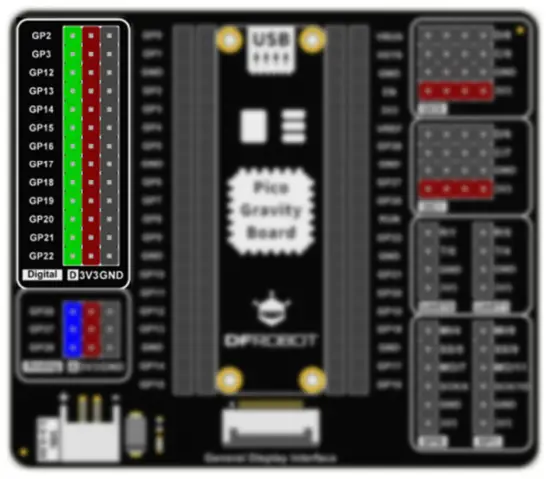

Digital Port
IO expansion shield provides 13 groups of digital ports including GP2, GP3, and GP12~22.

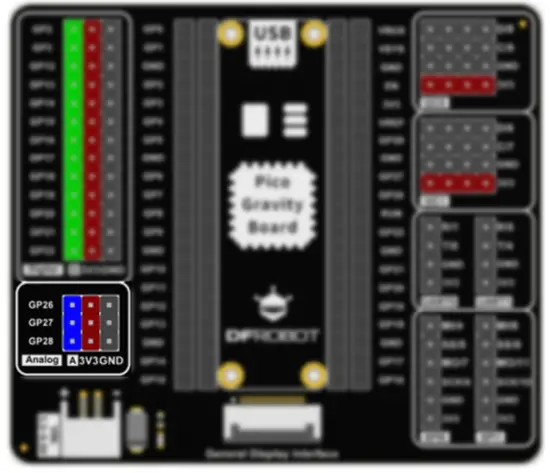

Analog Port
IO expansion shield provides 3 groups of analog ports including GP26~28
I2C Port
IO expansion shield provides 2 groups of independent I2C ports.
UART Port
IO expansion shield provides 2 groups of independent UART ports.
SPI Port
IO expansion shield provides 2 groups of SPI ports.
