Bosma Capsulecam-s Security Camera User Manual

CapsuleCam-S Security Camera
User Manual

PRODUCT OVERVIEW

The BOSMA CapsuleCam-S camera enables you to connect with your loved ones from anywhere around the world. When motion is detected, the CapsuleCam-S sends an instant notification to your phone and records the event, so you always know what is happening in your home, event while you’re away.

FEATURES

• 1080p Video with 138° Wide Angle
  Leave no blind spot in your home with CapsuleCam-S’s wide angle lens.
• Infrared Night Vision
  High-quality night vision allows you to see everything clearly even in zero lighting conditions.
• Two-way Audio Communication
  Communicate with your loved ones at home, anytime, anywhere.
• Motion & Sound Detections
  Keen motion and sound detections in any environment provided by the motion and sound detectors.
• Local Storage
  Local Storage with a micro SD card up to 128GB. Micro SD cards are sold separately.

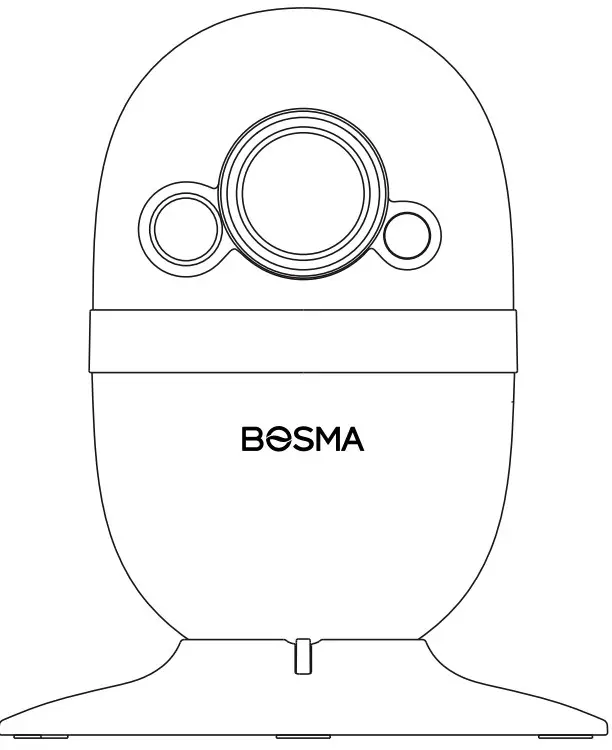

PRODUCT DESCRIPTION

GETTING STARTED

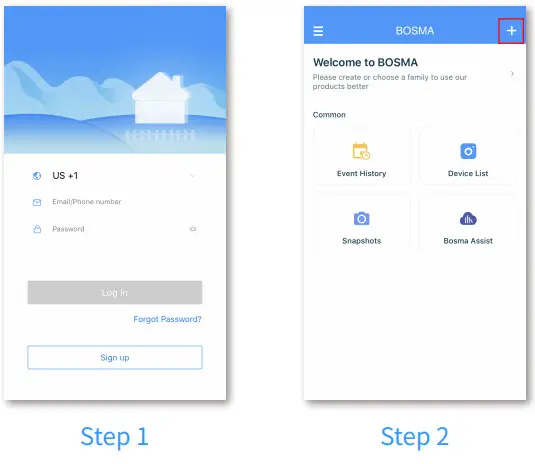

• Step 1: Download the “BOSMA” app from App Store or Google Play. Create a new account or log in with an existing account.
• Step 2: Tap the “+” button at the top right corner.

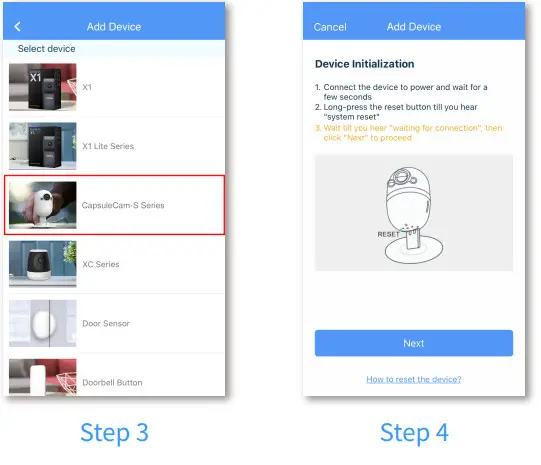

• Step 3: Tap “CapsuleCam Series” in the list.
• Step 4: Connect the CapsuleCam-S to power and wait for it to power up. After you hear “system startup” and “waiting for connection”, tap “Next”. If you did not hear either message, push the provided pin into the RESET pinhole and hold until you hear “system reset” to reset the camera.

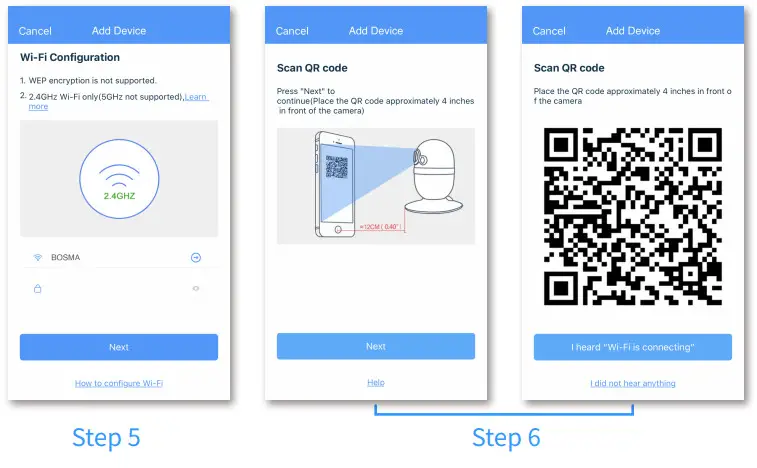

• Step 5: Select the WiFi you want the CapsuleCam-S to connect to and enter its password. Note that only 2.4Ghz WiFi is supported.
• Step 6: A QR code will be generated. Place the QR code roughly 3-4 inches in front of the camera till you hear “Wi-Fi is connecting”. Then tap “I heard-Fi is  onnecting'”
  to continue.

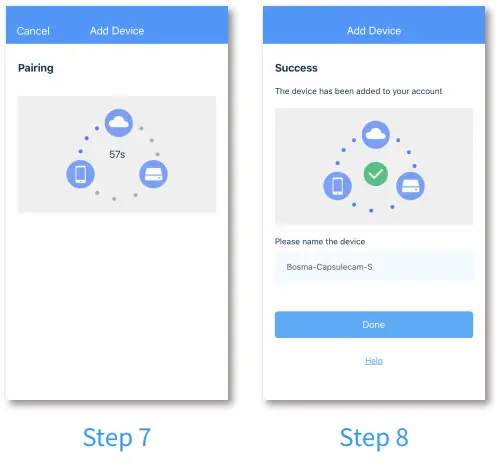

• Step 7: Wait for the CapsuleCam-S camera to connect.
• Step 8: Once the device has been added successfully, you can edit the device name.


MENU DESCRIPTIONS

1. Share the device with another person. This method is being deprecated. Please instead use Family Management for sharing.
2. Device settings
3. Date and time display
4. Change video quality
5. Full-screen switch
6. Change timeline date
7. Live or playback indicator
8. Talk button
9. Screen snapshot
10. Listen button (tap to listen to the camera)
11. Adjust image parameters
12. Trigger alarm siren manually

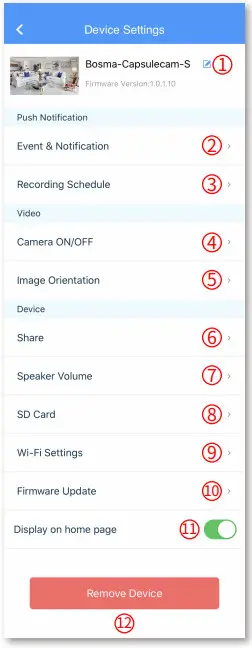

DEVICE SETTINGS

1. Change the device’s name
2. Motion/Sound detection and notification settings
3. Manage recording schedule
4. Camera on/off switch
5. Image orientation settings
6. Manage device sharing. This method is being deprecated. Please instead use Family Management for sharing
7. Adjust speaker volume
8. SD card settings
9. Manage Wi-Fi network of the device
10. Check firmware update and turn on / off auto-update
11. Home page display switch
12. Remove device

SPECIFICATIONS

SAFETY INSTRUCTIONS

• Do not disassemble or repair the device yourself. In the event of a malfunction, contact the service center.
• Keep the device away from open flame in order to avoid an explosion or fire.
• Do not expose the device to extremely high or low temperatures.
• Avoid contact with water.
• Avoid dropping the device or hitting it with hard objects. Do not expose the device to strong mechanical stress.
• The manufacturer is not responsible for any damage caused by the user.
• Keep the device away from the sources of electromagnetic radiation, such as microwave, refrigerator, etc.
• Do not use chemicals or detergents to clean the device, always turn off the device before cleaning.
