Bosma Xc 360 Degree Indoor Home Security Smart Camera User Manual (+ PDF)

The BOSMA XC camera enables you to connect with your loved ones anytime and anywhere. Keep an eye on what matters the most to you, even when you are away. With its integrated hub (available on XC Connect), the XC can also work with peripheral sensors such as the door/window sensor to provide additional security and convenience.

FEATURES

1080p Video with 138° Super Wide Angle Leave no blind spot in your home with XC’s super-wide-angle lens and 360° panning.	Motion & Sound Detections Keen motion and sound detections in any environment provided by the motion and sound detectors.
Infrared Night Vision High-quality night vision allows you to see everything clearly even at zero lighting conditions.	Built-in Siren A loud 100dB siren can be manually or automatically triggered to scare oﬀ intruders.
Two-way Audio Communication Communicate with your loved ones at home, anytime, anywhere.	Local Storage Local Storage with a micro SD card up to 128GB. Micro SD card sold separately.
Built-in Smart Hub (available on XC Connect) Work with other BOSMA peripheral devices, such as door sensors, motion sensors, night light, etc.

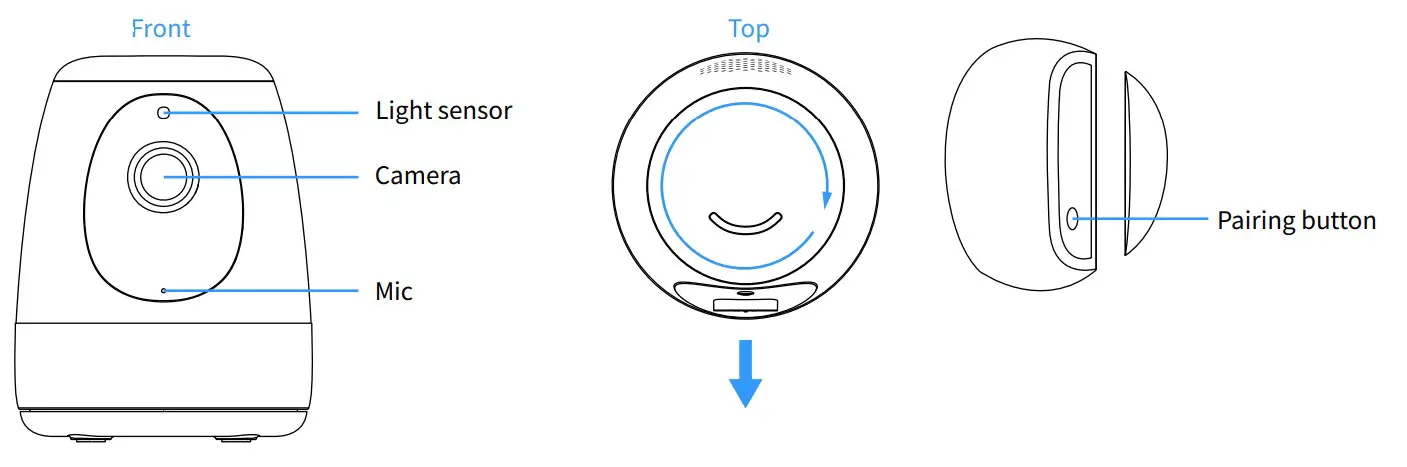

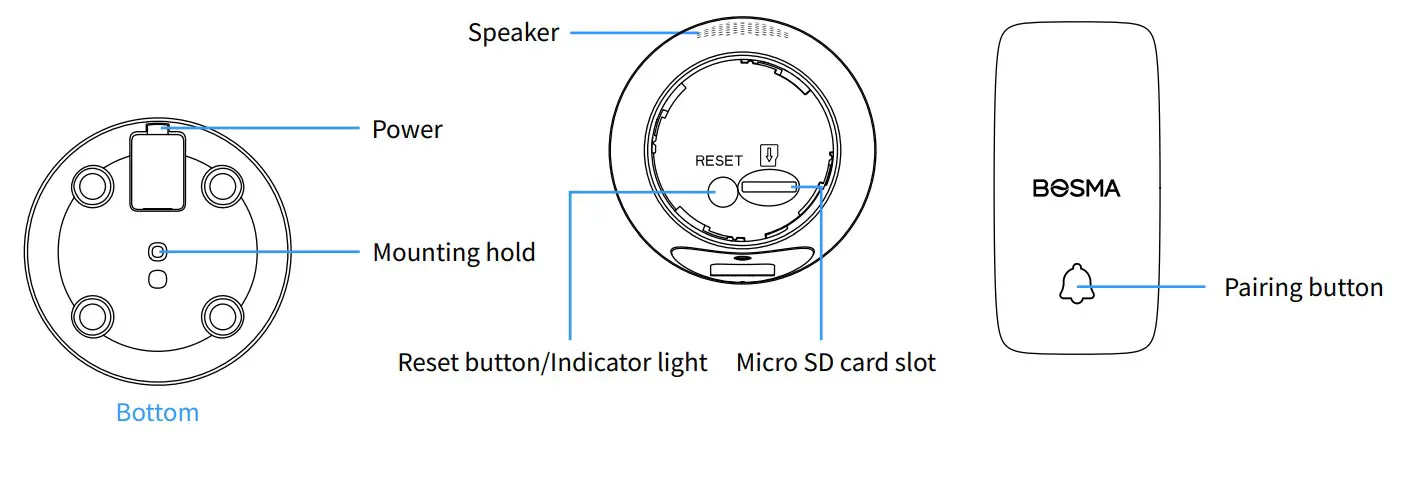

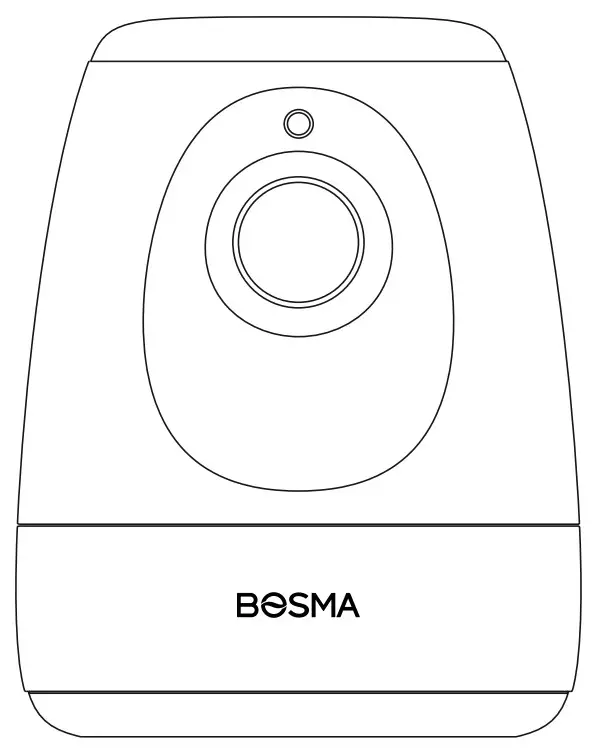

PRODUCT DESCRIPTION

GETTING STARTED

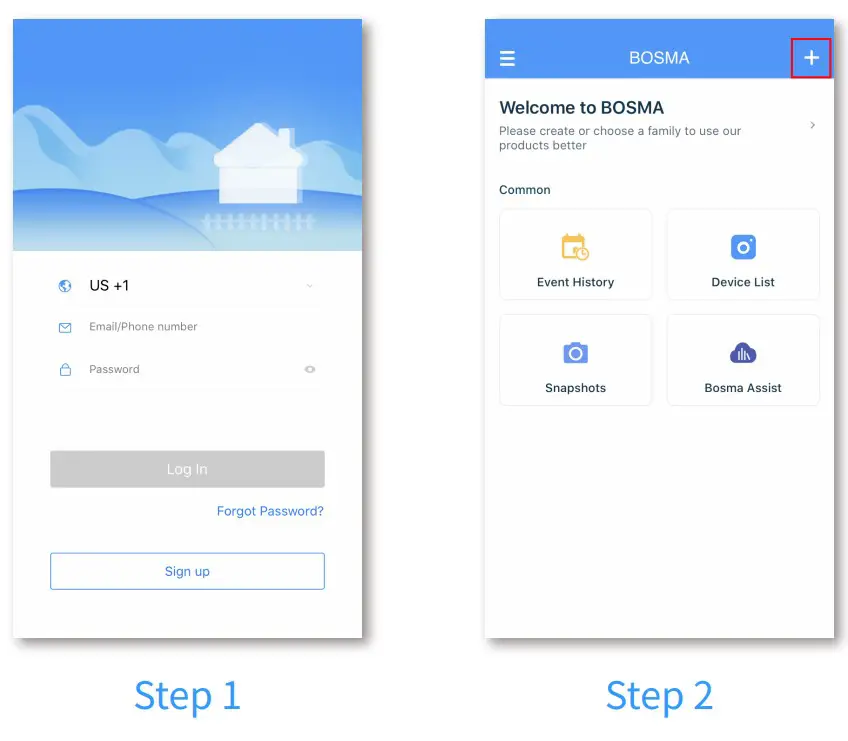

Step 1: Download the “BOSMA” app from App Store or Google Play. Create a new account or log in with an existing account.
Step 2: Tap the “+” button at the top right corner.

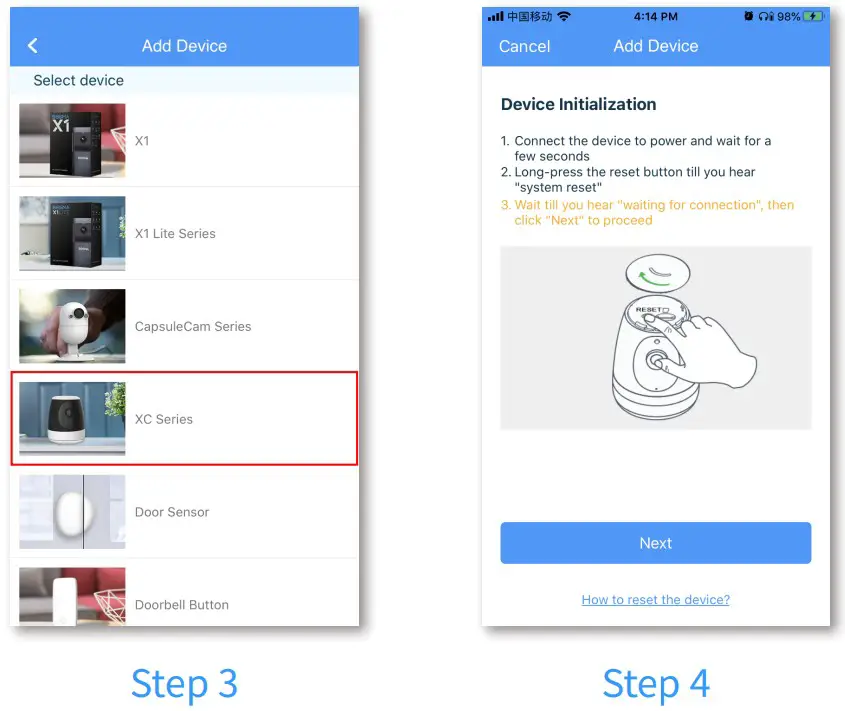

Step 3: Tap “XC Series” in the list.
Step 4: Connect the XC to power and wait for it to power up. After you hear “system startup” and “waiting for connection”, tap “Next”. If you did not hear either message, long press the reset button until you hear “system reset” to reset the camera.

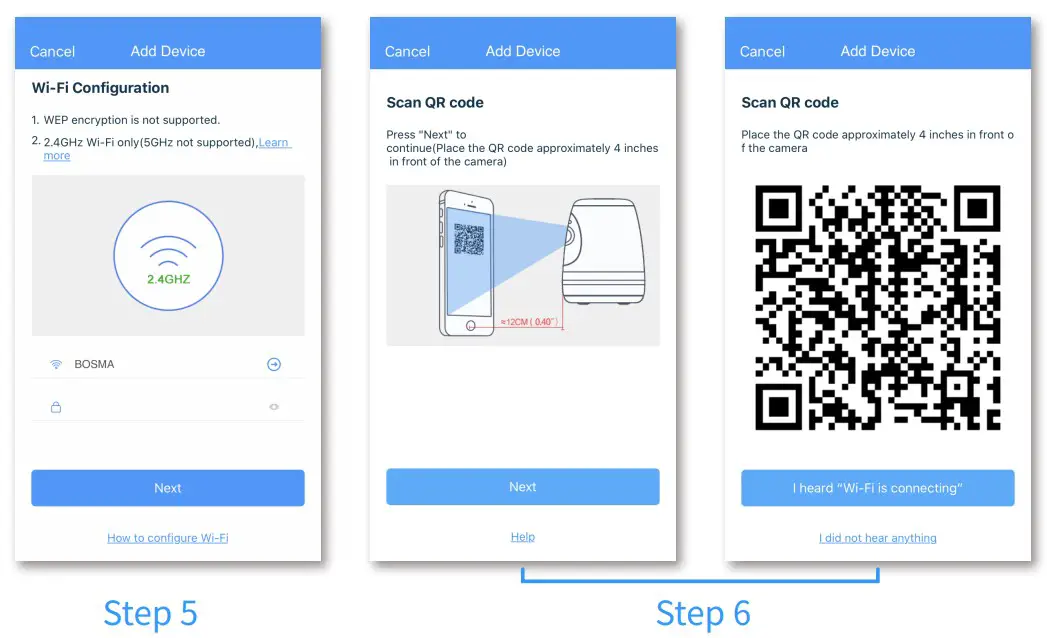

Step 5: Select the WiFi you want the XC to connect to and enter its password. Note that only 2.4Ghz WiFi is supported.
Step 6: A QR code will be generated. Place the QR code roughly 3-4 inches in front of the camera till you hear “Wi-Fi is connecting”. Then tap “I heard-Fi is connecting”
to continue.

Step 7: Wait for the XC camera to connect.
Step 8: Once the device has been added successfully, you can edit the device name.

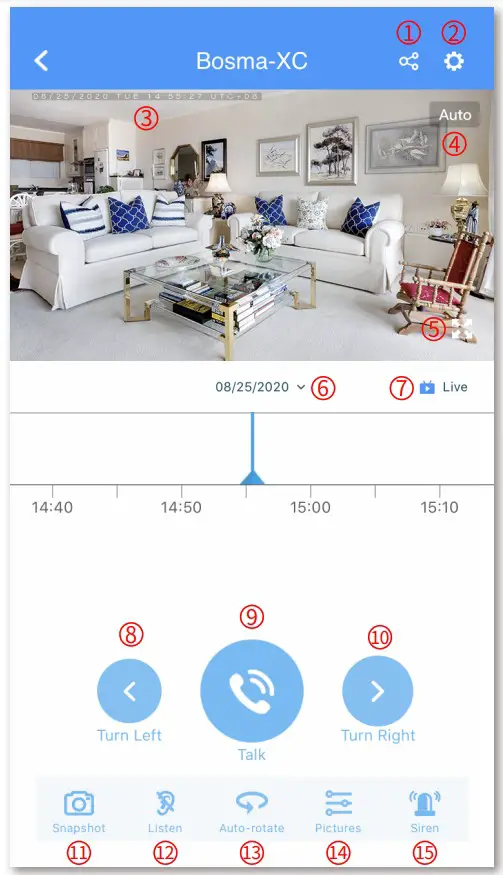

MENU DESCRIPTIONS

Bosma XC 360 Degree Indoor Home Security Smart Camera-DESCRIPTIONS

1. Share the device with another person. This method is being deprecated. Please instead use Family Management for sharing.
2. Device settings
3. Date and time display
4. Change video quality
5. Full-screen switch
6. Change timeline date
7. Live or playback indicator
8. Turn the left button
9. Talk button
10. Turn the right button
11. Screen snapshot
12. Listen button (tap to listen to the camera)
13. Auto-rotate switch
14. Adjust image parameters
15. Trigger alarm siren manually

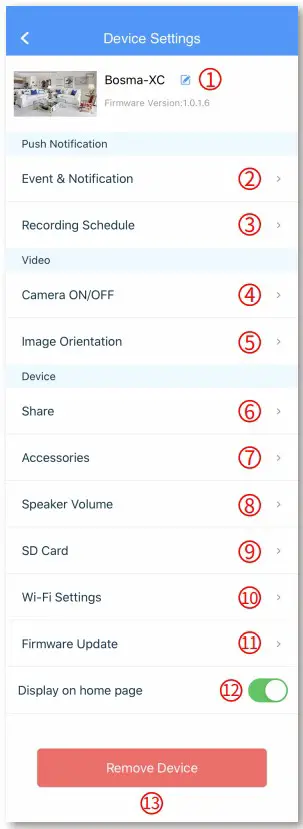

DEVICE SETTINGS

Bosma XC 360 Degree Indoor Home Security Smart Camera-DEVICE

1. Change the device’s name
2. Motion/Sound detection and notiﬁcation settings
3. Manage recording schedule
4. Camera on/oﬀ switch
5. Image orientation settings
6. Manage device sharing. This method is being deprecated. Please instead use Family Management for sharing
7. Manage paired peripheral sensors/accessory devices
8. Adjust speaker volume
9. SD card settings
10. Manage Wi-Fi network of the device
11. Check ﬁrmware update and turn on / oﬀ auto-update
12. Home page display switch
13. Remove device

ADDING ACCESSORY DEVICES (for XC Connect)

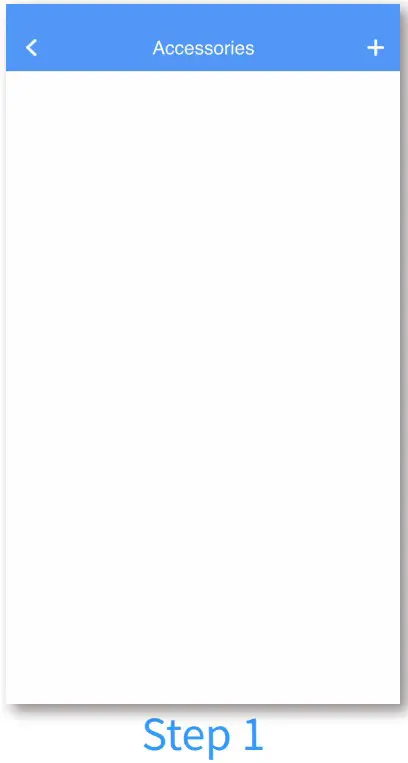

Step 1: Enter device settings -> Accessories. Tap the “+” button at the top right corner.

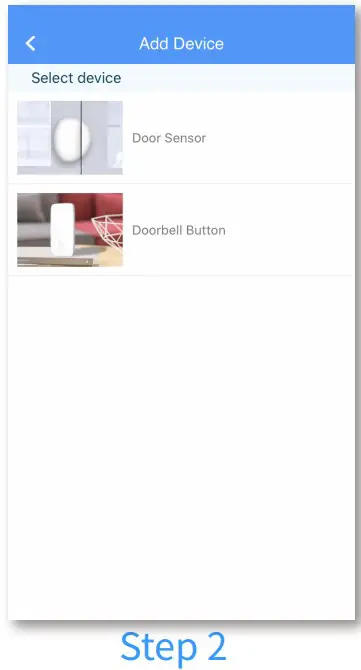

Step 2: Select the device you want to add

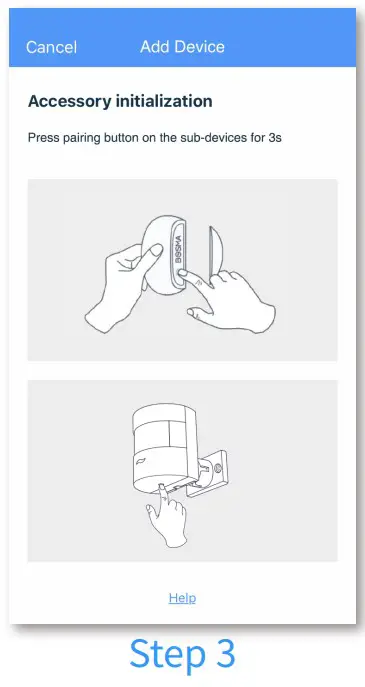

Step 3: Long-press the pairing button of the accessory device for about 3 seconds.

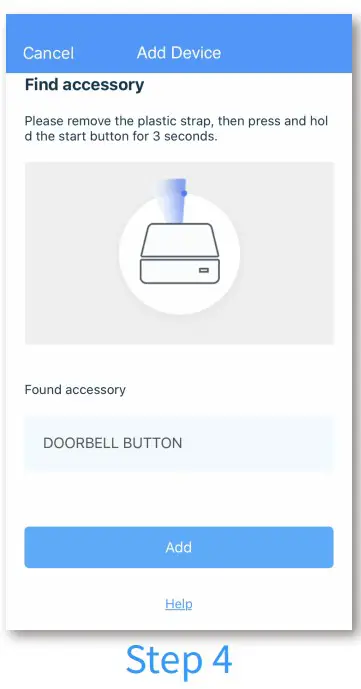

Step 4: After the accessory device is found, rename the device if needed and tap “Add” to proceed.

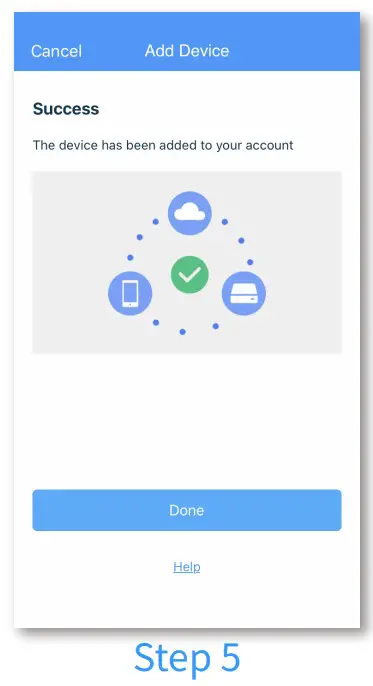

Step 5: Tap “Done” after the accessory device is successfully added.

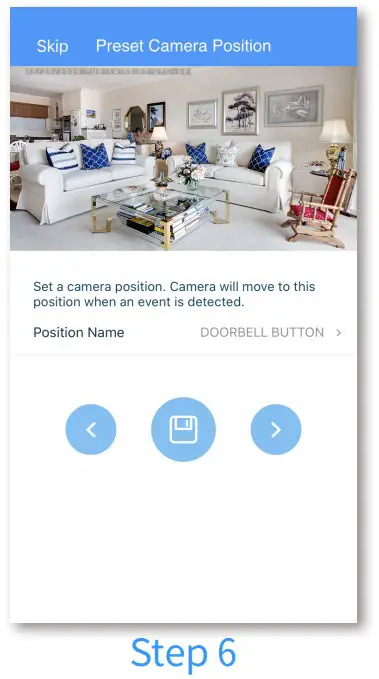

Step 6: Set a Preset Camera Position for this accessory device. The XC will rotate to this position when an event is triggered by this accessory device.

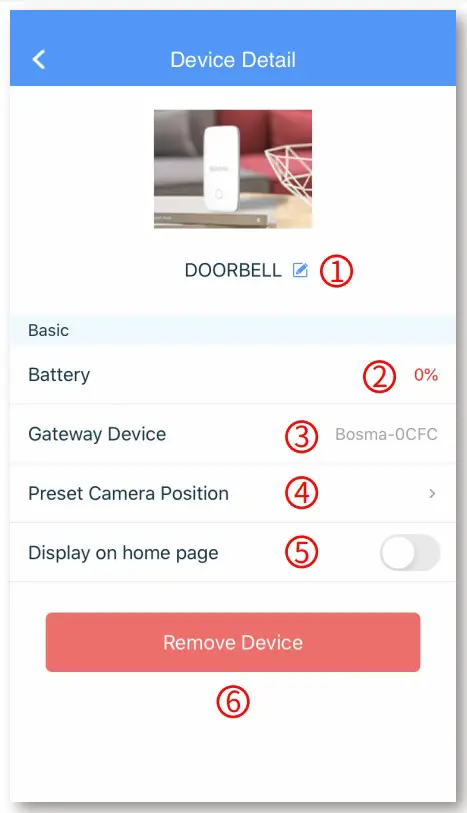

SMART BUTTON
	1. Rename the device 2. Battery level 3. Paired gateway device inf 4. Manage the Preset Camer 5. Home page display switch 6. Remove device

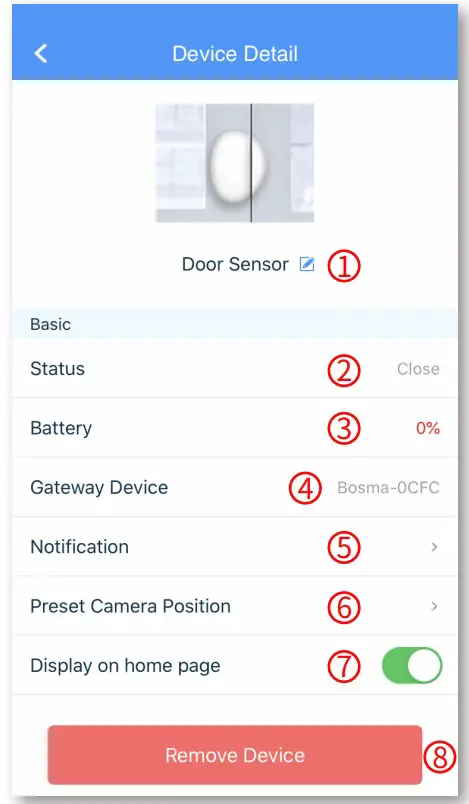

DOOR/WINDOW SENSOR
	1. Rename the device 2. Current status display 3. Battery level 4. Paired gateway device inf 5. Notiﬁcations settings 6. Manage the Preset Camer 7. Home page display switch 8. Remove device

SPECIFICATIONS
Resolution	1920 * 1080
Field of View	138° Diagonal
Night Vision	Infrared Night Vision w/ 4 IR-LEDs
Audio	2-way audio communication
Siren:	100 dB alarm siren
Power	DC 5V, 2A, 10W
Hub	915MHz, up to 650ft range
Storage	Local: micro SD up to 128GB (micro SD card sold separately)
Wireless	802.11 b/g/n 2.4GHz (does not support 5GHz) WPA, WPA2 encryption minimum 2Mbps upload speed required
Weight	7.41 oz 210g
Dimensions	3.03″(L) x 3.03″(W) x 3.94″(H) 77mm x 77mm x 100mm
Operating Temper	14°F ~ 122°F -10℃ ~ 50℃
Color	Black & White
Material	ABS & Rubber
Warranty	1-year limited warranty
Certiﬁcations	CE, FCC, RoHS
App	Free “BOSMA” app available on Google Play and App Store

SAFETY INSTRUCTIONS

Do not disassemble or repair the device yourself. In the event of a malfunction, contact the service center.
Keep the device away from open ﬂame in order to avoid an explosion or ﬁre.
Do not expose the device to extremely high or low temperatures. Avoid contact with water.
Avoid dropping the device or hitting it with hard objects. Do not expose the device to strong mechanical stress.
The manufacturer is not responsible for any damage caused by the user.
Keep the device away from the sources of electromagnetic radiation, such as microwave, refrigerator, etc.
Do not use chemicals or detergents to clean the device, always turn oﬀ the device before cleaning.
