audizio logoHTS20 Speaker Wall Bracket
Instruction Manual
audizio HTS20 Speaker Wall Bracket

HTS20 Speaker Wall Bracket

Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance.
CAUTION!

  • Use with products heavier than the rated weights indicated may result in instability causing possible injury.
  • Please closely follow the assembly instructions. Improper installation may result in damage or serious personal injury.
  • Safety gear and proper tools must be used. This product should only be installed by professionals.
  • Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
  • Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
  • This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
  • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

IMPORTANT! Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact your place of purchase for a replacement.
MAINTENANCE Check that the product is secure and safe to use at regular intervals (at least every three months).

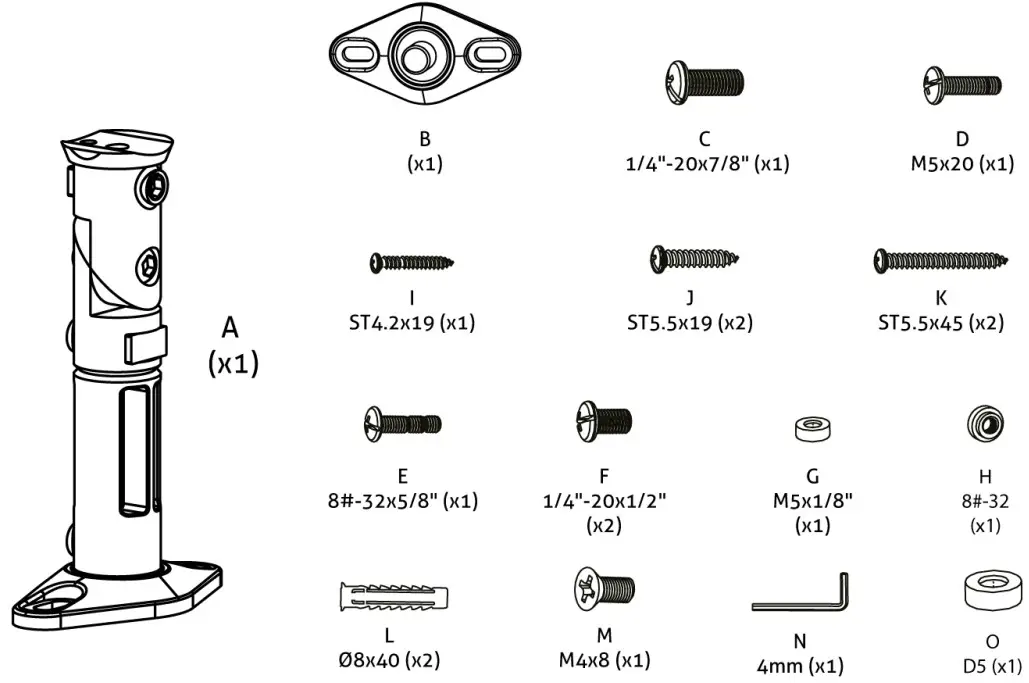

SUNNY SF RW5713 Smart Water Rower MACHINE - Icon CHECK

audizio HTS20 Speaker Wall Bracket - Figure 1STEP 1

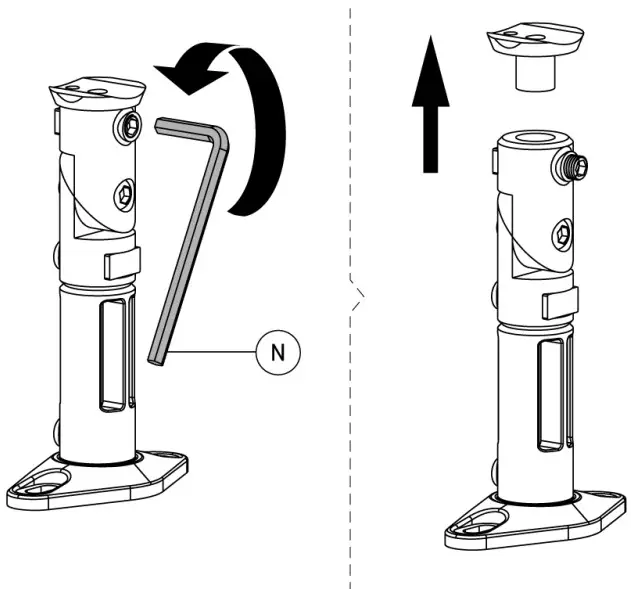

audizio HTS20 Speaker Wall Bracket - Figure 2
STEP 2

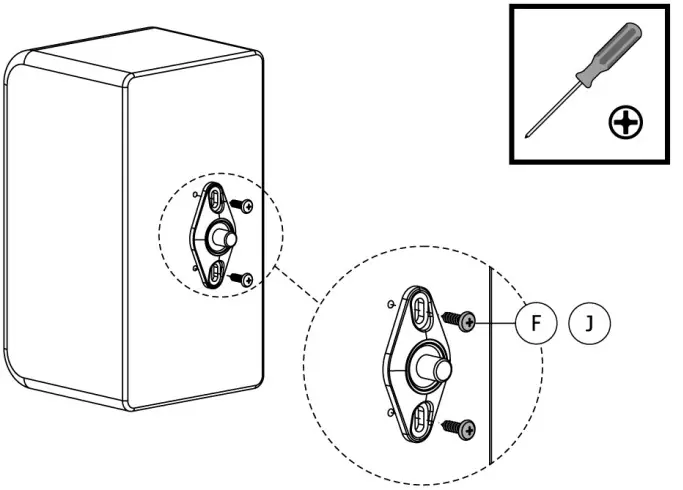

Attach the dual hole plate to the speaker
audizio HTS20 Speaker Wall Bracket - Figure 3

OR

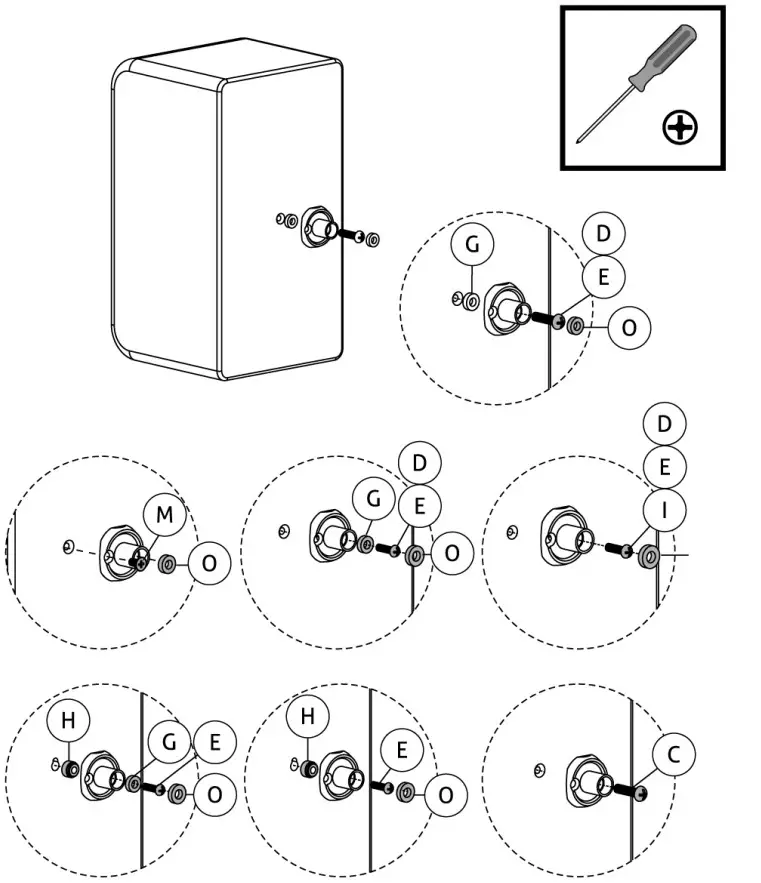

Attach the single hole plate to the speaker
audizio HTS20 Speaker Wall Bracket - Figure 4STEP 3

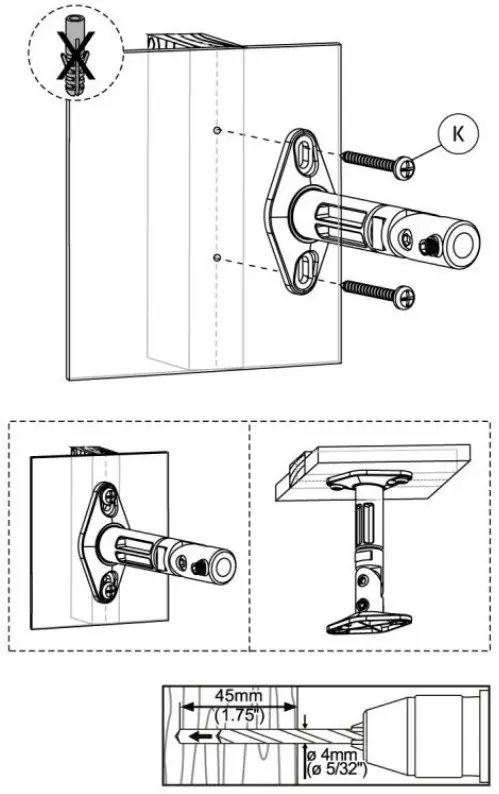

Install the speaker mount on a wooden stud
audizio HTS20 Speaker Wall Bracket - Figure 5

OR

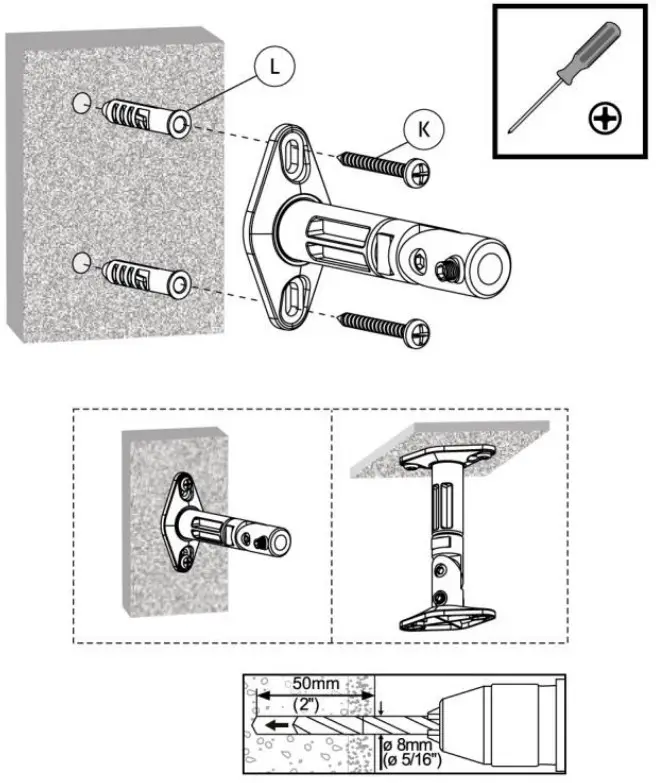

Install the speaker mounted on a brick or concrete wall
audizio HTS20 Speaker Wall Bracket - Figure 6STEP 4
Attach the speaker mount to the double hole plate on the speaker
audizio HTS20 Speaker Wall Bracket - Figure 7OR

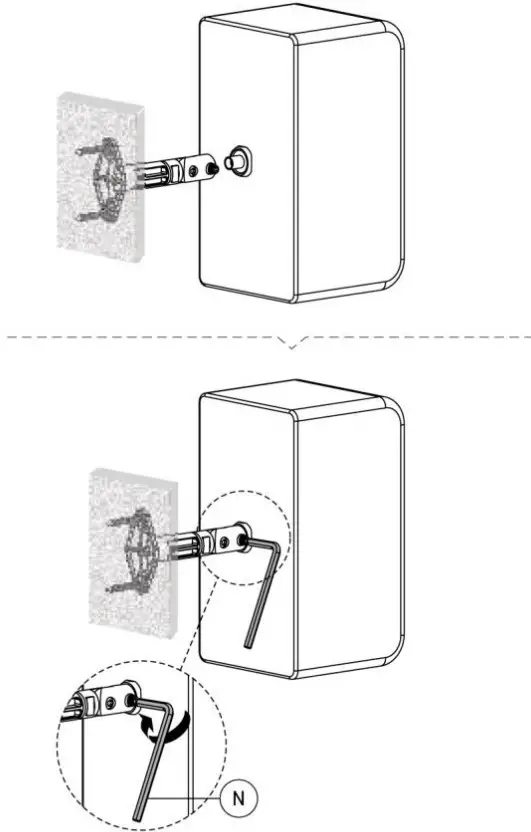

Attach the speaker mount to the single hole plate on the speaker
audizio HTS20 Speaker Wall Bracket - Figure 8STEP 5
audizio HTS20 Speaker Wall Bracket - Figure 9

Specifications and design are subject to change without prior notice.
www.tronios.com
Copyright © 2021 by Tronios The Netherlands
