TDS 20 C Ceramic Fan Heater
Product Information: TDS 10 C / TDS 20 C Electric Heater
The TDS 10 C / TDS 20 C Electric Heater is designed for heating
closed rooms while adhering to the technical data. It is intended
for use in heating the air in personnel qualifications electric
devices in damp areas. The device is equipped with symbols that
indicate important information regarding its usage and safety.
Intended Use
The device is intended for heating closed rooms while adhering
to the technical data. It is designed to heat the air in personnel
qualifications electric devices in damp areas.
Personnel Qualifications
Maintenance tasks that require the housing to be opened must
only be carried out by specialist electrical companies or by
Trotec. Untrained personnel should not handle the device.
Symbols on the Device
The device is equipped with symbols that indicate important
information regarding its usage and safety:
- A symbol indicates that it is prohibited to place objects (such
as towels, clothes, etc.) above or directly in front of the device.
The heater must not be covered to avoid overheating and fire
hazards. - A symbol warns of electrical voltage. Work on the electrical
components must only be carried out by an authorized specialist
company. - A symbol warns of hot surfaces. Parts of this appliance can
become very hot and cause burns. Particular attention is to be paid
when there are children or vulnerable persons present. - A symbol warns of improper handling, which entails a risk of
burning and electric shock. Only use the device as intended. - A symbol warns that the device is not a toy and does not belong
in the hands of children. A warning against leaving the packaging
lying around is also given.
Safety Measures
Before starting or using the device, read the manual carefully.
Always store the manual in the immediate vicinity of the device or
its site of use. Work on the device’s electrical components must
only be carried out by an authorized specialist company. Do not use
this heating device in wet rooms to avoid the risk of electric
shock. Parts of the device can become very hot and cause burns, so
particular attention is to be paid when there are children or
vulnerable persons present.
Product Usage Instructions
- Ensure that the device is placed in a closed room while
adhering to the technical data. - Do not cover the device with any objects (such as towels,
clothes, etc.) to avoid overheating and fire hazards. - Do not use the device in wet rooms to avoid the risk of
electric shock. - Particular attention should be paid when there are children or
vulnerable persons present since parts of the device can become
very hot and cause burns. - Read the manual carefully before starting or using the device.
Always store the manual in the immediate vicinity of the device or
its site of use. - Maintenance tasks that require the housing to be opened must
only be carried out by specialist electrical companies or by
Trotec. - If you need to work on the device’s electrical components,
ensure that it is done by an authorized specialist company.
TDS 10 C / TDS 20 C
EN
ORIGINAL INSTRUCTIONS ELECTRIC HEATER
TRT-BA-TDS10C_TDS20C-TC210806TTRT01-010-EN
Table of contents
Notes regarding the instructions …………………………………… 2 Safety …………………………………………………………………………. 2 Information about the device………………………………………… 5 Transport and storage………………………………………………….. 7 Assembly and start-up…………………………………………………. 7 Operation ……………………………………………………………………. 8 Available accessories…………………………………………………… 9 Errors and faults………………………………………………………….. 9 Maintenance ……………………………………………………………… 11 Technical annex…………………………………………………………. 12 Disposal ……………………………………………………………………. 16 Declaration of conformity …………………………………………… 16
Follow the manual Information marked with this symbol indicates that the instructions must be observed. You can download the current version of the instructions via the following link:
TDS 10 C, TDS 10 P
https://hub.trotec.com/?id=40951
TDS 20 C, TD 20 P
https://hub.trotec.com/?id=40952
Notes regarding the instructions
Symbols
Warning of electrical voltage This symbol indicates dangers to the life and health of persons due to electrical voltage.
Warning of hot surface This symbol indicates dangers to the life and health of persons due to hot surface.
Warning This signal word indicates a hazard with an average risk level which, if not avoided, can result in serious injury or death.
Caution This signal word indicates a hazard with a low risk level which, if not avoided, can result in minor or moderate injury.
Note This signal word indicates important information (e.g. material damage), but does not indicate hazards.
Info Information marked with this symbol helps you to carry out your tasks quickly and safely.
Safety
Read this manual carefully before starting or using the device. Always store the manual in the immediate vicinity of the device or its site of use.
Warning
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2
electric heater TDS 10 C / TDS 20 C
EN
Warning Children of less than 3 years should be kept away from the device unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
Warning Do not use the device in small rooms if persons are present who cannot leave the room independently and who are not under constant supervision. · Do not use the device in potentially explosive rooms or areas and do not install it there.
· Do not use the device in aggressive atmosphere.
· Only put up the device in an upright, stable position on firm ground.
· Let the device dry out after a wet clean. Do not operate it when wet.
· Do not use the device with wet or damp hands.
· Do not expose the device to directly squirting water.
· Never insert any objects or limbs into the device.
· Do not cover the device during operation.
· Do not remove any safety signs, stickers or labels from the device. Keep all safety signs, stickers and labels in legible condition.
· Do not sit on the device.
· This device is not a toy. Keep away from children and animals. Do not leave the device unattended during operation.
· Check accessories and connection parts for possible damage prior to every use of the device. Do not use any defective devices or device parts.
· Ensure that all electric cables outside of the device are protected from damage (e.g. caused by animals). Never use the device if electric cables or the power connection are damaged!
· The mains connection must correspond to the specifications in the Technical annex.
· Insert the mains plug into a properly fused mains socket.
· Observe the device’s power input, cable length and intended use when selecting extensions to the power cable. Completely unroll extension cables. Avoid electrical overload.
· Before carrying out maintenance, care or repair work on the device, remove the mains plug from the mains socket. Hold onto the mains plug while doing so.
· Switch the device off and disconnect the power cable from the mains socket when the device is not in use.
· Do not under any circumstances use the device if you detect damages on the mains plug or power cable. If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Defective power cables pose a serious health risk!
· When positioning the device, observe the minimum distances from walls and other objects as well as the storage and operating conditions specified in the Technical annex.
· Keep a safety distance of at least 1 m between the air inlet and the air outlet of the device and all combustible materials such as textiles, curtains, beds and sofas.
· Make sure that the air inlet and outlet are not obstructed.
· Do not place the device on combustible ground.
· Only use original spare parts, for otherwise safe and functional operation cannot be ensured.
· Allow the device to cool down before transport and/or maintenance work.
· Do not use the device if it has been dropped or if it shows visible signs of damage.
· Do not use the heating device together with a programming device, a timer, a separate remote control system or any other device that automatically switches the heating device on, as there is a risk of fire if the heating device is covered or incorrectly positioned.
Intended use
Only use the device for heating closed rooms whilst adhering to the technical data. Intended use comprises heating the air in:
Construction trailers Garages Market stalls Workshops Gastronomy sector Warehouses and halls Shipyards
EN
electric heater TDS 10 C / TDS 20 C
3
Foreseeable misuse · Do not place the device on wet or flooded ground.
· Do not place any objects, e.g. clothing, on the device.
· Do not use this device in the vicinity of fuel, solvents, varnishes or other easily inflammable vapours or in rooms where these substances are stored.
· Do not use the device out of doors.
· Do not use the device for heating vehicles.
· This heating device must not be used in wet rooms (e.g. bathrooms or laundry rooms).
· Never immerse the device in water.
· Any use other than the intended use is regarded as a reasonably foreseeable misuse.
· Do not make any unauthorised modifications, alterations or structural changes to the device.
Personnel qualifications
People who use this device must: · be aware of the dangers that occur when working with
electric devices in damp areas.
· have read and understood the instructions, especially the Safety chapter.
Maintenance tasks which require the housing to be opened must only be carried out by specialist electrical companies or by Trotec.
Symbols on the device
Symbols
Meaning
This symbol located on the device indicates that it is prohibited to place objects (such as towels, clothes etc.) above or directly in front of the device. In order to avoid overheating and fire hazards, the heater must not be covered.
Residual risks
Warning of electrical voltage Work on the electrical components must only be carried out by an authorised specialist company!
Warning of electrical voltage Before any work on the device, remove the mains plug from the mains socket! Do not touch the mains plug with wet or damp hands. Hold onto the mains plug while pulling the power cable out of the mains socket.
Warning of electrical voltage Risk of electric shock! The device must not come into contact with water, otherwise there is a risk of an electric shock! Do not use this heating device in wet rooms!
Warning of hot surface Parts of this appliance can become very hot and cause burns. Particular attention is to be paid when there are children or vulnerable persons present!
Warning Improper handling entails a risk of burning and electric shock. Only use the device as intended!
Warning Dangers can occur at the device when it is used by untrained people in an unprofessional or improper way! Observe the personnel qualifications!
Warning The device is not a toy and does not belong in the hands of children.
4
electric heater TDS 10 C / TDS 20 C
EN
Warning Risk of suffocation! Do not leave the packaging lying around. Children may use it as a dangerous toy.
Warning Improper installation entails a risk of fire. Do not place the device on combustible ground. Do not place the device on high-pile carpets. Do not use the device without the feet attached.
Warning In order to avoid overheating and fire hazards, the device must not be covered!
Behaviour in the event of an emergency 1. Switch the device off. 2. In an emergency, disconnect the device from the mains
feed-in: Hold onto the mains plug while pulling the power cable out of the mains socket. 3. Do not reconnect a defective device to the mains.
Overheating protection
The device is provided with a safety thermostat which is activated by overheating of the device (when exceeding the operating temperature).
Once the safety thermostat has switched itself on, the heating will be turned off. The fan keeps running.
When the device has cooled down sufficiently, the heating will be switched back on.
Investigate the cause of overheating.
If the safety thermostat does not switch in the event of overheating, the overheating protection will be tripped. In that case the device switches off completely. If so, please contact the customer service to have the overheating protection replaced.
Information about the device
Device description The electric heater serves to generate and distribute warm air, e.g. in interior spaces. The device generates heat by means of a ceramic heating element. The air surrounding the ceramic heating element is heated. The heated air is blown into the room by a fan. The device comes with an integrated thermostat and so generates a constant flow of warm air. Fan operation without heating function is also possible.
EN
electric heater TDS 10 C / TDS 20 C
5

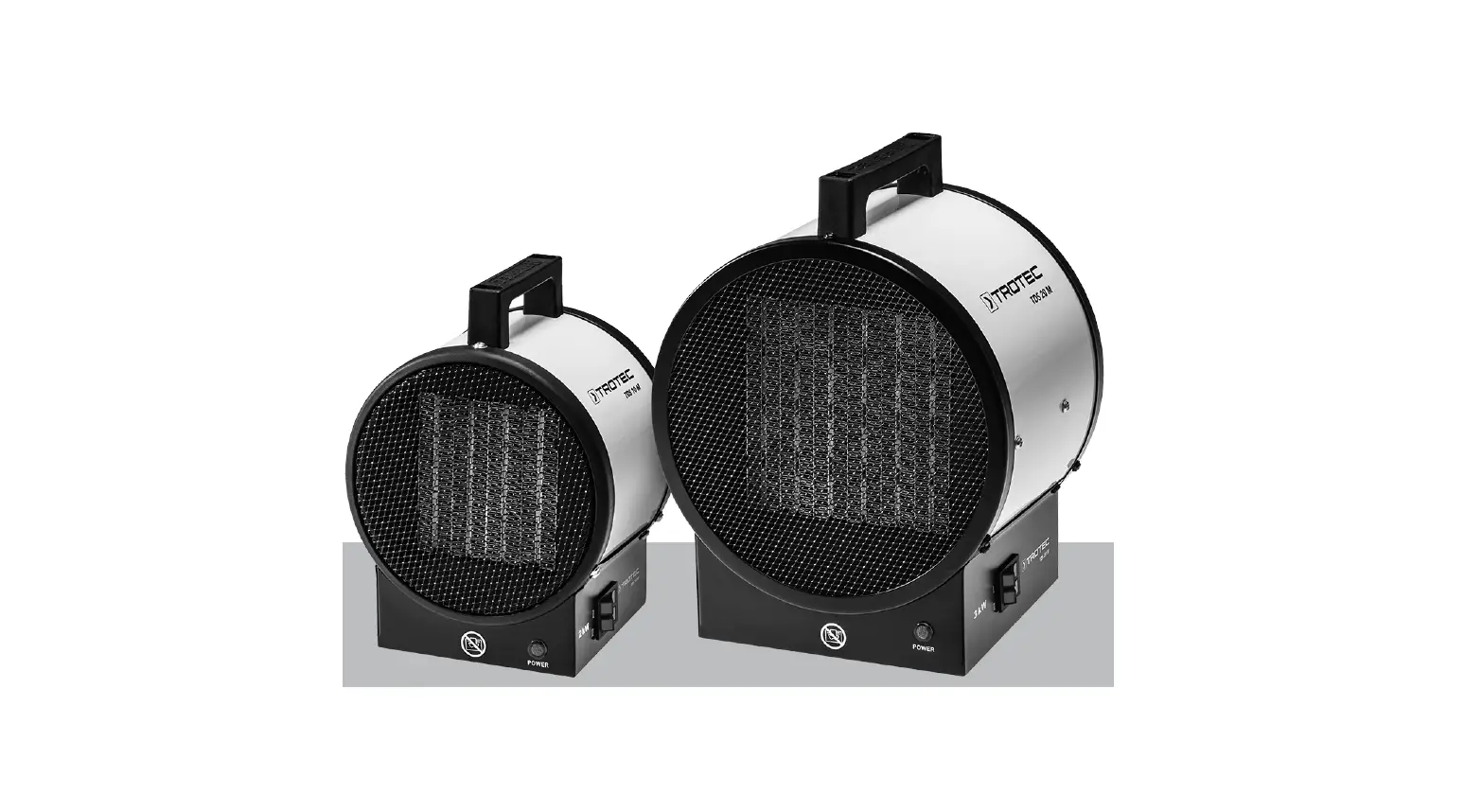

Device depiction TDS 10 C
5
6
TDS 20 C
TDS 10 C
2 kW
1 5
2
3
6
1
TDS 20 C
2
3 kW
3
4
4
No. Designation 1 Transport handle 2 Rotary switch temperature 3 Air outlet 4 Air inlet 5 Selection switch ventilation and heating levels 6 Fastening thread for wall and ceiling holder
6
electric heater TDS 10 C / TDS 20 C
EN
Transport and storage
Note If you store or transport the device improperly, the device may be damaged. Note the information regarding transport and storage of the device.
Transport To make the device easier to transport, it is fitted with a carry handle.
Before transporting the device, observe the following: · Switch the device off.
· Hold onto the mains plug while pulling the power cable out of the mains socket.
· Do not use the power cable to drag the device.
· Allow the device to cool down sufficiently.
Storage Before storing the device, proceed as follows: · Hold onto the mains plug while pulling the power cable out
of the mains socket.
· Allow the device to cool down sufficiently.
When the device is not being used, observe the following storage conditions: · Store the device in a dry location and protected from frost
and heat.
· Store the device in an upright position where it is protected from dust and direct sunlight.
· If required, use a cover to protect the device from invasive dust.
· Place no further devices or objects on top of the device to prevent it from being damaged.
Assembly Use tools suitable for the intended task. Mounting the transport handle Prior to initial start-up, the transport handle must be attached to the device. The procedure is identical for the devices TDS 10 C, TDS 10 P / TDS 20 C, TD 20 P. To do so, please proceed as follows: 1. Loosen the two screws and the two washers from the top
of the housing.
2. Use the screws and washers to mount the transport handle.
Assembly and start-up
Scope of delivery · 1 x device · 1 x Transport handle · 2 x Screw · 2 x Washer · 1 x manual
Unpacking the device 1. Open the cardboard box and take the device out. 2. Completely remove the packaging. 3. Fully unwind the power cable. Make sure that the power
cable is not damaged and that you do not damage it during unwinding.
TDS 10 C
2 kW
EN
electric heater TDS 10 C / TDS 20 C
7
Start-up
Info Odours might arise upon initial start-up or after a longer period of non-use.
When positioning the device, observe the minimum distance from walls or other objects as described in the chapter Technical annex.
Operation
· Avoid open doors and windows. Control panel
A
B
C
C
D
· Before restarting the device, check the condition of the power cable. If there are doubts as to the sound condition, contact the customer service.
· Set the device up in an upright and stable position. · Do not create tripping hazards when laying the power
cable or other electric cables, especially when positioning the device in the middle of the room. Use cable bridges. · Make sure that extension cables are completely unrolled. · Make sure that no curtains or other objects interfere with the air flow. · Make sure that the device cannot come into contact with moisture or water. Connecting the power cable · Insert the mains plug into a properly fused mains socket. · Make sure that the power cable is guided along the back of the device. Never guide the power cable along the front of the device!
5
2
No. Designation Meaning
2 Rotary switch temperature
For setting the temperature via the room thermostat
5 Selection switch For selecting the heating levels and ventilation and ventilation
heating levels 0 : OFF : cold air / ventilation
: heating level 1
: heating level 2
Switching the device on
Once you have completely installed the device as described in the chapter Assembly and start-up, you can switch it on.
Info The device will not be switched on until the room temperature falls below the temperature set at the room thermostat. This holds true for the cold setting as well (ventilation only).
Setting the heating level 1. Set the selection switch ventilation and heating levels (5)
to the desired heating level.
Setting the room thermostat 1. Select the desired temperature via the stepless rotary
switch temperature (2) of the room thermostat.
Maximum temperature
Minimum temperature
8
electric heater TDS 10 C / TDS 20 C
EN
To find the ideal thermostat setting, please proceed as follows: 1. Set the rotary switch temperature (2) to the maximum
temperature. 2. As soon as the desired temperature has been reached,
slowly turn the rotary switch temperature (2) back until the device is switched off. ð The device now automatically maintains the desired
temperature level.
The room thermostat controls the room temperature automatically: · When exceeding the set value, both the heating and the
ventilation will be switched off.
· When falling below the set value, both the heating and the ventilation will automatically be switched back on.
Info The desired room temperature should be higher than the current room temperature.
Shutdown
Warning of electrical voltage Do not touch the mains plug with wet or damp hands. · Make sure that the rotary switch temperature (2) is set to a value above room temperature or to MAX to prevent the device from switching off and to allow the fan to run on in order to cool down the device.
· Turn the selection switch ventilation and heating levels (5) to the position (ventilation only).
· Keep the fan running for 3 minutes before switching the device off.
· Turn the rotary switch temperature (2) of the room thermostat all the way to the MIN position.
· Switch off the device by setting the selection switch ventilation and heating levels (5) to the 0 position.
· Hold onto the mains plug while pulling the power cable out of the mains socket.
· Allow the device to cool down completely.
· Clean the device according to the Maintenance chapter.
· Store the device according to the Transport and storage chapter.
Errors and faults
Warning of electrical voltage
Tasks which require the device to be opened must only be carried out by authorised specialist companies or by Trotec.
The device has been checked for proper functioning several times during production. If malfunctions occur nonetheless, check the device according to the following list.
The device does not start: · Check the power connection.
· Check the power cable and mains plug for damage. If you notice damages, do not try to take the device back into operation.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
· Check the on-site fusing.
· Check the room temperature. The room thermostat may have switched off, because the desired room temperature has been reached.
· The motor might be defective. Have a defective motor replaced by a specialist electrical company.
· The room thermostat might be defective. Have a defective room thermostat replaced by a specialist electrical company.
· The overheating protection may have been tripped. Have a specialist electrical company or Trotec check the electrics and replace the overheating protection.
· Wait for 10 minutes before restarting the device. If the device is not starting, have the electrics checked by a specialist company or by Trotec.
Available accessories
Designation Wall and ceiling holder TDS 10 30
Article number 6.100.007.022
EN
electric heater TDS 10 C / TDS 20 C
9
The device is switched on, the fan is operating, the heating is not: · Check whether a heating level is selected.
· Check whether the overheating protection has tripped (see chapter Safety).
· The heating resistor might have blown. Have a defective heating resistor replaced by a specialist electrical company.
· The room thermostat might be defective. Have a defective room thermostat replaced by a specialist electrical company.
The fan is not running: · Check whether the device is switched on.
· Check the power connection.
· Check the power cable and mains plug for damages.
· The fan motor might be defective. Have a defective fan motor replaced by a specialist electrical company.
The air current is reduced: · Check the air inlet and outlet. Make sure that air inlet and
outlet are not obstructed. Remove any dirt. Observe the minimum distance from walls or other objects according to the technical data.
The device is loud or vibrates: · Check whether the device is set up in a stable and upright
position.
Note Wait for at least 3 minutes after maintenance and repair work. Only then switch the device back on.
The device still does not operate correctly after these checks:
Please contact the customer service. If necessary, bring the device to an authorised specialist electrical company or to Trotec for repair.
10
electric heater TDS 10 C / TDS 20 C
EN
Maintenance
Maintenance intervals
Maintenance and care interval before every start-up
Check air inlets and outlets for dirt
X
and foreign objects and clean
if necessary
Check air inlet grid(s) for dirt and
X
foreign objects and clean
if necessary
Clean the exterior
Visually check the inside of the device for dirt
Check for damage
X
Check attachment screws
Test run
as needed at least every at least every at least every at least
2 weeks
4 weeks
6 months annually
X
X
X
X
X
X
X
X
Maintenance and care log Device type: ………………………………………
Device number: ………………………………
Maintenance and care interval 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Check air inlets and outlets for dirt and foreign objects and clean if necessary
Check air inlet grid(s) for dirt and foreign objects and clean if necessary
Clean the exterior
Visually check the inside of the device for dirt
Check for damage
Check attachment screws
Test run
Comments
1. Date: …………………………….. 2. Date: ……………………………… 3. Date: ……………………………… 4. Date: ……………………………… Signature: ………………………….. Signature: …………………………… Signature: …………………………… Signature: ……………………………
5. Date: …………………………….. 6. Date: ……………………………… 7. Date: ……………………………… 8. Date: ……………………………… Signature: ………………………….. Signature: …………………………… Signature: …………………………… Signature: ……………………………
9. Date: …………………………….. 10. Date: ……………………………. 11. Date: ……………………………. 12. Date: ……………………………. Signature: ………………………….. Signature: …………………………… Signature: …………………………… Signature: ……………………………
13. Date: …………………………… 14. Date: ……………………………. 15. Date: ……………………………. 16. Date: ……………………………. Signature: ………………………….. Signature: …………………………… Signature: …………………………… Signature: ……………………………
EN
electric heater TDS 10 C / TDS 20 C
11
Activities required before starting maintenance
Warning of electrical voltage Do not touch the mains plug with wet or damp hands. · Switch the device off. · Hold onto the mains plug while pulling the power cable out of the mains socket. · Allow the device to cool down completely.
Warning of electrical voltage Tasks which require the device to be opened must only be carried out by authorised specialist companies or by Trotec.
Cleaning the housing
Warning of electrical voltage Never immerse the device in water! Clean the housing with a soft, damp and lint-free cloth. Make sure that no moisture enters the housing. Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth. Wipe the housing dry after cleaning.
Technical annex
Technical data
Parameter
Value
Model
TDS 10 C
TDS 20 C
Heating capacity level 1: ventilation only level 2: 1000 W level 3: 2000 W
ventilation only 2000 W 3000 W
Air flow rate
140 m³/h
180 m³/h
Operating range -15 °C to +25 °C -15 °C to +25 °C
Mains connection 220240 V / 50 Hz 220240 V / 50 Hz
Max. power input 2000 W
3000 W
Nominal current 8.7 A
13 A
consumption
Fusing
10 A
16 A
Plug type
Schuko plug CEE 7/7
Schuko plug CEE 7/7
Cable length
1.3 m
1.3 m
Sound pressure level 52 dB(A) (at a distance of 1 m)
55 dB(A)
Protection type
IP20
IP20
Overheating protection
85 °C
85 °C
Dimensions (depth x 165 x 165 x
width x height)
225 mm
200 x 200 x 250 mm
Minimum distance to walls and other objects
top (A): 50 cm rear (B): 50 cm sides (C): 50 cm front (D): 50 cm
50 cm 50 cm 50 cm 50 cm
Weight
2 kg
3 kg
12
electric heater TDS 10 C / TDS 20 C
EN
Circuit diagram TDS 10 C / TDS 20 C
EN
electric heater TDS 10 C / TDS 20 C
13
Overview of spare parts and spare parts list TDS 10 C
Note! The position numbers of the spare parts differ from those describing the positions of the components mentioned in these instructions.
No. Spare part
Specifications
1 Switch knob
ABS
2 Thermostat knob
ABS
3 Control panel
SPCC
4 Rotary switch
250V 15A
5 Temperature controller 250V 16A
6 PTC bracket support SECC
7 PTC bracket
PA66+GF30
8 PTC
220-240V 2000W
9 Handle bracket
PP
10 Thermal link
F00 121 °C
11 Re-set thermostat
250V 16A
12 Handle
PP
13 In the support
SECC
14 Fan
PA
QTY No. Spare part
1
15 Cable fastener
1
16 Rear shell
1
17 Power cord
1
18 Motor
1
19 Air passage
2
20 Rubber feet
1
21 Body
1
1
1
1
1
1
1
14
electric heater TDS 10 C / TDS 20 C
Specifications
QTY
6N-4
1
SPCC
1
H05VV-F 3G
1
220-240V 50Hz
1
PA66+GF30
1
NBR
4
SPCC
1
EN
Overview of spare parts and spare parts list TDS 20 C
Note! The position numbers of the spare parts differ from those describing the positions of the components mentioned in these instructions.
No. Spare part
Specifications
QTY No. Spare part
Specifications
QTY
1 Switch knob
ABS
1
15 Cable fastener
6N-4
1
2 Thermostat knob
ABS
1
16 Motor
220-240V 50Hz
1
3 Control panel
SPCC
1
17 Motor bracket
SECC
1
4 Rotary switch
250V 15A
1
18 Power cord
H05VV-F 3G
1
5 Temperature controller 250V 16A
1
19 Rear shell
SPCC
1
6 PTC bracket support SECC
2
20 Air passage support SECC
2
7 PTC bracket
PA66+GF30
1
21 Air passage
PA66+GF30
1
8 PTC
220-240V 2000W
1
22 Rubber feet
NBR
4
9 Handle bracket
PP
1
23 Body
SPCC
1
10 Thermal link
F00 121 °C
1
11 Re-set thermostat
250V 16A
1
12 Handle
PP
1
13 In the support
SECC
1
14 Fan
PA
1
EN
electric heater TDS 10 C / TDS 20 C
15
Disposal
Always dispose of packing materials in an environmentally friendly manner and in accordance with the applicable local disposal regulations.
The icon with the crossed-out waste bin on waste electrical or electronic equipment stipulates that this equipment must not be disposed of with the household waste at the end of its life. You will find collection points for free return of waste electrical and electronic equipment in your vicinity. The addresses can be obtained from your municipality or local administration. You can also find out about other return options that apply for many EU countries on the website https://hub.trotec.com/?id=45090. Otherwise, please contact an official recycling centre for electronic and electrical equipment authorised for your country.
The separate collection of waste electrical and electronic equipment aims to enable the re-use, recycling and other forms of recovery of waste equipment as well as to prevent negative effects for the environment and human health caused by the disposal of hazardous substances potentially contained in the equipment.
Only for United Kingdom
According to Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) devices that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.
Declaration of conformity
Declaration of conformity in accordance with the EC Machinery Directive 2006/42/EC, Annex II, Part 1, Section A
We Trotec GmbH declare in sole responsibility that the product designated below was developed, constructed and produced in compliance with the requirements of the EC Machinery Directive in the version 2006/42/EC.
Product model / Product:
TDS 10 C TDS 20 C
Product type:
electric heater
Year of manufacture as of: 2021
Relevant EU directives: · 2011/65/EU
· 2012/19/EU
· 2014/30/EU
· 2015/863/EU
Applied harmonised standards: · EN 55014-1:2017/A11:2020
Applied national standards and technical specifications: · EN 55014-2:2015
· EN 60335-1:2012/A1:2019
· EN 60335-1:2012/A2:2019
· EN 60335-1:2012/A14:2019
· EN 60335-2-30:2009
· EN 60335-2-30:2009/A11:2012
· EN 61000-3-3:2013/A1:2019
· EN 62233:2008
· EN IEC 61000-3-2:2019
Manufacturer and name of the authorised representative of the technical documentation:
Trotec GmbH
Grebbener Straße 7, D-52525 Heinsberg
Phone: +49 2452 962-400
E-mail: [email protected]
Place and date of issue: Heinsberg, 13.12.2021
Detlef von der Lieck, Managing Director
16
electric heater TDS 10 C / TDS 20 C
EN
Trotec GmbH
Grebbener Str. 7 D-52525 Heinsberg
+49 2452 962-400 +49 2452 962-200
[email protected] www.trotec.com
WEEE-Annahmestellen | Interzero - zero waste solutions
