5010 Partslider Aluminum Drawer
User Guide

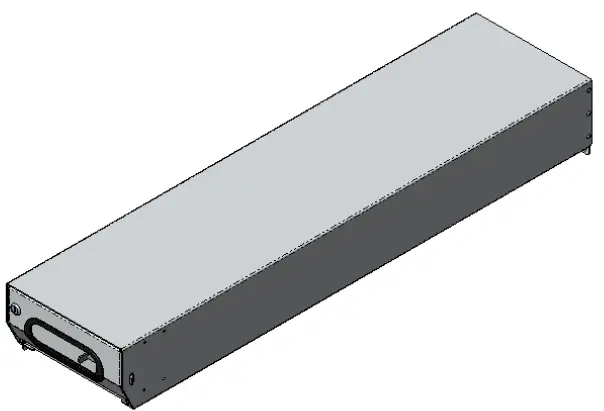

5010 Partslider Organizer 48’’D
5010 Partslider Aluminum Drawer
PHASE 1 – ASSEMBLY
1.1 SETUP
1.1.1 Unpack components; compare with the bill of materials.
1.1.2 Verify all parts are present.

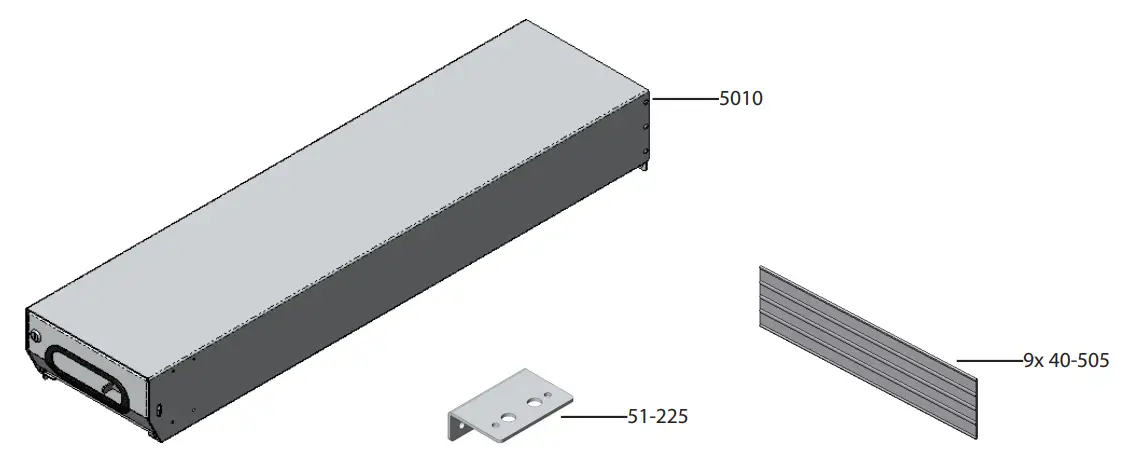

BILL OF MATERIALS
| Item No. | Description | Qty. |
| 5010 | Partslider Organizer | 1 |
| 51-225 | Mounting bracket, Partslider | 2 |
| 40-505 | Shelf divider, 10-7/16” | 9 |
| 90-5002 | Fastener Kit | 1 |

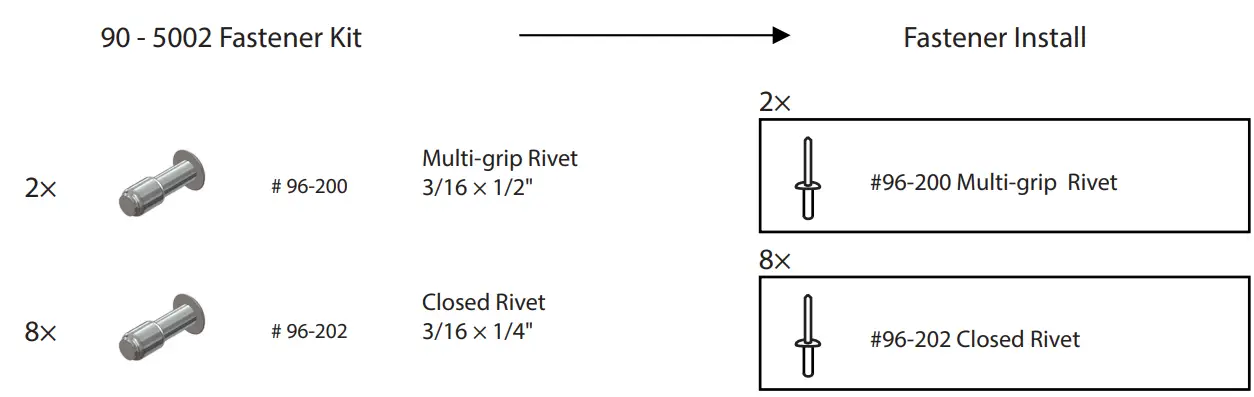

1.1.3Fastener kits.
For technical support,
contact us at 1-800-565-5321
5010 Quick Start Guide
REV. D1
