Introduction
The DIGITUS® 4K HDBaseT™ HDMI Extender Splitter Set distributes the input signal on up to four output devices over a distance of up to 120 m (4K/60Hz, 4:4:4) or up to 150 m (Full HD, 1080p/60Hz) using a CAT6/7/8 cable. Supports IR and RS232 signal transmission, audio extraction (digital/analog) and EDID management. Thanks to PoC functionality, only the transmitter needs to be externally supplied with power. Using the HDMI loop-out to the transmitter unit, a local monitor can be connected in order to control the output to the receiver.
Main Features
- Supports HDBaseT™ 1.0 via CAT6/7/8 cable up to 150 m
- Supports 4K2K/60Hz (4:4:4)
- Maximum transmission distance (UHD 4K2K): 120 m
- Maximum transmission distance (Full HD 1080p): 150 m
- EDID management
- HDMI loop-out to the transmitter unit
- PoC (Power over Cable) – Only the transmitter unit requires an external power adapter
- Video bandwidth: 18 Gbps
- HDCP 2.2 / 1.4
- R232 signal transmission
Package Contents
- 1x HDBaseT™ extender splitter (transmitter unit)
- 4x HDBaseT™ receiver
- 5x IR transmission cables (1.5 m)
- 5x IR receiver cable (1.5 m)
- 1x Power adapter (DC 24V/2.7A, 1.45 m)
- 5x 3-pin Phoenix connector
- 5x 5-pin Phoenix connector
- 10x Mounting plate
- x User manual
Specification
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | Up to 4k2k@60Hz 4:4:4 |
| Color Depth | 8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDR | Support HDR, HDR10+, HLG, Dolby vision |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| Coaxial Audio Formats | PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 |
| Analog Audio Formats | PCM 2.0CH |
| ESD Protection | Human body model ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connections | |
| Input | 1× HDMI Type A (19-pin female) |
| Output | 1× HDMI Type A (19-pin female） 4x HDBaseT OUT [RJ45] 1x Coaxial Audio OUT [RCA] 1x L/R Audio OUT [5-pin phoenix connector] |
| Control | 1× RS-232 (3-pin phoenix connector） 1x EDID DIP switch [5-pin] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter: 220mm (W) × 130mm (D) × 40mm (H) Receiver: 140mm (W) × 65mm (D) × 18mm (H) |
| Weight | Transmitter: 853g Receiver: 246g |
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: DC 24V/2.7A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 35W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
Operating Controls and Functions
Transmitter

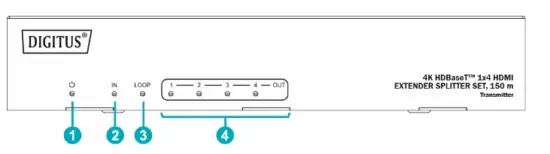

Front Panel
| No. | Name | Function description |
| 1 | Power LED | When the device is powered on, the red power LED will be on. |
| 2 | IN LED | When the HDMI IN port connects an active source device, the green LED will be on. |
| 3 | LOOP LED | When the HDMI LOOP OUT port connects an active display device, the green LED will be on. |
| 4 | OUT (1~4) LED | When the HDBT OUTPUT port connects an HDBaseT Receiver, the corresponding green OUT LED will be on |

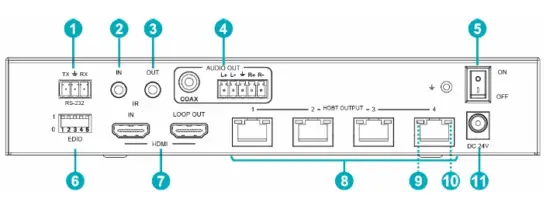

Rear Panel
| No. | Name | Function description |
| 1 | RS-232 | Connect to a PC or control system via a 3-pin phoenix connector cable for three functions: 1. Firmware update; 2. Control the Splitter via RS-232 commands; 3. RS-232 signal pass-through (from transmitter to receiver or from receiver to transmitter) |
| 2 | IR IN | Connect to IR receiver cable, the IR receive signal will emit to “IR OUT” port of the HDBaseT Receiver |
| 3 | IR OUT | Connect to IR blaster cable, the IR emit signal is from “IR IN” port of the HDBaseT Receiver |
| 4 | AUDIO OUT (COAX, L/R) | Coaxial/balanced audio output port, connect to amplifer or speaker |
| 5 | POWER switch | Press this switch to power on/off the device |
| 6 | EDID DIP switch | Used to set EDID mode. Please refer to Section “6. EDID Mode” for details |
| 7 | HDMI port | IN: HDMI input port, connect to HDMI source device such as DVD or set-top box with an HDMI cable |
| LOOP OUT: HDMI loop output port, connect to the HDMI display device such as TV or Monitor with an HDMI cable | ||
| 8 | HDBT OUTPUT port (1~4) | Connect to the HDBT IN port of the HDBaseT receiver with a CAT cable |
| 9 | Connection Signal Indicator lamp (Green) | · Illuminating: Transmitter and Receiver are in good connection status · Flashing: Transmitter and Receiver are in poor connection status · Dark: Transmitter and Receiver are not connected |
| 10 | Data Signal Indicator lamp (Orange) | · Illuminating: HDMI signal with HDCP · Flashing: HDMI signal without HDC · Dark: No HDMI signal |
| 11 | DC 24V | Plug the DC 24V power supply into the unit and connect the adaptor to an AC outlet (Note: The transmitter can power the receiver via a CAT cable) |

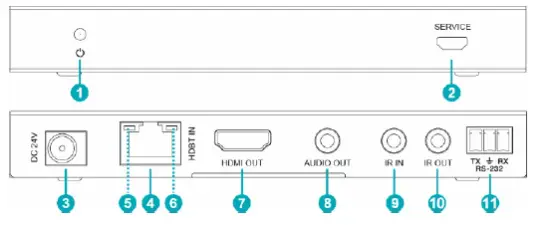

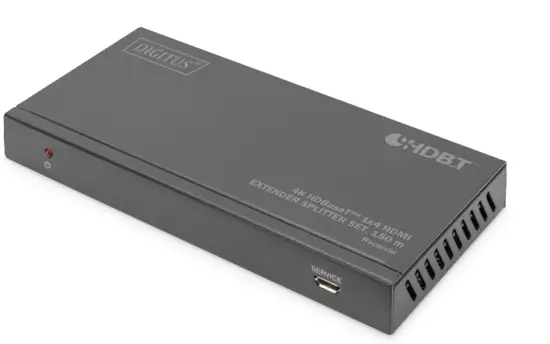

IR Pin DefinitionHDBaseT Receiver
| No. | Name | Function description |
| 1 | Power Indicator | When the receiver is powered on, the power indicator will be on |
| 2 | SERVICE port | Used for firmware update |
| 3 | DC 24V | Plug DC 24V/1A power supply into the unit and connect the adapter to an AC outlet. (Note: The HDBaseT receiver also can be powered by the transmitter via a CAT cable) |
| 4 | HDBT IN | Connect to the HDBT OUTPUT port on the transmitter with a CAT cable |
| 5 | Connection Signal Indicator lamp (Green) | · Illuminating: Transmitter and Receiver are in good connection status · Flashing: Transmitter and Receiver are in poor connection status · Dark: Transmitter and Receiver are not connected |
| 6 | Data Signal Indicator lamp (Orange) | · Illuminating: HDMI signal with HDCP · Flashing: HDMI signal without HDCP · Dark: No HDMI signal |
| 7 | HDMI OUT | HDMI output port, connect to HDMI display device such as TV or Projector with an HDMI cable |
| 8 | AUDIO OUT | Audio output port, connect to amplifer or speaker |
| 9 | IR IN | Connect to the IR Receiver cable. The IR signal will send to the IR OUT port of the transmitter |
| 10 | IR OUT | Connect to the IR blaster cable, the IR signal is from IR IN port of the transmitter |
| 11 | RS-232 | 3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter |

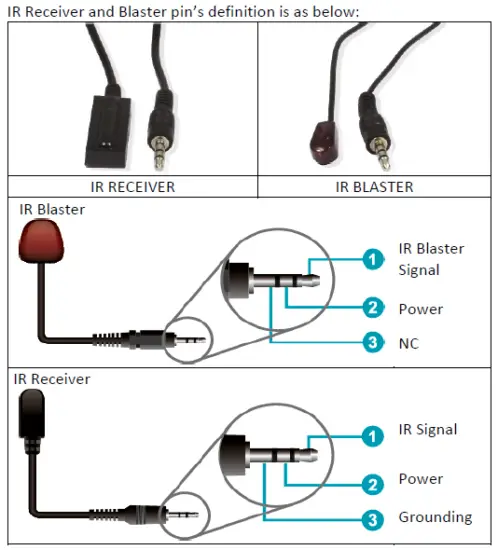

IR Receiver and Blaster pin’s definition is as below:
Note:
When the angle between the IR receiver and the remote control is ± 45°, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ± 90°, the transmission distance is 0-8 meters.
EDID Mode
The defined EDID setting list of the product is shown as below:
| EDID Mode | EDID Description |
| 11111 | 1080P, Stereo Audio 2.0 |
| 11110 | 1080P, Dolby/DTS 5.1 |
| 11101 | 1080P, HD Audio 7.1 |
| 11100 | 1080I, Stereo Audio 2.0 |
| 11011 | 1080I, Dolby/DTS 5.1 |
| 11010 | 1080I, HD Audio 7.1 |
| 11001 | 1080P 3D, Stereo Audio 2.0 |
| 11000 | 1080P 3D, Dolby/DTS 5.1 |
| 10111 | 1080P 3D, HD Audio 7.1 |
| 10110 | 4K2K30Hz_444, Stereo Audio 2.0 |
| 10101 | 4K2K30Hz_444, Dolby/DTS 5.1 |
| 10100 | 4K2K30Hz_444, HD Audio 7.1 |
| 10011 | 4K2K60Hz_420, Stereo Audio 2.0 |
| 10010 | 4K2K60Hz_420, Dolby/DTS 5.1 |
| 10001 | 4K2K60Hz_420, HD Audio 7.1 |
| 10000 | 4K2K60Hz_444, Stereo Audio 2.0 |
| 01111 | 4K2K60Hz_444, Dolby/DTS 5.1 |
| 01110 | 4K2K60Hz_444, HD Audio 7.1 |
| 01101 | 4K2K60Hz_444, Stereo Audio 2.0 HDR |
| 01100 | 4K2K60Hz_444, Dolby/DTS 5.1 HDR |
| 01011 | 4K2K60Hz_444, HD Audio 7.1HDR |
| 01010 | COPY_FROM_LOOP OUT |
| 01001 | COPY_FROM_HDBT OUT1 |
| 01000 | COPY_FROM_HDBT OUT2 |
| 00111 | COPY_FROM_HDBT OUT3 |
| 00110 | COPY_FROM_HDBT OUT4 |
| 00101 | 1080P, Stereo Audio 2.0 |
| 00100 | 1080P, Stereo Audio 2.0 |
| 00011 | 1080P, Stereo Audio 2.0 |
| 00010 | 1080P, Stereo Audio 2.0 |
| 00001 | 1080P, Stereo Audio 2.0 |
| 00000 | PC control mode |
ASCII Commands
The product also supports ASCII command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII command list about the product is shown as below.
| ASCII Commands | ||||
| Serial port protocol. Baud rate: 115200, Data bits: 8bit, Stop bits:1, Check bit: 0 | ||||
| x – Parameter 1 y – Parameter 2 ! – Delimiter | ||||
| Command Code | Function Description | Example | Feedback | Default Setting |
| s power z! | Power on/off the device, z=0~1 (z=0 power off, z=1 power on) | s power 1! | Power on System Initializing… Initialization Finished! FW version x.xx.xx | power on |
| r power! | Get current power state | r power! | power on/power off | |
| s reboot! | Reboot the device | s reboot! | Reboot… System Initializing… Initialization Finished! FW version x.xx.xx | |
| System Setup | ||||
| help! | List all commands | help! | ||
| r type! | Get device model | r type! | HDC- SPB14H150 | |
| r status! | Get device current status | r status! | Get the unit all status: power, in/out connection, edid mode | |
| r fw version! | Get Firmware version | r fw version! | MCU BOOT: Vx.xx.xx MCU APP: Vx.xx.xx | |
| r link in! | Get the connection status of the input port | r link in! | HDMI IN: connect | |
| r link out y! | Get the connection status of the y output port, y=0~5 (0=all, 1~4=HDBT 1~4, 5 = loop out) | r link out 1! | hdmi loop out: connect hdbt output 1: connect | |
| s reset! | Reset to factory defaults | s reset! | Reset to factory defaults System Initializing… Initialization Finished! FW version x.xx.xx | |
| Output Setting | ||||
| s hdmi stream z! | Set hdmi loop output stream on/off z=0~1 (0:disable,1:enable) | s hdmi stream 1 ! | Enable hdmi loop out stream Disable hdmi loop out stream | enable |
| s hdmi hdcp z! | Set hdmi loop output hdcp on/off z=0~1 (0:disable,1:enable) | s hdmi hdcp 1! | Enable hdmi loop out hdcp Disable hdmi loop out hdcp | enable |
| s hdbt y hdcp z! | Set hdbt output y hdcp on/off, y=0~4(0=all) z=0~1(0:disable, 1:enable) | s hdbt 1 hdcp 1 ! s hdbt 0 hdcp 1 ! | Enable hdbt output 1 hdcp Disable hdbt output 1 hdcp Enable hdbt all outputs hdcp Disable hdbt all outputs hdcp | enable |
| s hdbt y stream z! | Set hdbt output y stream on/off, y=0~4(0=all) z=0~1 (0:disable,1:enable) | s hdbt 1 stream 1 ! s hdbt 0 stream 1 ! | Enable hdbt output 1 stream Disable hdbt output 1 stream Enable hdbt all outputs stream Disable hdbt all outputs stream | enable |
| r hdmi stream! | Get hdmi loop out stream status | r hdmi stream! | Enable hdmi output stream | |
| r hdmi hdcp! | Get hdmi loop out hdcp status | r hdmi hdcp! | Enable hdmi output hdcp | |
| r hdbt y hdcp! | Get hdbt output y hdcp status, y=0~4(0=all) | r hdbt 1 hdcp! | Enable hdbt output 1 stream | |
| r hdbt stream! | Get hdbt output y stream status, y=0~4(0=all) | r hdbt 1 stream! | Enable hdbt output 1 stream | |
| EDID Setting | ||||
| s edid in from z! | Set input EDID from default EDID z, z=1~27 1. 1080p, Stereo Audio 2.0 2. 1080p, Dolby/DTS 5.1 3. 1080p, HD Audio 7.1 4. 1080i, Stereo Audio 2.0 | s edid in from 1! | input EDID:1080p, Stereo Audio 2.0
Please toggle EDID dip switch to 00000! | 1080p, Stereo, Audio 2.0 |
| 5. 1080i, Dolby/DTS 5.1 | ||||
| 6. 1080i ,HD Audio 7.1 | ||||
| 7. 3D, Stereo Audio 2.0 | ||||
| 8. 3D, Dolby/DTS 5.1 | ||||
| 9. 3D, HD Audio 7.1 | ||||
| 10. 4K2K30_444, | ||||
| Stereo Audio 2.0 | ||||
| 11. 4K2K30_444, | ||||
| Dolby/DTS 5.1 | ||||
| 12. 4K2K30_444, HD | ||||
| Audio 7.1 | ||||
| 13. 4K2K60_420, | ||||
| Stereo Audio 2.0 | ||||
| 14. 4K2K60_420, | ||||
| Dolby/DTS 5.1 | ||||
| 15. 4K2K60_420, HD | ||||
| Audio 7.1 | ||||
| 16. 4K2K60_444, | ||||
| Stereo Audio 2.0 | ||||
| 17. 4K2K60_444, | ||||
| Dolby/DTS 5.1 | ||||
| 18. 4K2K60_444, HD | ||||
| Audio 7.1 | ||||
| 19. 4K2K60_444, | ||||
| Stereo Audio 2.0 HDR | ||||
| 20. 4K2K60_444, | ||||
| Dolby/DTS 5.1 HDR | ||||
| 21. 4K2K60_444, | ||||
| HD Audio 7.1 HDR | ||||
| 22. copy from hdmi loop | ||||
| out | ||||
| 23. copy from hdbt | ||||
| output 1 | ||||
| 24. copy from hdbt | ||||
| output 2 | ||||
| 25. copy from hdbt | ||||
| output 3 | ||||
| 26. copy from hdbt | ||||
| output 4 | ||||
| 27. use user1 EDID |
| s edid user1 00 FF FF FF FF …! | Set user1 EDID data | s edid user1 00 ff ff ff ff …. ! | user1 EDID data: 00 FF FF …. | |
| r edid user1! | Get user1 EDID data | r edid user1! | user1 EDID data: 00 FF FF FF FF FF FF 00 ……… | |
| r edid in! | Get EDID status of the input | r edid in! | ||
| r edid in data! | Get the EDID data of the hdmi input | r edid in data! | ||
| RS-232 BYPASS Setting | ||||
| s rs232 bypass hdbt y! | Set RS-232 port connect to HDBT out1 Receiver RS- 232 port, y=0~5( 0=all, 1~4= hdbt out 1~4 5=NC) | s rs232 bypass y=0 hdbt 1! | RS-232 connect to HDBT OUT1 RS-232 not connect to HDBT OUT | y=0 |
| r rs232 bypass! | Get RS-232 port connect to HDBT out receiver RS- 232 port | r rs232 bypass! | RS-232 connect to HDBT OUT1 RS-232 connect to all HDBT OUT RS-232 not connect to HDBT OUT | |
| s device baud w size x stop y parity z! | Set receiver control device COM port setting, w=2400, 4800,9600,19200,38400, 57600,115200, x=7,8 y=1,2, z=none, even,odd | s device baud 57600 size 8 stop 1 parity none! | receiver device COM port setting baudrate: 57600 data size :8, stop:1 parity: none | |
| s rs232 time x! | set send RS232 command wait time x=200~5000ms | s rs232 time 200! | send RS-232 command wait time 200ms | 200ms |

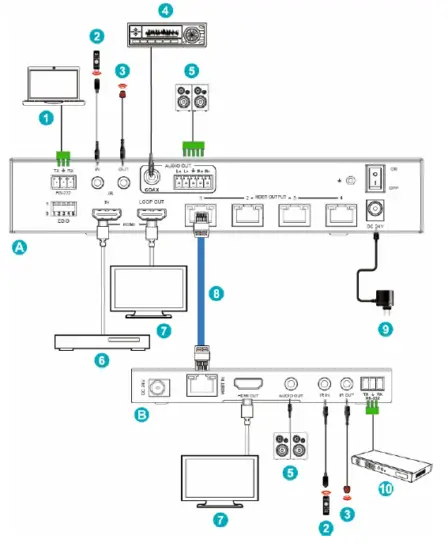

Application Example
| A | Transmitter | 5 | 2.0 Speaker |
| B | Receiver | 6 | DVD or Blu-ray Player |
| 1 | PC | 7 | UHDTV |
| 2 | IR Receiver | 8 | Cat 6/6a/7 |
| 3 | IR Blaster | 9 | Power Supply |
| 4 | Amplifier | 10 | HDMI Matrix with RS-232 function |
