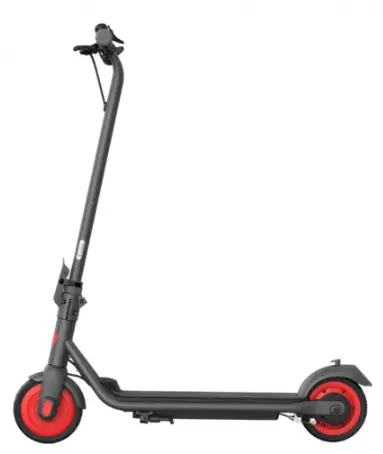

ninebot F65I, F65D KickScooter

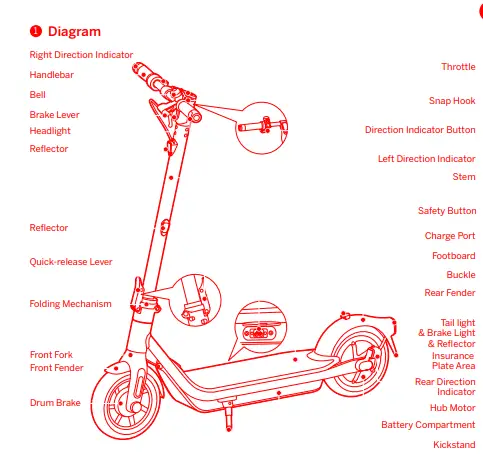

Diagram

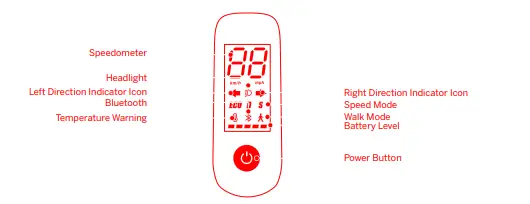

Power Button: Press the button to power on; press and hold the button for 3 seconds to power off. When the KickScooter is on, press the button to turn on/off the headlight and the tail light; and press twice to switch between the speed modes.
Speedometer: It displays the current speed of the scooter, as well as error codes.
Left Direction Indicator Icon: When this icon blinks, it indicates that the direction indicators on the left side are turned on.
Right Direction Indicator Icon: When this icon blinks, it indicates that the direction indicators on the right side are turned on.
Walk Mode: Max. speed is 5 km/h (3.1 mph).
F65I: The headlight and tail light keep flashing and can’t be turned off.
F65D: The headlight and tail light are always on and can’t be turned off.
* How to enable in the Segway-Ninebot app: Settings > Walk Mode.
Speed Mode: There are three modes available. The top speed is as follows:
| Mode Model F65I | F65D | |
| ECO (Energy-saving mode) | 15 km/h (9.3 mph) | 15 km/h (9.3 mph) |
| D (Standard mode) | 20 km/h (12.4 mph) | 20 km/h (12.4 mph) |
| S (Sport mode) | 25 km/h (15.5 mph) | 20 km/h (12.4 mph) |
Error Notification: It indicates that the scooter has detected an error.
Temperature Warning: It indicates that the battery temperature has reached 55°C (131°F) or is below 0°C (32°F).
* At this point, the KickScooter cannot accelerate normally and may not be charged. DO NOT use until the temperature has reverted to the
normal range.
Bluetooth: It indicates that the scooter has been successfully connected to the mobile device.
Battery Level: The total battery level equals 5 bars.
* The battery power is very low when the first battery bar is red. Please charge your KickScooter immediately.
Specifications
| Item | Parameter | ||
|
Product | Name | Ninebot KickScooter | |
| Model | F65I | F65D | |
| Length × Width × Height | Approx. 1196 × 569 × 1237 mm (47 × 22.4 × 48.7 in) | ||
| Folded: Length × Width × Height | Approx. 1196 × 569 × 540 mm (47 × 22.4 × 21.3 in) | ||
| Net Weight | Approx. 21.8 kg (48 lbs) | ||
| Rider | Payload | 30–120 kg (66–265 lbs) | |
| Recommended Age | 14–60 years | ||
| Required Height | 130–200 cm (4’3”–6’6”) | ||
|
Machine | Max. Speed | Approx. 25 km/h (15.5 mph) | Approx. 20 km/h (12.4 mph) |
| Typical Range[1] | Approx. 65 km (40.4 miles) | ||
| Max. Slope | Approx. 20% | ||
| Traversable Terrain | Bicycle lanes, parks, campuses and most of the flat road conditions and typical Belgian roads | ||
| Operating Temperature | -10–40°C (14–104°F) | ||
| Storage Temperature | -10–50°C (14–122°F) | ||
| IP Rating | IPX5 | ||
| Duration of Charging | Approx. 5 h | ||
|
Battery | Nominal Voltage | 46.8 V | |
| Max. Charging Voltage | 54.6 V | ||
| Charging Temperature | 0–45°C (32–113°F) | ||
| Nominal Capacity | 12 Ah | ||
| Nominal Energy | 561 Wh | ||
| Battery Management System | Over-heating, short circuit, over-current, over-discharge and over-charge protection | ||
| Motor | Nominal Power | 0.4 kW, 400 W | |
| Max. Power | 0.7 kW, 700 W | ||
|
Charger | Model | NBW54D603D0D | |
| Type | Built-in | ||
| Output Power | 0.16 kW, 160 W | ||
| Input Voltage | 100–240 V ~ 50–60 Hz, 2.0 A MAX. | ||
| Max. Output Voltage | 54.6 V | ||
| Rated Output | 53.5 V , 3 A | ||
| Features | Brake Light | Brighter when braking | |
| Speed Modes | Energy-saving mode, Standard mode and Sport mode | ||
| Tire | Tire Pressure | 40–45 psi | |
| Tires | 10-inch Pneumatic tire | ||
- Typical Range: tested while riding with a full battery, 75 kg (165 lbs) load, 25°C (77°F), at the speed of 18 km/h (11.2 mph) on average on pavement.
* Some of the factors that affect range include speed, number of starts and stops, ambient temperature, etc.
Certifications
This product is certified to ANSI/CAN/UL-2272 by SGS. The battery complies with UN 38.3.
The battery complies with ANSI/CAN/UL-2271.
European Union Compliance Statement
Important WEEE information
This symbol on the product or on its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste. For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points.
Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.
Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. Please contact your local authority for further details of your nearest designated collection point.
Battery recycling information for Users
This symbol means that batteries and accumulators, at their end-of-life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling you can return this product or the batteries or accumulators it contains to your supplier or to a designated collection point.
Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.
Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. there are separate collection systems for used batteries and accumulators.
Please, dispose of batteries and accumulators correctly at your local community waste collection/recycling center.
Radio Equipment Directive
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU.
Restriction of the use of certain hazardous substances (RoHS) Directive
Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(“RoHS recast” or “RoHS 2.0”).
Machinery Directive
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Machinery Directive 2006/42/EC.
EU Authorised Representative:
Segway-Ninebot Europe
Dynamostraat 7, 1014 BN Amsterdam, The Netherlands.
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: F65I, F65D comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU，the machinery directive 2006/42/EC, and the RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863. The declaration of conformity can be viewed at the following address: http://eu-en.segway.com/support-instructions
UK Compliance Statement
Radio Equipment Regulations 2017
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of Radio Equipment Regulations 2017.
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.
Supply of Machinery (Safety) Regulations 2008
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of The Safety of Supply of Machinery (Safety) Regulations 2008.
UK Authorised Representative：
UKCA Experts Ltd.
Dept 302, 43 Owston Road Carcroft, Doncaster, DN6 8DA, United Kingdom
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: F65I complies with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017，Supply of Machinery (Safety) Regulations 2008 and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.
The declaration of conformity can be viewed at the following address: www.segway.com
