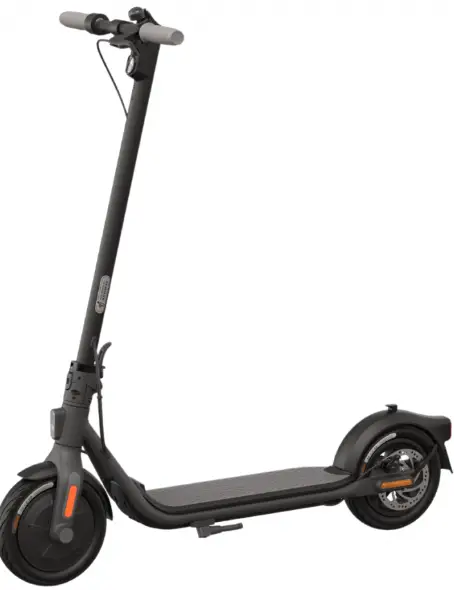

ninebot F25e Kick Scooter
Welcome
Warning: Always wear a helmet, elbow pads and knee pads when riding.
Packing List
- 3 mm Hex Wrench
- M5 Screw × 5
- Valve Stem Extension

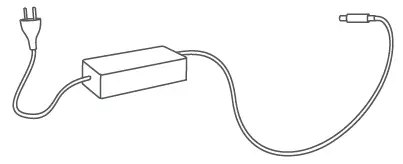

- Battery Charger
- Tire (For F25E)
Assembly

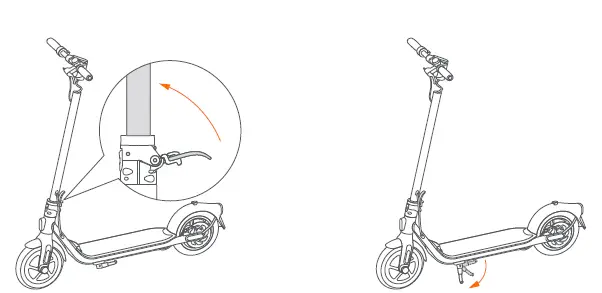

- Unfold the handlebar stem and close the quick-release lever.
- Unfold the kickstand.

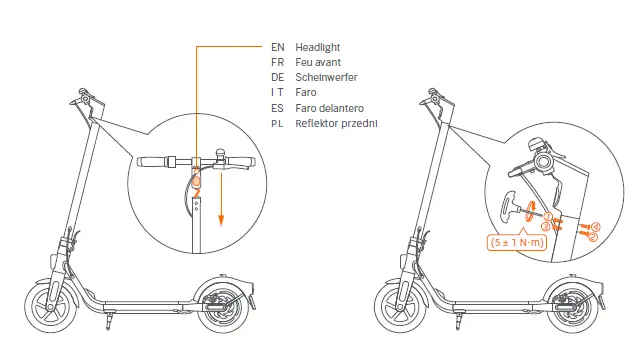

- Connect the wires inside the handle and the stem. Slide the handlebar onto the stem with the headlight facing forward.
- Install the 4 screws in order (two on each side) with the included hex wrench.
Activation
- An inactivated KickScooter will keep beeping when turned on, and its speed is limited to 15 km/h (9.3 mph).
- Scan the QR code to download the Segway-Ninebot app to register or log in.
- Click “Search vehicle” and pair with your KickScooter.
- Follow the instructions to watch the Riding Safety.
- Click to activate the KickScooter.
How to Ride

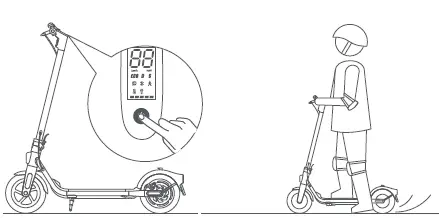

- Power on the KickScooter.
- Stand on the footboard with one foot and push off with the other foot to start gliding.
- Put both feet on the footboard and stand stably. Press the throttle to speed up when you are balanced. Note: For your safety, the motor will not engage until the KickScooter reaches 3 km/h (1.9 mph).
- Slow down by releasing the throttle and squeezing the brake lever. The rear light flashes when braking (not for F20D, F30D or F40D).

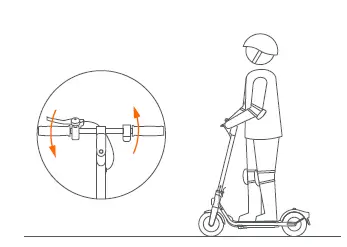

- To turn, shift your body and turn the handlebar slightly.
- Put down the kickstand.
Charging

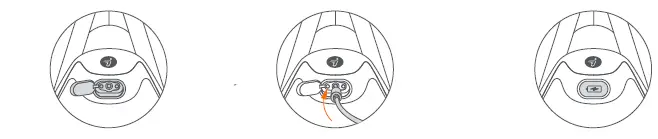

- Charge Port
- Open the charge port cover.
- Insert the charge plug.
- Close the charge port cover when finished.
WARNINGS

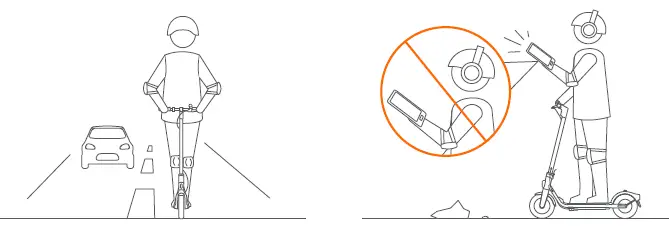

- DO NOT ride on public roads, motorways, or highways unless the local laws or regulations have exceptions.
- DO NOT use a mobile phone or wear earphones when riding the KickScooter.

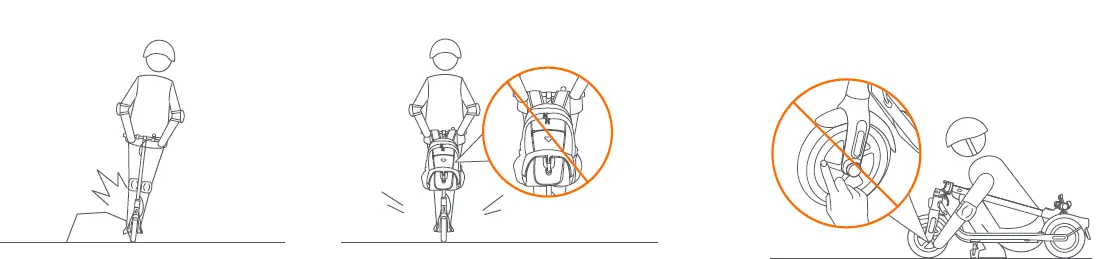

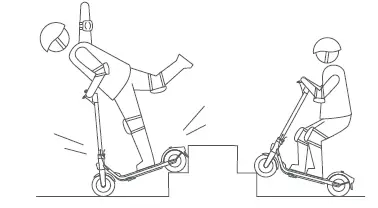

- EN DO NOT ride up and down stairs or jump over obstacles.
- DO NOT ride the scooter with only one foot or one hand.

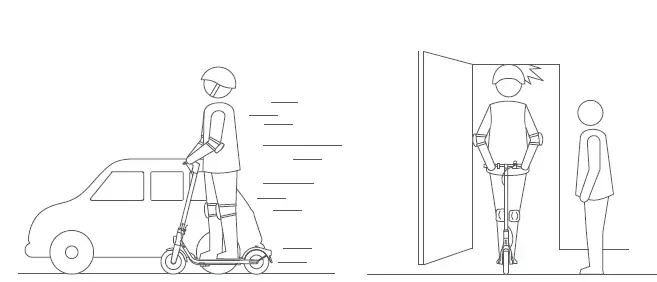

- DO NOT overtake.
- Watch your head when passing through doorways.
- DO NOT carry any passengers.
- Keep your speed between 3.1–6.2 mph (5–10 km/h) when you ride through speed bumps or other uneven surfaces.
- Avoid contacting obstacles with the tire/wheel.
- DO NOT carry heavy objects on the handlebar.
- DO NOT touch the hub motor after riding because it can get hot.
- DO NOT touch the disc brake after riding.
- DO NOT ride the scooter in the rain. DO NOT ride through puddles or other obstacles.
- DO NOT park in the open air or outdoors for a long time.
Folding

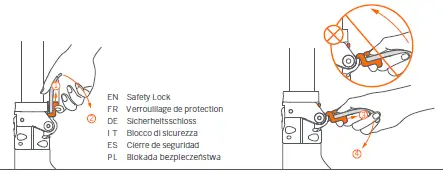

- Lift the safety lock and open the quick-release lever.
- Lift the safety lock and open the quick-release lever again, then fold the stem.

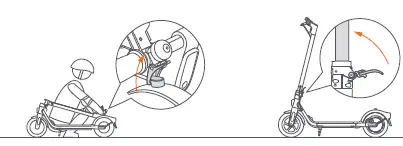

- Align and fasten the snap hook and the buckle.
Carrying
- Lift by the stem to carry.
Unfolding
- Disengage the snap hook from the buckle.
- Unfold the handlebar stem and close the quick-release lever.

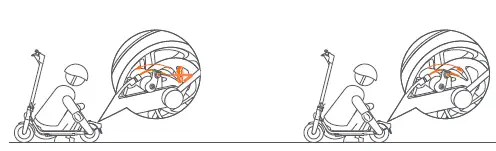

Adjusting the Disc Brake Cable
- Before adjustment, make sure the scooter is powered off and not charging.
- Loosen: Loosen the screw with a 4 mm hex wrench. Decrease the brake cable and tighten the screw.
- Tighten: Loosen the screw with a 4 mm hex wrench. Increase the brake cable and tighten the screw.

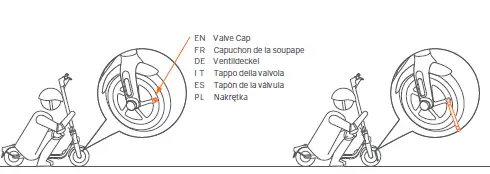

Valve Stem Extension
- Unscrew the valve cap.
- Connect the valve stem extension to the tire valve stem.
- Connect the pump to inflate the tire.
