NETGEAR GS316EPP PoE+ Gigabit Ethernet Plus Switches
NETGEAR Plus Switches with PoE meets business networks growing need by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping will help optimize the performance of business networks. Plus Switches are the perfect upgrade from the plug and- play unmanaged switch, delivering essential networking features at a very affordable price. These models support Power-Over-Ethernet (PoE) and can power devices such as VOIP phones, surveillance IP cameras, wireless access points, and many other applications. This new PoE+ Gigabit Ethernet Plus switches models include uninterruptable PoE to help optimize the performance and troubleshooting of business networks. The new and improved business-friendly GUI allows easy management and simple configuration. With the growing deployment of applications and an all-in-one solution, providing management and power to these applications would be ideal.
Highlights
- Enable network configuration and management at the price point of unmanaged switches
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Business-friendly and easy-to-use web browser-based management GUI
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto “denial-of-service” (DoS) prevention
- Troubleshoot connection issues via cable test
- Loop prevention1, loop detection2, and broadcast storm controls
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
- Advanced features such as port PoE controls
- Uninterrupted PoE keeps PoE power on even when the switch is updating firmware or performing software reboot.
- 802.3at standard offering 30W/port
- Fanless and versatile mounting option (desktop and wall-mountable)

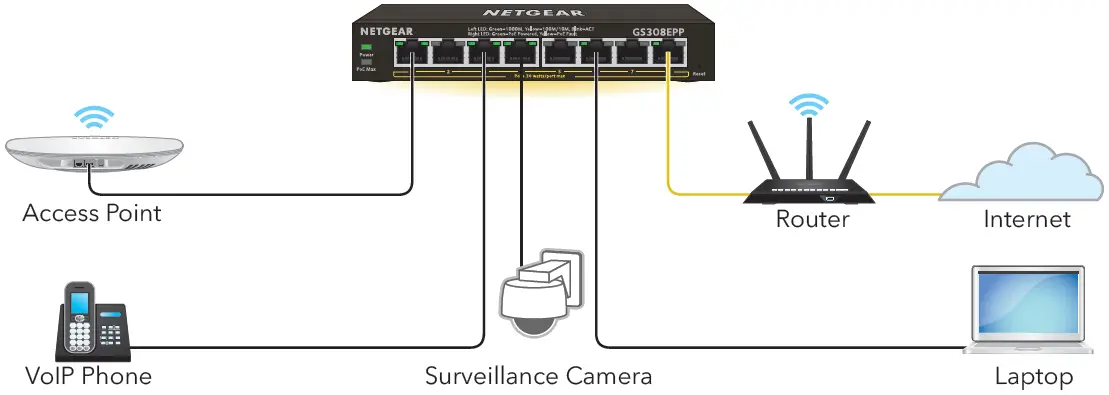

Small Office/Home Office Network Diagram
Technical Specifications
| Features | GS305EP | GS305EPP | GS308EP | GS308EPP | GS316EP | GS316EPP |
| 10/100/1000 RJ45 Copper Ports (Auto Uplink) | 5 | 5 | 8 | 8 | 16 | 16 |
| Enclosure Connector Type | Metal Metal | Metal Metal | Metal Metal | Metal Metal | Metal Metal | Metal Metal |
| PoE | ||||||
| # of PoE ports | 4 | 4 | 8 | 8 | 15 | 15 |
| # PoE+ 802.3at Ports | 4 | 4 | 8 | 8 | 15 | 15 |
| SFP ports | 0 | 0 | 0 | 0 | 1 | 1 |
| Total PoE/PoE+ Budget | 63W | 120W | 62W | 123W | 180W | 231W |
| Advanced PoE Controls | Yes | Yes | Yes | Yes | Yes | Yes |
| PoE Scheduling | No | No | No | No | Yes | Yes |
| Uninterrupted PoE | Yes | Yes | Yes Yes | Yes | Yes |
| Performance Specification | |||||
| Forwarding modes | Store-and-forward | ||||
| Bandwidth | 10Gbps | 10Gbps | 16Gbps | 16Gbps | 32Gbps | 32Gbps |
| Max MAC entries | 4K | 4K | 4K | 4K | 4K | 4K |
| Buffer Size | 192KB | 192KB | 192KB | 192KB | 192KB | 192KB |
| Energy Efficient Ethernet (IEEE 802.3az) compliant | Yes | Yes | Yes | Yes | Yes | Yes |
| Priority queuing | WRR | WRR | WRR | WRR | WRR | WRR |
| Jumbo frame support | 9,216 bytes | 9,216 bytes | 9,216 bytes | 9,216 bytes | 10,000 bytes | 10,000 bytes |
| Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | 0 | 0 | 0 | 0 | 0 | 0 |
| Mean Time Between Failures (MTBF) @ 25° C | 1,164,104 hrs | 853,770 hrs | 859,126 hrs | 842,428 hrs | 784,742 hrs | 570,435 hrs |
| L2 Services – VLAN’S | ||||||
| VLAN (# Supported) | 64 | 64 | 64 | 64 | 64 | 64 |
| IEEE 802.1Q VLAN Tagging Port-based VLANs | Yes Yes | Yes Yes | Yes Yes | Yes Yes | Yes Yes | Yes Yes |
| L2 Services – Availability | ||||||
| Link Aggregation/Port Trunking | Yes | Yes | Yes | Yes | Yes | Yes |
| Number of Static Manual LAGs and # of members | 2/4 | 2/4 | 2/4 | 2/4 | 8/8 | 8/8 |
| L2 Services – Multicast Filtering | ||||||
| IGMP snooping (v1, v2, and v3) | Yes | Yes | Yes | Yes | Yes | Yes |
| Block unknown multicast | Yes | Yes | Yes | Yes | Yes | Yes |
| Supported Multicast groups | 128 | 128 | 128 | 128 | 128 | 128 |
| L3 Services – DHCP | ||||||
| DHCP client | Yes | Yes | Yes | Yes | Yes | Yes |
| Quality of Service | ||||||
| Rate Limiting | Yes | Yes | Yes | Yes | Yes | Yes |
| DSCP | Yes | Yes | Yes | Yes | Yes | Yes |
| IEEE 802.1p COS | Yes | Yes | Yes | Yes | Yes | Yes |
| Port-based VLAN | Yes | Yes | Yes | Yes | Yes | Yes |
| TOS | Yes | Yes | Yes | Yes | Yes | Yes |
| WRR (Weighted Round Robin) | Yes | Yes | Yes | Yes | Yes | Yes |
| Strict Priority queue technology | No | No | No | No | No | No |
This product comes with a limited warranty that is valid only if purchased from a NETGEAR-authorized reseller and covers unmodified hardware, fans, and internal power supplies –not +software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see +https://www.netgear.com/about/warranty for details. Intended for indoor use only.
NETGEAR #1 in US Market Share according to NPD data for Unmanaged and Smart Switches, September 2019. NETGEAR #1 in Europe Market Share according to Context data for Unmanaged and Smart Switches, September 2019. The use of the proper type of cable is required for optimum performance.
Please consult this Knowledge Base article for more information: www.netgear.com/cables
NETGEAR and the NETGEAR Logo are trademarks of NETGEAR, Inc. in the United States and/or other countries. Other brand names mentioned herein are for identification purposes only and may be trademarks of their respective holder(s). Information is subject to change without notice. ©NETGEAR, Inc. All Rights Reserved.
