Quickstart Guide
KACO blueplanet
Contents hide

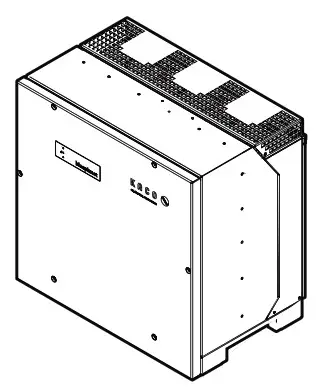

87.0 TL3 String Inverters for Commercial and Industrial PV
| 87.0 TL3 | 110 TL3 | 150 TL3 |
| 92.0 TL3 | 125 TL3 | 155 TL3 |
| 105 TL3 | 137 TL3 | 165 TL3 |
Danger!
Danger to life due to electric shock and electrical discharge.
Dangerous voltages are present in the inverter.
- Only allow work on the device to be carried out by a qualified electrician.
- The device is only permitted to be opened or serviced by a qualified electrician.
- Always disconnect the device from the power supply during installation, maintenance and repairs and secure it against being switched on again.
- Do not connect or disconnect DC cables to or from the unit during operation to avoid dangerous electric arcs.

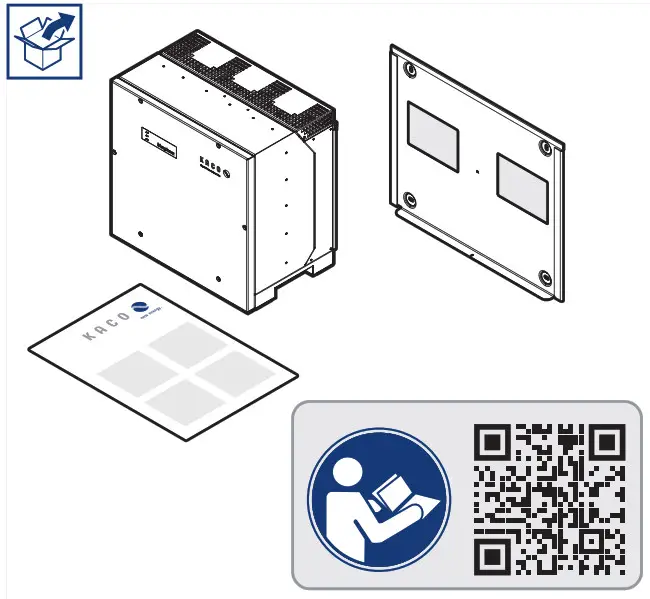

Scope of delivery
https://kaco-newenergy.com/de/service/mykacocom-kundenportal/
| Mounting kit | Quantity |
| Ziplock bag 100×150 | 1 |
| Label 70×35 | 1 |
| Washer M10 DIN 125 | 10 |
| Hexagon nut M10 DIN 934 | 5 |
| Hexagon head screw M10x25 DIN933 | 5 |
| CON-PIN-BTB 2POL 1ROW ANG 320V 8A P5,08 | 1 |
| CON-PIN-BTB 3POL 1ROW ANG 320V 8A P5,08 | 1 |
| CON-P SPRING 6-POL 1,5qmm 160V 8A RM3,5 | 1 |
| CON-PLUG SPRING 2POL 1,5q 160V 8A RM3,5 | 1 |
| Fischer dowel S12 | 4 |
| Hexagon wood screw 8×8 DIN571 | 4 |
| Spring washer M10 DIN128A | 5 |
| Cable tie 100×2,5 PA 6.6 nature | 3 |
| Combi-Screw DIN6900-3Z4-1TX8.8 | 1 |
Accessories
| Accessories | KACO order no. |
| Bending box | 1001917 |
| Kit input plate AC Inverter | 1001882 (double row) / 1001906 (M63/32) |
| Kit Overvoltage protection AC Inverter | 1001884 |
| Kit Overvoltage protection DC Inverter | 1001885 |
| Kit Surge Protection LAN Inverter | 1001886 |
| Kit Overvoltage Protection RS485 Inverter | 1001887 |
| PID Connection Set | 1001888 |
| WLAN adapter Digitus 150N micro | 3013222 |
| Spare fuses (10x85mm 1500V 5A PID) | 1001883 |
| KACO blueplanet DC-Breaker | 1001860 |

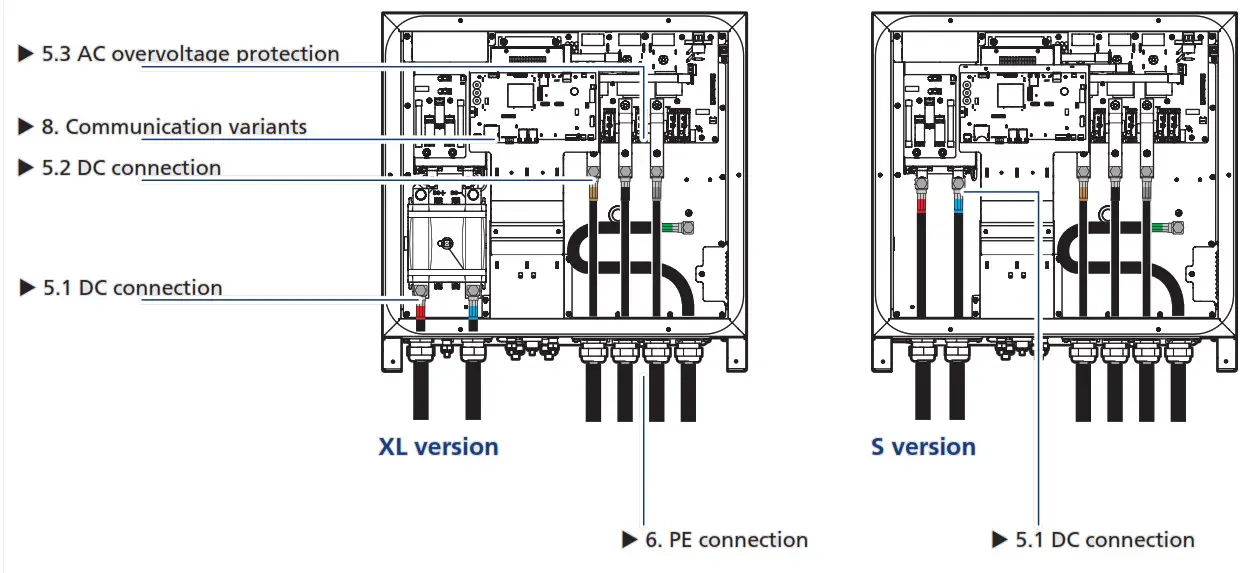

Overview

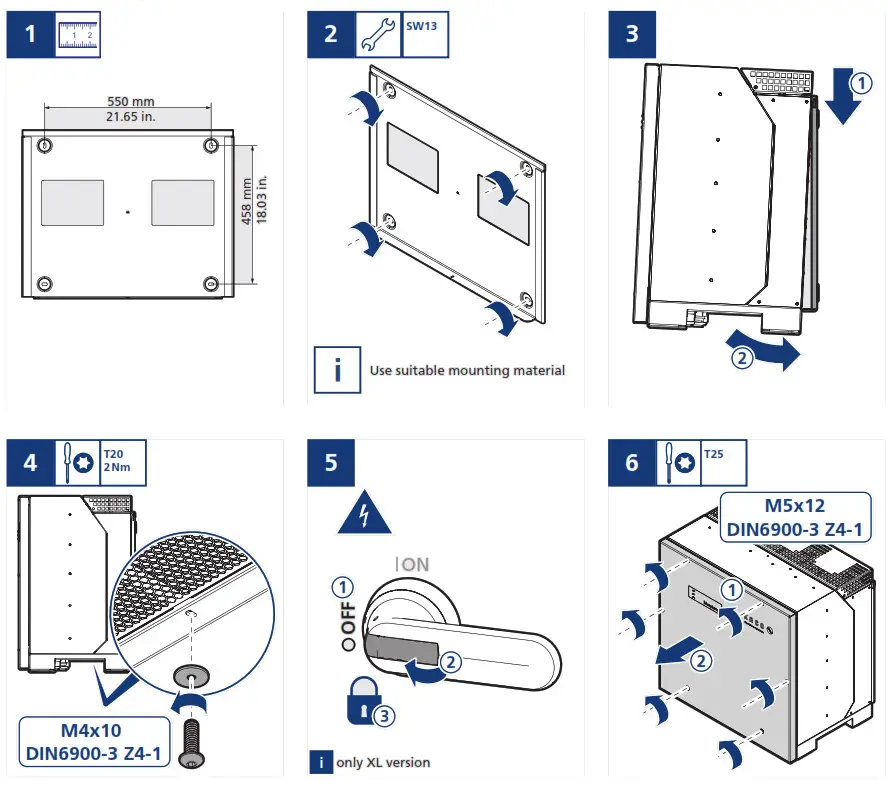

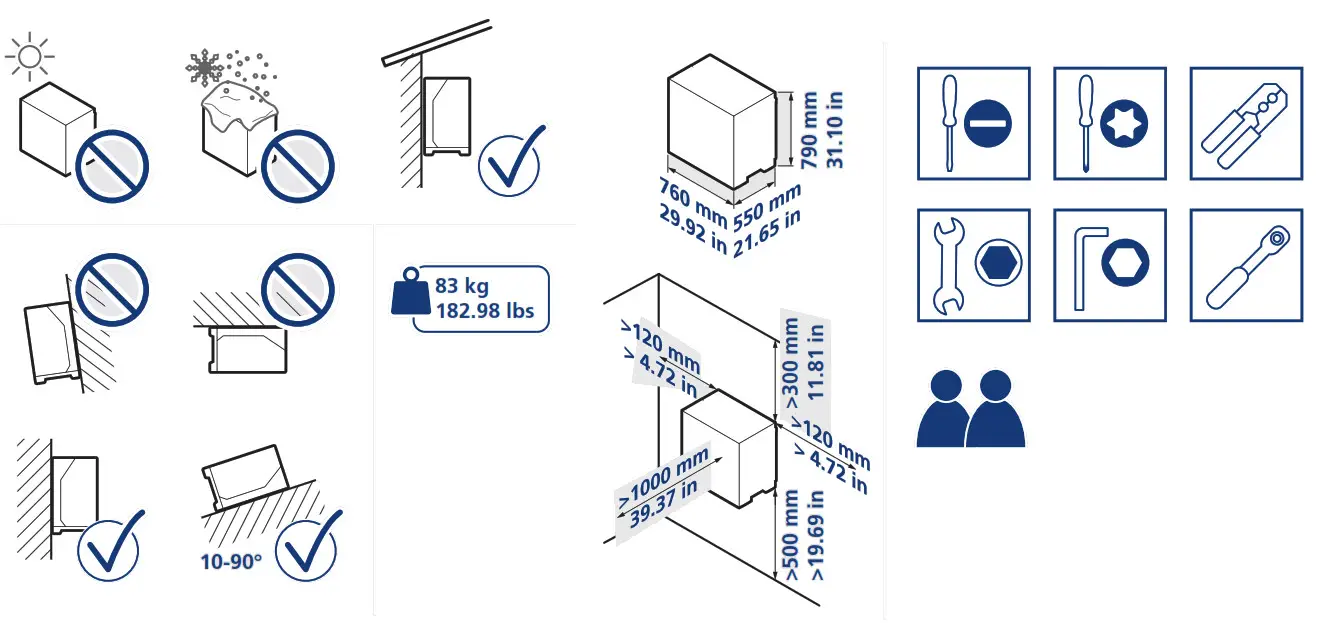

Mounting
Installation

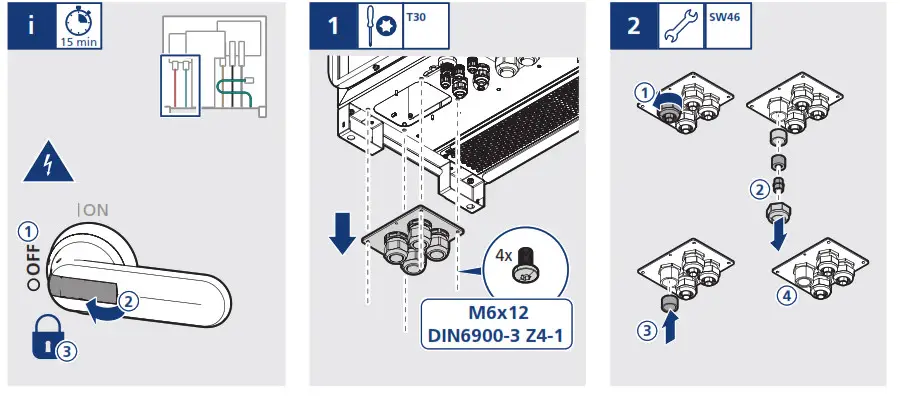

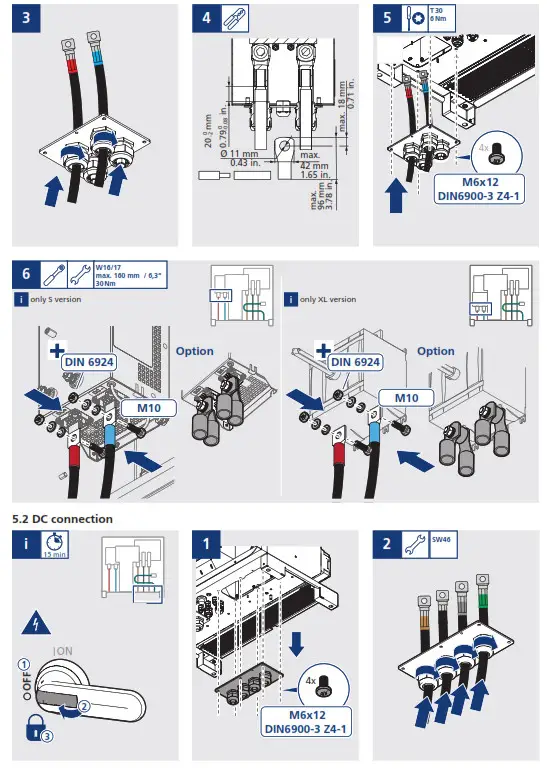

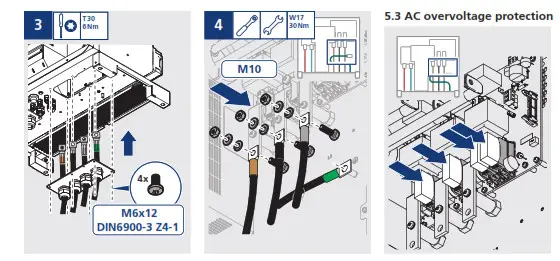

5.1 DC connection
PE connection
Status LED
https://kaco-newenergy.com/de/service/mykacocom-kundenportal/
Communication variants
- Communication board
- USB socket
- SD slot
- Ethernet for network connection DHCP
- RS485 – standard
- DIP switch – Activate terminating resistor (2x)
DIP switch must be activated if KACO inverter or String Combiner is terminal device (120 mOhm).
Upper DIP switch: to String Combiner
Lower DIP switch: to inverter. - INV OFF – Connection for remote control devices – 24V(+/-20%) /1A (min. 15mA)
- ERR – Connection for external mains protection component (fault signal relay)
- Ethernet – Only for commissioning via static IP
- RS485 – Connection for string combiner (CON 200)

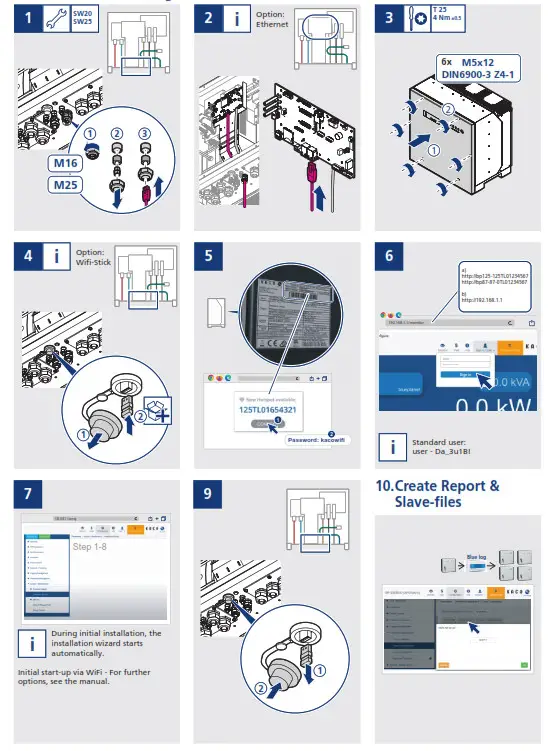

Initial commissioning

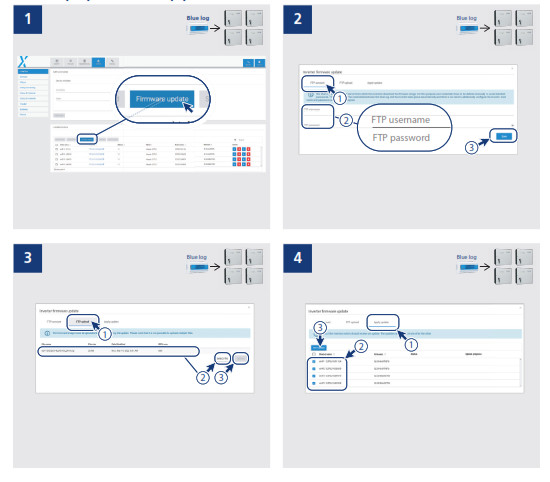

Group update / Group parameterization
Registration Portal
System overview
