EVO 3 Hole Derby Cover
Installation Guide
NEEDED FOR INSTALLATION
- 5/32 Hex Allen Driver/T-handle
- Blue Loctite
- Gasket
INSTALLATION
NOTE: Use blue Loctite on hardware
NOTE: New gasket recommended on every install
- Try to level motorcycle. There’s oil behind the derby cover.
- Place oil catch pan under motorcycle. If bike is level oil shouldn’t spill out.
- Remove stock cover and gasket.

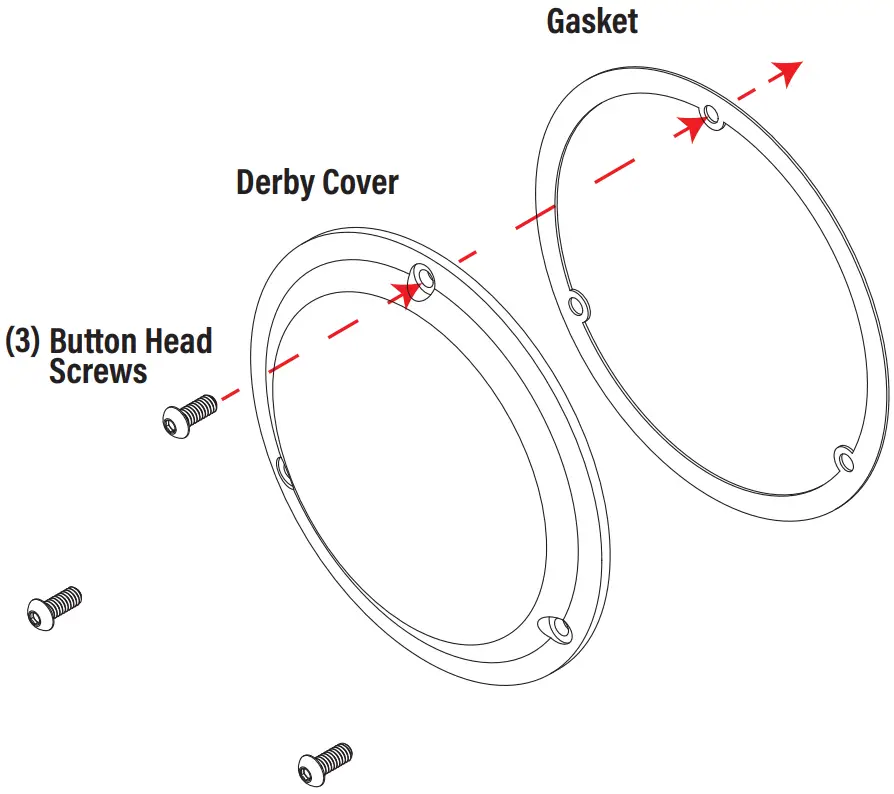

- Install derby cover and gasket with (3) button head screws.
PART NO. 06-98 / 921017
For technical support contact Joker Machine
2245 Kiowa Blvd N. Ste. 100,
Lake Havasu City, AZ 86403
PHONE: 909-596-9690
FAX: 909-596-9693
[email protected]
www.jokermachine.com
921017-1 3/8/2023
