MILWAUKEE-EIGHT TOURING MODEL
5 HOLE DERBY COVER INSTALLATION
PART NO. 06-960
Installation Guide
NEEDED FOR INSTALLATION
- 5/32 Hex Allen Driver/T-handle
- Blue Loctite
- Gasket
INSTALLATION
NOTE: Use blue Loctite on hardware
NOTE: Requires new gasket
- Try to level motorcycle. There’s oil behind the derby cover.
- Place oil catch pan under motorcycle. If bike is level oil shouldn’t spill out.
- Remove stock cover and gasket. M8 tourning models will need a new gasket.

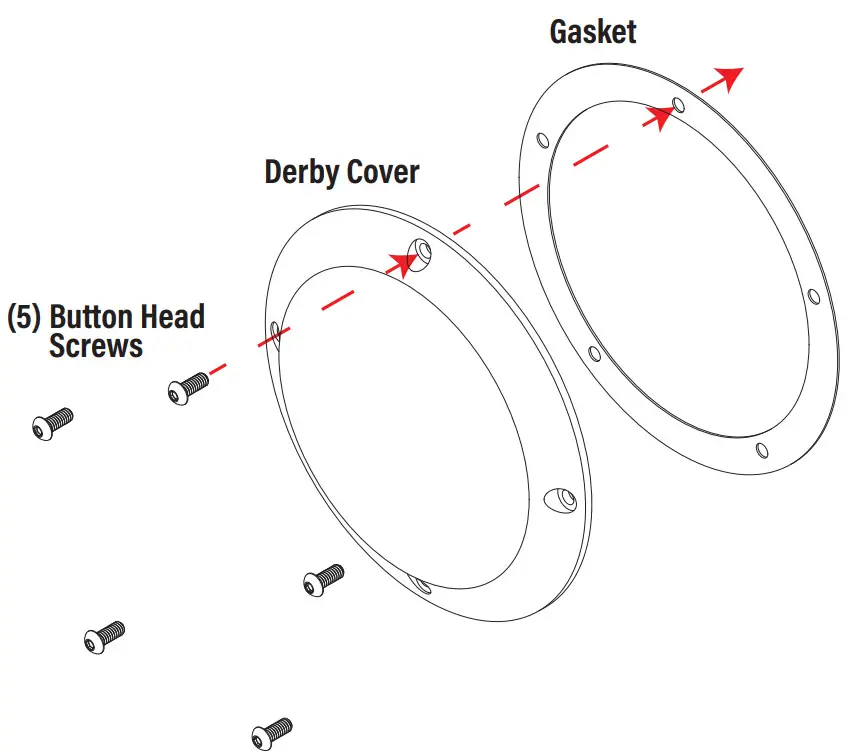

- Install derby cover and gasket with (5) button head screws.
For technical support contact Joker Machine
2245 Kiowa Blvd N. Ste.100, Lake Havasu City, AZ 86403
PHONE: 909-596-9690, FAX: 909-596-9693 s
[email protected], www.jokermachine.com
