WALL MOUNT.
Brace yourself.
30 minutes 2 people 4 coffees

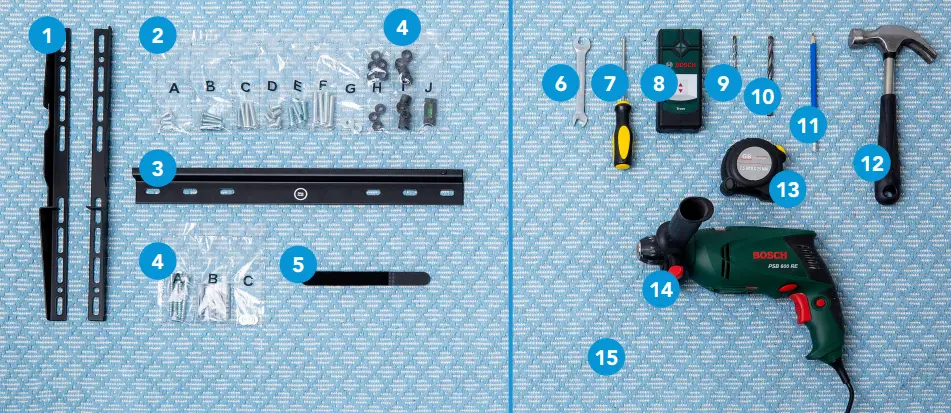

In the box
1 TV frames,
2 bag of screws, washers, spacers for the TV, and spirit level,
3 wall panel,
4 bag of screws and plugs for the wall,
5 velcro for your cables.
Your own tools
6 Open-end or socket wrench 11mm,
7 cross-head screwdriver,
8 pipe locator,
9 5mm drill,
10 10mm drill,
11 pencil,
12 hammer,
13 tape measure,
14 impact or concrete drill,
15 a lovely blanket to place everything on.
CHECKLIST.
You’re 50% there.
Suitable surface area:
√ Solid brick
√ Solid concrete
√ Drywall with wooden pillars behind it
Prior to drilling:
Use the pipe locator to check if there aren’t any pipes or cables behind the wall.
Do you have a question?
Coolblue.nl/en/customer-service

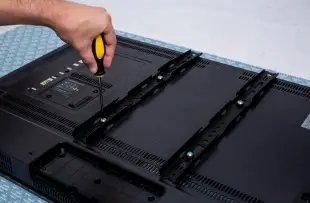

1. INSTALL THE FRAMES
Place your TV on a blanket. Look in bags A through F (2) for the screw that fits your TV. You only need 1 set of screws.
Secure the frames (1) as pictured. Extra space? Place washer (G) or spacer (H of I) in between.

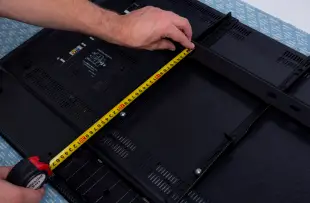

2. MEASURE
Fasten the wall panel (3) to the frames and measure the distance from the bottom of the TV to the drill holes in the wall panel.
Write down the size: cm

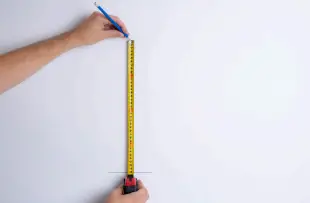

3. DECIDE ON PLACEMENT
Decide where to place your TV on the wall and mark where the bottom of your TV should be.
Move your pencil up by the same distance you just measured and draw an X.

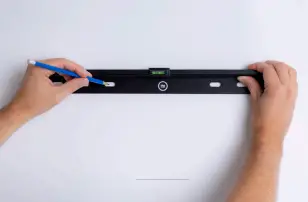

4. MARK DOWN THE WALL
Place the spirit level (J) on the wall panel (3) and use it to draw 4 drill holes at the level of the X you drew in step 3.

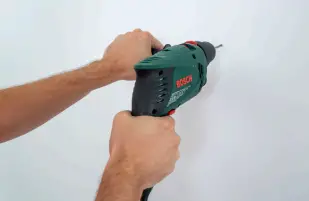

5. DRILL
Drill with precision by first using the 5mm drill, and then the 10mm drill. Drill as deep as the screws (4) are in length.
Hammer the plugs (4) into the drill holes.

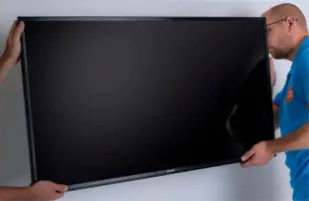

6. HANG THE TV
Secure the wall panel (3) to the wall. Use the spirit level for accuracy. Lift the TV with 2 people and attach it to the wall panel.
Done! Pat yourself on the back, turn the TV on, and bask in the glory of your accomplishment.
Coolblue isn’t liable for any damage, accidents, or arguments with boy/girlfriends as a result of incorrect installation. Not sure if you can do this on your own? Ask a skilled installation expert for advice.
