sinope TH1123ZB-C4 (3000W) Smart Thermostat for Electric Heating
Warnings
The installation of this thermostat should be made by a certified electrician and must be installed in conformity with the national and local Electrical Codes.
This product is only compatible with the Control4 home automation system.
Before starting the installation of your new thermostat, make sure that the breakers for your heating system are off at the main electrical panel.

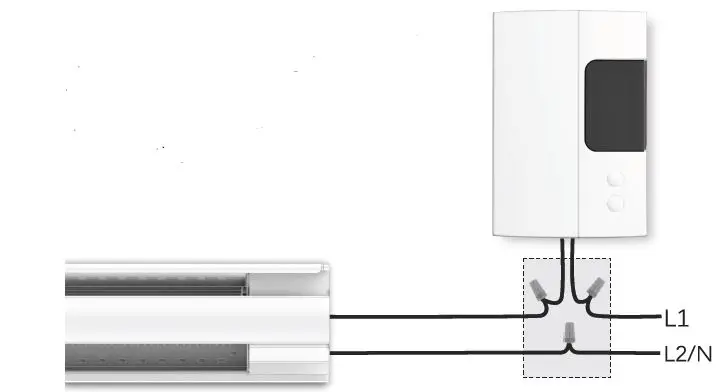

The thermostat must be installed in series with your heating device. Connecting the thermostat directly to the line voltage source will damage the unit.
Note: The wires of this thermostat are non-polarized.
Technical Specifications
Operating voltage: 120 / 208 / 240 Vac, 60 Hz
TH1123ZB-C4 thermostat
Maximum load:
12.5 A/ 3000 W@ 240 Vac
Resistive load only.
Minimum load:
1.25 A/ 300 W@ 240 Vac
TH1124ZB-C4 thermostat
Maximum load:
16.7 A/ 4000 W@ 240 Vac
Resistive load only.
Minimum load:
1.25 A/ 300 W@ 240 Vac
Setpoint range: 5 °C to 30 °C (41 °F to 86 °F)
Display range: O °C to 50 °C (32 °F to 99 °F)
Resolution: ± 0.5 °C (± 1 °F)
Storage: 20 °C to 50 °C (-4 °F to 122 °F)
Operation: O °C to 50 °C (32 °F to 122 °F)
Zigbee 3.0 profile
Frequency: 2.4 GHz
Transmission power: +20 dBm
Receiver sensitivity: -108 dBm
Compatible with an electric heating system such as:
- Baseboard heater
- Convector (short cycle)
- Fan-forced convector (long cycle)

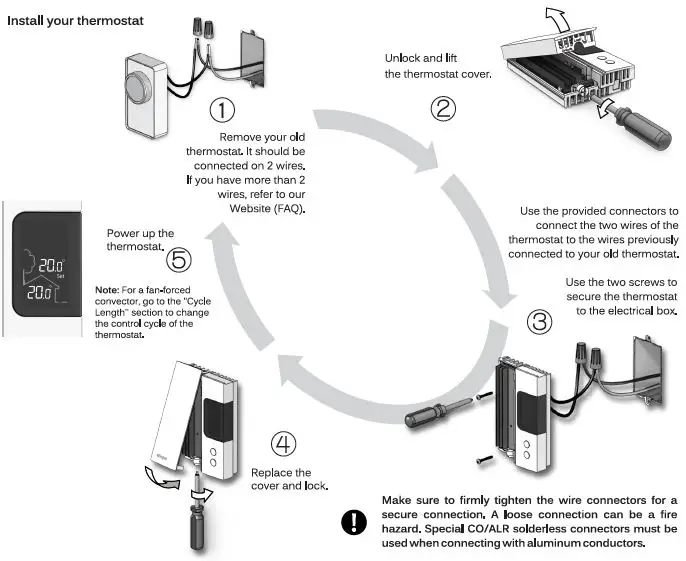

Install your thermostat
Make sure to firmly tighten the wire connectors for a secure connection. A loose connection can be a fire hazard. Special CO/ALR solderless connectors must be used when connecting with aluminum conductors.

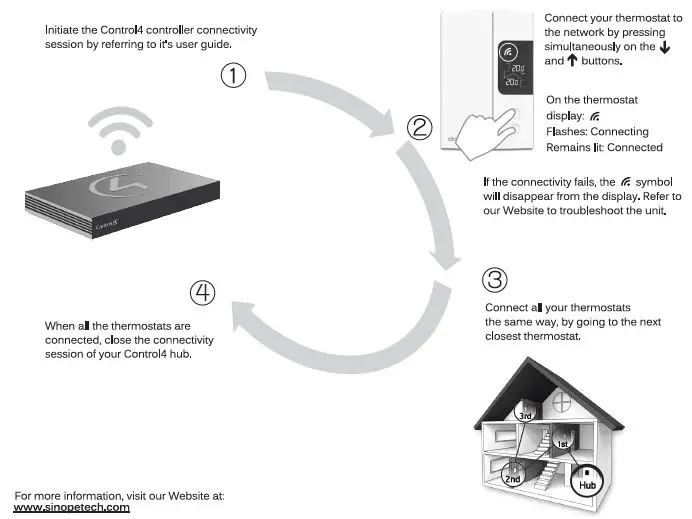

Connect your thermostat to a Control4 home automation system
For more information, visit our Website at: www.sinopetech.com
Disconnect your thermostat from a Control4 home automation system
To disconnect your thermostat from a Control4 controller, press the + and 1′ buttons simultaneously for 10 seconds. The If. symbol will disappear from the display.
Cycle Length
To change the cycle length according to your heating system, you must:
Get the setpoint to its minimum and hold the down button for 3 seconds to access the menu.
Press the up button to change the setting.
Press and hold the down button for 3 seconds to exit the menu and return to normal display.
| Cycle SHT (short cycle for electric baseboard) FAN (long cycle for fan forced heater) | SHT Cycle |
Transmitter Module IC: 22394-ZBM1501 / FCC ID:2AK2T-ZBM1501
This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device does not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from thatto which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
3-year limited warranty
SINOPE TECHNOLOGIES INC. warrants the components of their products against defects in material and workmanship for a 3 year period from the date of purchase, under normal use and service, when proof of purchase of such is provided to the manufacturer. This warranty does not cover any transportation costs that may be incurred by the consumer. Nor does it cover a product that has been improperly installed, misused or accidentally damaged. The obligation of Sinope Technologies Inc., under the terms of this warranty, will be to supply a new unit and this releases the manufacturer from paying the installation costs or other secondary charges linked to replacing the unit or the components.
For more information, visit our Website at:
www.sinopetech.com
