Hyundai IONIQ 5

SUV, 5 doors
From March 2021

ID No.	Version No.	Version date	Page
KMH-NE1-RSB-01-202103	01	04/03/2021	1 of 4

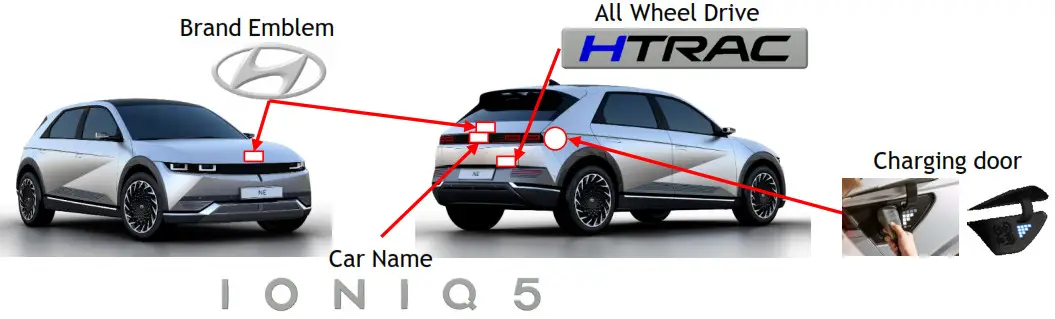

Identification / recognition
Immobilization / stabilization / lifting
■ Immobilization

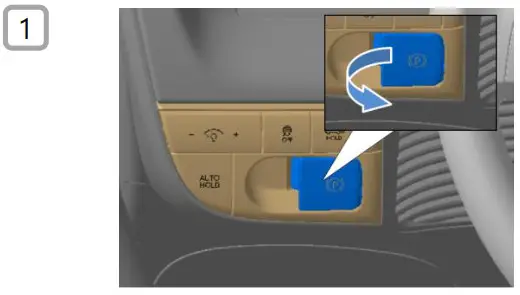

1. Chock the wheels and pull the switch to set the parking brake.

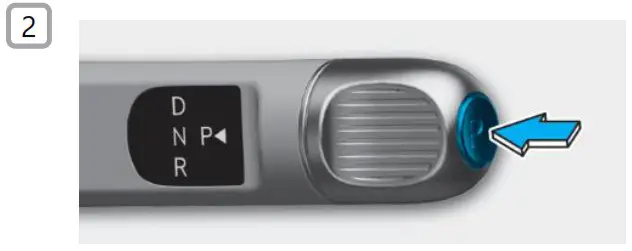

2. For automatic transmission vehicles, shift into park(P) gear.
■ Lifting points under the vehicle :
Disable direct hazards/safety regulations Access to the battery
■ Access to the battery

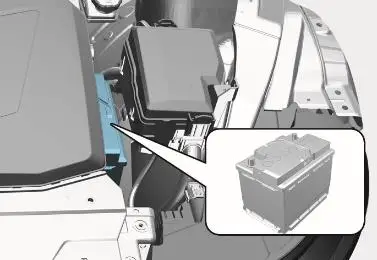

1. Pull the release lever
2. Raise the hood
3. Battery in the engine compartment
ID No. Version No. Version date Page
KMH-NE1-RSB-01-202103 01 04/03/2021 2 of 4

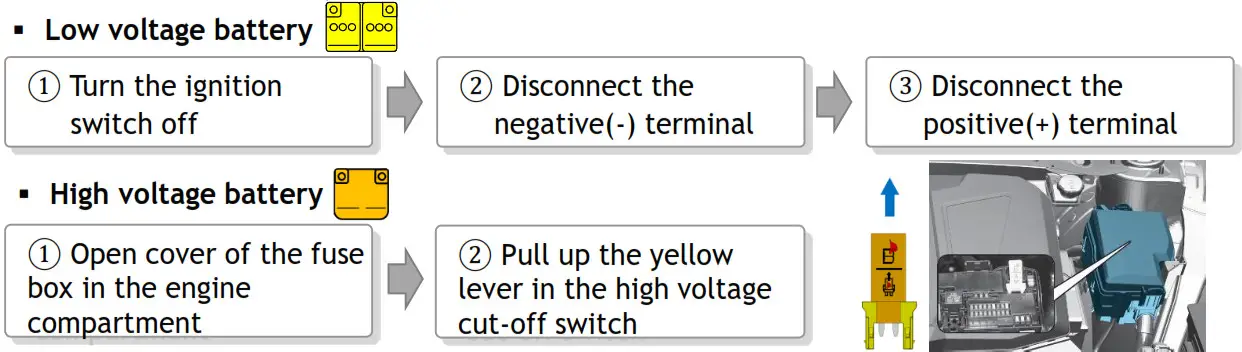

■ Disabling procedure
• Low voltage battery
Access to the occupants Seat adjustment

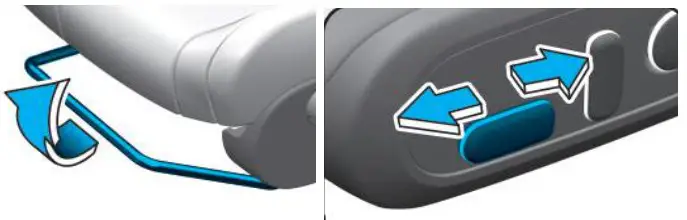

■ Seat adjustment
■ Door handle

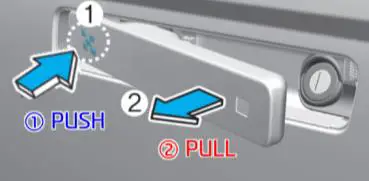

When the door outer handle doesn’t pop-out, push the front side inwards.
1 : Laminated / 2 : Tempered, Laminated(OPT) / 3 : Tempered

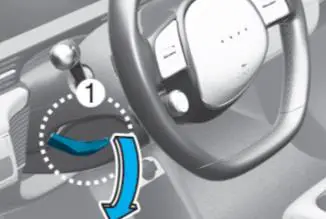

■ Steering column adjustment

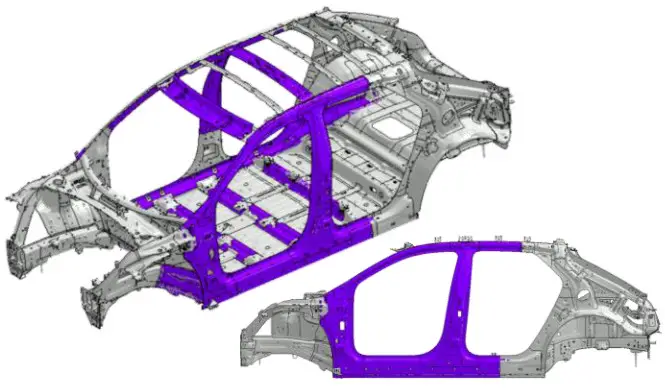

■ Vehicle Body Hardened Steel(100K↑)

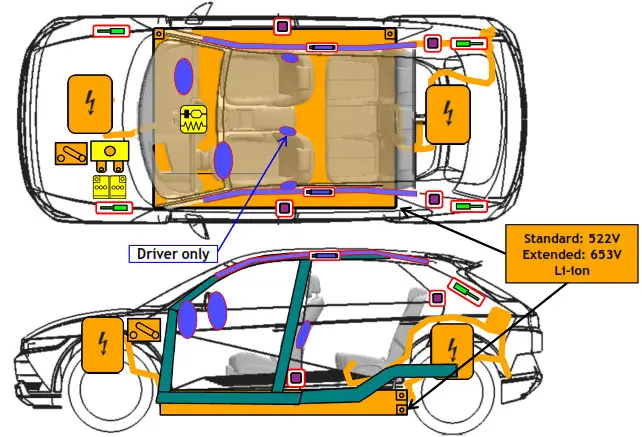

Stored energy / liquids / gases / solids
Extended : 653.4V
Standard : 522.7V
12V
w/o heat pump with heat pump
R-134a 750g 950g
R-1234yf 700g 900g

When coolant leaks from the battery pack, it can become unstable with risk of thermal runaway. Check battery pack temperature with thermal imaging camera.
ID No. Version No. Version date Page
KMH-NE1-RSB-01-202103 01 04/03/2021 3 of 4
In case of fire
Use large amount of water

BATTERY RE-IGNITION!
■ Gas Strut/ Preloaded spring
Risk of missile effect of hood and tailgate.
In case of submersion
Do not touch any of the high-voltage components or cables including the high voltage cut-off switch, as doing so poses an electrocution hazard. Work on the vehicle only after the vehicle has been pulled out of the water.
Towing / transportation / storage

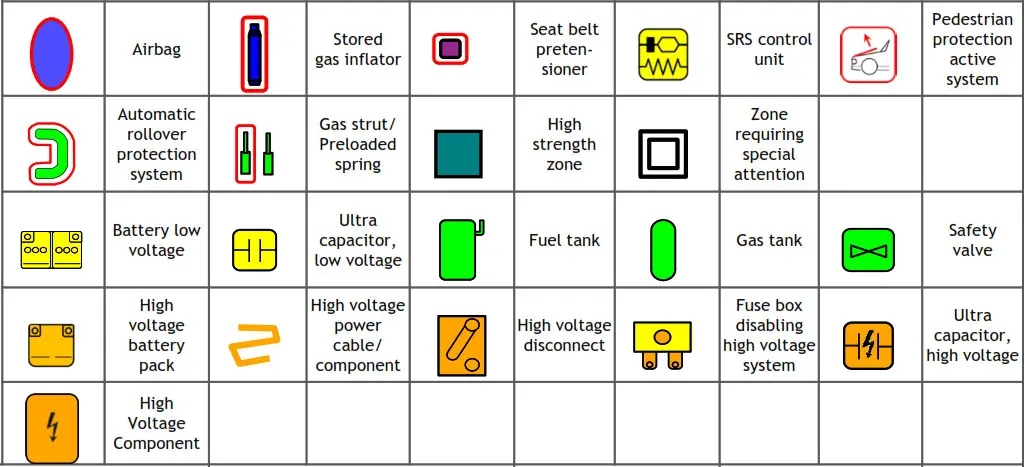

Explanation of pictograms used

	Electric vehicle		Warning high voltage
	Caution		Risk of flammability
	Risk of corrosive material/substances		Risk of damaging human health
	Risk of an explosion		Risk of acute toxicity
	Air-conditioning component		Warning low temperature
	Use IR Camera (thermal imaging)		Use water to extinguish the fire
	Bonnet
