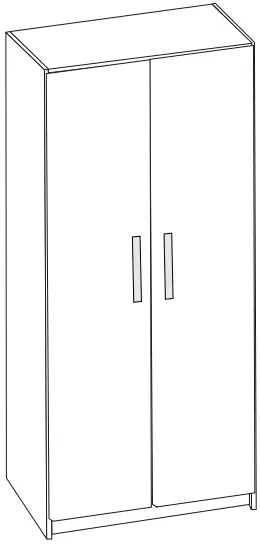

SP 4099 ARMÁRIO Multipurpose 2 Doors Ibiza
Instruction Manual
SP 4099 ARMÁRIO Multipurpose 2 Doors Ibiza

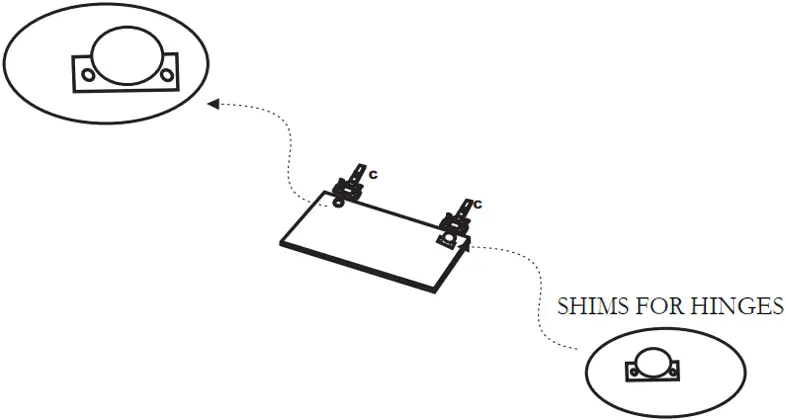

SHIMS FOR HINGES
Mandatory use of shoes on the hinges
Assembly Material
- Hammer
- Screwdriver
DRAWINGS-IVAIR RODRIGUES
| A |  Screw | |
| B |  Screw | |
| C |  Screw | |
| D |  Nail | |
| E |  Handle | |
| F |  Shoe | |

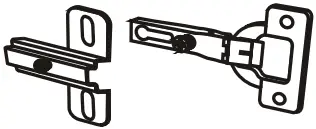

| G |  Hinge | |
| H |  Support | |
| I |  ANGLE BRACKET | |
| J |  Hinge |
PART NUMBERING
| N° | PREVIOUS DESCRIPTION |
| 396 | Left side |
| 395 | Right side |
| 397 | Fixed shelf |
| 401 | Mobile shelf |
| 398 | Mobile shelf |
| 394 | Front Footer |
| 400 | Lining wheel |
| 399 | Back |
| 750 | Doors |
ACCESSORIES
| N° | DESCRIPTION |
| 4170 | H profile |
| Hardware Kit |

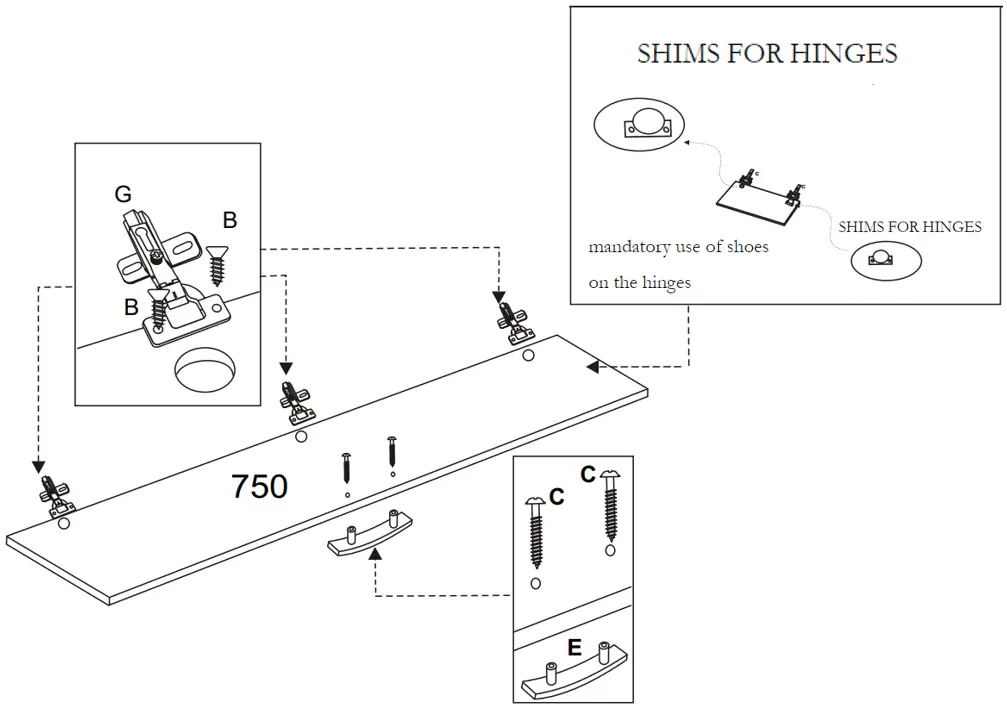

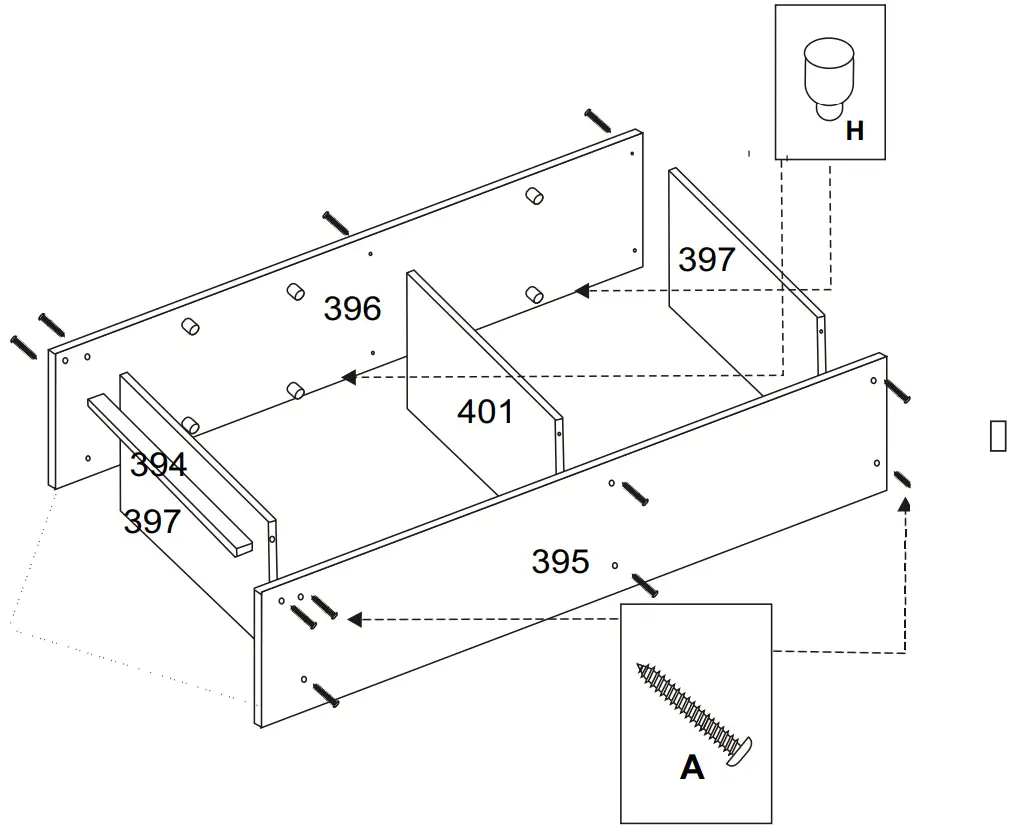

STEP 1 | STEP 2  |

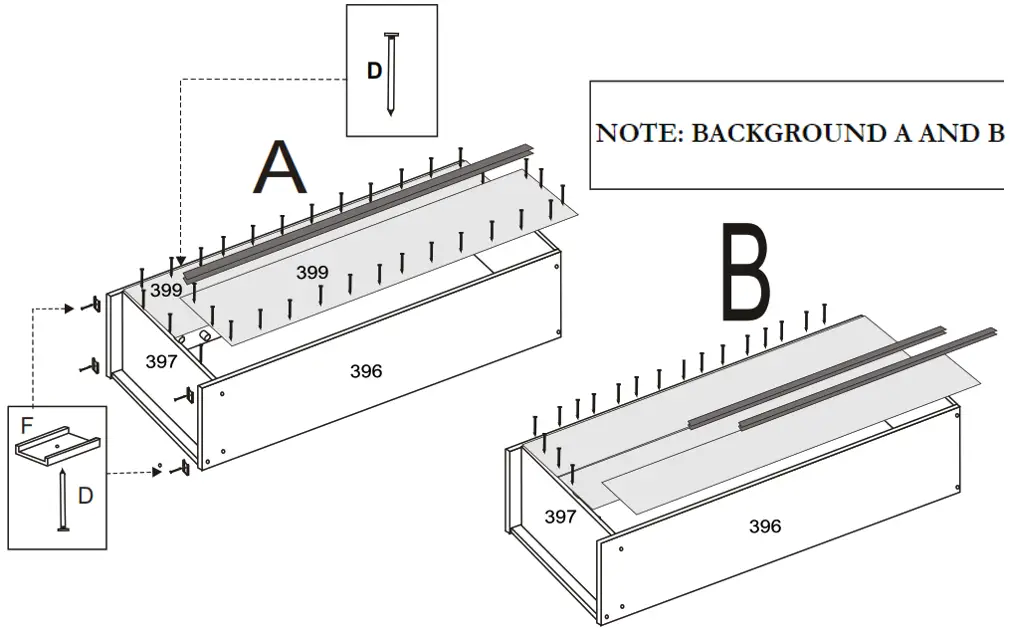

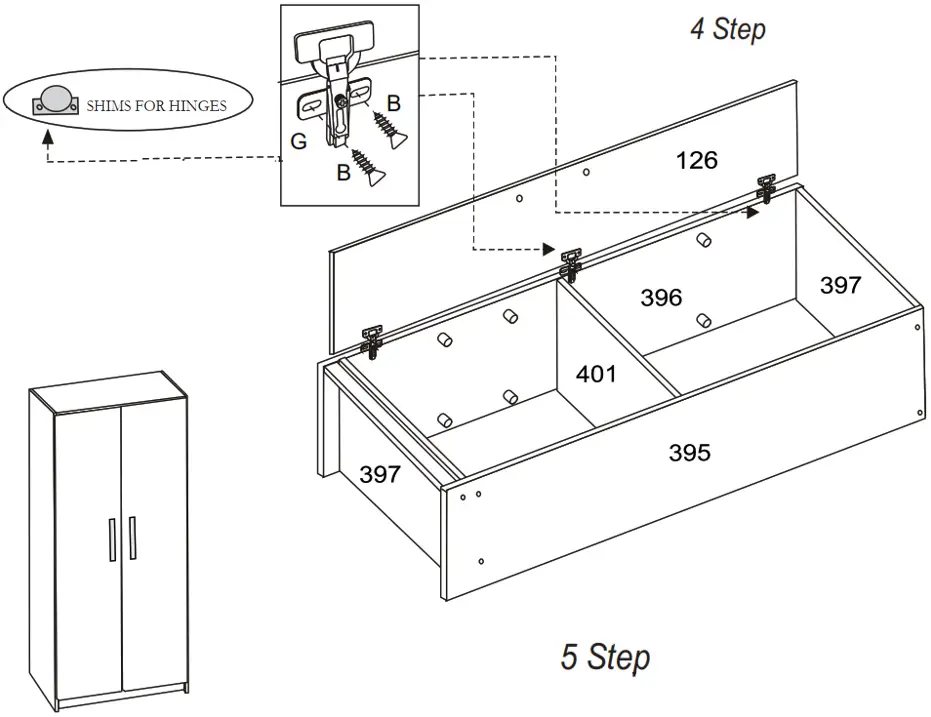

STEP 3 |  |
Tel. (54)3358-6500
Red Lagoon – RS
CABINET
Ref. SP 4099
