Emtek 810iwus19 Porcelain Passage Door Instruction Manual

Emtek 810iwus19 Porcelain Passage Door Instruction Manual

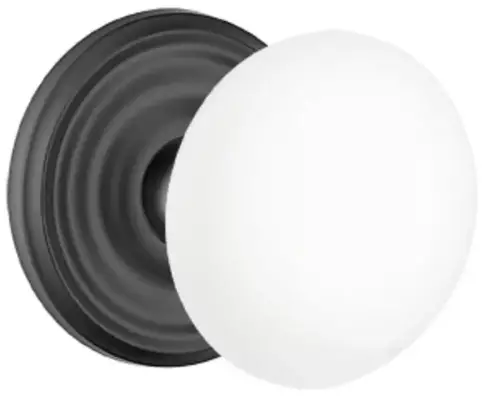

EMTEK 810IWUS19 Porcelain Passage Door

810IWUS19 Porcelain Passage Door

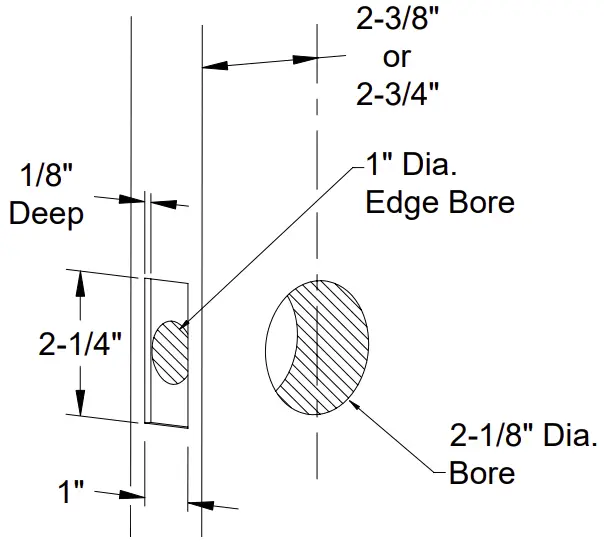

PASSAGE/PRIVACY DOOR PREP

Passage/privacy Door Prep

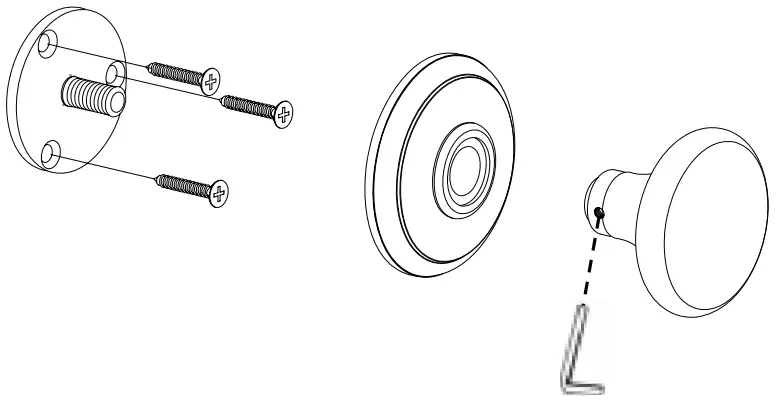

DUMMY FUNCTION INSTALLATION

Dummy Function Installation
PUSH KNOB ONTO STUD. SECURE WITH SET SCREWS

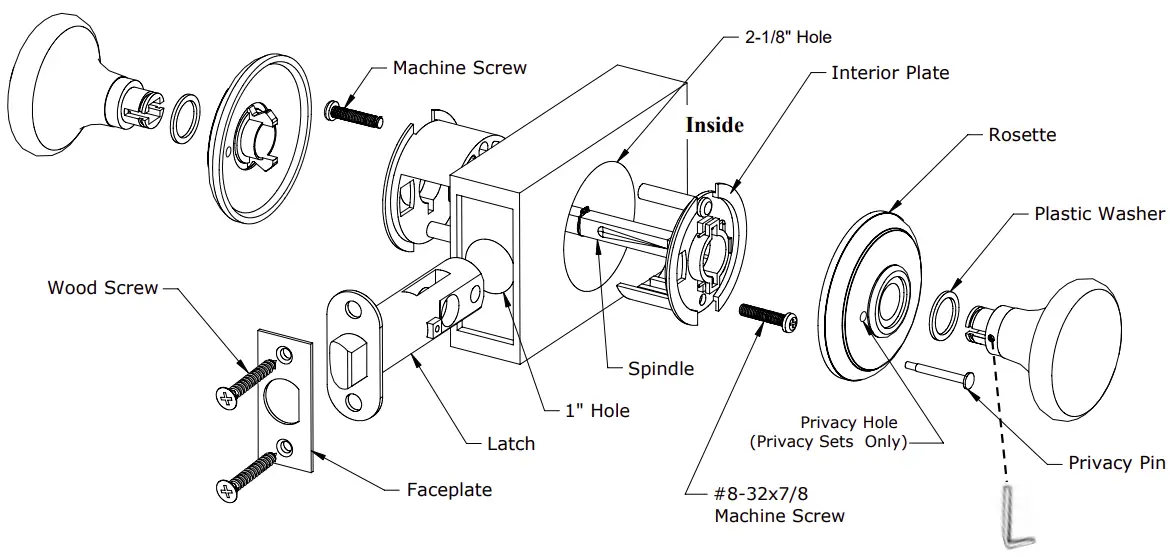

PASSAGE/PRIVACY INSTALLATION

Passage/privacy Installation
