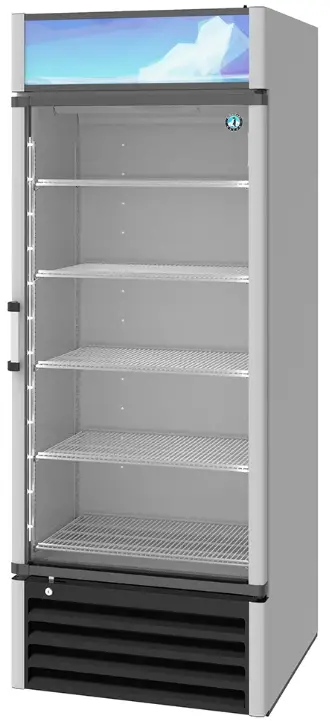

HOSHIZAKI RM-26-HC Glass Door Merchandiser
WEB: hoshizakiamerica.com

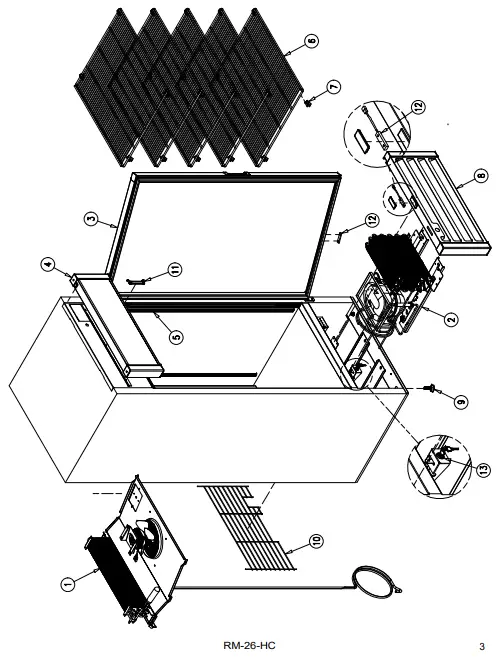

MAIN ASSEMBLY
| 1 EVAPORATOR ASSEMBLY | OT-EV-0176 | 1 |
| 2 CONDENSING UNIT ASSEMBLY | OT-UN-0279 | 1 |
| 3 DOOR ASSEMBLY | OT-PT-0638* | 1 |
| 4 HEADER SIGN | OT-ROTULO-0297* | 1 |
| 5 PILASTER 48” | PI-5 | 4 |
| 6 FLAT SHELF | SH-0180-LEDR-HD-FE | 5 |
| 7 SHELF CLIPS | CL-51-SS-E | 20 |
| 8 FRONT GRILL | OT-CUBREMOTOR-0542* | 1 |
| 9 LEGS | LG-27 | 4 |
| 10 BACK GRILL | SH-9-G-GR | 1 |
| 11 THERMOMETER | TH-1-E | 1 |
| 12 DOOR SWITCH | EL-306* | 1 |
| 13 KEY SET | HA-471-G | 1 |
| *Parts Change With Serial Number Break | ||||||
| ITEM No. | Description | Inter- change- able | Previous Component | Hoshizaki Last Serial Number and Earlier | Current Component | Hoshizaki First Serial Number and Later |
| 3 | DOOR ASSEMBLY | YES | OT-PT-0519 | K-00908 (H) | OT-PT-0638 | L-00001 (A) |
| 4 | HEADER SIGN | YES | OT-ROTULO-0220 | K-00908 (H) | OT-ROTULO-0297 | L-00001 (A) |
| 8 | FRONT GRILL | YES | OT-CUBREMOTOR-0296 | K-00908 (H) | OT-CUBREMOTOR-0542 | L-00001 (A) |
| 12 | DOOR SWITCH | YES | EL-360 | J-00106 (H) | EL-306 | J-00126 (H) |

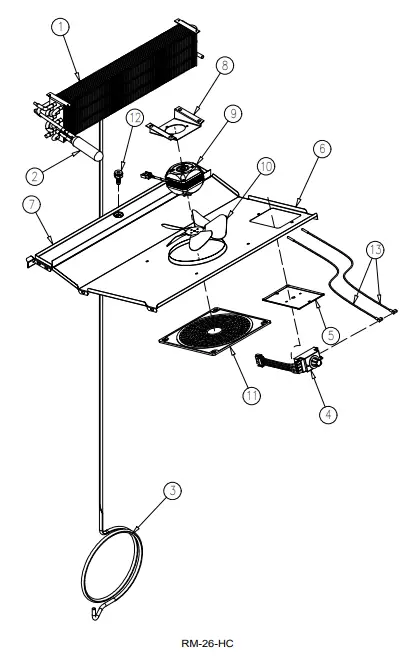

EVAPORATOR ASSEMBLY
| Item No. | Description | Part No. | Quantity per cooler |
| 1 | EVAPORATOR | CO-303 | 1 |
| 2 | ACCUMULATOR | DR-19-C | 1 |
| 3 | HEAT EXCHANGER | OT-TUB-1050 | 1 |
| 4 | CONTROL MODULE | CT-198-SOL-138 (K)** | 1 |
| 5 | CONTROL MODULE BRACKET | OT-20868 | 1 |
| 6 | SHROUD | OT-19531 | 1 |
| 7 | DRAIN PAN | OT-19532 | 1 |
| 8 | EVAPORATOR FAN MOTOR BRACKET | OT-12203 | 1 |
| 9 | EVAPORATOR FAN MOTOR | FA-1-EBM | 1 |
| 10 | EVAPORATOR FAN BLADE | FA-2-SW* | 1 |
| 11 | FAN GUARD | FA-62 | 1 |
| 12 | DRAIN FITTING | DR-1-P | 1 |
| 13 | CABINET THERMISTOR (Evaporator and ambient probes) | CT-196-2-SOL | 2 |
** THE PART NUMBER CT-198-SOL-138 (K) INCLUDES:
- CONTROL MODULE CT-198-SOL-138
- DOOR SWITCH HARNESS OT-AR-5022
- CONTROLLER HARNESS OT-AR-5518
- CABINET THERMISTOR CT-196-2-SOL
*Parts Change With Serial Number Break ITEM No.
Description Inter- changeable Previous Component Hoshizaki Last Serial Number and Earlier Current Component Hoshizaki First Serial Number and Later 4 CONTROL MODULE YES CT-194-SOL-078 L-00068 (K) CT-198-SOL-138 L-00542 (L) 10 EVAPORATOR FAN BLADE YES FA-2-EBM L-00326 (F) FA-2-SW L-01920 (H)

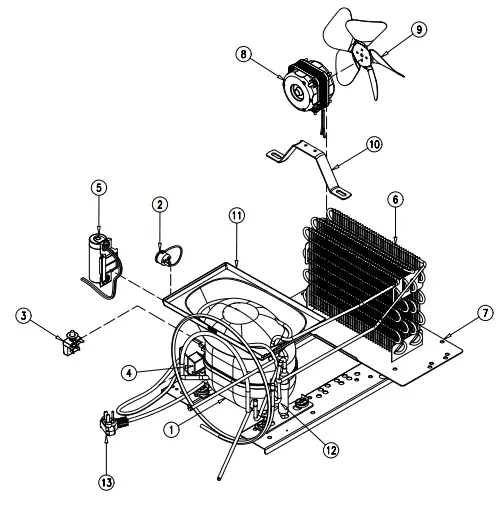

CONDENSING UNIT ASSEMBLY
| Item No. | Description | Part No. | Quantity per cooler |
| 1 | COMPRESSOR (1/3HP 115V/60HZ R-290) | EM2X3125U | 1 |
| 2 | EXTERNAL PROTECTOR (CP4TMC460N61) | EL-2077-R | 1 |
| 3 | PTC RELAY (7M4R7MD3) | EL-2076-R | 1 |
| 4 | ELECTRICAL BOX | EL-2078-R | 1 |
| 5 | RUN CAPACITOR (20 µF 180V) | CAP-20-180 | 1 |
| 6 | CONDENSER | CO-453 | 1 |
| 7 | CONDENSER BRACKET | OT-19783 | 1 |
| 8 | CONDENSER FAN MOTOR | FA-1-EBM | 1 |
| 9 | CONDENSER FAN BLADE | FA-2-SW* | 1 |
| 10 | CONDENSER FAN MOTOR BRACKET | FA-18 | 1 |
| 11 | DRAIN PAN | DP-6 | 1 |
| 12 | DRIER | DR-31-P | 1 |
| 13 | POWER CORD (9 ft) | OT-EL-1265-9-4784 | 1 |
| *Parts Change With Serial Number Break | ||||||
| ITEM No. | Description | Interchangeable | Previous Component | Hoshizaki Last Serial Number and Earlier | Current Component | Hoshizaki First Serial Number and Later |
| 9 | EVAPORATOR FAN BLADE | YES | FA-2-EBM | L-00326 (F) | FA-2-SW | L-01920 (H) |
DOOR ASSEMBLY
| 1 GLASS PANE | GL-677-AD-EA | 1 |
| 2 MAGNETIC GASKET | OT-GA-900-PT-0638 | 1 |
| 3 UPPER HINGE ASSEMBLY | HA-535-R-K | 1 |
| 4 LOWER HINGE ASSEMBLY | HA-522-R-K | 1 |
| 5 TORSION MECHANISM | HA-479 | 1 |
| 6 DOOR HANDLE | HA-632-K* | 1 |
NOTE:
NOT REVERSIBLE DOOR
| *Parts Change With Serial Number Break | ||||||
| ITEM No. | Description | Interchangeable | Previous Component | Hoshizaki Last Serial Number and Earlier | Current Component | Hoshizaki First Serial Number and Later |
| 6 | DOOR HANDLE | NO | OT-HA-676 | K-00908 (H) | HA-632-K | L-00001 (A) |

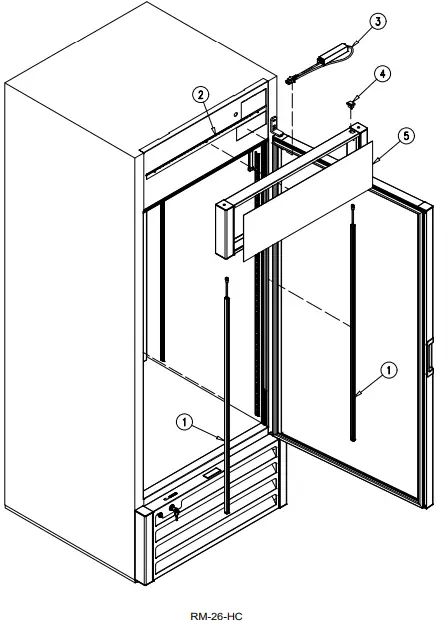

LIGHTING SYSTEM
| LIGHTING | SYSTEM | ||
|
Item No. |
Description |
Part No. | Quantity per cooler |
| 1 | LED LAMP STRIP (39 3/8”) | EL-148 | 2 |
| 2 | HIGH INTENSITY LED STRIP | EL-171-60 | 1 |
| 3 | LED DRIVER (1.25 Amp.) | OT-EL-151-T | 1 |
| 4 | LIGHT SWITCH | EL-305 | 1 |
| 5 | ACRYLIC HEADER SIGN | ROT-0103 | 1 |
SIGN AND FRONT GRILL ASSEMBLY

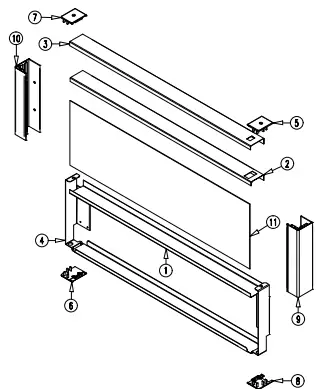

Sign Assembly
| 1 HEADER SIGN LOWER METAL SHEET | OT-22459 | 1 |
| 2 HEADER SIGN UPPER HORIZONTAL REINFORCEMENT | OT-22460 | 1 |
| 3 HEADER SIGN UPPER METAL SHEET | OT-23059 | 1 |
| 4 HEADER SIGN REINFORCEMENT | OT-24914 | 1 |
| 5 HEADER SIGN CORNER | PL-652-A | 1 |
| 6 HEADER SIGN CORNER | PL-652-C | 1 |
| 7 HEADER SIGN CORNER | PL-653-A | 1 |
| 8 HEADER SIGN CORNER | PL-653-B | 1 |
| 9 HEADER SIGN RIGHT PROFILE | OT-PL-654-GREY-8.781-R | 1 |
| 10 HEADER SIGN LEFT PROFILE | OT-PL-654-GREY-8.781-L | 1 |
| 11 HEADER SIGN PLASTIC | OT-ROT-0103 | 1 |

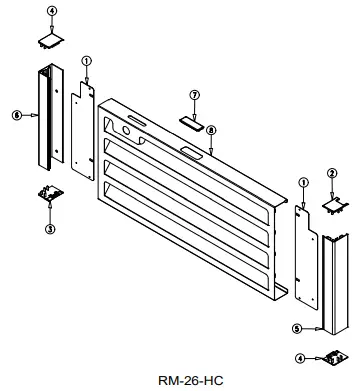

Front Grill Assembly
| 1 FRONT GRILL REINFORCEMENT | OT-23280 | 2 |
| 2 FRONT GRILL CORNER | PL-652-B | 1 |
| 3 FRONT GRILL CORNER | PL-652-C | 1 |
| 4 FRONT GRILL CORNER | PL-653-C | 2 |
| 5 FRONT GRILL RIGHT PROFILE | OT-PL-654-GREY-12.5-R | 1 |
| 6 FRONT GRILL LEFT PROFILE | OT-PL-654-GREY-12.5-L | 1 |
| 7 FRONT GRILL CAP | PL-662-BK | 1 |
| 8 FRONT GRILL | OT-24245 | 1 |
Hoshizaki America, Inc.
