Russound Ic-605 6.5 Inch Round Speaker Hole Template Instruction Manual

IC-Series Loudspeakers
Engineered Innovation
Extraordinary SoundThe All New Architectural Speakers from Russound

IC-605 6.5 Inch Round Speaker Hole Template

The innovative IC-Series of Architectural Speakers from Russound incorporates the latest advances in material technologies and audio engineering to provide the best-sounding speaker lineup in Russound’s 50-year history. Each of these new speakers has been designed, manufactured, and tuned with great care so that your listening experience is truly exceptional. Our range of speaker solutions provides excellent choices in any application – from background music listening to the premium performance in your favorite listening areas at home.

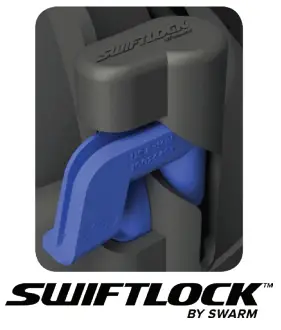

While designed for premium sound quality, Russound also included features that will make these easier to install, saving time and money for all involved. For that, Russound included its unique Easygrip™ tweeter posts and bridges to make all of the IC-Series speakers easy to hold at the top of a ladder, and most importantly, for its premium models, the IC-620, IC-620T, IC-820, IC-820T, IC-630 and IC-830, as well as the in-wall IW-620 and IW-630, Russound incorporated its proprietary, patented SwiftLock® technology for effortless installation at the push of a button.

The IC-Series of speakers provides excellent options for all of the speakers in the home, from complete multi-room audio solutions to dedicated home theaters and everything in between.
From the kitchen to the living room to the bedroom, there is a perfect speaker for every room.

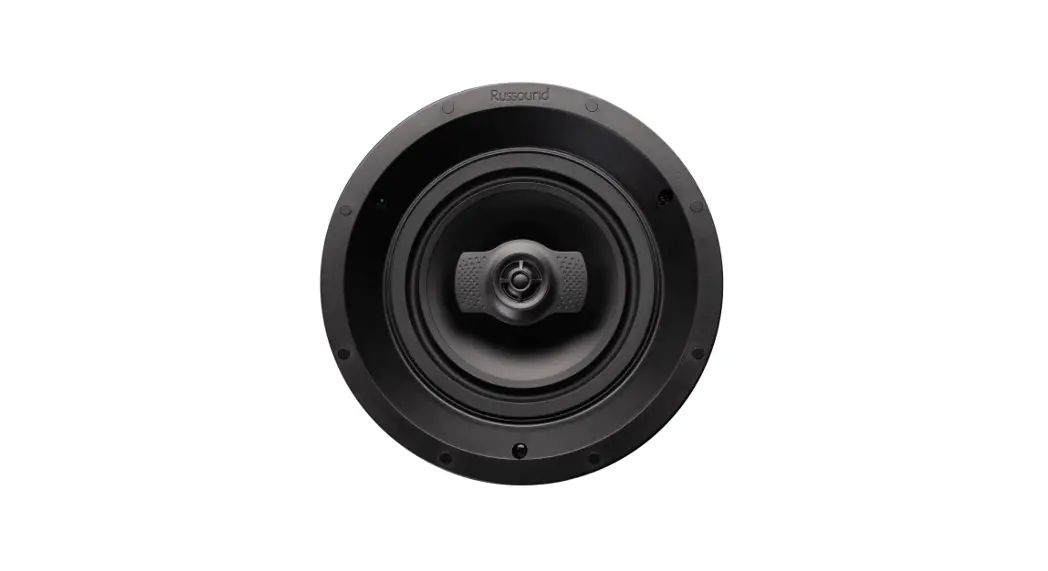

	IC-605 Contractor Grade Loudspeakers Two-way In-ceiling / 4-Pack • Designed for background listening applications • Pin-Cushion, EasyGripTM Design for easily holding the speaker with one hand even at the top of a ladder • Integrated one-piece baffle /woofer basket design for enhanced rigidity and more efficient bass
	IC-610T Stereo Sound From A Single Speaker Single Point Stereo In-ceiling • Designed for small rooms, hallways, or anywhere that stereo speaker installation is difficult • Dual Tweeter and Dual Voice-Coil Woofer • Pin-Cushion, EasyGripTM Design for easily holding the speaker with one hand even at the top of a ladder
	IC-620T Designed for Primary Listening Areas Single Point Stereo In-ceiling • Designed for small rooms, hallways, or anywhere that stereo speaker installation is difficult • Dual Tweeter and Dual Voice-Coil Woofer • Enhanced frequency response for superb sound • SwiftLock® tool-less quick and easy installation
	IC-820T Designed for Primary Listening Areas Single Point Stereo In-ceiling • Designed for anywhere that stereo speaker installation is difficult • Dual Tweeter and Dual Voice-Coil Woofer • Enhanced frequency response for superb sound • SwiftLock® tool-less quick and easy installation
	IC-830 Ideal For Critical Listening Areas & Home Theaters Two-way In-ceiling • Use instead of the IC-630 for larger rooms, rooms with higher ceilings, or for deeper bass response • Acoustically matched with the IC-630 & IW-630 – mix and match in a home as needed • SwiftLock® tool-less quick and easy installation

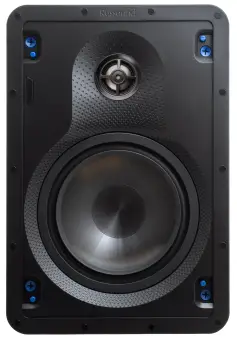

	IW-630 Ideal For Critical Listening Areas & Home Theaters Two-way In-wall • Integrated one-piece baffle /woofer basket design for enhanced rigidity and more efficient bass • Acoustically matched with the IC-630 and IC-830 – mix and match in a home as needed • SwiftLock® tool-less quick and easy installation
	IC-610 Perfect For All Background Music Applications Two-way In-ceiling • Your new go-to speaker for distributed audio systems • Pin-Cushion, EasyGripTM Design for easily holding the speaker with one hand even at the top of a ladder • Integrated one-piece baffle /woofer basket design for enhanced rigidity and more efficient bass
	IC-620 Designed for Primary Listening Areas Two-way In-ceiling • Use instead of the IC-620 for larger rooms, rooms with higher ceilings, or for deeper bass response • Acoustically matched with the IC-620 – mix, and match in a home as needed • SwiftLock® tool-less quick and easy installation
	IC-820 Designed for Primary Listening Areas Two-way In-ceiling • Use instead of the IC-620 for larger rooms, rooms with higher ceilings, or for deeper bass response • Acoustically matched with the IC-620, IC-620T, IC-820T & IW-620 – mix and match in a home as needed • SwiftLock® tool-less quick and easy installation
	IC-630 Ideal For Critical Listening Areas & Home Theaters Two-way In-ceiling • Enhanced frequency response for superb sound • Excellent for both music and TV/movie/home theater use • SwiftLock® tool-less quick and easy installation

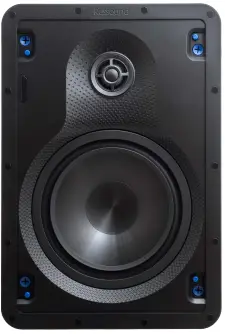

	IW-620 Designed for Primary Listening Areas Two-way In-wall • Integrated one-piece baffle /woofer basket design for enhanced rigidity and more efficient bass • Acoustically matched with the IC-620, IC-620T, IC-820, and IC-820T – mix and match in a home as needed • SwiftLock® tool-less quick and easy installation

Optional Square Grilles available for in-ceiling speakers (not included)	Optional Rough-in brackets for in-ceiling speakers (not included)

RUSSOUND
IC-605

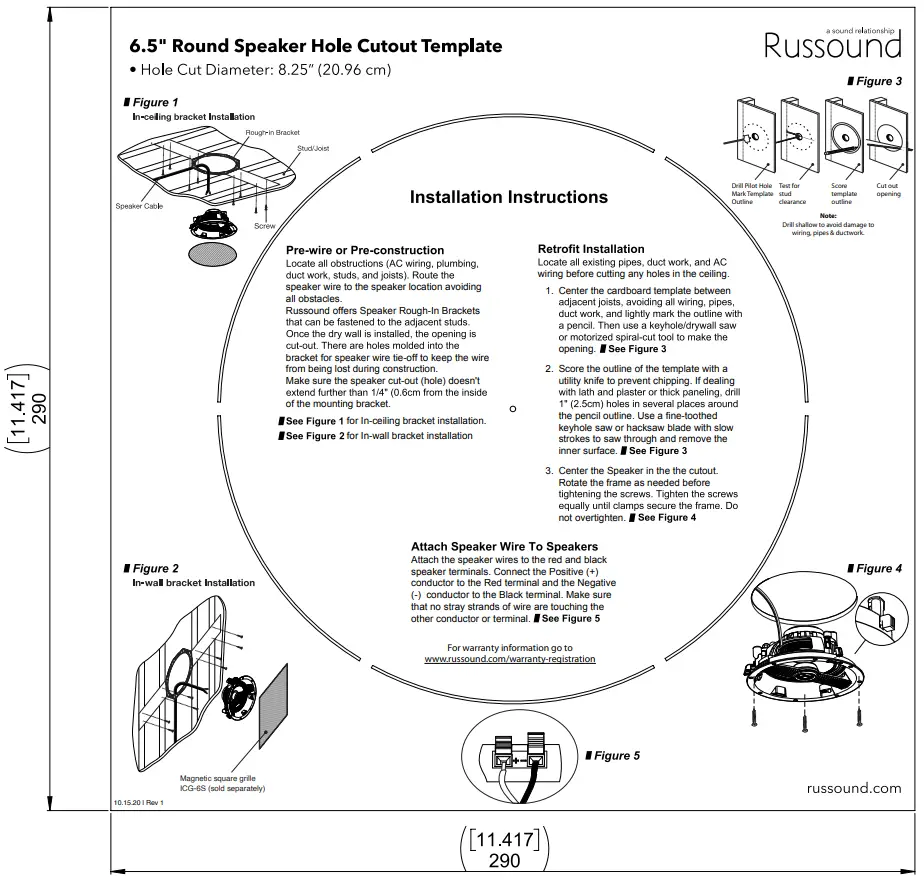

CUT-OUT TEMPLATE SIZE for artwork
Creation:
Cut-out diameter: 8.25” (20.96 cm)
DWG Revision: Rev-FO
Date: 9.5.20
Drawn by: ACI / John Tchilinguirian
