Hyundai Tucson Phev Suv, 5 Doors User Guide

HYUNDAI TUCSON PHEV
SUV, 5 doors
As of February 2021

	Airbag		High voltage power cable/ component		Gas tank
	Automatic rollover Protection system		Seat belt pretensioner		Fuse box disabling high voltage system
	Battery low voltage		High strength zone		Pedestrian protection Active system
	High voltage Battery pack		Fuel tank		Safety valve
	Stored gas inflator		High voltage disconnect		Ultra capacitor, high voltage
	Gas strut/ Preloaded spring		SRS control unit
	Ultra capacitor, low voltage		Zone requiring Special attention

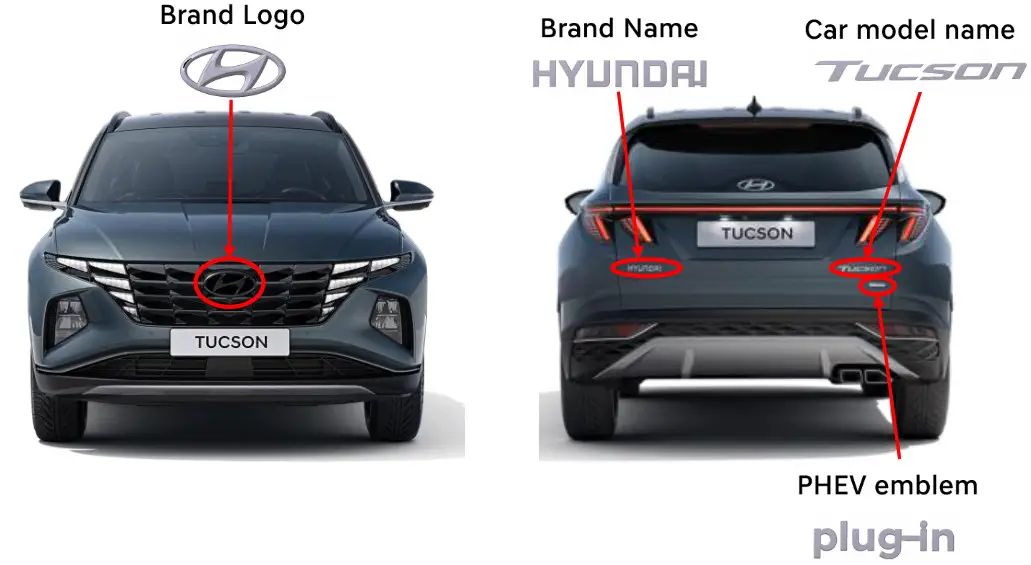

1. Identification / recognition

2. Immobilisation / stabilisation / lifting

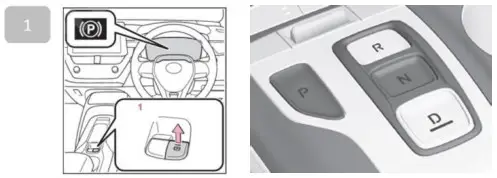

   ■ Completely immobilize the vehicle
   1.  Chock the wheels and pull the EPB switch or parking lever to set the parking brake.
   2.For automatic vehicles the shift button to the park(P) position.

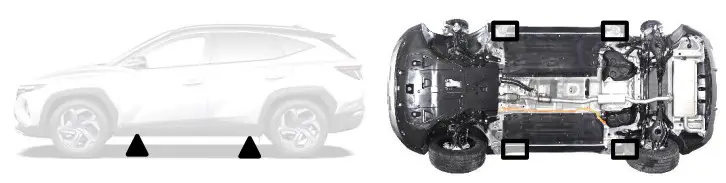

   ■ For stabilize vehicle, crib at four points directly under the front and rear pillars using wooden blocks or equivalent objects
   JACK/SUPPORT POSITION
   Do not place cribbing such as wooden blocks or rescue air lifting bags under the exhaust system, fuel system or high voltage power cables. The failure will cause of fire, electric shock or gas leak.

   ID No.	Version No.	Version date	Page
   TMA-NX4-RSP-01-202107	01	07/2021	2 of 4

3. Disable direct hazards/safety regulations

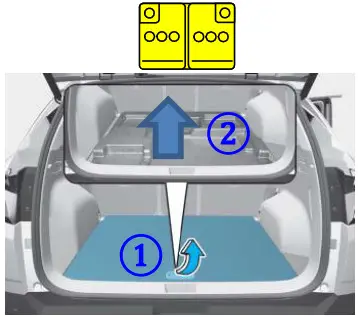

   ■ Access to the battery +
   Do one of the following
   1)Unlock all doors with the Door Unlock button on remote key or smart key, press the t/gate handle button and open the t/gate
   2) Press and hold the t/gate unlock button on the remote key or smart key, press the t/gate handle button and open the t/gate
   3) With the smart key in your possession, press the t/gate handle button and open the t/gate
   2. Raise luggage tray(2) after raising the luggage board (1)

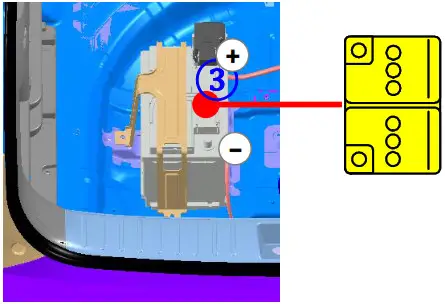

   3. Battery (3) in the rear floor panel.
   ■ Disabling procedure

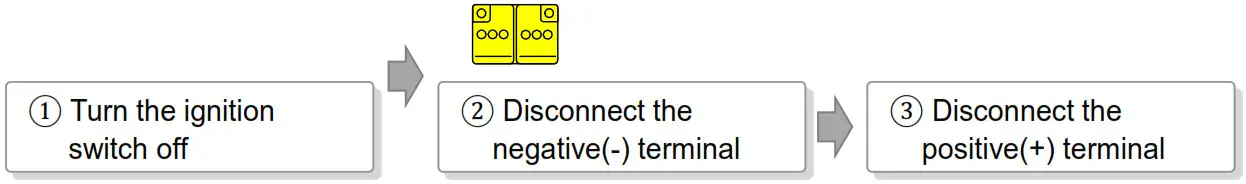

   – Low voltage battery
   – High voltage cable
   Pull the release lever to unlatch the hood. The hood should pop open slightly.
   Raise the hood slightly, push the secondary latch up (1) inside of the hood center and lift the hood (2)
   Turn the ignition switch OFF and disconnect the auxiliary 12V battery positive (+) connector (A).
   Disconnect the service interlock connector (A).

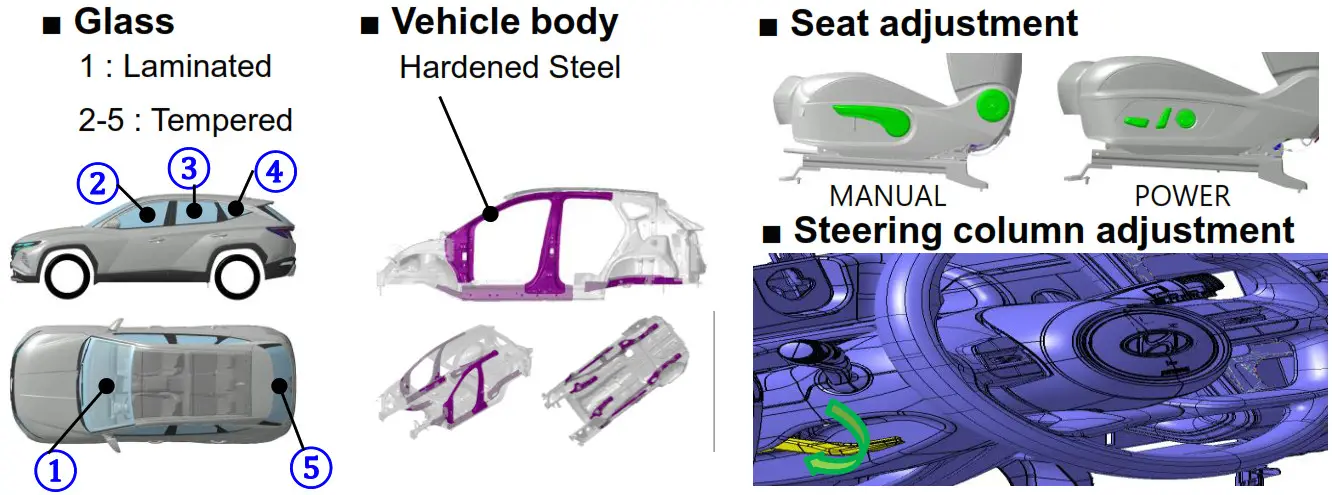

4. Access to the occupants


   ID No.	Version No.	Version date	Page
   TMA-NX4-RSP-01-202107	01	07/2021	3 of 4

5. Sored energy / liquids / gases / solids


   		max. 42L
   		12 V
   		360 V

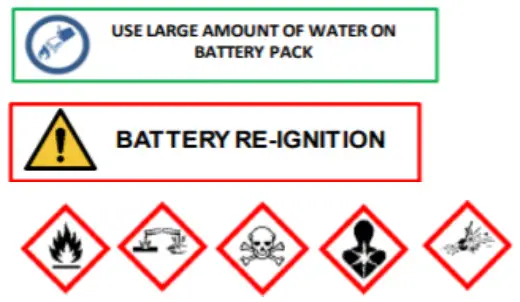

6. In case of fire Gas Strut
   Gas Strut

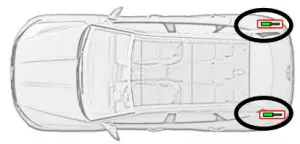

   • Risk of missile effect of t/gate

   It is recommended to allow the high voltage battery to burn itself out if it is judged that it is difficult to apply copious amounts of water to the high voltage battery.
   In this case, protection of the environment from smoke must be managed.
7. In case of fire
   Do not touch any of the high-voltage components or cables including the service plug, as doing so poses an electrocution hazard. Work on the vehicle only after the vehicle has been pulled out of the water.
8. Towing / transportation / storage

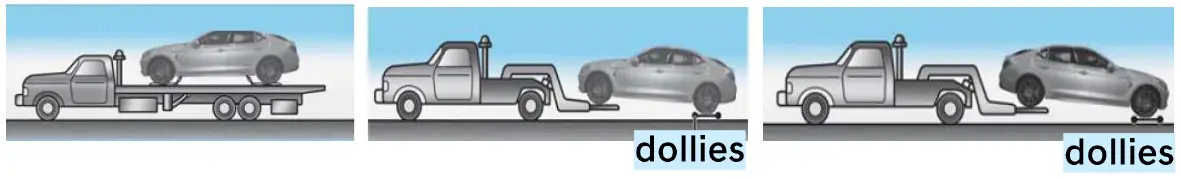

   OK : Notice: AWD (All Wheel Drive) vehicle must be towed with all wheels off the ground, either on a flatbed tow truck or using doilies.

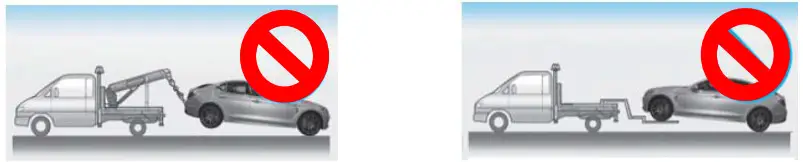

   Not OK :


   ID No.	Version No.	Version date	Page
   TMA-NX4-RSP-01-202107	01	07/2021	4 of 4

 ID No. TMA-NX4-RSP-01-202107

Version No. 01

Version date 07/2021
