INSTALLATION INSTRUCTIONS
Full Doors: for Can-Am Defender
Can-Am Defender Convertible Cab Enclosure Doors
- Make sure door handles are unlocked before installing.
- Do not discard packaging until product has been successfully installed.
- This item is not returnable if the protective film has been removed.
- Test fit to the cage to confirm fitment before removing film.

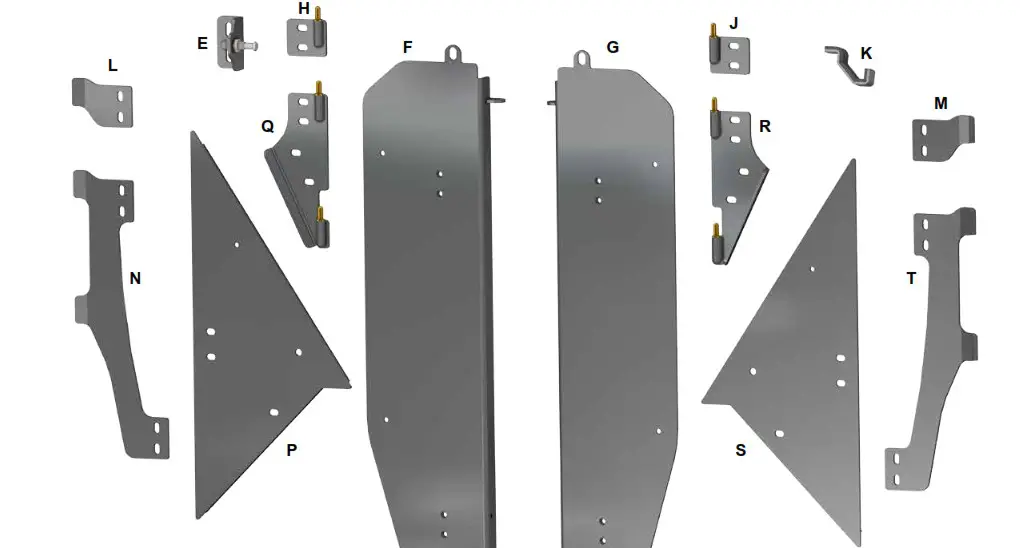

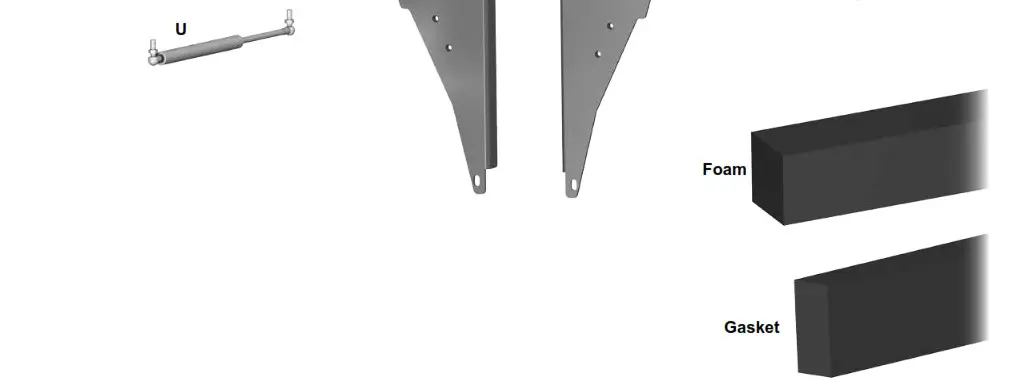

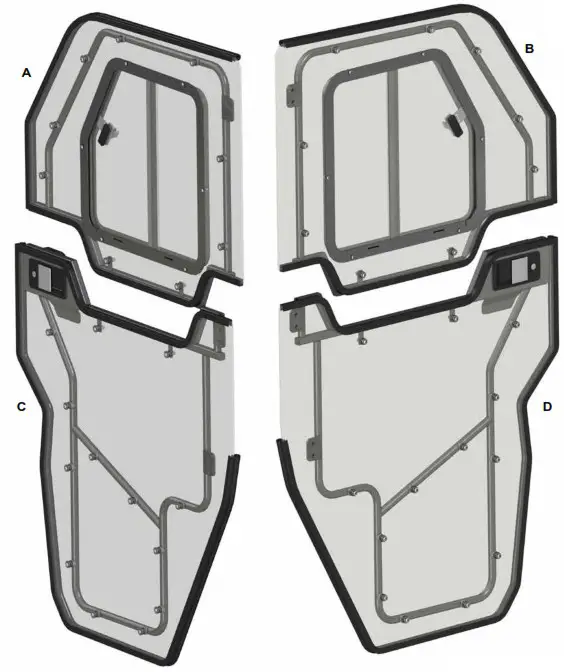

| Item | Description |
| A | Upper – D |
| B | Upper – P |
| C | Lower – D |
| D | Lower – P |
| Item | Description | M | Upper Hinge Bracket – D |
| E | Striker x 2 | N | Lower Hinge Bracket – P |
| F | Hinge Mount – P | P | Pillar Bracket – P |
| G | Hinge Mount – D | Q | Lower Hinge – P |
| H | Upper Hinge – P | R | Lower Hinge – D |
| J | Upper Hinge – D | S | Pillar Bracket – D |
| K | Clamp x 6 | T | Lower Hinge Bracket – D |
| L | Upper Hinge Bracket – P | U | Strut x 2 |

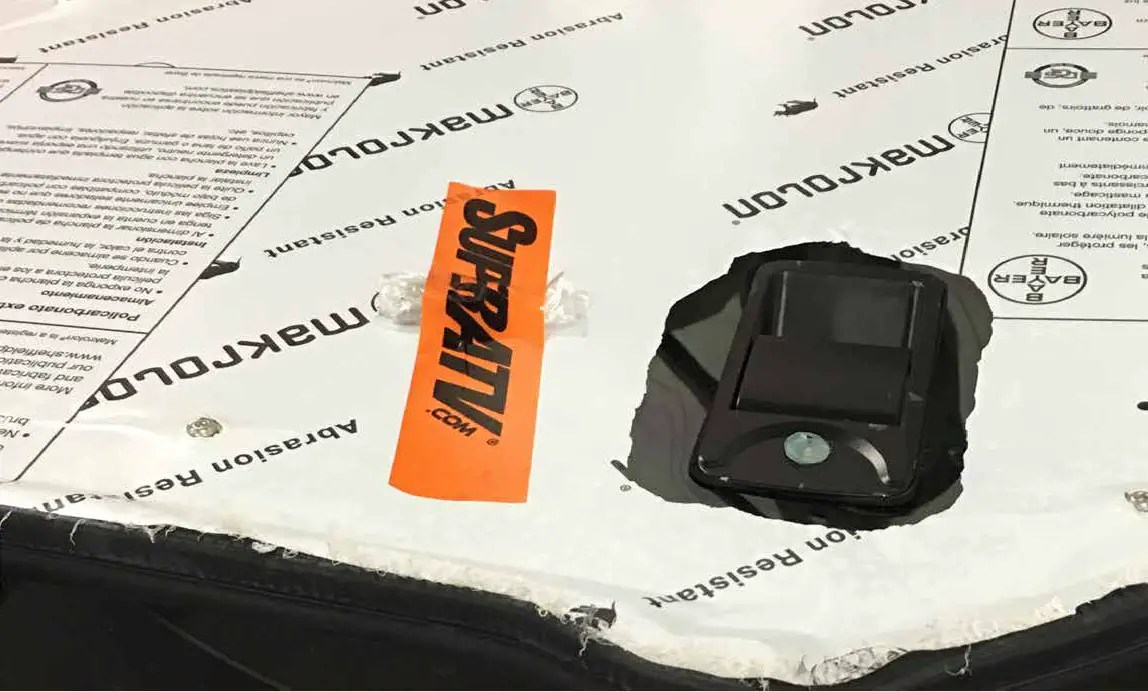

KEYS ARE LOCATED UNDER ORANGE TAPE. DO NOT DISCARD.
Door Cleaning:
- Do not use Rain-X®, Plexus ® or any other protector, wax, or polish.
- Do not use window cleaning fluids (Windex, 409, etc) or any solvents (gasoline, denatured alcohol, acetone, etc).
- Never use abrasive cleaners, abrasive pads, or gritty cloths.
- Never use razor blades, scrapers, squeegees, brushes, etc.
- Thoroughly rinse Doors to float off dirt and mud.
- Using a soft cloth, or microfiber cloth, clean Doors with warm water and a gentle detergent. Baby shampoo, rubbing alcohol, or hand washing soap can also be used.
- To prevent water spots, use a chamois to blot Doors dry.

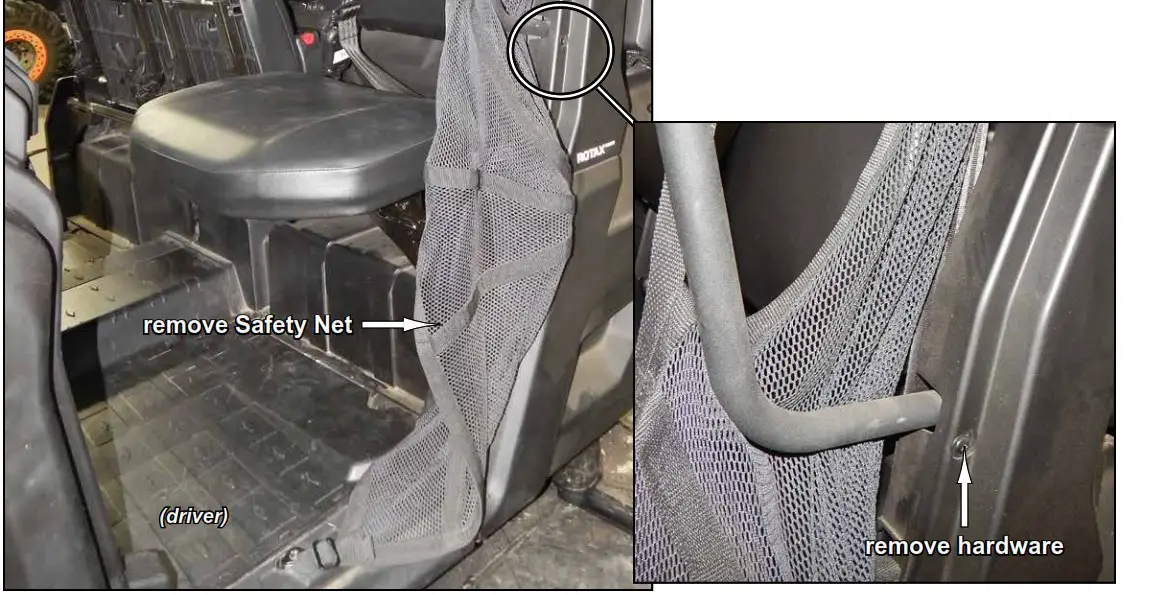

Removal: keep all components removed from machine.

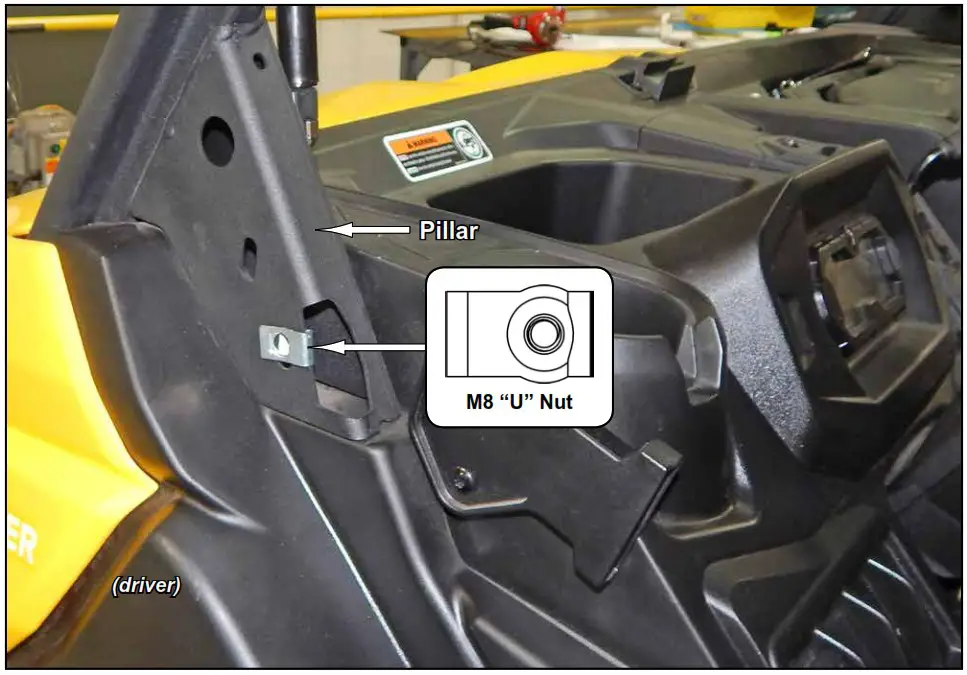

• Install provided “U” Nut to Pillar.
• Repeat for opposite side.
Do not tighten any hardware unless noted.
- Install Pillar Bracket – P (P) with hardware shown. Tighten hardware.

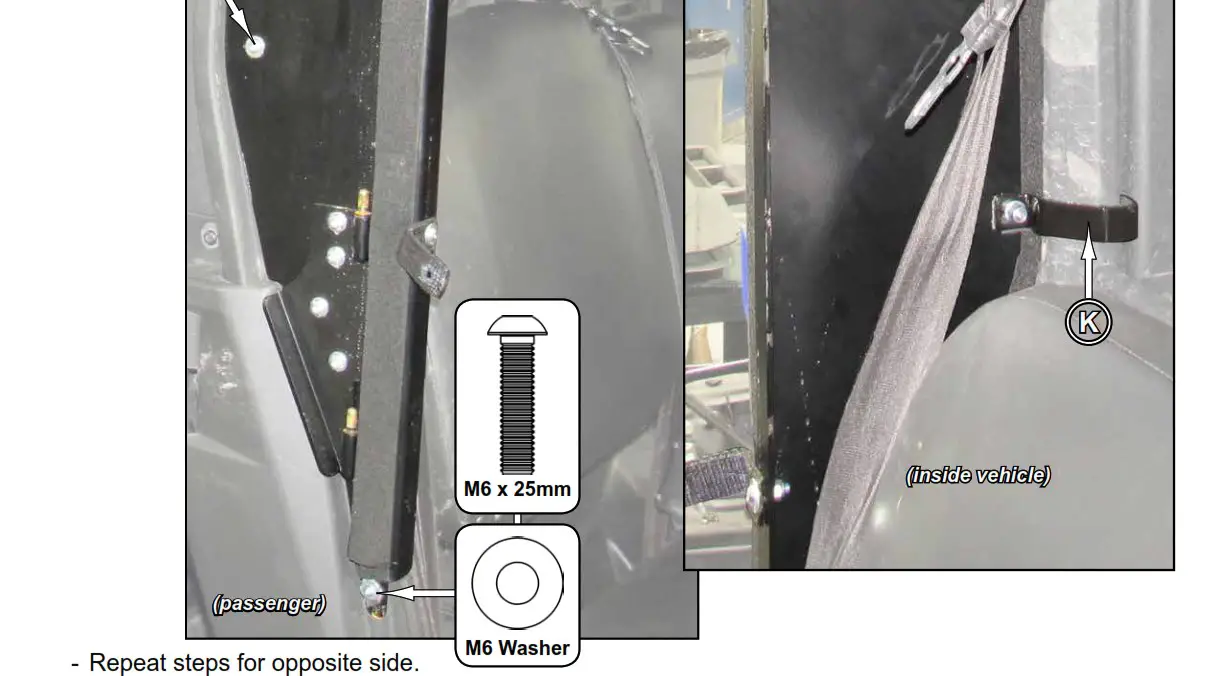

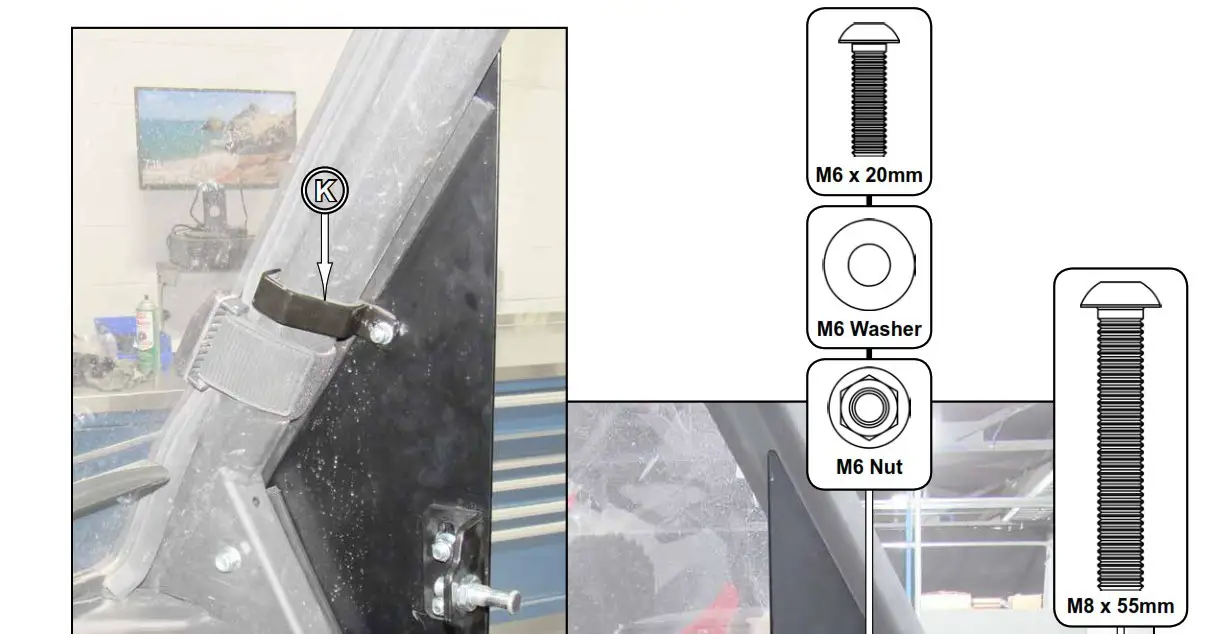

- Install Clamp (K) to Pillar Bracket – P (P) and Frame. Tighten hardware.

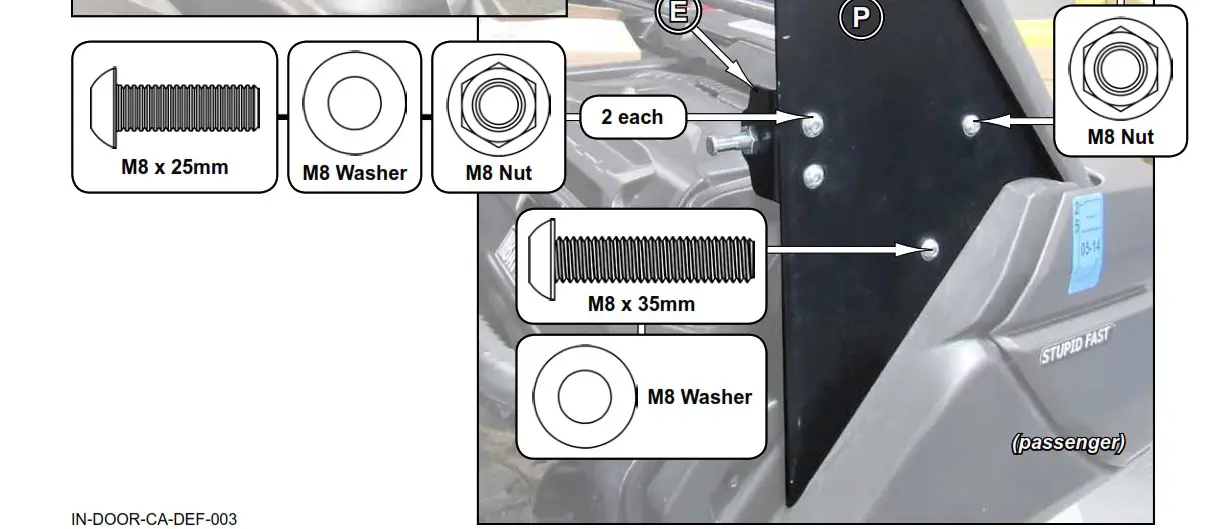

- Install Striker (E) to Pillar Bracket – P (P) with hardware shown.

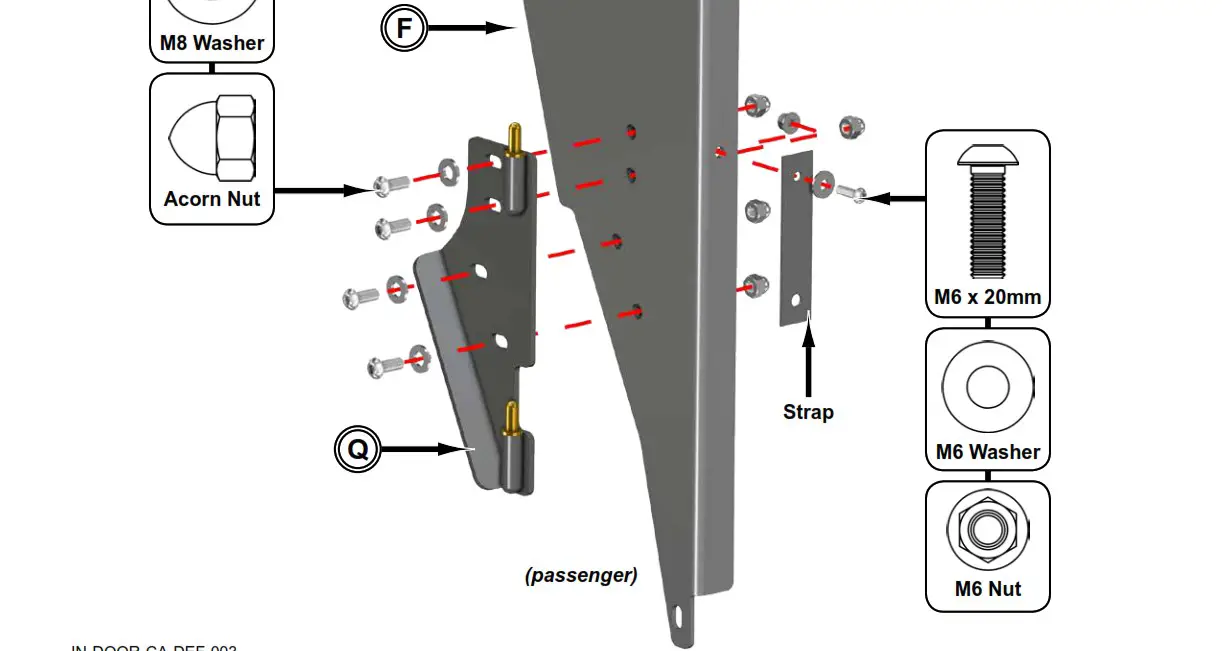

• Install Upper Hinge – P (H), Lower Hinge – P (Q), and Strap to Hinge Mount – P (F) with hardware shown.

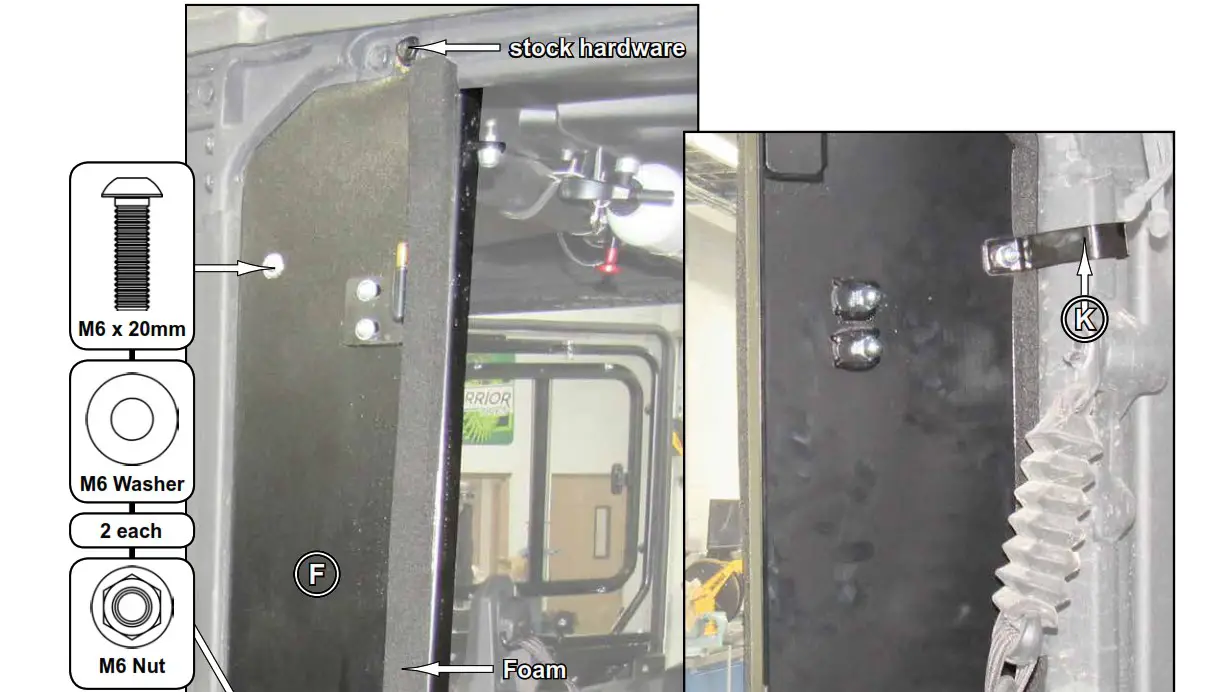

- Secure Hinge Mount – P (F) and Clamps – P (K) to machine with hardware shown.

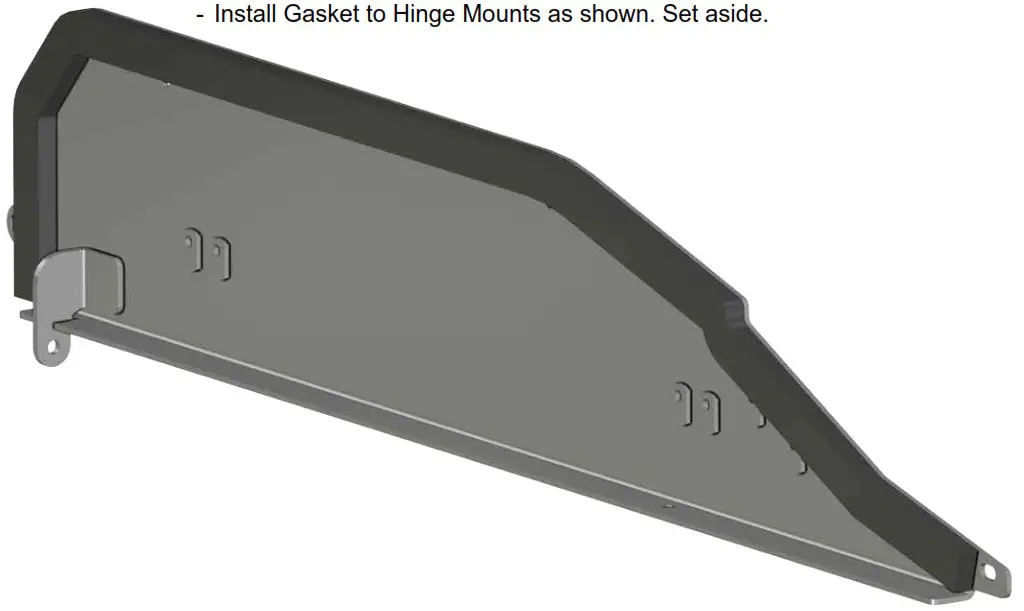

- Install Foam as shown.
- Repeat steps for opposite side.

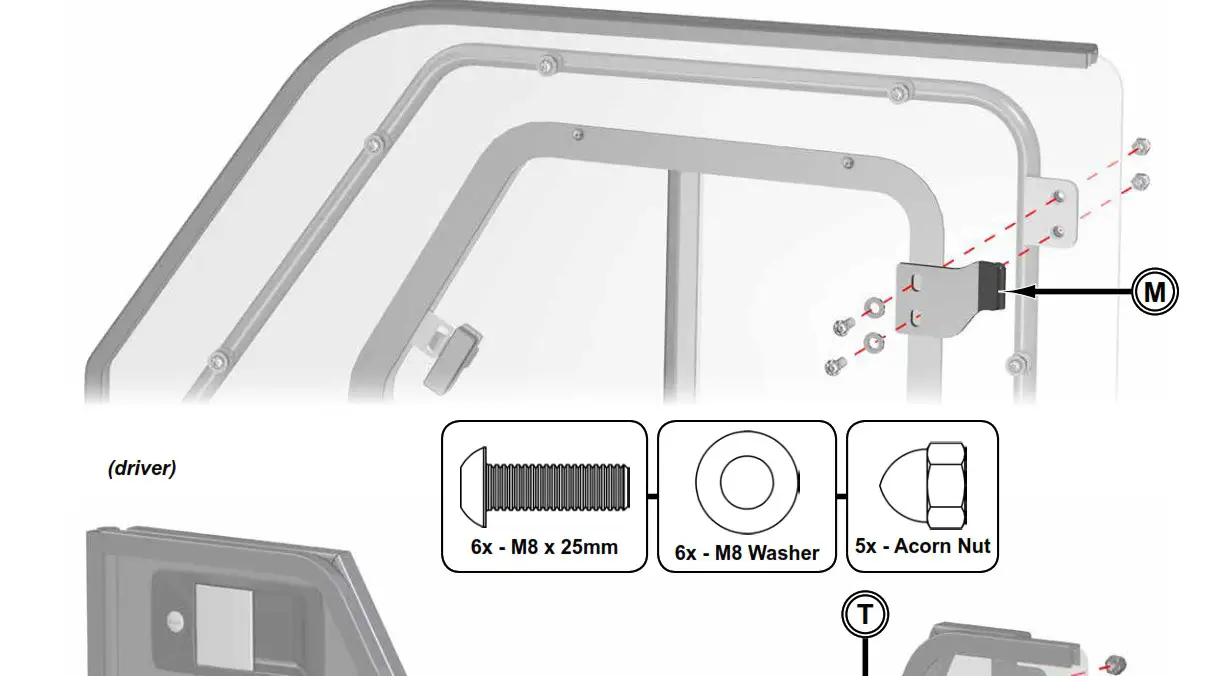

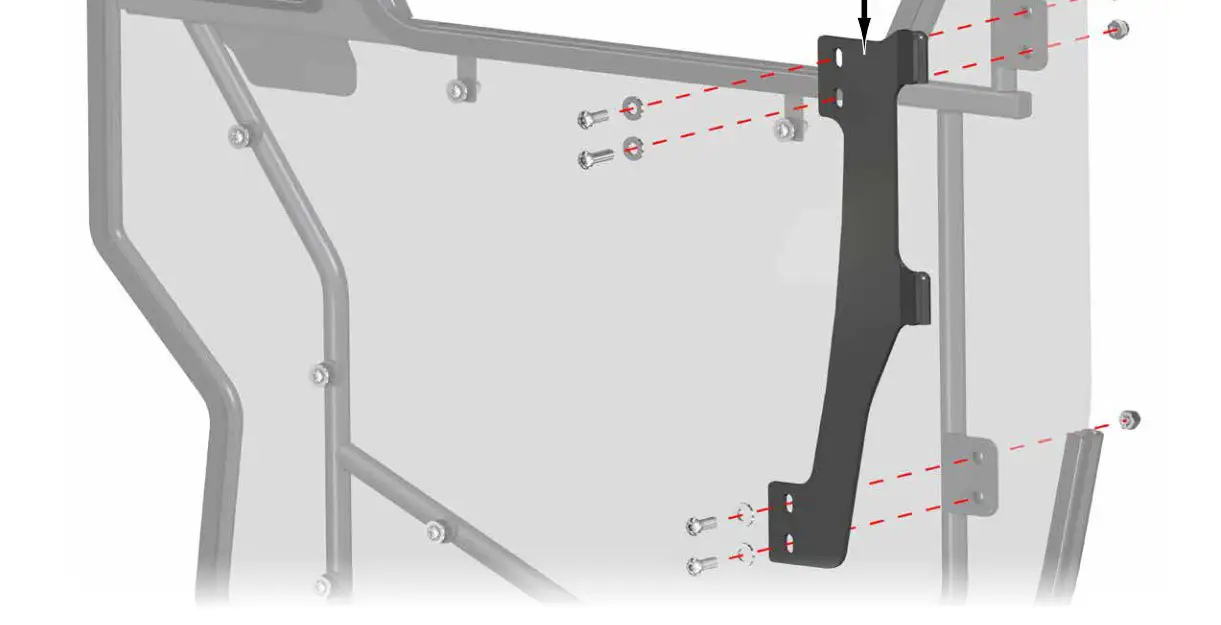

- Install Upper Hinge Mount – D (M) and Lower Hinge Mount – D (T) to Upper and Lower Doors with hardware shown.
- Repeat steps for opposite side.
- Place Lower Hinge Bracket – D (T), on Lower – D (C) onto Lower Hinge – D (R).

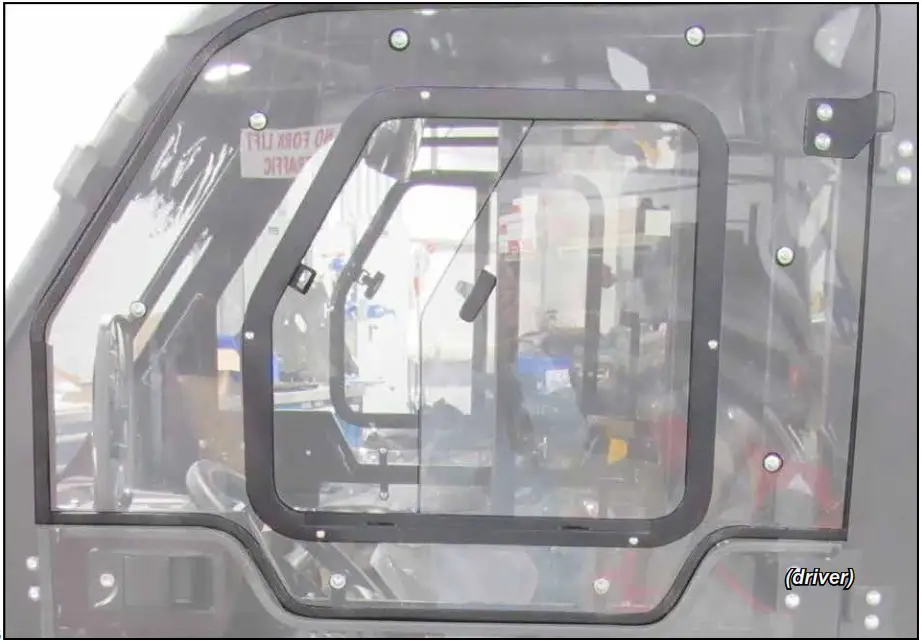

- Place Upper Hinge Bracket – D (M), on Upper – D (A) onto Upper Hinge – D (J).

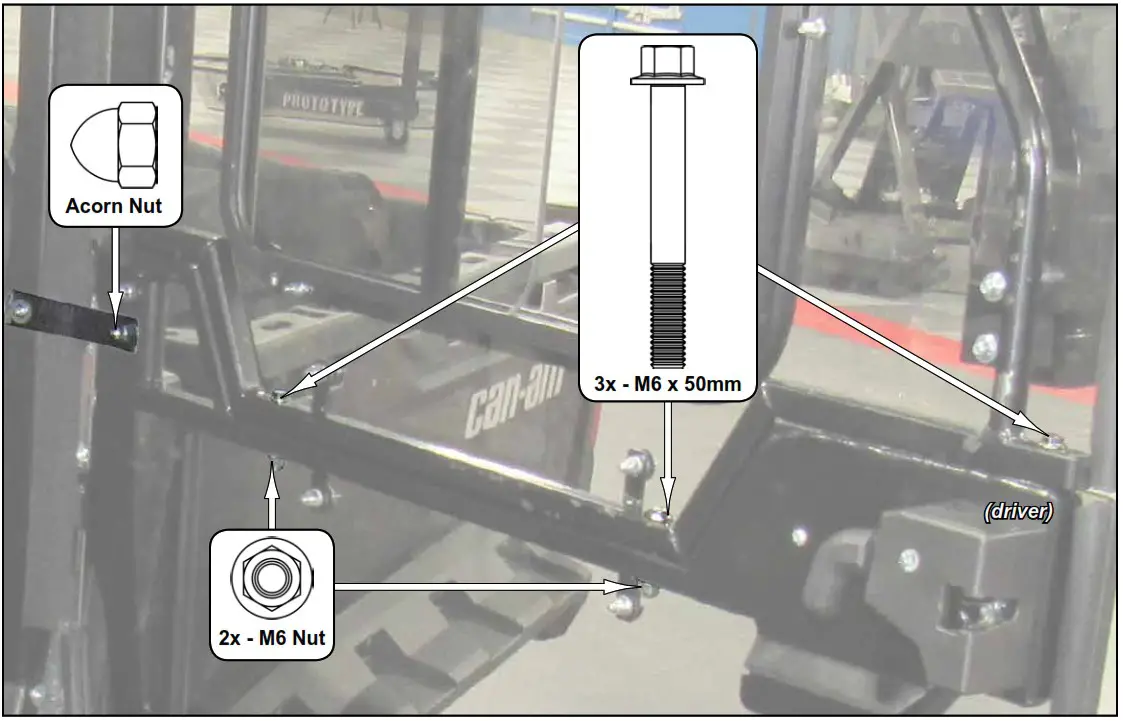

- Join Upper and Lower Doors with hardware shown; tighten hardware.
- Secure Strap to Lower – D (C).

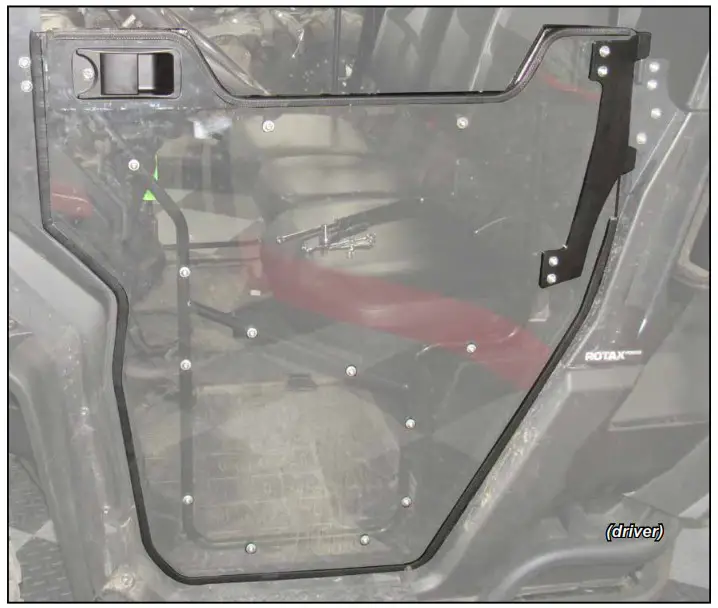

- Close Door, engage Latch / Striker Pin, and align Door to machine.
- Tighten all hardware.

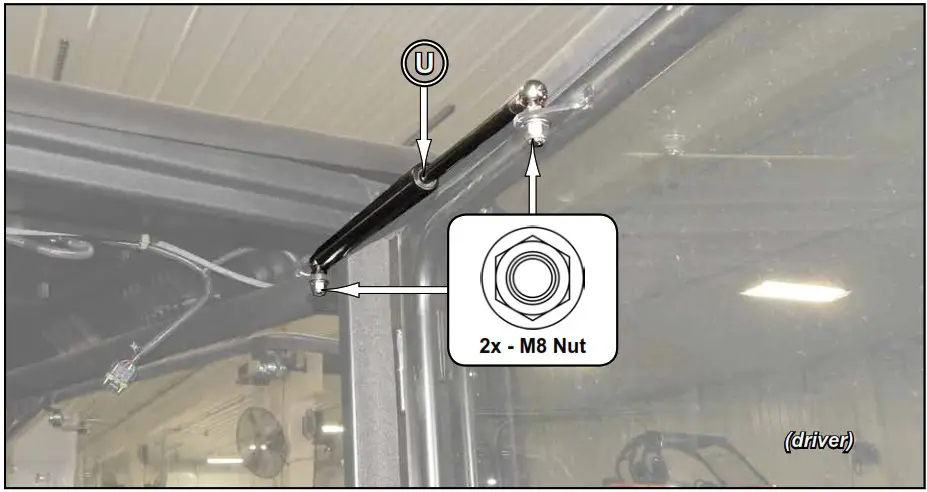

- Open Door and install Strut (U) to Upper and Hinge Mount.
- Secure with hardware shown; tighten hardware.

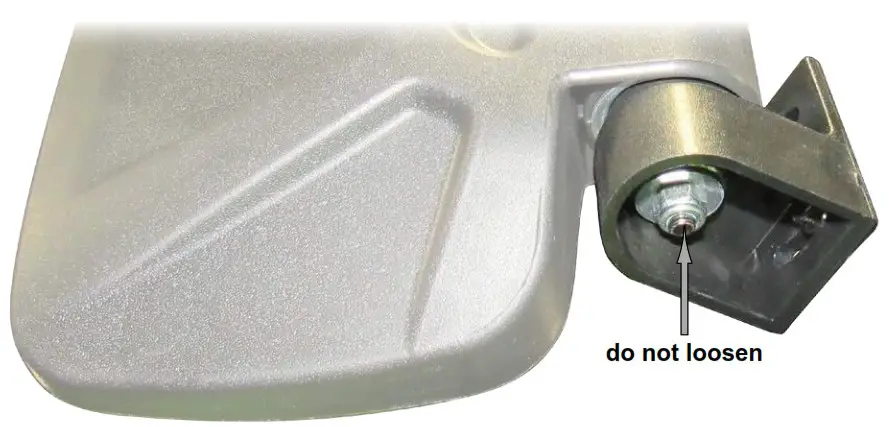

- Remove installed Mounts on Mirrors. Use 8mm wrench. Discard Mount and hardware.

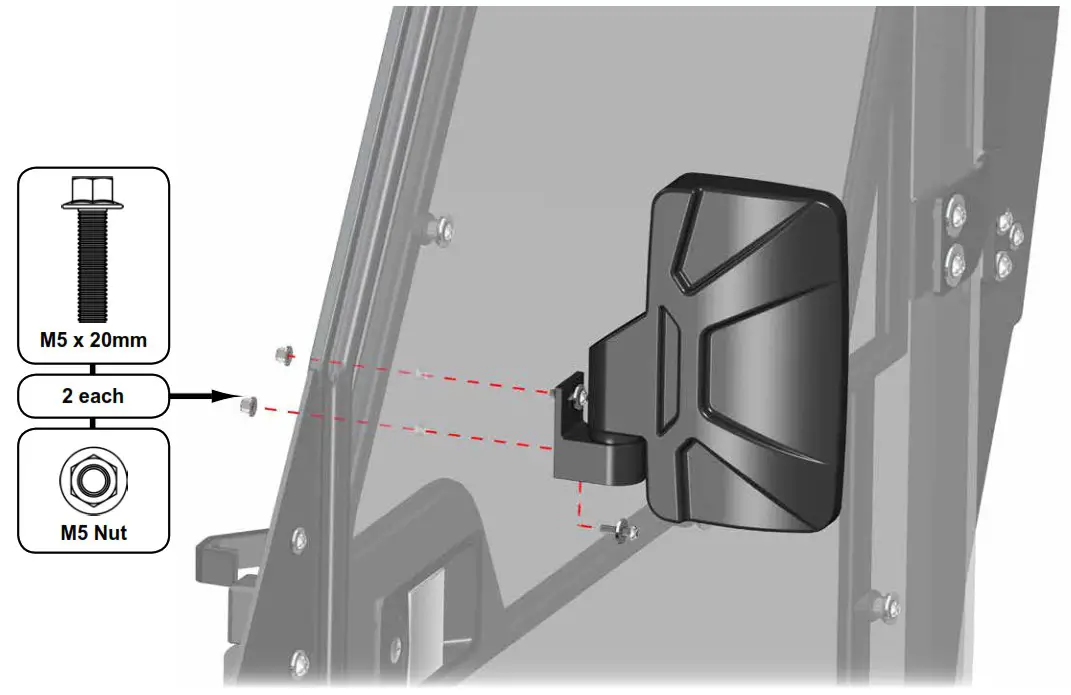

- Install Mirror to Door with hardware shown. Tighten hardware.
Need help with your installation?
 | [email protected] |  | www.superatv.com |
 | 1-855-743-3427 |  | 8:00am – 8:00pm EST M-Th 8:00am – 7:00pm EST Friday 9:00am – 2:00pm EST Saturday |
(kit contents continue on following page)
Read instructions and view illustrations before beginning.
